EPC Data

WIRING & CLAMP

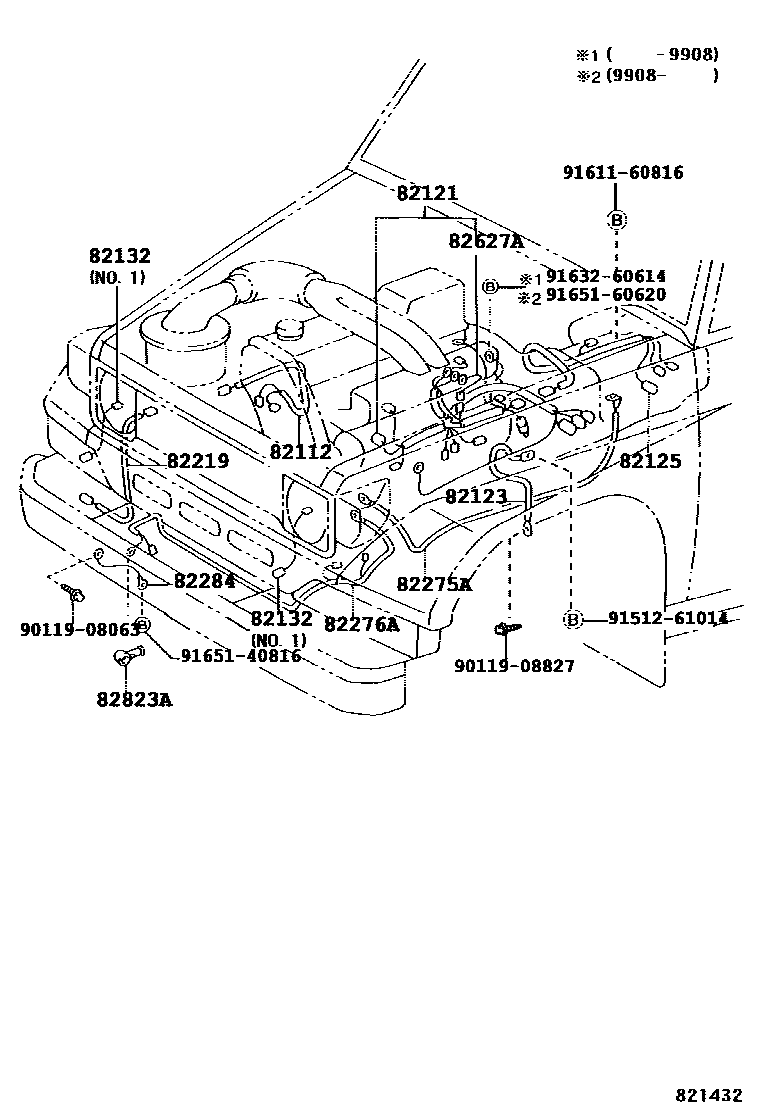

Parts diagram
82112WIRE, ENGINE ROOM, NO.2
main82112-60020i199001-199108
W(*FFA)
main82112-60020i199001-199108
FR DIFF LOCK MOTOR
main82112-60020i199001-199108
W(*FFA),FR DIFF LOCK MOTOR
main82112-60021i199108-199208
main82112-60021i199108-199208
W(*FFA)
main82112-60022i199208-200007
W(*FFA)
main82112-60022i199305-199908
main82112-60023i199908-200701
main82112-60040i199001-200701
W(AIR CONDITIONER)
main82112-90K01i199001-199108
main82112-90K02i199001-199208
W(ONE TOUCH 2-4 SELECTOR)
82121WIRE, ENGINE
main82121-60180i199001-199108
BANGLADESH SPEC
main82121-60181i199108-199208
BANGLADESH SPEC
main82121-60182i199208-199401
BANGLADESH SPEC
main82121-60200i199001-199108
main82121-60201i199108-199208
main82121-60202i199208-199305
main82121-60210i199004-199108
main82121-60211i199108-199208
main82121-60212i199208-199305
main82121-60213i199305-199604
main82121-60220i199001-199108
BANGLADESH SPEC
main82121-60221i199108-199208
main82121-60221i199108-199208
BANGLADESH SPEC
main82121-60222i199208-199608
BANGLADESH SPEC
main82121-60222i199305-199501
main82121-60223i199608-199805
BANGLADESH SPEC
main82121-60230i199001-199108
BANGLADESH SPEC & W(AIR CONDITIONER)
main82121-60231i199108-199208
main82121-60231i199108-199201
BANGLADESH SPEC & W(AIR CONDITIONER)
main82121-60232i199208-199608
main82121-60233i199608-199806
main82121-60260i199201-199208
main82121-60261i199208-199501
main82121-60262i199501-199908
main82121-60270i199201-199208
main82121-60271i199208-199911
main82121-60360i199208-199501
main82121-60361i199501-199908
main82121-60390i199305-199604
main82121-60800i199709-200405
main82121-6A121i200006-200408
MALAYSIA SPEC FOR CKD
main82121-6A130i199805-199911
main82121-6A130i199805-200007
BANGLADESH SPEC
main82121-6A131i200207-200701
PNG SPEC
main82121-6A131i199908-200701
main82121-6A260i199908-200701
main82121-6A270i199908-200701
main82121-6A281i200207-200701
main82121-6A281i200207-200308
CHINA SPEC
main82121-6A480i200108-200507
W(IMMOBILIZER)
main82121-6A480i200007-200108
SAUDI ARABIA SPEC
main82121-6A490i200104-200701
CKD VENEZUELA SPEC
main82121-6A490i200010-200207
CHINA SPEC
main82121-6A490i200108-200701
SAUDI ARABIA SPEC
main82121-6A490i200701-200808
main82121-6A490i200308-200701
GCC(EXCEPT SAUDI ARABIA) SPEC
main82139-60010i200108-200701
main82139-60020i200108-200507
SAUDI ARABIA SPEC & W(IMMOBILIZER)
main82139-60020i200308-200507
GCC(EXCEPT SAUDI ARABIA) SPEC & W(IMMOBILIZER)
main82139-60020i200507-200701
SAUDI ARABIA SPEC
main82139-60020i200507-200701
GCC(EXCEPT SAUDI ARABIA) SPEC
main82139-60110i200207-200701
PERU SPEC
main82139-60110i200207-200308
CHINA SPEC
main82139-60120i200207-200605
82123WIRE, ENGINE, NO.3
main82123-60110i199201-199305
sub82123-60111
main82123-60111i199711-200405
main82123-60112i199908-200808
main82123-60190i199305-199604
main82123-60230i199908-200701
main82123-90K05i199001-199604
main82123-90K07i199001-200007
main90980-07003i199001-199208
82125WIRE, TRANSMISSION
main82125-60100i199001-199108
main82125-60101i199108-199201
main82125-60110i199001-199108
main82125-60111i199108-199201
main82125-60120i199001-199108
main82125-60121i199108-199305
main82125-60122i199305-199604
main82125-60130i199001-199108
main82125-60131i199108-199208
main82125-60132i199208-199305
main82125-60133i199305-199501
main82125-60150i199001-199108
main82125-60151i199108-199201
main82125-60160i199001-199108
main82125-60161i199108-199208
main82125-60162i199208-200007
main82125-60163i199908-200701
main82125-60170i199001-199108
main82125-60171i199108-199208
main82125-60172i199208-200007
main82125-60173i199908-200209
sub82125-60174
main82125-60174i200209-200701
main82125-60210i199201-200405
main82125-60211i199908-200701
main82125-60220i199201-199908
W(ONE TOUCH2-4 SELECTOR)
main82125-60221i199908-200701
W(2-4 SELECTOR)
main82125-60230i199201-199208
main82125-60231i199208-200405
main82125-60232i199908-200808
main82125-60240i199201-199208
W(ONE TOUCH2-4 SELECTOR)
main82125-60241i199208-199908
W(ONE TOUCH2-4 SELECTOR)
main82125-60242i199908-200701
W(2-4 SELECTOR)
main82125-60250i199208-199305
W(MECHAICAL WINCH)
main82125-60250i199305-199908
W(MECHANICAL WINCH)
main82125-60260i199208-199908
W(ELECTRIC WINCH)
main82125-60490i199908-200701
BANGLADESH SPEC
main82125-60500i199908-200701
BANGLADESH SPEC
main82125-60530i200108-200701
main82125-60540i200108-200701
W(2-4 SELECTOR)
82132WIRE, COWL, NO.2
main82132-60011i200006-200701
main82132-60011i200006-200308
NO.2
main82132-60020i200308-200701
NO.3
main82132-60020i200308-200507
main82132-60030i199001-199208
NO.1
main82132-60031i199208-199604
NO.1
main82132-60040i199001-199208
NO.1
main82132-60041i199208-200701
NO.1
main82132-60050i199001-199208
W(WINCH),NO.1
main82132-60051i199208-200701
W(WINCH),NO.1
82219WIRE, THERMO SENSOR
main82219-90K00i199001-199908
main82219-90K01i199001-199908
W(WINCH)
main82219-90K01i199305-199908
82275ACABLE, BATTERY TO MAGNET SWITCH
main82275-60030i199001-199108
main82275-60031i199108-200701
main82275-90K01i199001-200701
main82275-90K02i199001-200701
82276ACABLE, MAGNET SWITCH TO WINCH
main82276-60030i199001-199604
main82276-60040i199001-200701
82284WIRE, EARTH
main82284-60030i199001-199604
main82284-60040i199001-200701
82627AWIRE, FUSIBLE LINK
main82627-60010i199208-200405
TYPE C:REFER TO ILLUSTRATION
main82627-60020i199208-200701
TYPE A:REFER TO ILLUSTRATION
main82627-60040i199208-199604
TYPE E:REFER TO ILLUSTRATION
main82627-60070i199208-200007
TYPE B:REFER TO ILLUSTRATION
main82627-60100i200108-200701
TYPE B:REFER TO ILLUSTRATION
main82627-60110i200108-200701
TYPE D:REFER TO ILLUSTRATION
main90982-08115i199706-200611
FOR PAKISTAN GOVERNMENT
main90982-08206i199001-199208
GLOW RESISTER
main90982-08231i199001-199208
main90982-08232i199001-199108
BATTERY
main90982-08235i199001-199208
ALTERNATOR=12V 65A
main90982-08236i199001-199208
main90982-08261i199001-199208
L=110
82823ACAP, TERMINAL, NO.2
main82823-90300i199001-200701
9011908063
main90119-08063
9011908827
main90119-08827
9151261014
main91512-61014
9161160816
main91611-60816
9163260614
main91632-60614
9165140816
main91651-40816
9165160620
main91651-60620

18 parts on this diagram · 18 diagrams in section
