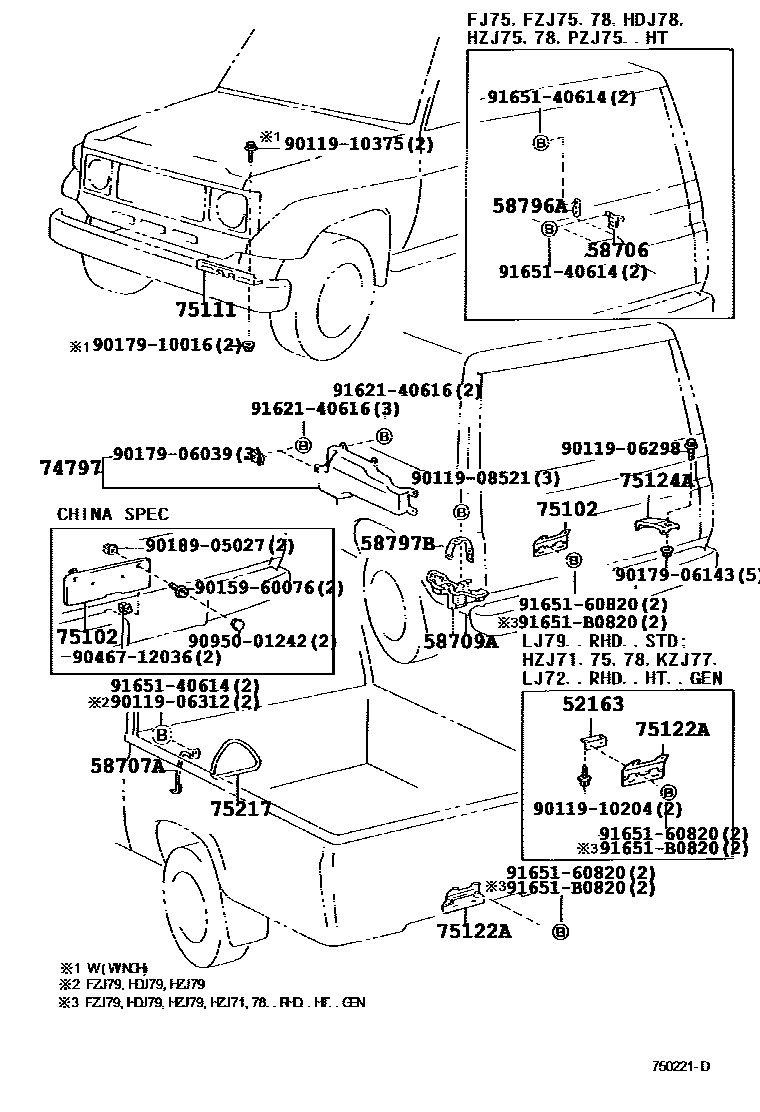

TOOL BOX & LICENSE PLATE BRACKET

52163BRACKET, REAR LICENSE LAMP

main52163-60070iHZJ71,78,LJ72,79,PZJ75..RHD..HT..GEN¥1,950199001-200701

58706BRACKET SUB-ASSY, JACK HANDLE

main58706-90K00iHZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT¥1,000199001-200808

58707AHOLDER SUB-ASSY, JACK

main58707-60010iFZJ79,HZJ79¥1,020199908-200008

main58707-60020iFZJ79..GEN..IV¥700200008-200808

main58707-90K01iFZJ75..GEN..IV..EFI¥1,200199001-200405

58709ACARRIER SUB-ASSY, JACK

main58709-60010iHZJ78..LX¥3,050199404-200808

main58709-90K01iPZJ70,73;RJ70..SOT¥4,850199001-199404

sub58709-60010¥3,050

main58709-90K02iPZJ75..HT¥4,850199001-199404

sub58709-60010¥3,050

58796AHOOK, JACK CLAMP

main58796-90K00iFZJ75,HZJ75..HT¥450199001-200808

58797BBAND, JACK CLAMP

main58797-90K02iHZJ70..SOT¥740199001-200808

74797BOX, WARNING REFLECTOR

main74797-90K00iFZJ73¥7,800199001-200701

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-60080iFZJ71,HZJ78..LHD..STD..GEN¥4,090199710-200308

CHINA SPEC

main75102-60090iFZJ70..SOT¥3,720199001-200701

75111BRACKET, FRONT LICENSE PLATE

main75111-60050iRJ77..GEN;LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ70..GCC,GEN¥2,950199001-200701

main75111-60100iLJ79..STD;KZJ7#,LJ72;RJ77..LX..GEN;LJ79,RJ70..LHD..LX¥2,100199305-199604

W(ELECTRIC WINCH)

75122ABRACKET, REAR LICENSE PLATE, NO.2

main75122-60060iLJ79..RHD..STD;KZJ77,LJ72..RHD¥2,560199001-199908

MOZAMBIQUE SPEC

main75122-60060iFZJ75..PIC..CBR;HZJ75..LHD..PIC..CBU;HZJ71,78..RHD..HT..GEN;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ75,FZJ79,HDJ79,HJ75,HZJ79,PZJ75..PIC¥2,560199001-200808

75124ABRACKET, REAR LICENSE

main75124-60010iFZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD)¥510199001-200701

75217BAND, TOOL BAG

main75217-90300iFZJ75..PIC..CBR;HZJ75..LHD..PIC..CBU;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ75,FZJ79,HDJ79,HJ75,HZJ79,PZJ75..PIC¥670199001-200808

9011906298

main90119-06298¥70

9011906312

main90119-06312¥70

9011908521

main90119-08521¥90

9011910204

main90119-10204¥190

9011910375

main90119-10375¥200

9015960076

main90159-60076¥220

9017906039

main90179-06039¥260

9017906143

main90179-06143¥80

9017910016

main90179-10016¥130

9018905027

main90189-05027¥70

9046712036

main90467-12036¥190

9095001242

main90950-01242¥230

9162140616

main91621-40616¥80

9165140614

main91651-40614¥160

9165160820

main91651-60820¥130

91651B0820

main91651-B0820¥160

28 parts on this diagram · 1 diagram in section
