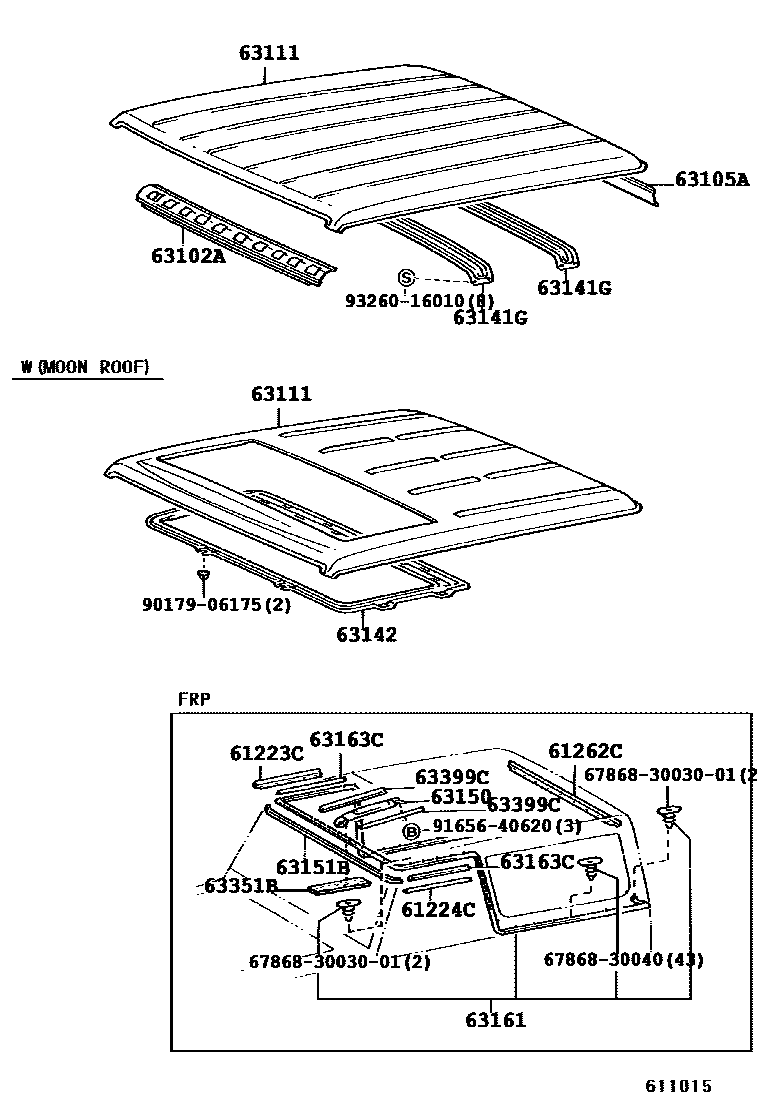

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

61223CCHANNEL, ROOF DRIP SIDE, RH

main61223-60010iHZJ79..ARL..CBU199908-200808

main61223-90K00iFZJ75..GEN..IV..EFI199001-200405

main61223-90K01iFZJ73..LX199001-200701

61224CCHANNEL, ROOF DRIP SIDE, LH

main61224-60010iFZJ79..GEN..IV199908-200808

main61224-90K00iFZJ75,PZJ75..RHD..GEN..IV199001-200405

main61224-90K01iFZJ73..LX199001-200701

61262CCHANNEL, ROOF DRIP, REAR

main61262-60050iFZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV199908-200808

main61262-90K01iPZJ75..PIC..4F199001-200405

main61262-90K02iFZJ73..LX199001-200701

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-90K02iFZJ70,75..CBU199001-200808

sub63102-60160

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60110iKZJ77,LJ79,RJ77199004-199604

main63105-60200iFZJ71..LHD..GEN199908-200808

main63105-60210iHZJ78..LX199908-200808

sub63105-60211

sub90333-20001

main63105-90K05iPZJ75..HT199001-199908

main63105-90K06iFJ75,HZJ75..HT..(GCC,GEN)199001-199201

W(DUAL *AIC)

main63105-90K08iFZJ70,HZJ70..ARL199001-200106

63111PANEL, ROOF

main63111-60140iFZJ70,HZJ70..HT..GEN199208-200701

W(*HSL)

main63111-60140iFZJ71..GCC200507-200701

main63111-60150iFZJ75,HZJ75,PZJ75..HT..STD..(ARL,GEN)199208-199501

W(*HSL)

sub63111-60151

main63111-60151iFZJ75..LHD..HT..GEN199501-199908

W(AIR CLEANER & *HSL)

main63111-60151iFZJ78..GEN;HZJ78..STD199501-200701

W(*HSL)

main63111-60151iHZJ75..HT..GEN;FZJ75..RHD..HT..CBR199401-199501

W(ROOF RACK & *HSL)

main63111-60151iHDJ78200108-200701

W(HIGH MOUNT STOP LAMP)

main63111-60160iKZJ77,LJ79,RJ77199004-199604

main63111-60161iLJ79..STD;KZJ77,RJ77;LJ79..LHD..LX199208-199604

W(*HSL)

main63111-60240iFZJ71..LX199208-200605

W(*SNR & *HSL)

main63111-60290iFZJ78..ARL199908-200808

main63111-60290iFZJ75,HZJ75..LHD..HT..GEN199501-199908

CHINA SPEC & W(AIR CLENER)

main63111-60290iFZJ75,HZJ75..HT..(GCC,GEN)199401-199501

W(ROOF RACK)

main63111-60470iFZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV199908-200808

main63111-90K00iHZJ71..HT;FZJ71..RHD199001-200808

main63111-90K01iFJ75,FZJ75,HZJ75,PZJ75..HT..STD199001-199501

sub63111-60290

main63111-90K02iFZJ75,PZJ75..RHD..GEN..IV199001-200405

main63111-90K03iKZJ70,RJ70..LX199001-200605

W(*SNR)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60020iKZJ77,LJ79,RJ77199004-199604

main63141-60030iLJ77,79,RJ77..LX199004-199604

W(*MR)

main63141-60070iFZJ79..GEN..IV199908-200808

main63141-90K00iFZJ70..GEN..EFI199001-200808

sub63141-60120

main63141-90K02iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75..PIC..(GCC,GEN)..CBU;FZJ75,HZJ75..PIC..(ARL,GCC)..(DSL,EFI)199001-200405

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30010iFZJ71..LX199001-200605

main63142-90K00iHZJ75..RHD..PIC..GEN..CBU199001-200405

63150REINFORCEMENT ASSY, ROOF PANEL

main63150-90K00iPZJ73..ARL199001-199108

63151BSEAL, ROOF PANEL REINFORCEMENT

main63151-90K00iFJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC199001-200405

main63151-90K02iFJ73,FZJ73,HZJ73,PZJ73..LX199001-200701

63161WEATHERSTRIP, ROOF

main63161-90K00iFZJ75,HZJ75..SA199001-200405

main63161-90K01iFZJ74..LX199001-200701

63163CSEAL, ROOF PANEL REINFORCEMENT, SIDE

main63163-90K00iFZJ75,PZJ75..RHD..GEN..IV199001-200405

main63163-90K01iFZJ74..LX199001-200701

63351BPAD, ROOF HEADLINING

main63351-90K00iPZJ73..ARL199001-199108

63399CCLIP, ROOF HEADLINING

main63399-90K00iPZJ73..ARL199001-199108

678683003001CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-3003001

6786830040CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30040

9017906175

main90179-06175

9165640620

main91656-40620

9326016010

main93260-16010

19 parts on this diagram · 12 diagrams in section
