SIDE MEMBER
5752
58169ERETAINER, REAR HEATER MOUNTING
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
W(*PW & *EL)
W(*STAC)
W(*STAC)
W(*STAC)
W(*STAC)
W(*STAC)
W(*STAC)
W(*STAC)
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61065HOUSING SUB-ASSY, QUARTER PANEL END, RH
61071BPANEL SUB-ASSY, ROOF SIDE, INNER REAR RH
FOR PAKISTAN GOVERNMENT
61101PANEL SUB-ASSY, COWL SIDE, RH
W(*DL)
(COLD AREA SPEC & W(HEATER) OR W(HEATER)
main61101-90K16iFZJ75..IV..EFI;FZJ75..RHD..STD..(ARL,GEN)..CBU;FZJ70,HZJ75..RHD..STD..(ARL,GEN)..(CBR,DSL)199401-199604
W(*STAC & RADIO)
main61101-90K17iFZJ75..IV..EFI;HZJ75..RHD..STD..(ARL,GEN);FZJ75..RHD..STD..(ARL,GEN)..CBU;FZJ70,HZJ70,LJ7#,RJ77..RHD..STD..GEN199401-199604
W(RADIO)
61197ACOVER, FRONT PILLAR, RH
W(*AIC)
61233ARAIL, ROOF SIDE, INNER NO.2 RH
main61233-90K00iFZJ74;HZJ75..LHD..PIC..CBU;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ70,75,FZJ70,75,HJ75,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(CBR,DSL)199001-199305
61239RETAINER, ROOF SIDE RAIL OUTER, RH
main61239-90K00iFZJ74;HZJ75..LHD..PIC..CBU;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ70,75,FZJ70,75,HJ75,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(CBR,DSL)199001-199305
61241AGUSSET, ROOF SIDE RAIL, REAR RH
main61241-90K00iFZJ74;HZJ75..LHD..PIC..CBU;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FJ70,75,FZJ70,75,HJ75,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(CBR,DSL)199001-199305
61243BPLATE, FRONT BODY PILLAR END, RH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61388APLATE, CENTER BODY PILLAR END, RH
61411PANEL, ROCKER, OUTER RH
main61401-90K01iFZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,HDJ78,HJ75,PZJ75199001-199305
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61567PLATE, QUARTER PANEL END, RH
61611PANEL, QUARTER, RH
W(OVER FENDER)
sub60161-60223
W(OVER FENDER)
sub60161-60331
main60161-60350iFZJ70..HT..CBR;FZJ70,HZJ70..ARL;FJ70,FZJ71,HZJ71,LJ70,72,PZJ70,RJ70..HT199011-199305
W(OVER FENDER)
sub60161-60351
W(OVER FENDER)
W(OVER FENDER)
W(FUEL SUB TANK)
W(FUEL SUB TANK)
W(FUEL LID OPENER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(FUEL SUB TANK)
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(FRONT SEAT BELT = *ELR & *RW)
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61659BRETAINER, REAR DOOR OPEN SWITCH SET, RH
main61659-60010iFZJ74;FZJ70..HT..CBR;FZJ70,HZJ70..ARL;FJ73,FZJ73,HZJ71,PZJ73..CBR,DSL;FJ70,FZJ71,78,HZJ73,78,LJ70,72,PZJ70,RJ70..HT199001-200009
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
W(3RD *FFRS)
W(3RD PARALLEL SEAT)
W(3RD *FFRS)
W(3RD *FFRS)
W(PARALLEL SEAT)
W(PARALLEL SEAT)
W(*HSL)
W(FRONT SEAT BELT = *ELR) & VENEZUELA SPEC
W(FRONT SEAT BELT = *ELR & FRONT BENCH SEAT) & VENEZUELA SPEC
W(FRONT SEAT BELT = *ELR & FRONT BENCH SEAT) & VENEZUELA SPEC
W(FRONT BENCH SEAT) & VENEZUELA SPEC
W(FRONT BENCH SEAT) & VENEZUELA SPEC
W/O(REAR SEAT)
W(*FFRS)
W(*FFRS & SEAT BELT)
W(3 POINT REAR SEAT BELT)
W(3 POINT REAR SEAT BELT)
W(PARALLEL SEAT)
W/O(REAR SEAT)
W/O(REAR SEAT)
W(TRANSVERSE REAR SEAT)
W(REAR WIPER)
W/O(REAR SEAT) & SAUDI ARABIA SPEC
W(*FFRS)
W/O REAR SEAT
W(*FFRS)
W(*FFRS & SEAT BELT)
W(DUAL *AIC)
VENEZUELA SPEC
W(FRONT SEAT BELT = *ELR) & ZIMBABWE SPEC
W(*RW)
W(PARALLEL SEAT)
W(FRONT SEPARATE SEAT)
W(*FFRS)
61725BOX, FUEL INLET
REAR
FR
BANGLADESH SPEC
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
NEW ZEALAND SPEC
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61881SEAL, ROOF SIDE RAIL, FRONT RH
61883SEAL, ROOF SIDE RAIL, REAR RH
61958BRACKET, REAR SEAT LEG, NO.1 RH
64198BBRACKET, LOWER BACK RAIL, INNER SIDE RH
7751
9011906405
main90119-06405
9011906588
main90119-06588
9011906605
main90119-06605
904670604908
main90467-0604908
904670604922
main90467-0604922
9046710016B4
main90467-10016B4
9095001027
main90950-01027
909500132401
main90950-0132401
9095001824
main90950-01824
9095001889
main90950-01889
9095006060
main90950-06060
9418560800
main94185-60800

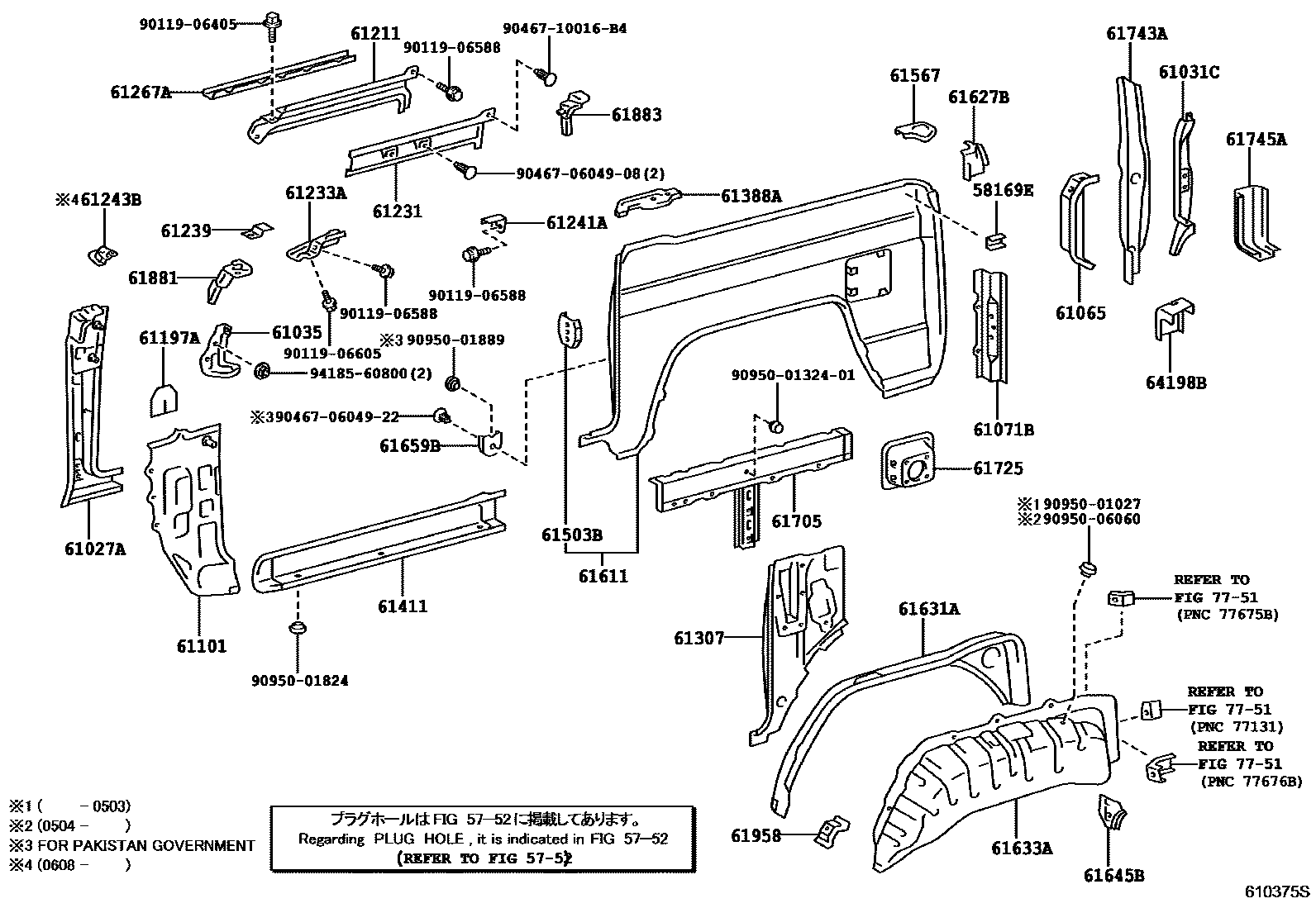

48 parts on this diagram · 22 diagrams in section
