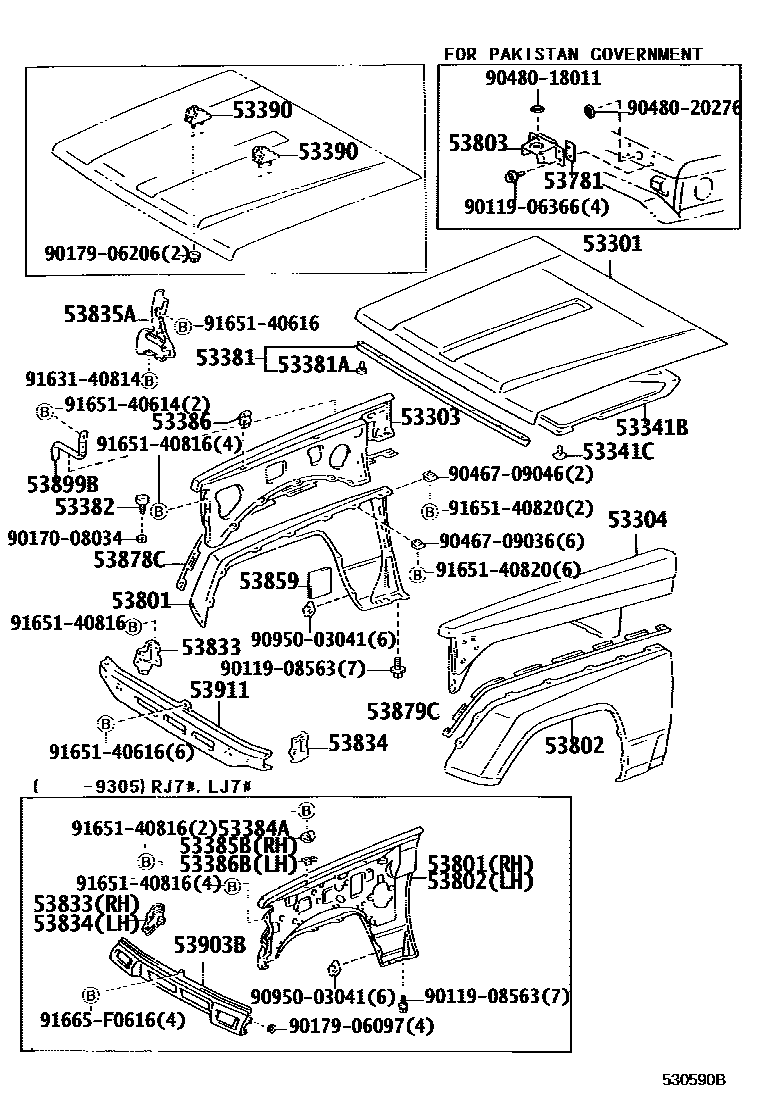

HOOD & FRONT FENDER

0001 1 0003 1 0004 1

53301HOOD SUB-ASSY

main53301-60080iFZJ7#..(HT,SOT)..GCC199103-199401

W(HOOD EMBLEM)

sub53301-60081

sub85381-12050

main53301-60080iFZJ7#,HZJ75,PZJ7#..GEN199001-199401

W(WINDSHIELD REST CRADLE)

sub53301-60081

sub85381-12050

main53301-60081iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199401-200108

W(HOOD EMBLEM)

main53301-60081iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ70,75,HZJ70..(HT,PIC)..GEN..CBU;FZJ73,HZJ75..(HT,SOT)..GEN..(CBR,DSL)199401-199908

W(WINDSHIELD REST CRADLE)

main53301-60090iFJ73,FZJ73..GCC199001-199401

W(SASH DETACHABLE DOOR)

sub53301-60091

sub85381-12050

main53301-60090iFJ73,FZJ73..GEN;FJ70,75,FZJ70,75,HZJ75,PZJ7#..(PIC,SOT)..GEN199103-199401

W(HOOD EMBLEM & DOOR SASH DETACHABLE TYPE)

sub53301-60091

sub85381-12050

main53301-60090iFZJ75,HZJ75..PIC..GCC199001-199401

W(WINDSHIELD REST CRADLE)

sub53301-60091

sub85381-12050

main53301-60091iFZJ74,HZJ71..SOT199401-200108

W(HOOD EMBLEM & DOOR SASH DETACHABLE TYPE)

main53301-60091iFZJ73..STD..GCC199401-199908

W(SASH DETACHABLE DOOR)

main53301-60091iFZJ75,HZJ75..PIC..GCC199401-199908

W(WINDSHIELD REST CRADLE)

main53301-60100iRJ77..GCC199004-199305

W(WINDSHIELD REST CRADLE)

sub53301-60101

sub85381-12050

main53301-60100iLJ7#,RJ7#..GEN199103-199305

W(HOOD EMBLEM)

sub53301-60101

sub85381-12050

main53301-60101iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT..GEN199305-199604

W(HOOD EMBLEM)

main53301-60101iRJ77..GCC199305-199604

W(WINDSHIELD REST CRADLE)

main53301-60110iLJ7#,RJ7#..ARL,GEN199001-199305

W(WINDSHIELD REST CRADLE)

sub53301-60111

sub85381-12050

main53301-60111iRJ70..SOT199305-199401

W(SASH DETACHABLE DOOR)

main53301-60130iLJ7#,RJ7#..ARL,GEN199001-199305

sub53301-60131

sub85381-12050

main53301-60131iKZJ7#,LJ7#,RJ7#..HT..GEN199305-199604

W(WINDSHIELD REST CRADLE)

main53301-60150iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#..ARL,GEN,SA199001-199401

sub53301-60151

sub85381-12050

main53301-60151iFZJ75..SA;FZJ73,HZJ70..SOT..(DSL,EFI);HZJ75..RHD..PIC..(GEN,SA)..CBU199401-200405

main53301-60170iFJ75,FZJ75,HZJ75,PZJ75..PIC..GEN199001-199401

W(WINDSHIELD REST CRADLE)

sub53301-60171

sub85381-12050

main53301-60170iFJ70,FZJ70,PZJ70..SOT;FJ73,FZJ73,HZJ73,PZJ73..ARL,GEN199001-199401

W(SASH DETACHABLE DOOR)

sub53301-60171

sub85381-12050

main53301-60170iFZJ75..RHD..PIC..GEN;HZJ75,PZJ75..PIC..GEN;FZJ75..LHD..PIC..GEN..CBU199208-199305

COLOMBIA SPEC & W(WINDSHIELD REST CRADLE)

sub53301-60171

sub85381-12050

main53301-60170iFZJ75..RHD..PIC..GEN;HZJ75,PZJ75..PIC..GEN;FZJ75..LHD..PIC..GEN..CBU199305-199401

COLOMBIA SPEC & W(WINDSHIELD REST (RADLE)

sub53301-60171

sub85381-12050

main53301-60171iFZJ73..STD..GEN..CBR199401-200405

W(SASH DETACHABLE DOOR)

main53301-60171iFZJ75..LHD..IV199401-200007

W(WINDSHIELD REST CRADLE)

main53301-60171iHZJ75..PIC..GEN;FZJ75..PIC..GEN..CBU199401-199705

COLOMBIA SPEC & W(WINDSHIELD REST CRADLE

main53301-60230iLJ72,RJ70..SOT199103-199305

W(HOOD EMBLEM & DOOR SASH DETACHABLE TYPE)

sub53301-60231

sub85381-12050

main53301-60231iRJ70..SOT199305-199401

W(HOOD EMBLEM & DOOR SASH DETACHABLE TYPE)

main53301-60350iFZJ74,HZJ71..SOT200108-200701

W(HOOD EMBLEM & DOOR SASH DETACHABLE TYPE)

main53301-60360iFZJ74,HZJ71..SOT..GEN200108-200701

W(SASH DETACHABLE DOOR)

main53301-60370iFZJ71,74,78,79,HZJ7#..GCC,GEN200108-200701

W(HOOD EMBLEM)

main53301-60380iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200108-200808

53303PANEL SUB-ASSY, HOOD SIDE, RH

main53303-60030iFZJ73,75..(PIC,SOT)..EFI199001-200808

main53303-60030iFZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199908

CHINA SPEC

main53303-60040iHZJ78..LX;HZJ79..ARL..CBU199001-200701

W(RADIO)

main53303-60040iHDJ7#..STD200108-200701

W(SIDE TURN SIGNAL LAMP)

main53303-60060iHDJ7#200108-200701

W(SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)

main53303-60060iHZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;HZJ75..RHD..(ARL,GEN);FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HZJ71,73,79,PZJ7#..ARL,GCC,GEN199001-200701

W(*STAC)

main53303-60070iFZJ75,HZJ75..SA199001-200701

W(SIDE TURN SIGNAL LAMP)

main53303-60080iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

main53303-60100iFZJ79,HZJ79..RHD..GEN200002-200701

W(SIDE TURN SIGNAL LAMP & RADIO)

53304PANEL SUB-ASSY, HOOD SIDE, LH

main53304-60050iPZJ75..4F;PZJ70,73..STD199001-200701

main53304-60050iFZJ70..LHD..HT..STD..GEN199308-199908

CHINA SPEC

main53304-60060iHZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ71,74,78,79,HZJ71,79;FJ7#,FZJ70,73,75,PZJ70,75..LHD..(CBR,DSL)199001-200808

W(RADIO)

main53304-60060iHZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ71,74,78,79,HZJ71,79;FJ7#,FZJ70,73,75,PZJ70,75..LHD..(CBR,DSL)199001-200007

W(*STAC)

main53304-60060iHZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ71,74,78,79,HZJ71,79;FJ7#,FZJ70,73,75,PZJ70,75..LHD..(CBR,DSL)199001-199305

W(*STAC & RADIO)

main53304-60060iPZJ70,75..LHD199305-199908

W(RADIO) OR COLOMBIA SPEC & W/O(RADIO)

main53304-60060iPZJ70,75..LHD199305-199401

W(RADIO) OR COLOMBIA SPEC

main53304-60060iHDJ7#..STD200108-200701

W(SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)

main53304-60090iFZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199908

CHINA SPEC & W(RADIO)

main53304-60100iFZJ79,HZJ79..RHD..GEN199001-200701

W(SIDE TURN SIGNAL LAMP)

main53304-60100iFZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199908

CHINA SPEC & W(SIDE TURN SIGNAL)

main53304-60180iHDJ7#..LX200108-200701

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

53341BINSULATOR, HOOD

main53341-60040iLJ72,79..LX;RJ7#..ARL,GCC199001-199305

sub53341-60041

main53341-60041iRJ7#..LX199305-199604

main53341-60060iHJ75,HZJ75..SA199001-199208

sub53341-60120

main53341-60070iLJ70,77199001-199305

sub53341-60051

main53341-60120iHZJ75..SA;FZJ70,75..EFI199208-199401

sub53341-60121

main53341-60121iFZJ78,79..ARL;HZJ79..RHD..GEN199401-200108

sub53341-90K06

main53341-60140iKZJ7#,LJ79..LX199305-199604

sub53341-60041

main53341-60150iHZJ70..ARL199401-200108

main53341-60220iHDJ7#,HZJ78,79..ARL200108-200701

main53341-60230iHZJ79..RHD..CBU200108-200701

main53341-90K05iHZJ7#..ARL199001-199401

sub53341-90K06

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014iHZJ79..RHD;HJ75,HZJ75..ARL,SA;FJ7#,FZJ70,75,78,79,HDJ7#,HZJ70,73,78,PZJ70,73..ARL199001-200502

main90467-09050iFZJ78,79..ARL200503-200701

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60020iLJ7#,RJ7#199001-199604

main53381-90K01iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU199001-200808

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7#199001-200808

53382BUMPER, HOOD, FRONT

main53382-60010iLJ7#,RJ7#199001-199111

sub53382-60011

main53382-60011iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199111-200808

main53382-90K01iFJ7#,HJ75,HZJ7#,PZJ7#199001-199008

53384ABUMPER, FENDER TO HOOD

main53384-60020iLJ70,RJ70199001-199604

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020iKZJ7#,LJ7#,RJ7#199001-199604

53386BUMPER, HOOD, REAR

main53382-30060iFJ7#,HJ75,HZJ7#,PZJ7#199001-199004

sub53384-60030

main53384-60030iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU199004-200808

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020iLJ70,RJ70199001-199604

53390CRADLE ASSY, WINDSHIELD REST

main53390-90K00iFZJ74,HZJ71..SOT199001-200701

53781PACKING, FRONT FENDER, REAR

main53781-90J00iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

53801FENDER SUB-ASSY, FRONT RH

main53801-60310iHDJ7#;HZJ79..ARL..IV;HZJ78..STD..ARL199105-200701

W(SIDE TURN SIGNAL LAMP)

main53801-60310iFJ75..ARL..IV199105-199201

W(*STAC & RADIO)

main53801-60310iHZJ75..LHD..HT199308-199908

CHINA SPEC & W(*STAC)

main53801-60310iHZJ75..LHD..HT199308-199908

CHINA SPEC

main53801-60340iLJ79,RJ77..STD;LJ70,72,RJ70..GEN199001-199305

main53801-60341iLJ7#;RJ77..STD;KZJ7#,RJ70..LHD;RJ77..LHD..LX..GEN199305-199604

main53801-60341iRJ77..RHD..LX199305-199604

EAST MALAYSIA SPEC

main53801-60350iLJ79,RJ77..RHD..LX199004-199305

EAST MALAYSIA SPEC

main53801-60351iRJ77..GCC199305-199308

main53801-60360iLJ79,RJ77..STD;LJ70,72,RJ70..GEN199001-199305

W(OVER FENDER)

main53801-60361iLJ7#..STD;KZJ7#,LJ79,RJ7#..LHD..LX199305-199604

W(OVER FENDER)

main53801-60361iRJ77..RHD..LX199501-199604

EAST MALAYSIA SPEC & W(OVER FENDER)

main53801-60370iLJ77,79,RJ77..LHD..LX199004-199305

W(OVER FENDER)

main53801-60371iRJ77..GCC199305-199308

W(OVER FENDER)

main53801-60380iLJ72,79,RJ7#..RHD..STD199001-199305

W(RADIO)

main53801-60380iLJ70,RJ70..ARL199001-199208

main53801-60381iKZJ77,RJ77..RHD..LX199305-199604

W(RADIO)

main53801-60390iLJ77,79,RJ77..RHD..LX199004-199305

main53801-60400iLJ70,RJ70..ARL199001-199208

W(OVER FENDER)

main53801-60400iLJ72,79,RJ7#..RHD..STD199001-199305

W(OVER FENDER & RADIO)

main53801-60401iLJ7#..RHD..STD199305-199604

W(OVER FENDER)

main53801-60401iKZJ77,RJ77..RHD..LX199305-199604

W(OVER FENDER & RADIO)

main53801-60410iLJ77,79,RJ77..RHD..LX199004-199305

W(OVER FENDER)

main53801-60500iHDJ79..STD200405-200808

MUSTER(AUSTRALIA)

main53801-60500iFZJ71..LHD..STD..GEN199908-200701

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

main53801-60500iFZJ70..LHD..HT..STD..GEN199308-199908

CHINA SPEC & W(*STAC & OVER FENDER)

main53801-60500iFZJ70,HZJ70..ARL199105-199308

W(OVER FENDER)

main53801-90K04iHZJ78..GEN;HZJ75..LHD..CBU;FZJ78,79..GCC,GEN;HZJ75..RHD..(GEN,SA);FJ73,FZJ71,74,HZJ73,PZJ70,73;FJ70,75,FZJ70,73,75,HJ75,HZJ71,79,PZJ75..(GCC,GEN,SA)..(CBR,DSL)199001-200808

main53801-90K04iPZJ70..LHD..4F;FZJ70..LHD..HT..STD..GEN199305-199308

CHINA SPEC & W(*STAC)

main53801-90K04iFJ75..ARL..IV199105-199201

W(RADIO)

main53801-90K13iFZJ70..LX..EFI199001-200808

W(OVER FENDER)

53802FENDER SUB-ASSY, FRONT LH

main53802-60280iLJ70,RJ70..RHD;RJ70..LHD..STD;LJ72,79,RJ77..STD199001-199305

main53802-60281iRJ70..SOT199305-199604

main53802-60290iLJ77,79,RJ77..RHD..LX199004-199305

main53802-60300iLJ70,RJ70..RHD;RJ70..LHD..STD;LJ72,79,RJ77..STD199001-199305

W(OVER FENDER)

main53802-60301iLJ7#..STD;KZJ77,RJ77..RHD..LX199305-199604

W(OVER FENDER)

main53802-60310iLJ77,79,RJ77..RHD..LX199004-199305

W(OVER FENDER)

main53802-60320iRJ77..GCC;LJ70,72,RJ70..LX..GEN199001-199305

main53802-60320iLJ72,79,RJ7#..LHD..STD199001-199305

W(RADIO)

main53802-60321iKZJ7#,LJ79,RJ7#..LHD..LX199305-199604

main53802-60321iRJ70..SOT199305-199604

W(RADIO)

main53802-60330iLJ77,79,RJ77..LHD..LX199004-199305

main53802-60331iRJ77..GCC199305-199308

main53802-60340iLJ72,79,RJ7#..LHD..STD199001-199305

W(OVER FENDER & RADIO)

main53802-60340iLJ72,RJ70..LX199001-199305

W(OVER FENDER)

main53802-60341iKZJ7#,LJ79,RJ7#..LHD..LX..GEN199305-199604

W(OVER FENDER)

main53802-60341iLJ7#..LHD..STD199305-199604

W(OVER FENDER & RADIO)

main53802-60350iLJ77,79,RJ77..LHD..LX..GEN199004-199305

W(OVER FENDER)

main53802-60351iRJ77..GCC199305-199308

W(OVER FENDER)

main53802-60420iFZJ71,78,79,HZJ78..LHD..STD..GEN..CBU;FJ70,75,FZJ70,75,78,79,HZJ70,75,78,79..ARL199105-200701

W(SIDE TURN SIGNAL LAMP)

main53802-60420iFZJ70..LHD..HT..STD..GEN199308-199908

CHINA SPEC & W(SIDE TURN SIGNAL)

main53802-60420iFZJ70,HZJ70..ARL199105-199308

W(*STAC & RADIO)

main53802-60420iFZJ70..LHD..HT..STD..GEN199308-199908

CHINA SPEC & W(*STAC)

main53802-60430iFZJ71..LHD..STD..GEN199908-200701

W(SIDE TURN SIGNAL LAMP & OVER FENDER)

main53802-60430iFZJ70..LHD..HT..STD..GEN199308-199908

CHINA SPEC & W(*OF)

main53802-60430iHDJ79..STD200405-200808

MUSTER(AUSTRALIA)

main53802-60430iFZJ70,HZJ70..ARL199105-199308

W(OVER FENDER)

main53802-90K04iFZJ71..LX;FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU199305-200808

main53802-90K04iFJ7#,HJ75,HZJ7#,PZJ7#199001-200007

W(*STAC & RADIO)

main53802-90K04iFJ73..STD..GEN199105-199305

W/O(RADIO)

main53802-90K04iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR199305-199908

COLOMBIA SPEC & W/O(RADIO)

main53802-90K04iFZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199908

CHINA SPEC

main53802-90K15iFZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN)199001-200808

W(OVER FENDER)

53803PANEL SUB-ASSY, FRONT FENDER SIDE, REAR RH

main53803-60010iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

53833PANEL, FRONT FENDER SIDE, LOWER

main53833-60020iLJ7#,RJ7#199001-199305

sub53803-60020

main53833-90K01iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7#199001-200808

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53834-60020iLJ7#,RJ7#199001-199305

sub53804-60010

main53834-90K01iHZJ78..LX;HZJ79..ARL..CBU199001-200808

53835ABRACE, FRONT FENDER TO APRON, RH

main53803-60020iKZJ7#,LJ7#,RJ7#..HT199305-199604

main53835-60010iPZJ70,73;PZJ75..4F199001-200808

53859PROTECTOR, FRONT FENDER

main53859-60010iLJ7#199001-199604

53878CSPACER, FRONT FENDER

main53878-90K00iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7#199001-200808

53879CRETAINER, FRONT FENDER LINER

main53879-90K00iPZJ70,73;PZJ75..4F199001-200808

53899BSUPPORT, FRONT FENDER PANEL

main53899-60010iLJ7#199001-199604

53903BPANEL SUB-ASSY, FRONT END

main53903-60020iLJ7#,RJ7#199001-199305

sub53903-60021

main53903-60021iKZJ7#,LJ7#,RJ7#199305-199604

53911PANEL, FRONT VALANCE

main53911-60010iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200808

NO PAINT REQ.

9011906366

main90119-06366

9011908563

main90119-08563

9017008034

main90170-08034

9017906097

main90179-06097

9017906206

main90179-06206

9046709036

main90467-09036

9046709046

main90467-09046

9048018011

main90480-18011

9048020276

main90480-20276

9095003041

main90950-03041

9163140814

main91631-40814

9165140614

main91651-40614

9165140616

main91651-40616

9165140816

main91651-40816

9165140820

main91651-40820

91665F0616

main91665-F0616

42 parts on this diagram · 3 diagrams in section
