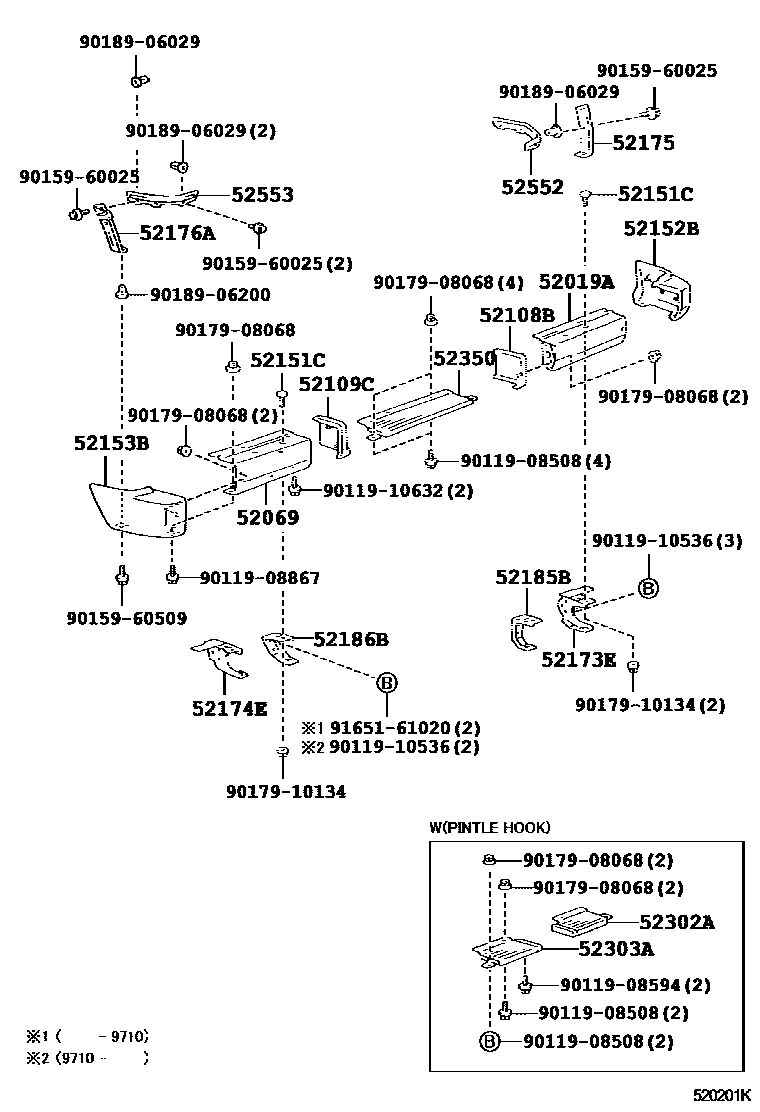

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1FOR PAKISTAN GOVERNMENT 0006 1

52019ABAR SUB-ASSY, REAR BUMPER, RH

main52019-60011iHZJ70..SOT¥14,500199706-200611

FOR PAKISTAN GOVERNMENT

main52019-60020iFJ73,HZJ73,PZJ73..RHD;FJ70,75,HZJ75..(HT,SOT)..STD..(GCC,GEN);FJ73,FZJ7#,LJ72,79,PZJ70,75,RJ7#..(HT,SOT)..STD..(CBR,DSL)¥17,300199001-199401

main52019-60020iFJ70..LX¥17,300199001-199208

PAINTED

main52019-60021iFZJ73..EFI¥17,500199401-200702

main52019-60022iFZJ71,78..STD¥17,500200702-200808

PAINTED

main52019-60030iFJ73,HZJ73,LJ70,PZJ73,RJ70;FJ70,75,HZJ75,LJ72,77,79,PZJ70,75,RJ77..(HT,SOT)..(GCC,GEN)¥20,200199001-199401

CHROME PLATED

main52019-60031iFZJ70,HZJ70..HT..(GCC,GEN);FZJ73,75,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL)¥20,600199401-200702

CHROME PLATED

main52019-60032iFZJ71..LX¥18,900200702-200808

CHROME PLATED

main52019-60040iFZJ75,HZJ75,PZJ70,75..LHD..HT..STD..GEN¥17,300199108-199401

W(REAR CONBINATION LAMP)

main52019-60040iFJ70,75,FZJ70,75,HZJ70,75,LJ70,RJ70..HT..ARL¥17,300199105-199305

main52019-60041iHDJ78,HZJ78..STD..ARL;FZJ78,HZJ71,78..LHD..GEN¥20,600199401-200701

W(REAR CONBINATION LAMP)

main52019-60050iFZJ75,HZJ75,PZJ70,75..LHD..HT..GEN¥20,200199105-199401

CHROME PLATED & W(REAR COMBINATION LAMP)

main52019-60051iFZJ75,HZJ7#..LHD..HT..STD..GEN¥20,600199401-200701

CHROME PLATED & W(REAR COMBINATION LAMP)

52069BAR SUB-ASSY, REAR BUMPER, LH

main52069-60011iHZJ70..SOT¥14,500199706-200611

FOR PAKISTAN GOVERNMENT

main52069-60020iFZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..(HT,SOT)..STD..(GCC,GEN)¥17,300199001-199401

main52069-60020iFJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN¥17,300199001-199208

PAINTED

main52069-60021iFZJ71,78..LHD..STD..GEN¥17,500199401-200702

main52069-60022iFZJ71,78..STD¥17,500200702-200808

main52069-60030iFZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..(HT,SOT)..STD..(GCC,GEN)¥20,200199001-199401

CHROME PLATED

main52069-60030iFJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..(GCC,GEN)¥20,200199001-199305

main52069-60031iFZJ70..SOT¥20,600199401-200702

CHROME PLATED

main52069-60032iFZJ71..LX¥18,900200702-200808

CHROME PLATED

main52069-60040iFJ70,75,FZJ70,75,HZJ70,75,LJ70,RJ70..HT..ARL¥17,300199105-199305

main52069-60040iFZJ75,HZJ75,PZJ70,75..LHD..HT..STD..GEN¥17,300199108-199401

W(REAR CONBINATION LAMP)

main52069-60041iHDJ78,HZJ78..STD..ARL;FZJ78,HZJ71,78..LHD..GEN¥17,500199401-200701

W(REAR CONBINATION LAMP)

main52069-60050iFZJ75,HZJ75,PZJ70,75..LHD..HT..GEN¥20,200199105-199401

CHROME PLATED & W(REAR COMBINATION LAMP)

main52069-60051iFZJ75,HZJ7#..LHD..HT..GEN¥20,600199401-200701

CHROME PLATED & W(REAR COMBINATION LAMP)

52108BEXTENSION SUB-ASSY, REAR BUMPER SIDE, RH

main52108-60040iFZJ71,78..LHD..GEN¥1,720199001-200808

main52108-60050iKZJ77,LJ79,RJ77¥1,710199004-199604

52109CEXTENSION SUB-ASSY, REAR BUMPER SIDE, LH

main52109-60040iKZJ70,LJ72,RJ70..HT¥1,720199001-200808

main52109-60050iKZJ77,LJ79,RJ77¥1,710199004-199604

52151BUMPER ASSY, REAR

main52151-60130iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-10021iKZJ7#,LJ7#,RJ7#..HT¥160199001-200808

CHROME PLATED

main90112-10022iFZJ70..SOT;FZJ70,HZJ70..ARL¥160199001-200808

W(PAINTED BUMPER)

52152BEXTENSION, REAR BUMPER, RH

main52106-60130iLJ77,79,RJ77¥11,800199004-199303

sub52106-60131¥11,800

main52106-60131iLJ77,79,RJ77¥11,800199303-199604

sub52106-60132¥8,100

main52106-60170iRJ70..SOT;PZJ7#..HT,SOT¥10,100199001-200612

sub52106-60171¥6,200

main52106-60171iFZJ71,78..GCC;FZJ71,78..RHD;FZJ74,HDJ78,HZJ71,78¥6,200200612-200808

52153BEXTENSION, REAR BUMPER, LH

main52107-60100iLJ77,79,RJ77¥11,800199004-199303

sub52107-60101¥11,800

main52107-60101iKZJ77,LJ79,RJ77¥11,800199303-199604

sub52107-60102¥8,100

main52107-60140iFZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL)¥10,100199001-200612

sub52107-60141¥6,200

main52107-60141iFZJ71,78..GCC;FZJ71,78..RHD;FZJ74,HDJ78,HZJ71,78¥6,200200612-200808

52173EBRACKET, REAR BUMPER BAR, RH

main52173-60060iFZJ71,78..LHD..GEN¥1,930199004-200702

main52173-60080iFJ7#,FZJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT¥2,680199001-199305

main52173-60100iFZJ71,78¥1,800200702-200808

52174EBRACKET, REAR BUMPER BAR, LH

main52174-60050iKZJ77,LJ79,RJ77¥2,290199004-199604

main52174-60070iHZJ70..SOT¥2,260199001-200702

main52174-60100iFZJ71,78¥4,090200702-200808

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-60020iHZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ70,72,PZJ7#,RJ70..HT,SOT¥510199001-200808

main52175-60030iKZJ77,LJ79,RJ77¥510199004-199604

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52175-60030iLJ77,79,RJ77¥510199004-199604

main52176-60020iKZJ70,LJ72,RJ70..HT¥510199001-200808

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60040iFZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL)¥1,800199001-200808

main52185-60050iKZJ77,LJ79,RJ77¥1,980199004-199604

main52185-60060iHZJ75..RHD..PIC..GEN..CBU¥1,140199001-200701

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-60030iHZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ70,72,PZJ7#,RJ70..HT,SOT¥1,800199001-200808

main52186-60040iLJ77,79,RJ77¥1,980199004-199604

52302ASTEP SUB-ASSY, REAR BUMPER

main52302-60010iHZJ78..GEN;FZJ71,74,78..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,75,LJ7#,PZJ7#,RJ7#..(HT,SOT)..(GCC,GEN)..(CBR,DSL,TD)¥3,240199001-200701

main52302-60030iHZJ71..SOT199706-200611

FOR PAKISTAN GOVERNMENT

52303ASTEP SUB-ASSY, REAR BUMPER, LH

main52303-60010iFZJ71,74,78,HZJ71,78..GCC,GEN¥3,240199001-200701

main52303-60030iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

52350STEP ASSY, REAR BUMPER

main52351-60070iHZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT¥5,900199001-200808

52552FILLER, REAR BUMPER, RH

main52552-60020iFZJ71,78..LHD..GEN¥1,020199001-200808

main52552-60030iKZJ77,LJ79,RJ77¥2,090199004-199604

52553FILLER, REAR BUMPER, LH

main52553-60020iRJ70..SOT;PZJ7#..HT,SOT¥1,020199001-200808

main52553-60030iLJ77,79,RJ77¥2,090199004-199604

9011908508

main90119-08508¥90

9011908594

main90119-08594¥90

9011908867

main90119-08867¥110

9011910536

main90119-10536¥240

9011910632

main90119-10632¥90

9015960025

main90159-60025¥200

9015960509

main90159-60509¥70

9017908068

main90179-08068¥100

9017910134

main90179-10134¥240

9018906029

main90189-06029¥100

9018906200

main90189-06200¥70

9165161020

main91651-61020¥130

31 parts on this diagram · 4 diagrams in section
