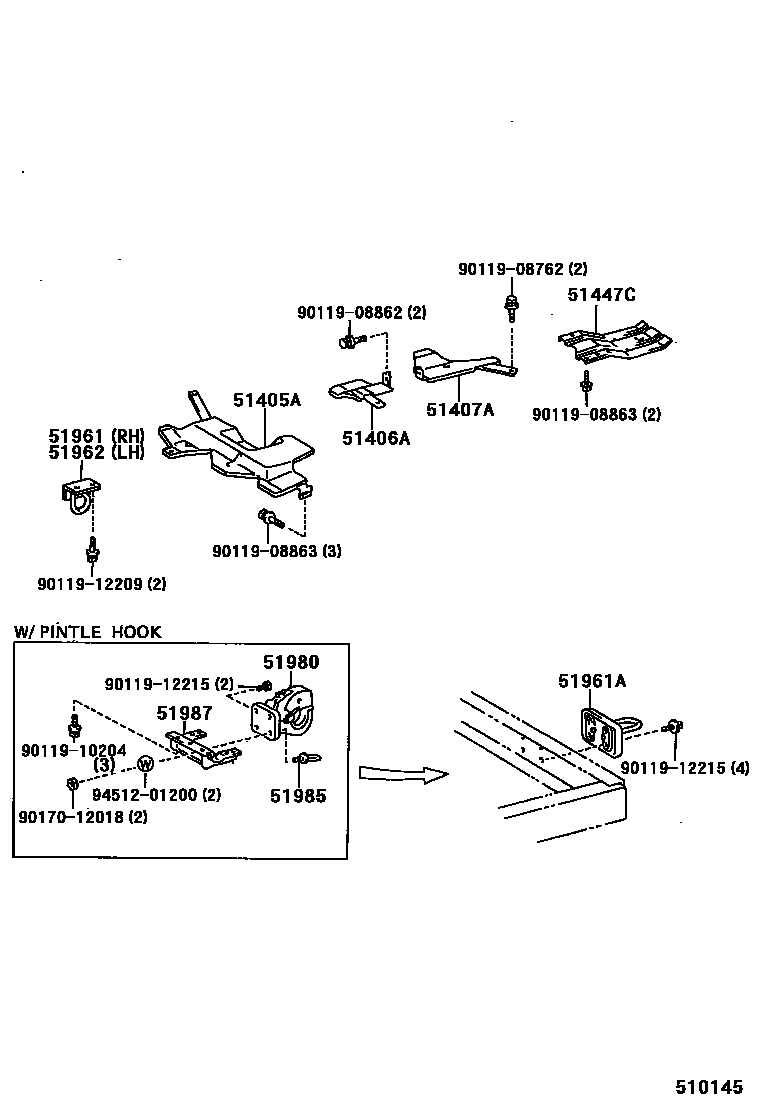

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60090iLJ70,RJ70..RHD199001-199208

main51405-60091iLJ7#,RJ77..RHD199208-199305

main51405-60100iLJ7#,RJ7#..LHD199001-199305

main51405-60110iKZJ77,LJ7#,RJ77..RHD199305-199604

main51405-60120iKZJ7#,LJ7#,RJ7#..LHD199305-199604

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-60010iLJ70,RJ70199001-199604

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-60040iLJ7#199001-199604

51447CPROTECTOR, TRANSFER CASE

main51447-60020iPZJ75..5F199001-199604

main51447-60031iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR199308-200808

51961HOOK, NO.1

main51961-60010iFJ75,FZJ75,HZJ75..PIC..GCC199001-200701

W(WINCH)

main51961-60010iFZJ75,HZJ75..PIC..GCC199305-199908

main51961-60070iHZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

main51961-60120iFZJ70..HT..CBR;FZJ75..HT..GCC;FZJ75..LHD..IV;FZJ75..IV..EFI;HZJ75..ARL,GEN,SA;FZJ73,HZJ70..GCC,GEN;FZJ75..(ARL,GEN,SA)..CBU199001-199607

sub51961-60121

main51961-60121iFZJ78,79..ARL199607-200808

main51961-60140iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT..GEN199305-199604

W(WINCH)

main51961-60140iLJ7#,RJ7#199001-199305

51961AHOOK, NO.3

main51961-60081iFJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200808

51962HOOK, NO.2

main51961-60130iHZJ75..ARL,GEN;FZJ70..HT..CBR;FZJ75..HT..GCC;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GCC,GEN;FZJ75..(ARL,GEN)..CBU199001-199607

sub51961-60131

main51961-60131iFZJ75..IV199607-200808

main51961-60140iLJ7#,RJ7#199001-199305

main51961-60150iLJ72,77,79,RJ7#..GEN199001-199305

W(WINCH)

main51961-60150iRJ70..SOT199305-199604

51980HOOK ASSY, PINTLE

main51980-60010iFJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN199001-199510

sub51980-60011

main51980-60011iKZJ7#,LJ7#,RJ7#199510-199801

sub51980-60012

sub90119-12263

sub90201-12019

main51980-60012iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199801-200701

51985HOOK, EYELET PINTLE

main51985-60011iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200701

51987BRACKET, PINTLE HOOK

main51987-60021iFZJ71,74,78,HZJ71,78..GCC,GEN199001-200701

9011908762

main90119-08762

9011908862

main90119-08862

9011908863

main90119-08863

9011910204

main90119-10204

9011912209

main90119-12209

9011912215

main90119-12215

9017012018

main90170-12018

9451201200

main94512-01200

18 parts on this diagram · 3 diagrams in section
