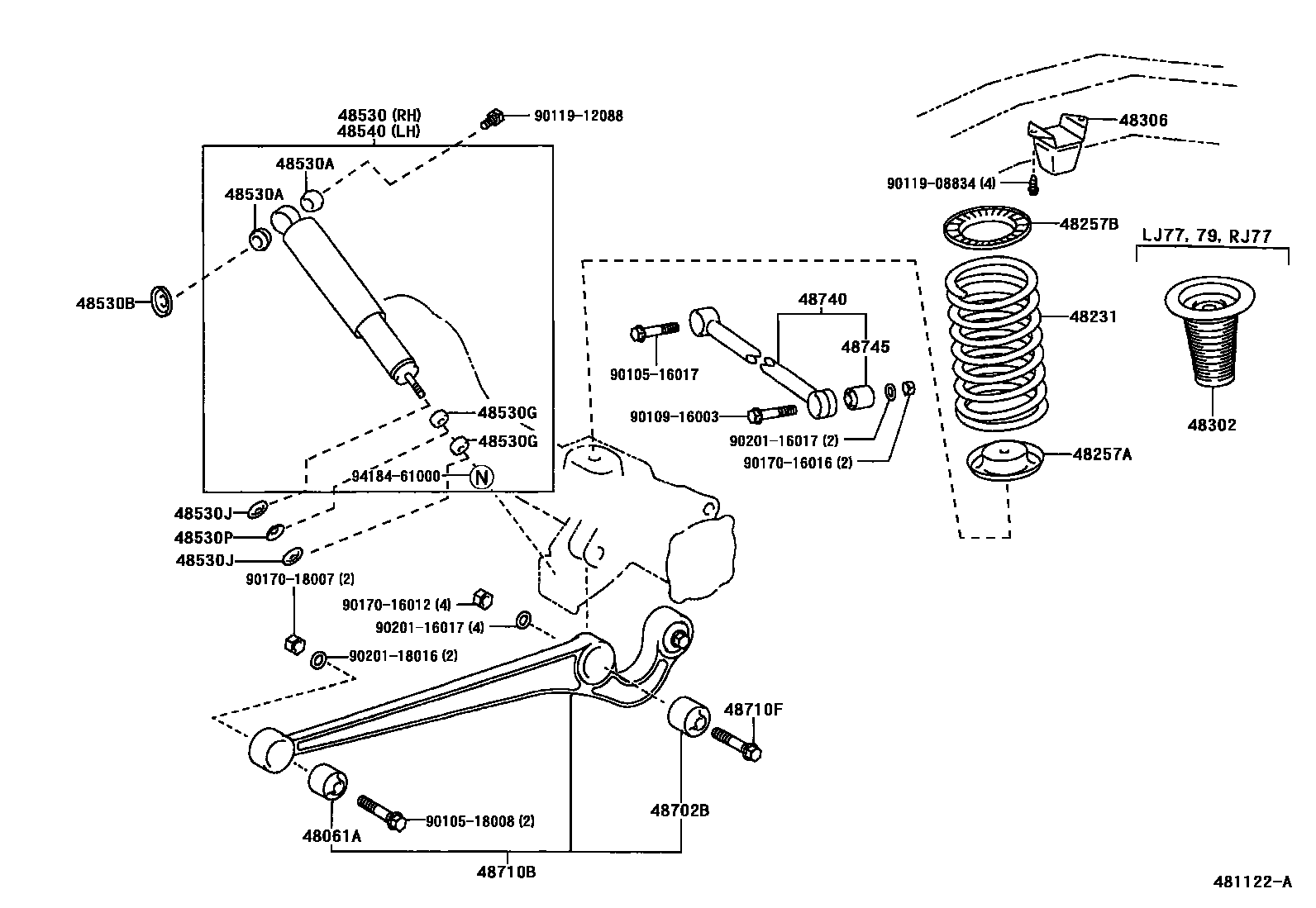

REAR SPRING & SHOCK ABSORBER
48061ABUSH SUB-ASSY, TRAILING ARM, NO.2
48257BINSULATOR, REAR COIL SPRING, UPPER
48302SPRING SUB-ASSY, HOLLOW
48306BUMPER SUB-ASSY, REAR SPRING
TYPE A:REFER TO ILLUSTRATION
main48306-60050iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-199910
HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE OR KENYA CKD SPEC OR COLOMBIA SPEC
main48306-60080iPZJ75..PIC;HZJ75..GEN..IV;FZJ75..RHD..PIC..GEN;FZJ75,HZJ75..LHD..PIC..CBU199001-199908
HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE
HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE OR KENYA CKD SPEC
TYPE B:REFER TO ILLUSTRATION
HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE OR KENYA CKD SPEC OR EAST MALAYSIA CKDSPEC
HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE ORCOLOMBIA SPEC
KENYA CKD SPEC
HEAVY DUTY SUSPENSION
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-60340
MARK 48531-60211
main48531-69395iPZJ75..PIC;HZJ75..GEN..IV;FZJ75..RHD..PIC..GEN;FZJ75,HZJ75..LHD..PIC..CBU199105-199305
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE ORCOLOMBIA SPEC
sub48531-69396
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE
sub48531-69396
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE OR KENYA CKD SPEC
sub48531-69396
MARK 48531-60231
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE
MARK 48531-60620
MARK 48531-60630,HEAVY DUTY SUSPENSION
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-60340
MARK 48531-60211
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE ORCOLOMBIA SPEC
sub48531-69396
main48531-69395iPZJ75..PIC;HZJ75..GEN..IV;FZJ75..RHD..PIC..GEN;FZJ75,HZJ75..LHD..PIC..CBU199001-199607
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE
sub48531-69396
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE OR KENYA CKD SPEC
sub48531-69396
MARK 48531-60231
MARK 48531-60231,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE
MARK 48531-60620
MARK 48531-60630,HEAVY DUTY SUSPENSION
48702BBUSH SUB-ASSY, TRAILING ARM, NO.1
48710BARM ASSY, TRAILING, REAR
48710FBOLT(FOR REAR TRAILING ARM)
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
9010516017
main90105-16017
9010518008
main90105-18008
9010916003
main90109-16003
9011908834
main90119-08834
9011912088
main90119-12088
9017016012
main90170-16012
9017016016
main90170-16016
9017018007
main90170-18007
9020116017
main90201-16017
9020118016
main90201-18016
9418461000
main94184-61000
29 parts on this diagram · 14 diagrams in section
