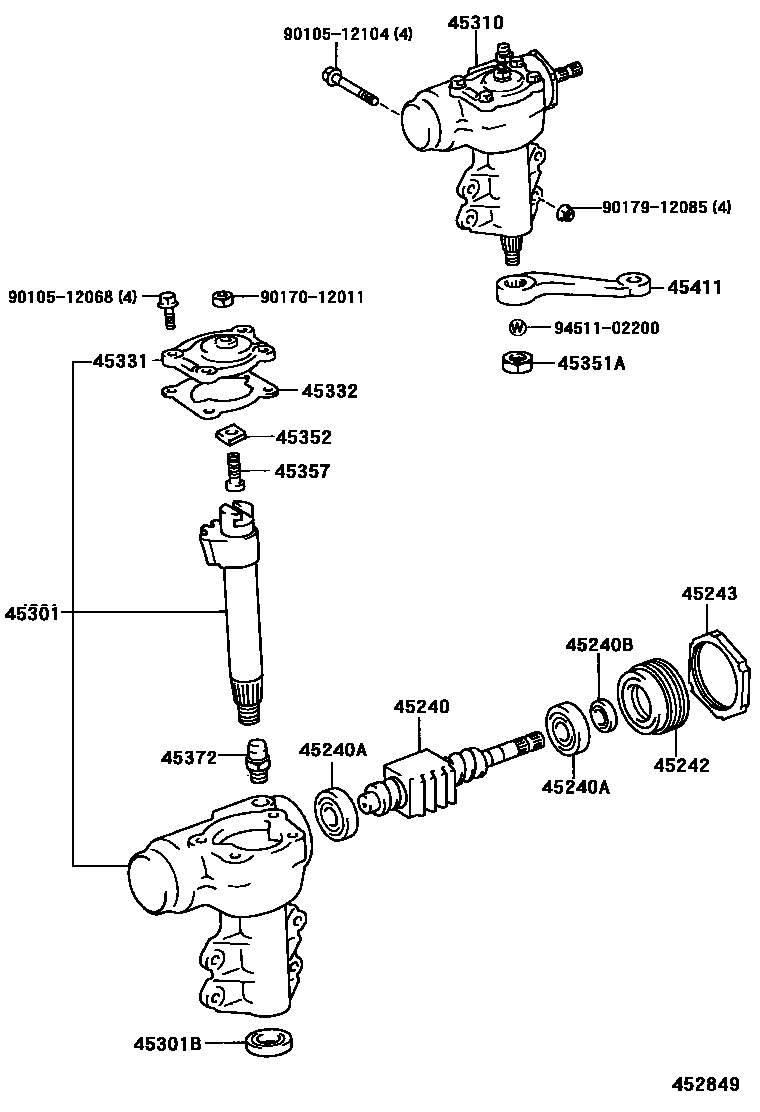

FRONT STEERING GEAR & LINK

0001 1MANUAL STEERING 0002 1POWER STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0005 1POWER STEERING 0006 1 0007 1 0008 1 0009 1

45240WORM ASSY, STEERING

main45240-60060iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200007

main45240-60070iFZJ73..GEN..CBR;FZJ70,75,HZJ7#..LHD..(HT,PIC)..GEN..(CBR,DSL)199001-199908

main45240-60070iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45240ABEARING(FOR STEERING WORM)

main90363-20024iFJ7#,HJ75,HZJ75,LJ72,79,PZJ7#,RJ7#..GEN,SA199001-200007

main90363-20024iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

main90311-18010iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45242SCREW, WORM BEARING ADJUSTING

main45242-60020iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

main45242-60020iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45243NUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-60020iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

main45243-60020iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-60060iFJ70,75,HJ75,HZJ75,PZJ7#,RJ70..RHD..(GEN,SA)199001-200007

main45301-60070iLJ7#,RJ7#..LHD..GEN199001-199908

main45301-60070iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90311-36004iFJ75..RHD..(GEN,SA);FJ73,75..LHD..(HT,PIC)..GEN..CBU;FJ70,FZJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..GEN,SA199001-200007

main90311-36004iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45310HOUSING ASSY, STEERING GEAR

main45310-60110iLJ72,RJ77..RHD;LJ79..RHD..STD199001-199604

main45310-60120iLJ7#,RJ7#..LHD..HT..GEN199001-199604

main45310-60130iFZJ70,75,HZJ75,PZJ7#..RHD..(GEN,SA)199001-200007

main45310-60140iFZJ70..SOT199001-199908

main45310-60140iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45331COVER, SECTOR SHAFT END

main45304-26010iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

MARK 1

main45304-26010iFJ75..LHD..IV199108-199208

VENEZUELA SPEC,MARK 1

main45304-26020iFJ75..LHD..IV199108-199208

VENEZUELA SPEC,MARK 2

main45304-26020iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

MARK 2

main45304-26030iLJ79..STD;LJ79..LHD..LX;LJ72,RJ7#..GEN199001-200007

MARK 3

main45304-26030iFJ75..LHD..IV199108-199208

VENEZUELA SPEC,MARK 3

main45304-26040iLJ79..STD;LJ79..LHD..LX;LJ72,RJ7#..GEN199001-200007

MARK 4

main45304-26040iFJ75..LHD..IV199108-199208

VENEZUELA SPEC,MARK 4

45332GASKET, SECTOR SHAFT END COVER

main45332-26010iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

main45332-26010iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-200808

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

T=1.95

main45352-37010iFJ75..LHD..IV199108-199208

T=1.95,VENEZUELA SPEC

main45353-37010iFJ7#,HJ75,HZJ75,LJ72,79,PZJ7#,RJ7#..GEN,SA199001-200007

T=2.00

main45353-37010iFJ75..LHD..IV199108-199208

T=2.00,VENEZUELA SPEC

main45354-37010iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

T=2.05

main45354-37010iFJ75..LHD..IV199108-199208

T=2.05,VENEZUELA SPEC

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200007

sub45357-37020

main45357-36010iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

sub45357-37020

main45357-60030iKZJ7#;RJ77..GCC199001-200007

W(POWER STEERING)

main45357-60030iFZJ75,HZJ75..SA199401-200808

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iFJ7#,HJ75,HZJ75,PZJ7#,RJ70..GEN,SA199001-200007

main90930-03058iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

45411ARM, PITMAN

main45411-60110iHZJ75..RHD..GEN..IV;HZJ75..RHD..HT..GEN;FZJ70,75,HZJ70..RHD..(HT,PIC)..GEN..CBU199001-200007

main45411-60120iFZJ70..SOT199001-199908

main45411-60120iFJ75..LHD..IV199108-199208

VENEZUELA SPEC

main45411-60230iRJ7#..RHD..GEN199001-199604

main45411-60240iRJ7#..LHD..HT..GEN199001-199604

main45411-60250iLJ72,79..RHD199004-199305

main45411-60260iLJ72,79..LHD199004-199305

main45411-60310iLJ7#..RHD..STD199305-199604

main45411-60320iLJ7#..LHD199305-199604

9010512068

main90105-12068

9010512104

main90105-12104

9017012011

main90170-12011

9017912085

main90179-12085

9451102200

main94511-02200

20 parts on this diagram · 9 diagrams in section
