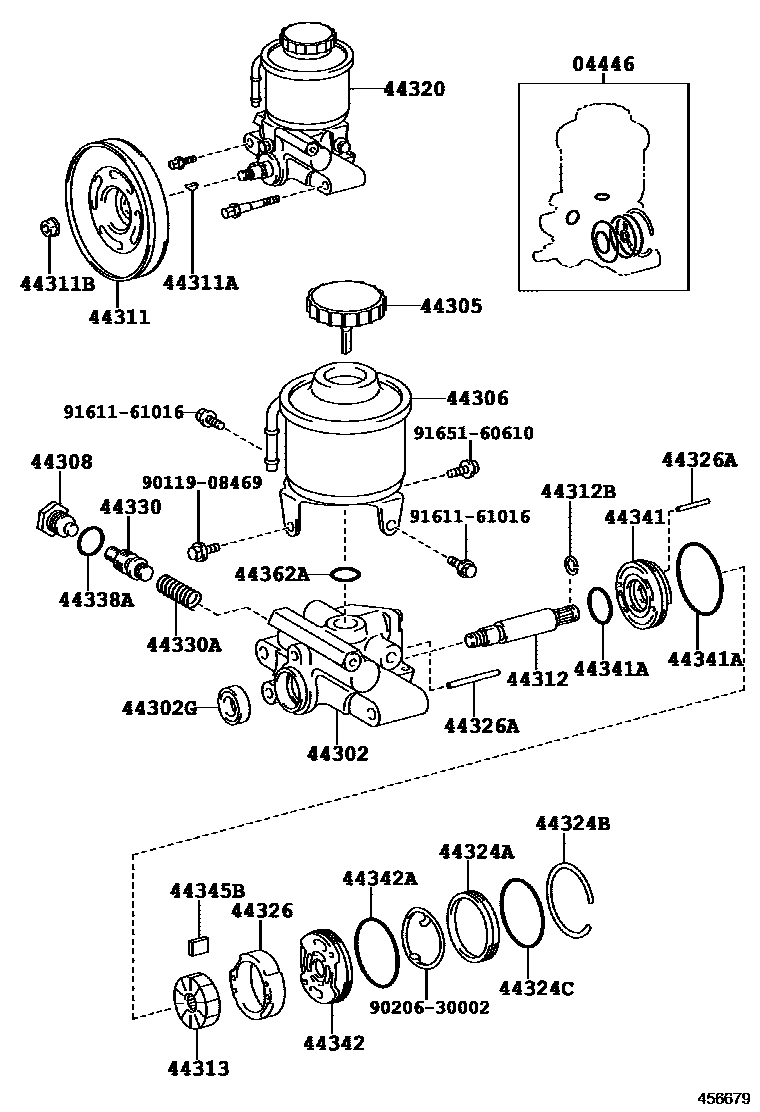

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1 0011 1

04446GASKET KIT, POWER STEERING PUMP

main04446-30030iRJ7#¥3,580199001-199305

main04446-37040iHDJ7#¥3,570200605-200701

main04446-60020iFJ7#..ARL,GCC,GEN¥1,750199001-199208

sub04446-60021¥1,730

main04446-60030iLJ7#,RJ7#..HT¥3,210199001-199604

main04446-60040iHZJ7#,PZJ7#..ARL,GCC,GEN¥2,650199001-199202

sub04446-60070¥2,650

main04446-60060iFZJ7#..ARL,GCC,GEN¥3,180199201-199505

sub04446-60061¥3,200

main04446-60061iFZJ75..ARL;FZJ7#..(GCC,GEN)..CBR¥3,200199505-200605

sub04446-60250¥3,180

main04446-60070iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥2,650199202-200701

main04446-60090iKZJ7#¥2,290199305-199505

sub04446-60091¥2,280

main04446-60091iKZJ7#¥2,280199505-199604

main04446-60100iHDJ7#¥3,570200108-200605

sub04446-37040¥3,570

main04446-60250iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD¥3,180200605-200808

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iLJ7#,RJ7#..HT¥15,500199001-199604

main44302-36200iHZJ75..SA¥12,500199001-200701

main44302-60030iFJ7#..ARL,GCC,GEN¥24,400199001-199208

main44302-60040iFZJ7#..GCC,GEN¥28,600199201-199207

main44302-60050iFZJ79..GEN..IV;FZJ71,78..LHD..GEN¥28,600199207-200808

main44302-60060iKZJ7#¥24,300199305-199604

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21015iHZJ7#,PZJ7#¥340199001-199103

sub90029-21018¥240

main90029-21018iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥240199103-200701

main90311-18007iFJ7#..ARL,GCC,GEN¥240199001-199208

main90311-24001iLJ7#,RJ7#..HT¥220199001-199604

main90316-17003iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR¥750199201-200808

main90316-17004iKZJ7#¥500199305-199604

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iFJ7#,HZJ7#,PZJ7#,RJ7#..ARL,GCC,GEN¥1,940199001-200701

sub44305-22060¥1,940

main44305-24030iFZJ79..GEN..IV;FZJ71,78..LHD..GEN¥2,290199201-200808

sub44305-24050¥2,290

main44305-50010iLJ7#¥2,030199001-199604

sub44305-50020¥2,030

44306RESERVOIR SUB-ASSY, VANE PUMP OIL

main44306-60230iFJ7#..ARL,GCC,GEN¥10,600199001-199003

sub44306-60231¥10,300

main44306-60231iFJ7#..ARL,GCC,GEN¥10,300199003-199208

44308UNION SUB-ASSY, PRESSURE PORT

main44308-35030iLJ7#,RJ7#¥1,600199001-199604

main44308-35050iFJ7#..ARL,GCC,GEN¥1,530199001-199208

main44308-60040iFZJ75..SA¥1,530199201-200405

main44308-60050iKZJ7#¥1,530199305-199604

main44308-60110iFZJ78,79..ARL¥1,850199908-200808

44311PULLEY, VANE PUMP

main44311-20010iRJ7#..HT¥7,600199001-199604

main44311-35030iLJ7#¥7,200199001-199604

main44311-60060iFJ7#..ARL,GCC,GEN¥7,600199001-199208

44311AKEY, VANE PUMP PULLEY

main90029-18002iHZJ7#,PZJ7#..ARL,GCC,GEN¥350199001-200701

main90280-05008iFZJ73,75..(PIC,SOT)..GEN..EFI¥220199001-200808

44311BNUT(FOR VANE PUMP PULLEY)

main90179-12022iFJ7#..ARL,GCC,GEN¥370199001-199208

main90179-14009iFZJ79..GEN..IV;FZJ71,78..LHD..GEN¥280199001-200808

44312SHAFT, VANE PUMP

main44312-12010iLJ7#,RJ7#..HT¥3,340199001-199604

main44312-12030iFJ7#..ARL,GCC,GEN¥2,950199001-199208

main44312-60010iFZJ70,75..ARL;FZJ71,74,78,79;FZJ70,73,75..(GCC,GEN)..CBR¥3,090199201-200808

main44312-60020iKZJ7#¥770199305-199604

main44312-60030iHDJ7#¥770200310-200701

main44312-89101iHZJ75..SA¥2,700199001-200701

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥190199001-200701

main90520-10003iFJ7#..ARL,GCC,GEN¥140199001-199208

main90520-15001iLJ7#,RJ7#¥240199001-199604

sub90520-15005¥80

main90520-15005iFZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU¥80199201-200808

44313ROTOR, VANE PUMP

main44313-22040iRJ70..SOT¥7,700199001-199604

NO MARK

main44313-22050iLJ7#,RJ7#..HT¥7,700199001-199604

MARK 1

main44313-22060iLJ7#,RJ7#..HT¥7,700199001-199604

MARK 2

main44313-22070iLJ7#,RJ7#..HT¥7,700199001-199604

MARK 3

main44313-22080iLJ7#,RJ7#..HT¥7,700199001-199604

MARK 4

main44313-26060iKZJ7#¥7,700199201-199604

NO MARK

main44313-26070iKZJ7#¥7,700199201-199604

MARK 1

main44313-26080iFZJ73,75..(PIC,SOT)..GEN..EFI¥7,700199201-200808

MARK 2

main44313-26090iFZJ73,75..(PIC,SOT)..GEN..EFI¥7,700199201-200808

MARK 3

main44313-26100iFZJ73,75..(PIC,SOT)..GEN..EFI¥7,700199201-200808

MARK 4

44320PUMP ASSY, VANE

main44320-60120iRJ7#¥82,900199001-199101

sub44320-60121¥82,200

main44320-60121iRJ7#..HT¥82,200199101-199604

main44320-60190iFZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI¥81,300199201-199506

sub44320-60191¥81,700

main44320-60191iFZJ73,75..(PIC,SOT)..GEN..EFI¥81,700199506-200405

main44320-60200iLJ7#¥82,100199001-199101

sub44320-60201¥81,300

main44320-60201iLJ7#¥81,300199101-199604

main44320-60210iFJ7#..ARL,GCC,GEN¥94,100199001-199003

sub44320-60211¥94,100

main44320-60211iFJ7#..ARL,GCC,GEN¥94,100199003-199101

sub44320-60212¥93,200

main44320-60212iFJ7#..ARL,GCC,GEN¥93,200199101-199208

main44320-60220iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥81,900199001-200701

main44320-60340iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥81,600199908-200808

44324AHOUSING, PUMP, REAR

main44324-12031iFJ7#,FZJ7#..ARL,GCC,GEN¥6,100199001-199604

main44324-20050iFZJ75..SA¥6,400199506-200808

main44324-60040iFZJ7#..ARL,GCC,GEN¥4,370199207-199506

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iFZJ7#,KZJ7#..ARL,GCC,GEN¥220199001-200808

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-53004iFJ7#,FZJ7#..ARL,GCC,GEN¥270199001-199505

main90301-53006iFZJ73,75..(PIC,SOT)..GEN..EFI¥180199505-200405

sub90301-53007¥240

main90301-53007iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥240199908-200808

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLJ7#,RJ7#¥8,700199001-199604

NO MARK

main44325-12020iRJ70..SOT¥8,700199001-199604

MARK 1

main44325-12030iRJ70..SOT¥8,700199001-199604

MARK 2

main44325-12040iLJ7#,RJ7#..HT¥8,700199001-199604

MARK 3

main44325-12050iRJ70..SOT¥8,700199001-199604

MARK 4

main44325-12270iKZJ7#¥4,350199305-199604

NO MARK

main44325-12280iKZJ7#¥4,350199305-199604

MARK 1

main44325-12290iKZJ7#¥4,350199305-199604

MARK 2

main44325-12300iKZJ7#¥4,350199305-199604

MARK 3

main44325-12310iKZJ7#¥4,350199305-199604

MARK 4

main44325-30100iFJ7#..ARL,GCC,GEN¥8,700199001-199208

NO MARK

main44325-30110iFJ7#..ARL,GCC,GEN¥8,700199001-199208

MARK 1

main44325-30120iFJ7#..ARL,GCC,GEN¥8,700199001-199208

MARK 2

main44325-30130iFJ7#..ARL,GCC,GEN¥8,700199001-199208

MARK 3

main44325-30140iFJ7#..ARL,GCC,GEN¥8,700199001-199208

MARK 4

main44325-32270iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR¥6,700199201-200808

NO MARK

main44325-32280iFZJ73,75..(PIC,SOT)..GEN..EFI¥6,700199201-200808

MARK 1

main44325-32290iFZJ75..SA¥6,700199201-200808

MARK 2

main44325-32300iFZJ7#..ARL,GCC,GEN¥6,700199201-199506

MARK 3

main44325-32310iFZJ7#..ARL,GCC,GEN¥6,700199201-199312

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iHZJ7#,PZJ7#..ARL,GCC,GEN¥530199001-200701

L=29.1

main90029-14205iHDJ7#¥70200310-200701

L=25.8

main90250-04047iFZJ75..SA¥150199001-200808

L=28,OD=4.0

main90250-04049iFZJ71,74,78,79¥190199001-200808

L=43,OD=4.0

main90250-05008iLJ7#,RJ7#¥240199001-199604

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main40410-37090iHDJ7#¥8,700200310-200701

MARK C

main40420-37090iHDJ7#¥8,700200310-200701

MARK B

main40430-37090iHDJ7#¥8,700200310-200701

MARK A

main44330-20310iFJ7#..ARL,GCC,GEN¥8,600199001-199208

MARK A

sub44330-35250¥8,600

main44330-20320iFJ7#..ARL,GCC,GEN¥8,600199001-199208

MARK B

sub44330-35260¥8,600

main44330-20330iFJ7#..ARL,GCC,GEN¥8,600199001-199208

MARK C

sub44330-35270¥8,600

main44330-20340iFJ7#..ARL,GCC,GEN¥8,600199001-199208

MARK D

sub44330-35280¥8,600

main44330-20350iFJ7#..ARL,GCC,GEN¥8,600199001-199208

MARK E

sub44330-35290¥8,600

main44330-20360iFJ7#..ARL,GCC,GEN¥8,600199001-199208

MARK F

sub44330-35300¥8,600

main44330-35131iLJ7#,RJ7#¥8,600199001-199604

MARK A

sub44330-32670¥8,600

main44330-35141iLJ7#,RJ7#¥8,600199001-199604

MARK B

sub44330-32680¥8,600

main44330-35151iRJ70..SOT¥8,600199001-199604

MARK C

sub44330-32690¥8,600

main44330-35161iLJ7#,RJ7#..HT¥8,600199001-199604

MARK D

sub44330-32700¥8,600

main44330-35171iLJ7#,RJ7#..HT¥8,600199001-199604

MARK E

sub44330-32710¥8,600

main44330-35181iLJ7#,RJ7#¥8,600199001-199604

MARK F

sub44330-32720¥8,600

main44330-36140iHZJ71,78,79¥8,700199001-200701

TWO GROOVE

main44330-36150iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥8,700199001-200701

ONE GROOVE

main44330-36160iHZJ70..ARL¥8,700199001-200701

NO GROOVE

main44330-37090iHDJ7#¥8,700200310-200701

MARK D

main44330-60070iKZJ7#¥8,500199201-200808

MARK A

main44330-60080iFZJ7#,KZJ7#..ARL,GCC,GEN¥8,500199201-200808

MARK B

main44330-60090iFZJ7#,KZJ7#..ARL,GCC,GEN¥8,500199201-200808

MARK C

main44330-60100iFZJ75..SA¥8,500199201-200808

MARK D

main44330-60110iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR¥8,500199201-200808

MARK E

main44330-60120iFZJ75..SA¥8,500199201-200808

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iHZJ7#,PZJ7#..ARL,GCC,GEN¥350199001-200701

main90029-60013iHDJ7#¥110200310-200701

main90501-12103iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥160199001-200808

44338UNION, PRESSURE PORT

main44338-60140iHDJ7#¥710200108-200701

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iKZJ7#¥300199001-199610

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-19013iFZJ75..ARL;FZJ7#..(GCC,GEN)..CBR¥260199610-200405

ID=19.2,OD=22.3

sub90301-19018¥240

main90301-19018iFZJ78,79..ARL¥240199908-200808

ID=19.2,OD=22.3

main90301-22001iLJ7#,RJ7#¥590199001-199604

OD=25.5,ID=22.5

main96711-19014iLJ7#,RJ7#¥210199001-199604

OD=17.0,ID=13.0

44341PLATE, VANE PUMP SIDE, FRONT

main44341-20010iFJ7#..ARL,GCC,GEN¥2,910199001-199208

main44341-60010iFZJ70,75..ARL;FZJ71,74,78,79;FZJ70,73,75..(GCC,GEN)..CBR¥5,200199201-200808

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25008iFJ7#..ARL,GCC,GEN¥300199001-199208

INNER

main90301-28005iFZJ7#,KZJ7#..ARL,GCC,GEN¥180199201-200808

INNER

main90301-53004iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR¥270199001-200808

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iRJ70..SOT¥6,800199001-199604

main44342-20010iFJ7#..ARL,GCC,GEN¥4,160199001-199208

main44342-60010iFZJ7#..GCC,GEN¥3,710199201-199207

main44342-60020iFZJ7#..ARL,GCC,GEN¥2,570199207-199604

main44342-60030iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥3,720199506-200808

main44342-89102iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU¥7,200199001-200701

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iLJ7#,RJ7#¥300199001-199604

main90301-53004iFZJ73,75..(PIC,SOT)..GEN..EFI¥270199001-200808

main96711-24060iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥240199001-200701

44345BPLATE, VANE PUMP

main44345-12010iRJ70..SOT¥660199001-199604

L=14.997

main44345-12020iFJ7#..ARL,GCC,GEN¥660199001-199604

L=14.995

main44345-12030iFJ7#..ARL,GCC,GEN¥660199001-199604

L=14.993

main44345-12040iLJ7#,RJ7#..HT¥660199001-199604

L=14.991

main44345-12050iFJ7#,LJ7#,RJ7#..ARL,GCC,GEN¥660199001-199604

L=14.989

main44345-26010iFZJ7#..ARL,GCC,GEN¥700199201-199512

L=15.000

main44345-26020iFZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU¥700199201-199512

L=14.998

main44345-26030iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR¥700199201-199512

L=14.996

main44345-26040iFZJ7#..ARL,GCC,GEN¥700199201-199512

L=14.994

main44345-26050iFZJ7#,KZJ7#..ARL,GCC,GEN¥700199201-199512

L=14.992

main44345-60010iKZJ7#¥350199512-199604

L=15.000

main44345-60020iFZJ75..SA¥510199512-200808

L=14.998

main44345-60030iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥510199512-200808

L=14.996

main44345-60040iFZJ79..GEN..IV;FZJ71,78..LHD..GEN¥510199512-200808

L=14.994

main44345-60050iFZJ70,75..GEN..CBU..EFI¥510199512-200808

L=14.992

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-12003iFJ7#..ARL,GCC,GEN¥300199001-199208

sub90301-11016¥140

9011908469

main90119-08469¥80

9020630002

main90206-30002¥300

9161161016

main91611-61016¥270

9165160610

main91651-60610¥100

32 parts on this diagram · 9 diagrams in section
