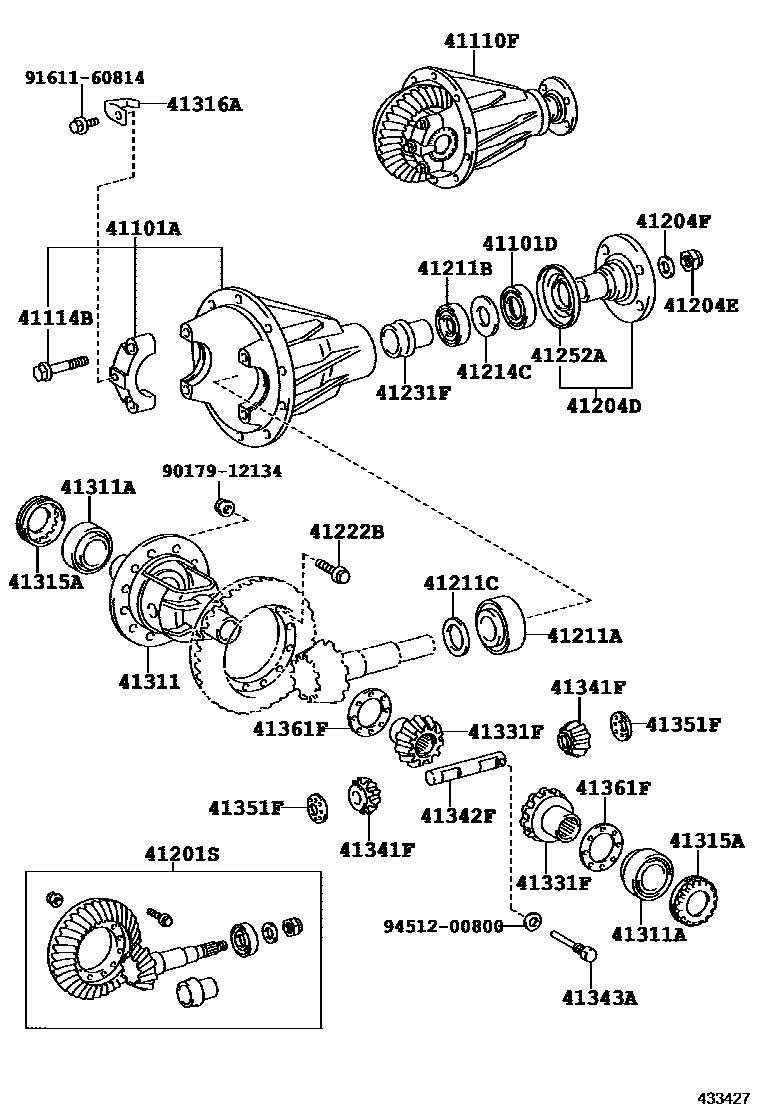

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1W(DIFFERENTIAL LOCK) 0006 1

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-60031iRJ70..SOT199001-199604

main41101-60041iHJ75199001-199108

main41101-60090iHZJ78..LX;HZJ79..ARL..CBU199001-200808

sub41101-60091

main41101-60110iFZJ79..LX;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);FJ75,FZJ70,75,HZJ70..ARL;FZJ70,73,75..(GCC,GEN)..CBR;FJ70,73,FZJ71,74,78,79,HDJ7#,HZJ71,78,79,PZJ7#..ARL,GEN199001-200108

W(DIFFERENTIAL LOCK)

sub41102-60010

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38035iKZJ7#,LJ7#,RJ7#199001-199604

sub90311-38047

main90311-38047iHZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71199512-200201

main90311-38066iHZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)199801-200201

main90311-41009iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200201-200808

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-60092iLJ7#199001-199604

*FGR=39:8=4.875

main41110-60092iLJ7#199001-199604

*FGR=39:8=4.875,*AXC=G142,G144,G145

main41110-60141iRJ70..SOT199001-199604

*FGR=41:9=4.555

main41110-60270iFJ70,73..GEN199001-199208

*FGR=41:11=3.727

main41110-60280iFZJ78..ARL199908-200701

*FGR=41:10=4.100

sub41110-60281

main41110-60290iPZJ70,73199001-200405

*FGR=37:9=4.111

sub41110-60291

main41110-60290iFZJ74..STD..GEN199908-200408

*FGR=37:9=4.111,COLOMBIA SPEC

sub41110-60291

main41110-60290iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

*FGR=37:9=4.111,VENEZUELA SPEC

sub41110-60291

main41110-60360iFJ70,73..GEN199001-199208

*FGR=41:11=3.727,W(DIFFERENTIAL LOCK)

main41110-60400iPZJ70,73;PZJ75..4F199001-199501

*FGR=41:9=4.555

main41110-60450iHJ75199001-199108

*FGR=37:10=3.700

sub41110-60451

main41110-60530iPZJ70,73..GEN;FJ7#,HZJ7#..ARL,GCC,GEN199001-200007

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK)

sub41110-60531

main41110-60540iHZJ7#..RHD..(PIC,SOT)..GEN..CBU199704-199908

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK & POWER STEERING)

sub41110-60541

main41110-60540iHZJ75,PZJ70..RHD..(PIC,SOT)..GEN..CBU199001-199305

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK) & 24V

sub41110-60541

main41110-60550iPZJ7#199001-199401

*FGR=41:9=4.555,W(DIFFERENTIAL LOCK)

main41110-60560iPZJ70..SOT199001-199305

*FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & 24V

main41110-60600iKZJ7#199305-199604

*FGR=43:10=4.300

main41110-60830iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200701

*FGR=43:10=4.300

sub41110-60831

main41110-6A150iFZJ79..GEN199908-200701

*FGR=43:10=4.300

sub41110-6A151

main41110-6A280iHZJ71,79..RHD..(PIC,SOT)..GEN199908-200701

*FGR=43:10=4.300,BANGLADESH CKD SPEC & W(DIFFERENTIAL LOCK)

sub41110-6A281

sub41534-60030

main41110-6A300iFZJ79..LX199908-200701

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

sub41110-6A301

sub41534-60030

main41110-6A310iHZJ78..LX;HZJ79..ARL..CBU199908-200701

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41110-6A311

sub41534-60030

main41110-6A320iFZJ79..LX;FZJ79..GEN199908-200701

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41110-6A321

sub41534-60030

main41110-6A330iFZJ79..GCC200301-200701

*FGR=43:10=4.300

sub41110-6A331

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-69225iFJ70,73..GEN;FJ75..LHD..IV;FJ75..LHD..PIC..4F;FJ75..PIC..5F..(GEN,SA)..CBU199001-199208

*FGR=41:11=3.727

sub41201-69226

sub41204-35081

sub41214-60011

main41201-69235iFZJ71,74,78,HDJ7#199908-200201

*FGR=41:10=4.100

sub41201-80169

sub41204-35081

sub41214-60011

main41201-69265iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200201

*FGR=37:9=4.111

sub41201-69266

sub41204-35081

sub41214-60011

main41201-69265iHZJ75,PZJ70..(PIC,SOT)..4F..CBU199001-199305

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK)

sub41201-69266

sub41204-35081

sub41214-60011

main41201-69266iFZJ73,75200201-200808

*FGR=37:9=4.111

main41201-69305iHJ75199001-199108

*FGR=37:10=3.700

sub41201-69306

sub41204-60050

sub41214-26011

main41201-69325iRJ7#199001-199604

*FGR=41:9=4.556

sub41201-69206

sub41204-35081

sub41214-60011

main41201-69335iPZJ75..5F199001-199501

*FGR=41:9=4.556

sub41201-69336

sub41204-35081

sub41214-60011

main41201-69345iRJ70..SOT199001-199604

*FGR=39:8=4.875

sub41201-69187

sub41204-35081

sub41214-60011

main41201-69385iFJ70,73..GEN199001-199208

*FGR=41:11=3.727,W(DIFFERENTIAL LOCK)

sub41201-69386

sub41204-35081

sub41214-60011

main41201-69395iFZJ71,74,78,HDJ7#..ARL,GEN199908-200201

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

sub41201-69396

sub41204-35081

sub41214-60011

main41201-69396iFZJ79..STD200201-200609

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

sub41201-80472

main41201-69405iPZJ7#199001-199401

*FGR=41:9=4.556,W(DIFFERENTIAL LOCK)

sub41201-69406

sub41204-35081

sub41214-60011

main41201-69435iFJ70,75,HZJ70,PZJ73..RHD;FZJ7#,HZJ75,PZJ70..ARL,GCC,GEN199001-199309

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK) & 24V

sub41201-69436

sub41204-35081

sub41214-60011

main41201-69435iFZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GEN;FZJ75..(ARL,GEN)..CBU;FZJ70,HZJ75..(HT,PIC)..(ARL,GEN)..(CBR,DSL)199309-200007

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK)

sub41201-69436

sub41204-35081

sub41214-60011

main41201-69445iKZJ7#199305-199604

*FGR=43:10=4.300

sub41201-80170

sub41204-35081

sub41214-60011

main41201-69805iFZJ74..STD..GEN200508-200701

*FGR=41:10=4.100,DIFF LOCK

main41201-69805iFZJ78..ARL200508-200701

*FGR=41:10=4.100

main41201-69815iHZJ7#200508-200701

*FGR=43:10=4.300

main41201-69825iFZJ79..GCC,GEN200508-200701

*FGR=43:10=4.300

main41201-80130iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200201

*FGR=43:10=4.300

sub41201-80172

sub41204-35081

sub41214-60011

main41201-80131iHZJ78..LX;HZJ79..ARL..CBU199908-200201

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41201-80172

sub41204-35081

sub41214-60011

main41201-80137iFZJ79199908-200201

*FGR=43:10=4.300

sub41201-80171

sub41204-35081

sub41214-60011

main41201-80138iFZJ79..LX;FZJ79..ARL,GEN199908-200201

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41201-80175

sub41204-35081

sub41214-60011

main41201-80169iFZJ79..STD200201-200508

*FGR=41:10=4.100

sub41201-69805

main41201-80171iFZJ79200201-200508

*FGR=43:10=4.300

sub41201-69825

main41201-80172iHZJ71,78..HT;HZJ79..ARL,GCC;HZJ79..LHD..GEN200201-200508

*FGR=43:10=4.300

sub41201-69815

main41201-80175iFZJ79..STD..GCC200201-200508

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41201-80469

main41201-80469iFZJ79..ARL200508-200701

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

main41201-80470iHZJ7#..ARL,GEN200609-200701

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

main41201-80472iFZJ79..LX;FZJ71,74,78,HDJ7#..ARL,GEN200609-200701

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35040iFZJ7#,HZJ7#199001-199801

main41204-35080iFZJ75..STD..GCC;FZJ70,73,HZJ75..GCC199511-200201

main41204-35080iFZJ7#,HZJ7#..ARL,GEN199602-200007

W(DIFFERENTIAL LOCK)

main41204-35081iFZJ73,75200201-200405

sub41204-35082

main41204-35082iFZJ78,79..ARL200405-200808

main41204-60030iHJ75199001-199108

sub41204-60050

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90177-22003iHDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU200201-200808

main90179-20001iFZJ7#,HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7#199001-199308

main90179-20018iFZJ70,75..GEN..CBU..EFI199308-200201

main90179-22011iHJ75199001-199108

sub90179-22016

41204FWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT)

main90201-20005iFZJ7#,HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7#199001-199308

main90201-22007iHJ75199001-199108

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35028iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)199001-199609

sub90366-35087

main90366-35044iRJ70..SOT199001-199604

main90366-35087iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199609-200808

main90366-40059iHJ75199001-199108

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30022iKZJ7#,LJ7#,RJ7#..HT199001-199604

sub90366-30078

main90366-30025iFJ7#,FZJ7#,HZJ7#,PZJ7#199001-199711

sub90366-30067

main90366-30038iHJ75199001-199108

main90366-30067iFZJ70,75..GEN..CBU..EFI199711-200808

41211CGEAR, DIFFERENTIAL RING

main90201-35497iHZJ78..LX;HZJ79..ARL..CBU199001-200808

OD=47,T=1.70

main90201-35498iFZJ78,79..ARL199001-200808

OD=47,T=1.73

main90201-35499iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-200808

OD=47,T=1.76

main90201-35500iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200808

OD=47,T=1.79

main90201-35501iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

OD=47,T=1.82

main90201-35502iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-200808

OD=47,T=1.85

main90201-35503iHZJ78..LX;HZJ79..ARL..CBU199001-200808

OD=47,T=1.88

main90201-35504iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

OD=47,T=1.91

main90201-35505iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU199001-200808

OD=47,T=1.94

main90201-35506iKZJ7#,LJ7#,RJ7#..HT199001-200808

OD=47,T=1.97

main90201-35507iKZJ7#,LJ7#,RJ7#..HT199001-200808

OD=47,T=2.00

main90201-35508iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

OD=47,T=2.03

main90201-35509iHZJ78..LX;HZJ79..ARL..CBU199001-200808

OD=47,T=2.06

main90201-35510iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-200808

OD=47,T=2.09

main90201-35511iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

OD=47,T=2.12

main90201-35512iFZJ78,79..ARL199001-200808

OD=47,T=2.15

main90201-35513iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

OD=47,T=2.18

main90201-35514iFZJ75,HZJ75..SA199001-200808

OD=47,T=2.21

main90201-35515iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

OD=47,T=2.24,MARK 01

main90201-35516iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200808

OD=47,T=2.27,MARK 02

main90201-35517iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

OD=47,T=2.30,MARK 03

main90201-35518iFZJ75,HZJ75..SA199001-200808

OD=47,T=2.33,MARK 04

main90201-40551iHJ75199001-199108

T=1.05

sub90564-40004

main90201-40552iHJ75199001-199108

T=1.10

sub90564-40007

main90201-40553iHJ75199001-199108

T=1.15

sub90564-40009

main90201-40554iHJ75199001-199108

T=1.20

sub90564-40011

main90201-40555iHJ75199001-199108

T=1.25

sub90564-40013

main90201-40556iHJ75199001-199108

T=1.30

sub90564-40015

main90201-40557iHJ75199001-199108

T=1.35

sub90564-40017

main90201-40558iHJ75199001-199108

T=1.40

sub90564-40019

main90201-40559iHJ75199001-199108

T=1.45

sub90564-40021

main90201-40560iHJ75199001-199108

T=1.50

sub90564-40023

main90201-40561iHJ75199001-199108

T=1.55

sub90564-40025

main90564-40004iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.05

main90564-40006iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.075

main90564-40007iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.10

main90564-40008iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.125

main90564-40009iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.15

main90564-40010iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.175

main90564-40011iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.20

main90564-40012iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.225

main90564-40013iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.25

main90564-40014iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.275

main90564-40015iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.30

main90564-40016iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.325

main90564-40017iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.35

main90564-40018iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.375

main90564-40019iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.40

main90564-40020iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.425

main90564-40021iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.45

main90564-40022iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.475

main90564-40023iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.50

main90564-40024iFZJ70,75..GEN..CBU..EFI199709-200405

T=1.525

main90564-40025iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

T=1.55

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26010iHJ75199001-199108

main41214-60010iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-200201

main41214-60011iFZJ78,79..ARL200201-200808

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main41226-35012iHJ75199001-199108

main90101-11353iKZJ7#,LJ7#,RJ7#..HT199001-200808

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

main41231-40011iLJ7#,RJ7#199001-199604

main41231-60030iHJ75199001-199108

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-35010iFJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199303

sub41252-35020

main41252-35020iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199303-199801

main41252-35040iFZJ75..LX;HZJ75..ARL;HZJ75..GEN..IV;FZJ75..STD..ARL;HZJ75..LHD..PIC..GEN..CBU;FZJ73,HZJ75..(HT,SOT)..GEN..(CBR,DSL);FZJ70,75,HZJ70..(HT,PIC)..GEN..(CBR,DSL)199602-200007

W(DIFFERENTIAL LOCK)

main41252-35040iFZJ75..STD..GCC;FZJ70,73,HZJ75..GCC199801-200201

main41252-35041iFZJ73,75200201-200808

41311CASE, FRONT DIFFERENTIAL

main41301-60060iFZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200701

W(DIFFERENTIAL LOCK)

sub41301-60061

main41311-40020iRJ70..SOT199001-199604

sub41311-40021

sub90105-11063

main41311-60060iFZJ70,75..GEN..CBU..EFI199001-200808

sub41311-60061

sub90105-11063

main41311-60070iHJ75199001-199108

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-50007iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

main90366-50007iFJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200701

W(DIFFERENTIAL LOCK),RH

main90366-50007iHZJ78..LX;HZJ79..ARL..CBU199908-200108

LH

main90366-75001iFZJ75..LX;HZJ75..ARL;HZJ75..GEN..IV;FZJ75..STD..ARL;HZJ75..LHD..PIC..GEN..CBU;FZJ73,HZJ75..(HT,SOT)..GEN..(CBR,DSL);FZJ70,75,HZJ70..(HT,PIC)..GEN..(CBR,DSL)199001-200701

W(DIFFERENTIAL LOCK),LH

main90366-75001iFZJ79..LX;FZJ71,74,78,79,HZJ71,78,79..ARL,GEN199908-200108

RH

main90368-45066iLJ7#,RJ7#199001-199604

main90368-50024iHJ75199001-199108

41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING

main41315-30010iHJ75199001-199108

main41315-35010iLJ7#,RJ7#199001-199604

main41315-35020iFZJ70..SOT;FZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR199001-200701

W(DIFFERENTIAL LOCK),RH

main41315-35020iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,PZJ7#199001-200808

main41315-35020iHZJ78..LX;HZJ79..ARL..CBU199908-200108

LH

main41315-60010iFZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200701

W(DIFFERENTIAL LOCK),LH

main41315-60010iFZJ79..LX;HZJ79..RHD..GEN;FZJ79,HZJ71..(PIC,SOT)..(ARL,GEN)199908-200108

RH

41316ALOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iHJ75,LJ7#,RJ7#199001-199305

main41316-35010iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU199001-200808

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41039-34060iFZJ79..LX;FZJ71,74,78,79,HZJ71,78,79..ARL,GEN199908-200005

RH

main41331-25010iHJ75199001-199108

main41331-35011iFZJ75,HZJ75..SA199001-200808

main41331-35040iFJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200005

W(DIFFERENTIAL LOCK),RH

sub41039-34060

sub41039-34080

main41331-60040iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200005

W(DIFFERENTIAL LOCK),LH

sub41039-34060

41341FPINION, FRONT DIFFERENTIAL

main41341-25010iHJ75199001-199108

main41341-30020iFZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200005

W(DIFFERENTIAL LOCK)

sub41341-30050

main41341-35020iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-39610iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-200808

main41342-55010iHJ75199001-199108

41343APIN, FRONT DIFFERENTIAL PINION SHAFT

main41343-60030iHJ75199001-199108

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-25010iHJ75199001-199108

main41351-30052iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

main41351-30060iFZJ79..LX;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);FJ75,FZJ70,75,HZJ70..ARL;FZJ70,73,75..(GCC,GEN)..CBR;FJ70,73,FZJ71,74,78,79,HDJ7#,HZJ71,78,79,PZJ7#..ARL,GEN199001-200701

W(DIFFERENTIAL LOCK)

main41351-30060iFZJ79..STD..GCC200301-200701

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35310iHDJ7#,HZJ78,79..ARL,GEN;FZJ71,74,78,79,HZJ71..GEN200202-200701

T=0.9,RH,ID=46

main41361-35310iFZJ79..GCC200301-200701

T=0.9,ID=46

main41361-35320iHDJ7#,HZJ78,79..ARL,GEN;FZJ71,74,78,79,HZJ71..GEN200202-200701

T=1.0,RH,ID=46

main41361-35320iFZJ79..GCC200301-200701

T=1.0,ID=46

main41361-35330iHDJ7#,HZJ78,79..ARL,GEN;FZJ71,74,78,79,HZJ71..GEN200202-200701

T=1.1,RH,ID=46

main41361-35330iFZJ79..GCC200301-200701

T=1.1,ID=46

main41361-35340iHDJ7#,HZJ78,79..ARL,GEN;FZJ71,74,78,79,HZJ71..GEN200202-200701

T=1.2,RH,ID=46

main41361-35340iFZJ79..GCC200301-200701

T=1.2,ID=46

main41361-35350iFZJ78,79..ARL200202-200701

T=1.3,RH,ID=46

main41361-35350iFZJ79..GCC200301-200701

T=1.3,ID=46

main41361-40021iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

T=1.6

main41361-60010iHJ75199001-199108

T=1.60

sub41361-60011

main41361-60020iHJ75199001-199108

T=1.75

sub41361-60021

main41361-60030iHJ75199001-199108

T=1.90

sub41361-60031

main41361-60040iHJ75199001-199108

T=2.05

sub41361-60041

main41361-60290iFZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200108

T=0.90,W(DIFFERENTIAL LOCK)

main41361-60290iFZJ78,79..ARL200108-200701

T=0.90,RH & LH,ID=54

main41361-60300iFJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200108

T=1.00,W(DIFFERENTIAL LOCK)

main41361-60300iFZJ78,79..ARL200108-200701

T=1.00,RH & LH,ID=54

main41361-60310iFZJ79..LX;FZJ71,74,78,79,HZJ71,78,79..ARL,GEN199001-200108

T=1.10,W(DIFFERENTIAL LOCK)

main41361-60310iFZJ79..LX;HDJ7#,HZJ78,79..ARL,GEN;FZJ71,74,78,79,HZJ71..GEN200108-200701

T=1.10,RH & LH,ID=54

main41361-60320iFZJ79..LX;FZJ71,74,78,79,HZJ71,78,79..ARL,GEN199001-200108

T=1.20,W(DIFFERENTIAL LOCK)

main41361-60320iFZJ78,79..ARL200108-200701

T=1.20,RH & LH,ID=54

main41361-60330iFZJ70..SOT;FZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR199001-200108

T=1.30,W(DIFFERENTIAL LOCK)

main41361-60330iFZJ78,79..ARL200108-200701

T=1.30,RH & LH,ID=54

main41362-40021iFZJ70,75..GEN..CBU..EFI199001-200808

T=1.7

main41363-40021iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

T=1.8

9017912134

main90179-12134

9161160814

main91611-60814

9451200800

main94512-00800

28 parts on this diagram · 6 diagrams in section
