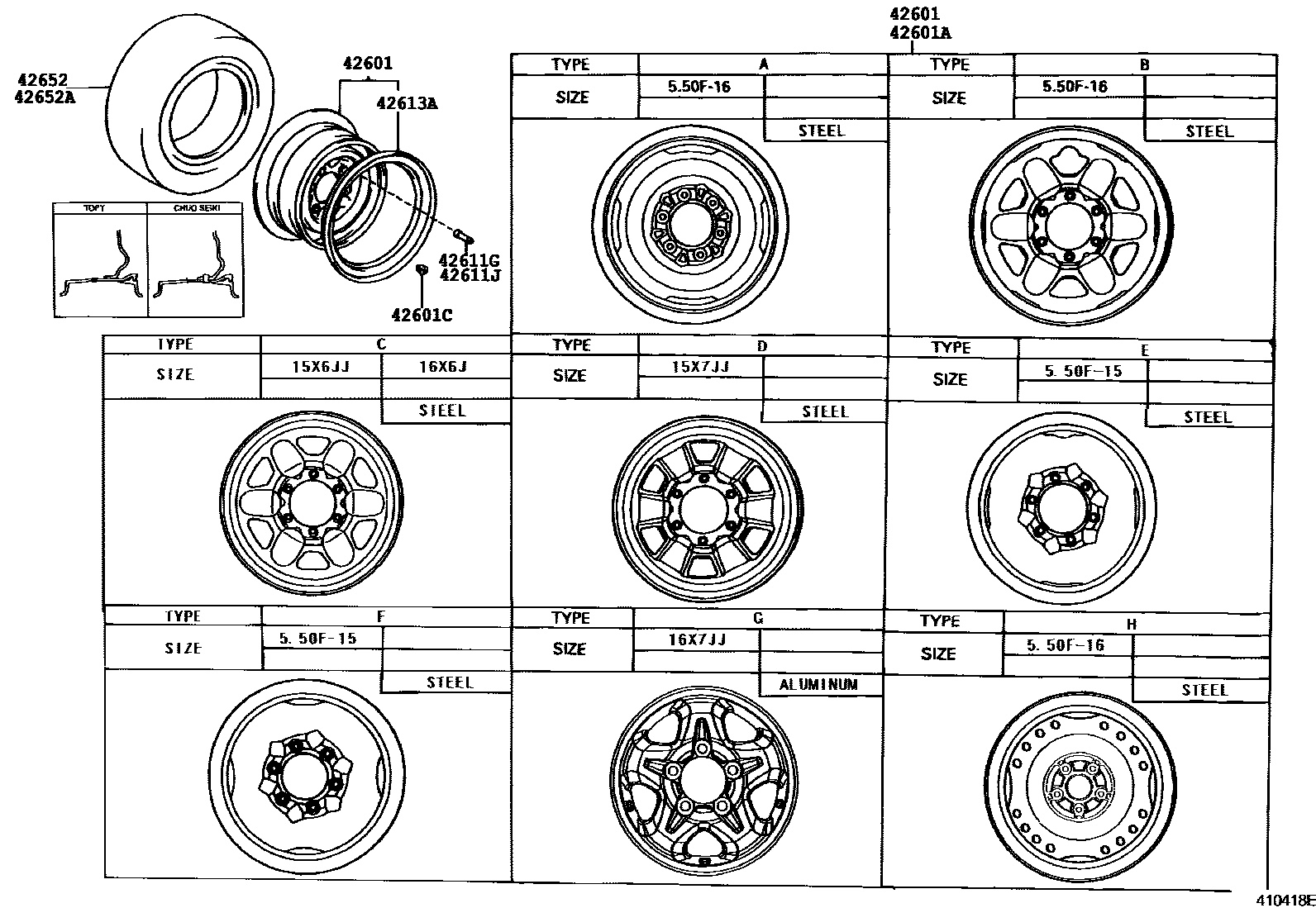

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
6JX16,TYPE C:REFER TO ILLUSTRATION,SILVER M.,SILVER
sub42601-60262
16X6J,#,TYPE C:REFER TO ILLUSTRATION
16X6J,#,TYPE C:REFER TO ILLUSTRATION, COLOMBIA CKD SPEC
15X7JJ,#,TYPE D:REFER TO ILLUSTRATION,SILVER,SILVER
15X7JJ,#,TYPE D:REFER TO ILLUSTRATION, CHROME PLATED WHEEL
16X6J,#,TYPE C:REFER TO ILLUSTRATION,SILVER,SILVER
sub42601-60262
16X6J,TYPE C:REFER TO ILLUSTRATION,SILVER,SILVER
15X7JJ,#,TYPE D:REFER TO ILLUSTRATION,SILVER,SILVER
sub42601-60201
15X6JJ,#,TYPE C:REFER TO ILLUSTRATION, COLOMBIA CKD SPEC
main42610-60012iPZJ75..RHD..PIC;FJ75..HT..5F..GEN;FJ75,HZJ75..PIC..GEN;PZJ75..LHD..PIC..CBU199001-199208
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION
sub42610-60151
main42610-60012iPZJ75..RHD..PIC;FJ75..HT..5F..GEN;FJ75,HZJ75..PIC..GEN;PZJ75..LHD..PIC..CBU199001-199201
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION,TOPY
sub42610-60151
5.50F-16,#,TYPE A:REFER TO ILLUSTRATION,SILVER,SILVER
sub42610-60142
5.50F-16,#,TYPE B:REFER TO ILLUSTRATION,SILVER,SILVER
sub42610-60072
5.50F-16,TYPE B:REFER TO ILLUSTRATION,SILVER,SILVER
5.50F-16,#,TYPE B:REFER TO ILLUSTRATION
sub42610-60081
5.50F-16,#,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED
5.50F-16,#,TYPE B:REFER TO ILLUSTRATION
5.50F-16,#,TYPE B:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)
5.50F-15,3,TYPE E:REFER TO ILLUSTRATION,SILVER,SILVER
sub42610-60162
5.50F-16,#,TYPE A:REFER TO ILLUSTRATION,GRAY,GRAY
5.50F-16,#,TYPE A:REFER TO ILLUSTRATION, FOR PAKISTAN GOVERNMENT,GRAY,GRAY
5.50F-16,#,TYPE B:REFER TO ILLUSTRATION,SILVER,SILVER
sub42610-60072
5.50F-16,#,TYPE A:REFER TO ILLUSTRATION,SILVER,SILVER
sub42610-60142
5.50F-16,#,TYPE A:REFER TO ILLUSTRATION,SILVER,SILVER
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION,TOPY
sub42610-60151
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION
sub42610-60151
main42610-60151iHZJ75..GEN..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,HZJ70..HT..GEN;HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBU199208-200007
5.50F-15,#,TYPE F:REFER TO ILLUSTRATION
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION,SILVER,SILVER
sub42610-60162
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION,SILVER,SILVER
5.5OF-16,#,BANGLADESH CKD SPEC,TYPE H:REFER ILLUST.
5.5OF-16,#,TYPE H:REFER ILLUST.
5.5OF-16,SILVER,#,TYPE H:REFER TO ILLUSTRATION
5.5OF-16,SILVER,#
42601AWHEEL, DISC (FOR SPARE)
5.5OF-16,#,TYPE H:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
W(16X5.50F WHEEL)
CAP NUT
S.ARABIA SPEC
W(ALUMINUM WHEEL)
MUSTER(AUSTRALIA)
42611GVALVE (FOR TUBELESS TIRE)
MUSTER(AUSTRALIA)
42611JVALVE (FOR TUBELESS TIRE SPARE)
MUSTER(AUSTRALIA)
42613ARING, DISC WHEEL SIDE
main42613-35010iPZJ75..RHD..PIC;FJ75..HT..5F..GEN;FJ75,HZJ75..PIC..GEN;PZJ75..LHD..PIC..CBU;FJ70,73,LJ70,72,PZJ70,73,RJ70..GEN199001-199208
TOPY,GRAY
CHUO SEIKI
sub42613-60080
CHUO SEIKI,GRAY
sub42613-60080
CHUO SEIKI,BLACK
CHUO SEIKI,SILVER
TOPY,GRAY
BANGLADESH CKD SPEC,GRAY
GRAY
CHUO SEIKI,GRAY
main42613-60080iRJ77..GEN;FZJ75..CBR;HZJ75,LJ79..LHD..LX;FZJ70,73,HZJ70,LJ72,PZJ7#,RJ70;FZJ75,HZJ75,LJ79..STD..(DSL,EFI)199305-200405
CHUO SEIKI
main42613-60090iHZJ75..LX..GCC;HZJ75..PIC..GEN;PZJ75..RHD..PIC;PZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)199001-199305
TOPY,SILVER
main42613-60100iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBU199305-200007
TOPY,SILVER
42652TIRE
7.50-16-6,JEEP,*B/S
7.50-16-8,JEEP,*B/S
9.00-15-6,SAND,*D/L
9.00-15-6,SAND,*T/Y
9.00-15-6,SAND,*B/S
7.50-16-6,LUG
7.00-15-6,SEMI LUG
7.50-16-8,LUG,EAST MALAYSIA CKD SPEC
7.50-16-8,LUG,CHINA SPEC
7.50-16-8,LUG
7.50R16-8,*B/S SAHAR
205R16C
7.00-15-6,RIB
7.50R16-8,*D/L SAHAR
7.50R16-8,SAND
7.50-16-8,*B/S
7.50-16-8,*B/S,COLOMBIA CKD SPEC
7.50-16-8,SEMI LUG
7.50-16-8,*D/L,COLOMBIA CKD SPEC
7.50-16-8,*D/L
7.00-16-6,SEMI LUG
7.50R16C112/110S*Y/H,SUPER HAJARI
7.50R16-8,*D/L
7.50R16-8,*D/L
7.50R16-8,*Y/H
7.50R16-8,*Y/H
31X10.5R15,*B/S
31X10.50R15,*B/S
7.50-16-6,*D/L
31X10.5R15,*D/L
31X10.50R15,*D/L
7.50R16-8
265/75R15,*D/L
265/75R15,*D/L
7.00R15-6,*D/L
7.00R15-6,*B/S
7.50R16-6,*D/L
sub42605-6A291
7.50R16-8,*B/S
235/95R15C-6,*D/L
235/95R15C-6,*D/L
235/95R15C-6,*B/S
235/95R15C-6,*T/Y
235/95R15C-6,*T/Y
7.50R16-8,*Y/H,SUPER HAJARI
sub42605-6A531
7.50R16-8,*Y/H,SUPER HAJARI
sub42605-6A532
7.5R16C112/110S,*Y/H
7.5R16C112/110S,*Y/H,SUPER HAJARI
7.50R16-8,*D/L,BANGLADESH SPEC
7.50R16-8,*D/L
225/95R16C-8,*D/L
265/70R16 LT,*D/L
HR78-15,VENEZUELA CKD SPEC
265/70R16 LT,*D/L
265/70R16 LT,*D/L,MUSTER(AUSTRALIA)
7.50-16-6,SEMI LUG
7.00-16-6,LUG
7.00-16-8,LUG
7.00-15-6,GRIP,VENEZUELA CKD SPEC
7.00-15-6,GRIP
7.00-16-6,GRIP
42652ATIRE (FOR SPARE)
7.50-16-6,JEEP,*B/S
7.50-16-8,JEEP,*B/S
9.00-15-6,SAND,*D/L
9.00-15-6,SAND,*T/Y
9.00-15-6,SAND,*B/S
7.50-16-6,LUG
7.00-15-6,SEMI LUG
7.50-16-8,LUG
7.50R16-8,*B/S SAHAR
205R16C
7.00-15-6,RIB
7.50R16-8,*D/L SAHAR
main42605-60711iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199809-200701
7.50R16-8,SAND
7.50-16-8,*B/S
7.50-16-8,SEMI LUG
7.50-16-8,*D/L
7.00-16-6,SEMI LUG
7.50R16C112/110S*Y/H,SUPER HAJARI
7.50R16-8,*D/L
7.50R16-8,*D/L
7.50R16-8,*Y/H
main42605-6A061iHZJ75..GEN..IV;HZJ75..HT..GEN;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199809-200405
7.50R16-8,*Y/H
31X10.5R15,*B/S
31X10.50R15,*B/S
7.50-16-6,*D/L
31X10.5R15,*D/L
31X10.50R15,*D/L
7.50R16-8
265/75R15,*D/L
265/75R15,*D/L
7.00R15-6,*D/L
7.00R15-6,*B/S
7.50R16-8,*B/S
235/95R15C-6,*D/L
235/95R15C-6,*D/L
235/95R15C-6,*B/S
235/95R15C-6,*T/Y
235/95R15C-6,*T/Y
7.50R16-8,*Y/H,SUPER HAJARI
sub42605-6A531
7.50R16-8,*Y/H,SUPER HAJARI
sub42605-6A532
7.5R16C112/110S,*Y/H,SUPER HAJARI
7.5R16C112/110S,*Y/H
7.50R16-8,*D/L
7.50R16-8,*D/L,BANGLADESH SPEC
225/95R16C-8,*D/L
265/70R16 LT,*D/L
HR78-15
265/70R16 LT,*D/L
265/70R16 LT,*D/L,MUSTER(AUSTRALIA)
7.50-16-6,SEMI LUG
7.00-16-6,LUG
7.00-16-8,LUG
7.00-15-6,GRIP
7.00-16-6,GRIP
8 parts on this diagram · 3 diagrams in section
