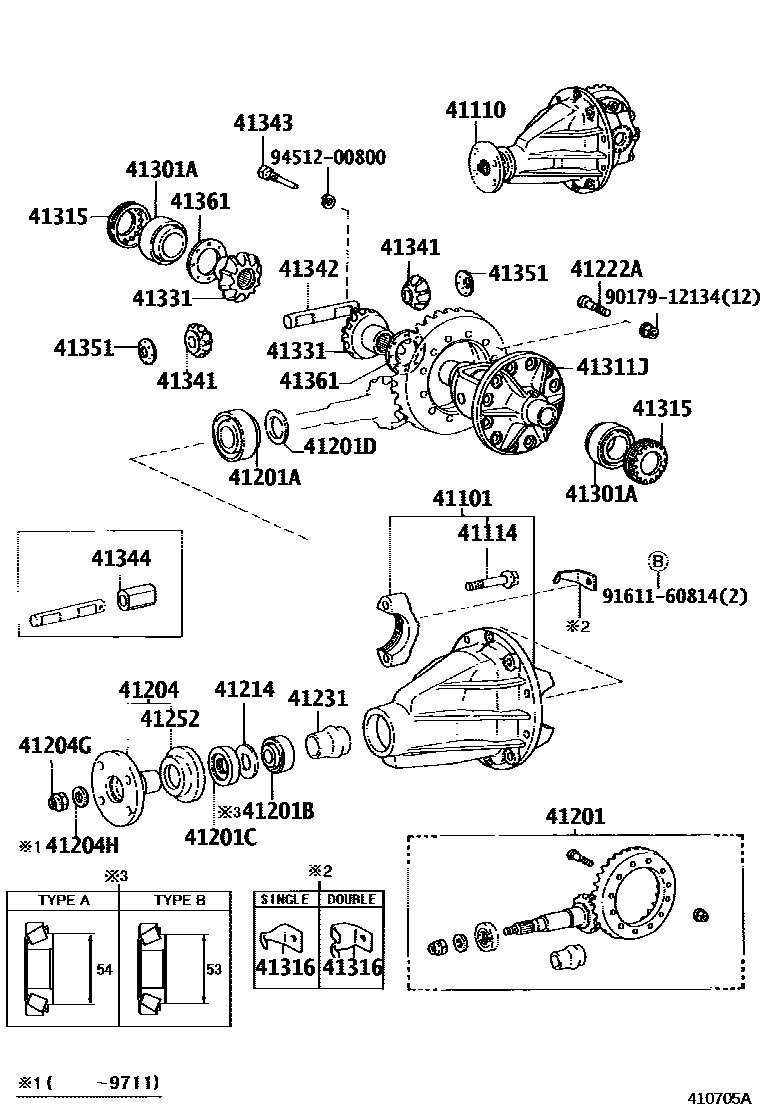

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1W(SEMI FLOATING AXLE) 0003 1LIMITED SLIP DIFFERENTIAL 0004 1W(FULL FLOATING AXLE) 0005 1W(DIFFERENTIAL LOCK) 0006 1 0007 1 0008 1LIMITED SLIP DIFFERENTIAL 0009 1W(DIFFERENTIAL LOCK) 0010 1 0011 1LIMITED SLIP DIFFERENTIAL 0012 1W(DIFFERENTIAL LOCK)

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35071iRJ7#199001-199511

sub41101-35170

main41101-35150iRJ7#..LX..GEN199508-199604

W(DIFFERENTIAL LOCK)

sub41101-35151

main41101-35170iKZJ7#,RJ7#199511-199604

sub41101-35171

sub41115-35010

main41101-60041iHJ75199001-199108

main41101-60061iLJ7#199001-199511

W(*FGR=39:8=4.875)

sub41101-60160

main41101-60100iFZJ70..SOT;FZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR199001-199711

sub41101-60180

main41101-60120iFZJ7#,HZJ7#,PZJ7#..ARL,GEN199001-199711

W(DIFFERENTIAL LOCK)

sub41101-60190

main41101-60130iPZJ75;PZJ70,73..ARL199001-199401

W(*FGR=41:9=4.556)

sub41101-25020

main41101-60130iPZJ75..5F199305-199501

sub41101-25020

main41101-60140iRJ7#..LX..GEN199001-199508

W(DIFFERENTIAL LOCK)

main41101-60160iRJ7#199511-199604

W(*FGR=39:8=4.875)

sub41101-60161

sub41115-35010

main41101-60180iFZJ70,75..GEN..CBU..EFI199711-200701

main41101-60190iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199711-200701

W(DIFFERENTIAL LOCK)

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26161iKZJ7#199305-199604

*FGR=43:10=4.300

sub41110-3D020

main41110-35491iKZJ7#,RJ7#..HT199305-199511

*FGR=41:9=4.555

sub41110-3D090

main41110-35640iKZJ7#199305-199511

*FGR=43:10=4.300,W(LSD)

sub41110-3D040

main41110-35670iRJ70..SOT199305-199511

*FGR=41:9=4.555,W(LSD)

sub41110-3D210

main41110-3D040iKZJ7#199511-199604

*FGR=43:10=4.300,W(LSD)

sub41110-3D041

main41110-3D090iKZJ7#,RJ7#199511-199604

*FGR=41:9=4.555

sub41110-3D091

main41110-3D210iKZJ7#,RJ7#199511-199604

*FGR=41:9=4.555,W(LSD)

sub41110-3D211

main41110-60151iRJ7#199001-199305

*FGR=41:9=4.555

sub41110-35491

main41110-60181iRJ7#199001-199305

*FGR=41:9=4.555,W(LSD)

sub41110-35670

main41110-60300iFJ75..SA;FJ70,73..GEN199001-199208

*FGR=41:11=3.727

sub41110-60301

main41110-60320iFJ70..GEN199001-199208

*FGR=41:11=3.727,W(LSD)

sub41110-60321

main41110-60340iFJ70,73..GEN199001-199201

*FGR=41:11=3.727,W(DIFFERENTIAL LOCK)

sub41110-60341

main41110-60380iLJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX199001-199511

*FGR=39:8=4.875

sub41110-60690

main41110-60390iLJ7#,RJ7#199001-199511

*FGR=39:8=4.875,W(LSD)

sub41110-60700

main41110-60390iLJ79..RHD..LX199305-199511

*FGR=39:8=4.875

sub41110-60700

main41110-60410iPZJ70,73199001-200202

*FGR=37:9=4.111

sub41110-60411

main41110-60411iFZJ73,75200202-200405

*FGR=37:9=4.111

sub41110-60412

main41110-60420iPZJ75..5F199001-199501

*FGR=41:9=4.555

sub41110-60421

main41110-60430iPZJ70..GEN;HZJ75,PZJ73..STD;FJ7#,HZJ70,73..ARL,GCC,GEN199001-200007

*FGR=37:9=4.111,W(LSD)

sub41110-60431

main41110-60430iFZJ75,HZJ75..ARL199501-199908

*FGR=37:9=4.111

sub41110-60431

main41110-60440iPZJ7#199001-199401

*FGR=41:9=4.555,W(LSD)

sub41110-60441

main41110-60450iHJ75199001-199108

*FGR=37:10=3.700

sub41110-60451

main41110-60470iHJ75199001-199108

*FGR=37:10=3.700,W(LSD)

sub41110-60471

main41110-60490iPZJ70,73..GEN;FJ7#,HZJ7#..ARL,GCC,GEN199001-200007

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK)

sub41110-60491

main41110-60500iHZJ75,PZJ70..(PIC,SOT)..4F..CBU199001-199305

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK) & 24V

sub41110-60501

main41110-60500iHZJ7#..RHD..(PIC,SOT)..GEN..CBU199704-199908

*FGR=37:9=4.111,W(DIFFERENTIAL LOCK & POWER STEERING)

sub41110-60501

main41110-60510iPZJ7#199001-199401

*FGR=41:9=4.555,W(DIFFERENTIAL LOCK)

main41110-60520iPZJ70..SOT199001-199305

*FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & 24V

main41110-60570iRJ7#199001-199108

*FGR=41:9=4.555,W(DIFFERENTIAL LOCK)

main41110-60580iRJ7#..LX..GEN199001-199604

*FGR=39:8=4.875,W(DIFFERENTIAL LOCK)

main41110-60690iLJ72,RJ7#;LJ79..STD;LJ79..LHD..LX199511-199604

*FGR=39:8=4.875

sub41110-60691

main41110-60700iLJ72,RJ7#;LJ79..STD;LJ79..LHD..LX199511-199604

*FGR=39:8=4.875

sub41110-60701

main41110-60700iLJ72,RJ7#;LJ79..STD;LJ79..LHD..LX199511-199604

*FGR=39:8=4.875,W(LSD)

sub41110-60701

main41110-60870iFZJ71,74199908-200202

*FGR=41:10=4.100

sub41110-60871

main41110-60871iFZJ71,74200202-200609

*FGR=41:10=4.100

sub41110-60A20

main41110-60880iHZJ71,78,79..GCC,GEN199908-200202

*FGR=43:10=4.300

sub41110-60881

main41110-60881iHZJ7#..GCC,GEN200202-200609

*FGR=43:10=4.300

sub41110-60A30

main41110-60A20iFZJ79..LX;FZJ71,74,78200609-200701

*FGR=41:10=4.100

sub41110-60A21

main41110-60A30iFZJ79,HZJ7#..GCC,GEN200609-200701

*FGR=43:10=4.300

sub41110-60A31

main41110-60A50iFZJ79..LX;FZJ71,74,78,HDJ7#200609-200701

*FGR=41:10=4.100,W(LSD)

sub41110-60A51

main41110-60A60iFZJ79,HZJ7#200609-200701

*FGR=43:10=4.300,W(LSD)

sub41110-60A61

main41110-60B00iFZJ79..LX;FZJ79,HZJ7#..ARL,GEN200609-200701

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41110-60B01

main41110-60B50iFZJ79..LX;FZJ71,74,78,HDJ7#..ARL,GEN200609-200701

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

sub41110-60B51

main41110-60B60iHZJ71,79..RHD..(PIC,SOT)..CBU200609-200701

*FGR=43:10=4.300,BANGLADESH CKD SPEC & W(DIFFERENTIAL LOCK)

sub41110-60B61

main41110-6A020iFZJ71,74199908-200202

*FGR=41:10=4.100,W(LSD)

sub41110-6A021

main41110-6A021iFZJ71,74200202-200609

*FGR=41:10=4.100,W(LSD)

sub41110-60A50

main41110-6A030iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200202

*FGR=43:10=4.300,W(LSD)

sub41110-6A031

main41110-6A031iHZJ7#200202-200609

*FGR=43:10=4.300,W(LSD)

sub41110-60A60

main41110-6A070iHZJ79..GEN;HZJ71,78..STD;HZJ79..ARL..IV199908-200202

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41110-6A071

main41110-6A071iHZJ7#..ARL,GEN200202-200609

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41110-60B00

main41110-6A100iFZJ79..GCC,GEN199908-200202

*FGR=43:10=4.300

sub41110-6A101

main41110-6A101iFZJ79..GCC,GEN199908-200609

*FGR=43:10=4.300,AXLE CODE=K284

sub41110-60A30

main41110-6A110iFZJ79199908-200202

*FGR=43:10=4.300,W(LSD)

sub41110-6A111

main41110-6A111iFZJ79..ARL199908-200609

*FGR=43:10=4.300,W(LSD) & AXLE CODE=K285

sub41110-60A60

main41110-6A140iFZJ79..LX;FZJ79..ARL,GEN199908-200202

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK)

sub41110-6A141

main41110-6A141iFZJ79..LX;FZJ79..GEN200202-200609

*FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=K284

sub41110-60B00

main41110-6A250iFZJ78..GCC,GEN199908-200202

*FGR=41:10=4.100

sub41110-6A251

main41110-6A251iFZJ78..GCC,GEN200202-200609

*FGR=41:10=4.100

sub41110-60A20

main41110-6A261iFZJ79..LX200207-200609

*FGR=41:10=4.100,W(LSD) & AXLE CODE=K295

sub41110-60A50

main41110-6A261iFZJ78..GCC,GEN199908-200609

*FGR=41:10=4.100,W(LSD)

sub41110-60A50

main41110-6A261iHDJ7#200108-200609

*FGR=41:10=4.100

sub41110-60A50

main41110-6A271iHDJ7#;FZJ71,74,78..GEN199908-200609

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

sub41110-60B50

main41110-6A271iFZJ79..LX200207-200609

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK) & AXLE CODE=K294

sub41110-60B50

main41110-6A291iHZJ71,79..RHD..(PIC,SOT)..GEN199908-200609

*FGR=43:10=4.300,BANGLADESH CKD SPEC & W(DIFFERENTIAL LOCK)

sub41110-60B60

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-60010iFZJ78,79..ARL199001-200701

W(DIFFERENTIAL LOCK)

main41114-60020iFZJ7#,HDJ7#,HZJ7#200609-200701

main90105-12053iFZJ75,HZJ75..SA199001-200405

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29856iKZJ7#199305-199604

*FGR=43:10=4.300

sub41201-80104

main41201-69245iFJ70,73..GEN199001-199208

*FGR=41:11=3.727

sub41201-69246

sub41204-60050

sub41214-26011

main41201-69275iPZJ7#199001-199305

*FGR=41:9=4.556,W(DIFFERENTIAL LOCK) & AXLE CODE=K254

sub41201-69276

sub41204-35100

sub41214-26011

main41201-69275iPZJ7#199305-199401

*FGR=41:9=4.556,W(DIFFERENTIAL LOCK)

sub41201-69276

sub41204-35100

sub41214-26011

main41201-69285iRJ70..SOT199001-199604

*FGR=39:8=4.875

sub41201-80183

sub41204-35081

sub41214-26011

main41201-69305iHJ75199001-199108

*FGR=37:10=3.700

sub41201-69306

sub41204-60050

sub41214-26011

main41201-69355iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200202

*FGR=37:9=4.111

sub41201-69356

sub41204-35082

sub41204-35100

sub41214-26011

main41201-69356iFZJ73,75200202-200405

*FGR=37:9=4.111

sub41201-80527

sub41204-60060

sub41204-60070

sub41214-60020

sub90366-33006

sub90366-40111

main41201-69365iPZJ75..5F199001-199501

*FGR=41:9=4.556

sub41201-69366

sub41204-35082

sub41214-26011

main41201-69365iPZJ75;PZJ70,73..ARL199001-199305

*FGR=41:9=4.556,*AXC=K252,K255

sub41201-69366

sub41204-35082

sub41214-26011

main41201-69375iRJ7#199001-199305

*FGR=41:9=4.556

sub41201-29646

sub41204-35081

sub41214-26011

main41201-69415iRJ7#199001-199108

*FGR=41:9=4.556,W(DIFFERENTIAL LOCK)

sub41201-69416

sub41204-35081

sub41214-26011

main41201-69425iRJ7#..LX..GEN199001-199604

*FGR=39:8=4.875,W(DIFFERENTIAL LOCK) & AXLE CODE=G144

sub41201-69426

sub41204-35081

sub41214-26011

main41201-69495iFZJ78,HDJ7#;FZJ79..GEN..IV199908-200202

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

sub41201-69496

sub41204-35100

sub41214-26011

main41201-69495iFZJ78;FZJ71,74,HDJ7#..ARL,GEN199908-200202

*FGR=41:10=4.100

sub41201-69496

sub41204-35100

sub41214-26011

main41201-69496iFZJ71,74..GEN200202-200609

*FGR=41:10=4.100

sub41201-80492

sub41204-60060

sub41214-60020

sub90366-33006

sub90366-40111

main41201-69496iFZJ71,74..GEN200202-200609

*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)

sub41201-80492

sub41204-60060

sub41214-60020

sub90366-33006

sub90366-40111

main41201-69496iFZJ79..LX200207-200609

*FGR=41:10=4.100,AXLE CODE=K294 OR K295

sub41201-80492

sub41204-60060

sub41214-60020

sub90366-33006

sub90366-40111

main41201-80059iRJ70..SOT199305-199604

*FGR=41:9=4.556

sub41201-80105

main41201-80134iFZJ71,74199908-200202

*FGR=41:10=4.100

sub41201-80202

sub41204-35100

sub41214-26011

main41201-80135iHZJ78..LX;HZJ79..ARL..CBU199908-200202

*FGR=43:10=4.300

sub41201-80203

sub41204-35100

sub41214-26011

main41201-80139iFZJ79199908-200202

*FGR=43:10=4.300

sub41201-80204

sub41204-35100

sub41214-26011

main41201-80202iFZJ71,74200202-200609

*FGR=41:10=4.100

sub41201-80492

sub41204-60060

sub41214-60020

sub90366-33006

sub90366-40111

main41201-80203iHZJ7#200202-200609

*FGR=43:10=4.300

sub41201-80493

sub41204-60060

sub41214-60020

sub90366-33006

sub90366-40111

main41201-80204iFZJ79..GCC,GEN200202-200609

*FGR=43:10=4.300,AXLE CODE=K284 OR K285

sub41201-80493

sub41204-60060

sub41214-60020

sub90366-33006

sub90366-40111

main41201-80470iHZJ7#..ARL,GEN200508-200609

*FGR=43:10=4.300,W(DEFERENTIAL LOCK)

main41201-80492iFZJ79..LX;FZJ71,74,78,HDJ7#200609-200701

*FGR=41:10=4.100

main41201-80493iFZJ79,HZJ7#200609-200701

*FGR=43:10=4.300

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iRJ70..SOT199001-199511

sub90366-35087

main90366-35028iRJ7#..LX..GEN199511-199604

W(DIFFERENTIAL LOCK)

sub90366-35087

main90366-40059iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)199001-199711

TYPE A,REF PNC41201B

main90366-40088iFZJ70,75..GEN..CBU..EFI199711-200609

TYPE B,REF PNC41201B

main90366-40111iFZJ7#,HDJ7#,HZJ7#200609-200701

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30025iLJ7#,RJ7#199001-199511

sub90366-30067

main90366-30038iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)199001-199711

TYPE A:REFER ILLUST.

main90366-30067iKZJ7#,LJ7#,RJ7#199511-199604

main90366-30071iFZJ70,75..GEN..CBU..EFI199711-200609

TYPE B:REFER ILLUST.

main90366-33006iFZJ7#,HDJ7#,HZJ7#200609-200701

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iLJ70..ARL;LJ77,79,RJ77;LJ72,RJ70..LHD199108-199512

W(DIFFERENTIAL LOCK)

sub90311-38047

main90311-38035iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199610

sub90311-38047

main90311-38047iKZJ7#,LJ7#,RJ7#199511-199801

main90311-38066iFZJ73,75..(PIC,SOT)..GEN..EFI199801-200202

main90311-38133iKZJ7#,LJ7#,RJ7#..HT199001-199511

sub90311-38047

main90311-41009iHDJ7#,HZJ78,79;FZJ71,74,78,79,HZJ71..GCC,GEN200202-200609

main90311-45028iFZJ7#,HDJ7#,HZJ7#200609-200701

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

OD=47,T=1.70

main90201-35498iRJ70..SOT199001-200405

OD=47,T=1.73

main90201-35499iFZJ70,75..GEN..CBU..EFI199001-200405

OD=47,T=1.76

main90201-35500iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

OD=47,T=1.79

main90201-35501iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

OD=47,T=1.82

main90201-35502iRJ70..SOT199001-200405

OD=47,T=1.85

main90201-35503iLJ7#,RJ7#199001-200405

OD=47,T=1.88

main90201-35504iRJ70..SOT199001-200405

OD=47,T=1.91

main90201-35505iFZJ70,75..GEN..CBU..EFI199001-200405

OD=47,T=1.94

main90201-35506iFZJ70,75..GEN..CBU..EFI199001-200405

OD=47,T=1.97

main90201-35507iRJ70..SOT199001-200405

OD=47,T=2.00

main90201-35508iKZJ7#,LJ7#,RJ7#..HT199001-200405

OD=47,T=2.03

main90201-35509iRJ70..SOT199001-200405

OD=47,T=2.06

main90201-35510iFZJ70,75..GEN..CBU..EFI199001-200405

OD=47,T=2.09

main90201-35511iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

OD=47,T=2.12

main90201-35512iKZJ7#,LJ7#,RJ7#..HT199001-200405

OD=47,T=2.15

main90201-35513iFZJ70,75..GEN..CBU..EFI199001-200405

OD=47,T=2.18

main90201-35514iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

OD=47,T=2.21

main90201-35515iRJ70..SOT199001-200405

OD=47,T=2.24,MARK 01

main90201-35516iLJ7#,RJ7#199001-200405

OD=47,T=2.27,MARK 02

main90201-35517iLJ7#,RJ7#199001-200405

OD=47,T=2.30,MARK 03

main90201-35518iRJ70..SOT199001-200405

OD=47,T=2.33,MARK 04

main90201-40551iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-199610

T=1.05

sub90564-40004

main90201-40552iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)199001-199610

T=1.10

sub90564-40007

main90201-40553iPZJ70,73;PZJ75..4F199001-199610

T=1.15

sub90564-40009

main90201-40554iPZJ70,73;PZJ75..4F199001-199610

T=1.20

sub90564-40011

main90201-40555iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-199610

T=1.25

sub90564-40013

main90201-40556iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)199001-199610

T=1.30

sub90564-40015

main90201-40557iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)199001-199610

T=1.35

sub90564-40017

main90201-40558iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199610

T=1.40

sub90564-40019

main90201-40559iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199610

T=1.45

sub90564-40021

main90201-40560iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-199610

T=1.50

sub90564-40023

main90201-40561iPZJ70,73;PZJ75..4F199001-199610

T=1.55

sub90564-40025

main90564-40004iFZJ78,79..ARL199610-200701

T=1.05

main90564-40006iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199610-200701

T=1.075

main90564-40007iFZJ75,HZJ75..SA199610-200701

T=1.10

main90564-40008iHZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)199610-200701

T=1.125

main90564-40009iFZJ70,75..GEN..CBU..EFI199610-200701

T=1.15

main90564-40010iFZJ70,75..GEN..CBU..EFI199610-200701

T=1.175

main90564-40011iHDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN199610-200701

T=1.20

main90564-40012iFZJ70,75..GEN..CBU..EFI199610-200701

T=1.225

main90564-40013iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199610-200701

T=1.25

main90564-40014iHZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)199610-200701

T=1.275

main90564-40015iFZJ78,79..ARL199610-200701

T=1.30

main90564-40016iHZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)199610-200701

T=1.325

main90564-40017iHDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN199610-200701

T=1.35

main90564-40018iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199610-200701

T=1.375

main90564-40019iHDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN199610-200701

T=1.40

main90564-40020iHZJ78..LX;HZJ79..ARL..CBU199610-200701

T=1.425

main90564-40021iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199610-200701

T=1.45

main90564-40022iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199610-200701

T=1.475

main90564-40023iFZJ75,HZJ75..SA199610-200701

T=1.50

main90564-40024iHZJ78..LX;HZJ79..ARL..CBU199610-200701

T=1.525

main90564-40025iFZJ73,75..(PIC,SOT)..GEN..EFI199610-200701

T=1.55

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iRJ70..SOT199001-199604

main41204-35080iRJ7#..LX..GEN199602-199604

W(DIFFERENTIAL LOCK)

main41204-35100iHDJ7#,HZJ78,79;FZJ71,74,78,79,HZJ71..GCC,GEN200202-200609

main41204-60030iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199801

sub41204-60050

main41204-60050iFZJ70,75..GEN..CBU..EFI199801-200202

main41204-60060iFZJ7#,HDJ7#,HZJ7#200609-200701

sub41204-60080

sub90311-45036

41204GNUT (FOR DRIVE PINION COMPANION FLANGE REAR)

main90177-22003iFZJ78,79..ARL200202-200609

main90179-20001iLJ7#,RJ7#199001-199308

main90179-20018iKZJ7#,LJ7#,RJ7#..HT199308-199604

main90179-22011iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-199711

sub90179-22016

main90179-22016iFZJ75,HZJ75..SA199711-200405

main90179-22029iFZJ7#,HDJ7#,HZJ7#200609-200701

41204HWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)

main90201-20005iLJ7#,RJ7#199001-199308

main90201-22007iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199711

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iFZJ70,75..GEN..CBU..EFI199001-200202

main41214-26011iFZJ78,79..ARL200202-200609

main41214-60020iFZJ7#,HDJ7#,HZJ7#200609-200701

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iLJ7#,RJ7#199001-199604

main41222-60010iRJ7#..LX..GEN199001-199604

W(DIFFERENTIAL LOCK)

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main41226-35010iPZJ70,73;PZJ75..4F199001-200405

main90101-11353iKZJ7#,LJ7#,RJ7#..HT199001-199604

main90101-11353iFZJ75..LX..CBR199708-199908

W(DIFFERENTIAL LOCK)

main90901-05002iFZJ78,79..ARL199908-200701

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKZJ7#,LJ7#,RJ7#..HT199001-199604

main41231-60030iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200609

main41231-60040iFZJ7#,HDJ7#,HZJ7#200609-200701

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iFJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199303

sub41252-35020

main41252-35020iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199303-199801

main41252-35020iRJ7#..LX..GEN199511-199602

W(DIFFERENTIAL LOCK)

main41252-35040iHZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)199511-200202

main41252-35041iHDJ7#,HZJ78,79;FZJ71,74,78,79,HZJ71..GCC,GEN200202-200609

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iRJ70..SOT199305-199401

main90366-50007iRJ7#..LX..GEN199001-199604

W(DIFFERENTIAL LOCK),RH

main90366-50054iFZJ75,HZJ75..SA199711-200701

sub90366-50177

main90366-60002iFZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GEN;FZJ75..(ARL,GEN)..CBU;FZJ70,HZJ75..(HT,PIC)..(ARL,GEN)..(CBR,DSL)199001-200701

W(DIFFERENTIAL LOCK)

main90366-75001iRJ7#..LX..GEN199305-199604

W(DIFFERENTIAL LOCK),LH

main90368-50024iPZJ70,73;PZJ75..4F199001-199711

41311JCASE, REAR DIFFERENTIAL

main41311-60070iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-200405

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iHDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-200701

main41315-35020iRJ7#..LX..GEN199001-199604

W(DIFFERENTIAL LOCK),RH

main41315-35020iRJ70..SOT199305-199401

main41315-60010iLJ7#,RJ7#199001-199604

W(DIFFERENTIAL LOCK),LH

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199711

main41316-30010iHZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)199711-200701

SINGLE TYPE

main41316-35010iLJ7#,RJ7#199001-199604

main41317-30010iFZJ73,75..(PIC,SOT)..GEN..EFI199711-200701

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-25010iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

main41331-35030iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT199001-199604

W(LSD)

sub41039-34070

main41331-35040iLJ7#,RJ7#199001-199604

W(DIFFERENTIAL LOCK),RH

sub41039-34060

sub41039-34080

main41331-35040iRJ70..SOT199305-199401

sub41039-34060

sub41039-34080

main41331-60010iFZJ75,HZJ75..ARL199001-200007

W(LSD)

main41331-60020iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200007

W(DIFFERENTIAL LOCK)

main41331-60040iRJ7#..LX..GEN199001-199604

W(DIFFERENTIAL LOCK),LH

sub41039-34060

main41331-60060iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

main41331-60070iFZJ78,79..ARL199908-200701

W(LSD)

main41331-60070iHDJ7#200108-200701

main41331-60080iFZJ78,79..ARL199908-200701

W(DIFFERENTIAL LOCK)

41341PINION, REAR DIFFERENTIAL

main41341-25010iPZJ70,73;PZJ75..4F199001-200405

main41341-30020iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#199408-199604

W(LSD)

sub41341-30050

main41341-30020iLJ7#,RJ7#199001-199408

W(DIFFERENTIAL LOCK)

sub41341-30050

main41341-35010iLJ7#,RJ7#199001-199408

sub41341-14041

main41341-55012iFZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-199710

W(DIFFERENTIAL LOCK)

sub41341-55013

main41341-55013iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199710-200701

W(DIFFERENTIAL LOCK)

main41341-60010iFZJ75,HZJ75..ARL199001-199710

W(LSD)

sub41341-60011

main41341-60011iHDJ7#199710-200701

W(LSD)

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-55010iPZJ70,73;PZJ75..4F199001-200405

main41342-60010iFJ70,75,HZJ70,PZJ73..RHD;FZJ7#,HZJ75,PZJ70,75..ARL,GCC,GEN199001-199801

W(DIFFERENTIAL LOCK),L=136.0

sub41342-60011

main41342-60010iFZJ75,HZJ75..ARL199501-199801

L=136.0

sub41342-60011

main41342-60011iFZJ79..LX;FZJ71,74,78,79,HZJ71,78,79..ARL,GEN199801-200108

W(DIFFERENTIAL LOCK),L=136.0

main41342-60011iFZJ79..LX;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GEN199908-200701

main41342-60020iFZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-199801

W(DIFFERENTIAL LOCK),L=60.5

sub41342-60021

main41342-60020iFZJ75,HZJ75..ARL199501-199801

L=60.5

sub41342-60021

main41342-60021iFZJ75..LX;HZJ75..ARL;HZJ75..GEN..IV;FZJ75..STD..ARL;HZJ75..LHD..PIC..GEN..CBU;FZJ73,HZJ75..(HT,SOT)..GEN..(CBR,DSL);FZJ70,75,HZJ70..(HT,PIC)..GEN..(CBR,DSL)199801-200007

W(DIFFERENTIAL LOCK),L=60.5

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main41343-60010iHZJ75..ARL,GCC,GEN;FZJ7#,HZJ70,PZJ7#..ARL,GEN199001-200007

W(DIFFERENTIAL LOCK)

main41343-60010iHZJ78..LX;HZJ79..ARL..CBU199908-200808

main41343-60030iFZJ75,HZJ75..SA199001-200405

41344SPACER, DIFFERENTIAL PINION SHAFT

main41344-35010iFJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA199001-200007

H=29.8

main41345-35010iFZJ75,HZJ75..SA199001-200007

H=30.2

main41346-35010iFZJ75,HZJ75..SA199001-200007

H=30.6

main41347-35010iFZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200007

H=29.0

main41348-35010iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200007

H=29.4

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-25010iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200405

main41351-30060iRJ70..SOT199001-199604

main41351-35011iFZJ75..LX;HZJ75..ARL;HZJ75..GEN..IV;FZJ75..STD..ARL;HZJ75..LHD..PIC..GEN..CBU;FZJ73,HZJ75..(HT,SOT)..GEN..(CBR,DSL);FZJ70,75,HZJ70..(HT,PIC)..GEN..(CBR,DSL)199001-200701

W(DIFFERENTIAL LOCK)

main41351-60010iHDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN199908-200701

main41351-60010iFJ7#,HJ75,HZJ7#,PZJ7#199001-200007

W(LSD)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT199001-199509

T=0.90

sub41361-60E10

main41361-24020iLJ7#,RJ7#199001-199509

T=1.00

sub41361-60E50

main41361-24030iRJ70..SOT199001-199509

T=1.10

sub41361-60E90

main41361-24040iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT199001-199509

T=1.20

sub41361-60F30

main41361-24050iRJ70..SOT199001-199509

T=1.30

sub41361-60F70

main41361-35310iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#199509-199604

T=0.9

main41361-35320iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#199509-199604

T=1.0

main41361-35330iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#199509-199604

T=1.1

main41361-35340iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#199509-199604

T=1.2

main41361-35350iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#199509-199604

T=1.3

main41361-60010iPZJ70,73;PZJ75..4F199001-199609

T=1.60

sub41361-60011

main41361-60010iFZJ75,HZJ75..ARL199501-199609

T=1.60,W(DIFFERENTIAL LOCK)

sub41361-60011

main41361-60011iFZJ73,75..(PIC,SOT)..GEN..EFI199609-200405

T=1.60

main41361-60011iFZJ75,HZJ75..ARL199609-199908

T=1.60,W(DIFFERENTIAL LOCK)

main41361-60020iPZJ70,73;PZJ75..4F199001-199609

T=1.75

sub41361-60021

main41361-60020iFZJ7#,HZJ7#..GCC,GEN,SA199501-199609

T=1.75,W(DIFFERENTIAL LOCK)

sub41361-60021

main41361-60021iFZJ73,75..(PIC,SOT)..GEN..EFI199609-200405

T=1.75

main41361-60021iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=1.75,W(DIFFERENTIAL LOCK)

main41361-60030iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199609

T=1.90

sub41361-60031

main41361-60030iFZJ75,HZJ75..ARL199501-199609

T=1.90,W(DIFFERENTIAL LOCK)

sub41361-60031

main41361-60031iFZJ75,HZJ75..SA199609-200405

T=1.90

main41361-60031iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=1.90,W(DIFFERENTIAL LOCK)

main41361-60040iPZJ70,73;PZJ75..4F199001-199609

T=2.05

sub41361-60041

main41361-60040iFZJ7#,HZJ7#..GCC,GEN,SA199501-199609

T=2.05,W(DIFFERENTIAL LOCK)

sub41361-60041

main41361-60041iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199609-200405

T=2.05

main41361-60041iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=2.05,W(DIFFERENTIAL LOCK)

main41361-60290iFZJ75..LX;FZJ75..STD..ARL;FZJ7#,HZJ7#..(ARL,GEN)..(CBR,DSL)199305-200007

T=0.90

main41361-60290iRJ7#..LX..GEN199001-199604

T=0.90,W(DIFFERENTIAL LOCK)

main41361-60300iFZJ75..LX;FZJ75..STD..ARL;FZJ7#,HZJ7#..(ARL,GEN)..(CBR,DSL)199305-200007

T=1.00

main41361-60300iRJ7#..LX..GEN199001-199604

T=1.00,W(DIFFERENTIAL LOCK)

main41361-60310iRJ7#..LX..GEN199001-199604

T=1.10,W(DIFFERENTIAL LOCK)

main41361-60310iFZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199305-200007

T=1.10

main41361-60320iLJ7#,RJ7#199001-199604

T=1.20,W(DIFFERENTIAL LOCK)

main41361-60320iFZJ75..LX;FZJ75..STD..ARL;FZJ7#,HZJ7#..(ARL,GEN)..(CBR,DSL)199305-200007

T=1.20

main41361-60330iFZJ7#,HZJ7#,PZJ7#..ARL,GEN199305-200007

T=1.30

main41361-60330iLJ7#,RJ7#199001-199604

T=1.30,W(DIFFERENTIAL LOCK)

main41361-60480iFZJ75,HZJ75..SA199609-200405

T=1.55

main41361-60480iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=1.55,W(DIFFERENTIAL LOCK)

main41361-60490iFZJ75,HZJ75..SA199609-200405

T=1.65

main41361-60490iFZJ75,HZJ75..ARL199609-199908

T=1.65,W(DIFFERENTIAL LOCK)

main41361-60500iFZJ75,HZJ75..ARL199609-200405

T=1.70

main41361-60500iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=1.70,W(DIFFERENTIAL LOCK)

main41361-60510iFZJ70,75..GEN..CBU..EFI199609-200405

T=1.80

main41361-60510iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=1.80,W(DIFFERENTIAL LOCK)

main41361-60520iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199609-200405

T=1.85

main41361-60520iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=1.85,W(DIFFERENTIAL LOCK)

main41361-60530iFZJ75,HZJ75..ARL199609-199908

T=1.95,W(DIFFERENTIAL LOCK)

main41361-60530iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-200405

T=1.95

main41361-60540iFZJ75,HZJ75..SA199609-200405

T=2.00

main41361-60540iFZJ75,HZJ75..ARL199609-199908

T=2.00,W(DIFFERENTIAL LOCK)

main41361-60550iFZJ70,75..GEN..CBU..EFI199609-200405

T=2.10

main41361-60550iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR199609-199908

T=2.10,W(DIFFERENTIAL LOCK)

main41361-60810iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.550

main41361-60830iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.600

main41361-60850iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.650

main41361-60870iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.700

main41361-60890iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.750

main41361-60A10iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.800

main41361-60A30iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.850

main41361-60A50iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.900

main41361-60A70iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=1.950

main41361-60A90iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=2.000

main41361-60B10iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=2.050

main41361-60B30iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

T=2.100

main41361-60B50iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=1.525

main41361-60B60iFZJ78,79..ARL199908-200808

T=1.550,W(DIFFERENTIAL LOCK)

main41361-60B60iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.550

main41361-60B70iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=1.575

main41361-60B80iFZJ78,79..ARL199908-200808

T=1.600,W(DIFFERENTIAL LOCK)

main41361-60B80iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.600

main41361-60B90iFZJ78,79..ARL200210-200808

T=1.625

main41361-60C00iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.650

main41361-60C00iFZJ78,79..ARL199908-200808

T=1.650,W(DIFFERENTIAL LOCK)

main41361-60C10iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=1.675

main41361-60C20iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

T=1.700,W(DIFFERENTIAL LOCK)

main41361-60C20iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.700

main41361-60C30iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=1.725

main41361-60C40iFZJ78,79..ARL199908-200808

T=1.750,W(DIFFERENTIAL LOCK)

main41361-60C40iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.750

main41361-60C50iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=1.775

main41361-60C60iFZJ78,79..ARL199908-200808

T=1.800,W(DIFFERENTIAL LOCK)

main41361-60C60iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.800

main41361-60C70iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200210-200808

T=1.825

main41361-60C80iFZJ79..LX;HZJ78..STD;HZJ79..GEN;HZJ79..ARL..IV;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,79,HZJ71..GEN..CBU199908-200808

T=1.850,W(DIFFERENTIAL LOCK)

main41361-60C80iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.850

main41361-60C90iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200210-200808

T=1.875

main41361-60D00iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

T=1.900,W(DIFFERENTIAL LOCK)

main41361-60D00iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.900

main41361-60D10iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=1.925

main41361-60D20iFZJ79..LX;HZJ78..STD;HZJ79..GEN;HZJ79..ARL..IV;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,79,HZJ71..GEN..CBU199908-200808

T=1.950,W(DIFFERENTIAL LOCK)

main41361-60D20iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=1.950

main41361-60D30iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=1.975

main41361-60D40iFZJ79..LX;HZJ78..STD;HZJ79..GEN;HZJ79..ARL..IV;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,79,HZJ71..GEN..CBU199908-200808

T=2.000,W(DIFFERENTIAL LOCK)

main41361-60D40iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=2.000

main41361-60D50iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200210-200808

T=2.025

main41361-60D60iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=2.050

main41361-60D60iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

T=2.050,W(DIFFERENTIAL LOCK)

main41361-60D70iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200210-200808

T=2.075

main41361-60D80iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

T=2.100,W(DIFFERENTIAL LOCK)

main41361-60D80iHZJ78..LX;HZJ79..ARL..CBU199908-200108

T=2.100

main41361-60D90iFZJ79..LX;FZJ79..GEN..CBU;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,HZJ7#..ARL,GEN200210-200808

T=2.125

9017912134

main90179-12134

9161160814

main91611-60814

9451200800

main94512-00800

30 parts on this diagram · 12 diagrams in section
