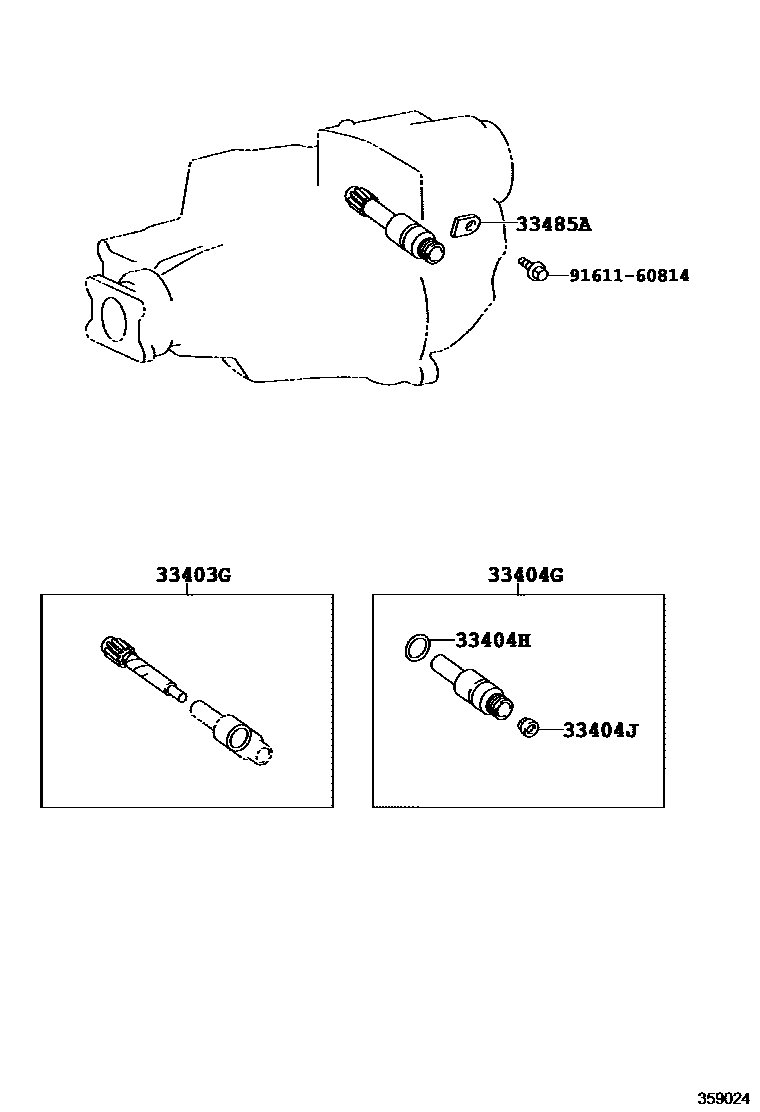

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69165iFJ70..4FC¥1,440199001-199201

N=15,MARK 15:6

main33403-69175iFJ70,73,HZJ73..4FC¥890199001-199201

N=16,MARK 16:6

main33403-69185iFJ70,HZJ73..4FC¥890199001-199201

N=17,MARK 17:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iFJ70,73,HZJ73..4FC¥1,000199001-199201

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iFJ70,73,HZJ73..4FC¥180199001-199201

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iFJ70,73,HZJ73..4FC¥160199001-199201

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iFJ70,73,HZJ73..4FC¥160199001-199201

9161160814

main91611-60814¥100

6 parts on this diagram · 1 diagram in section
