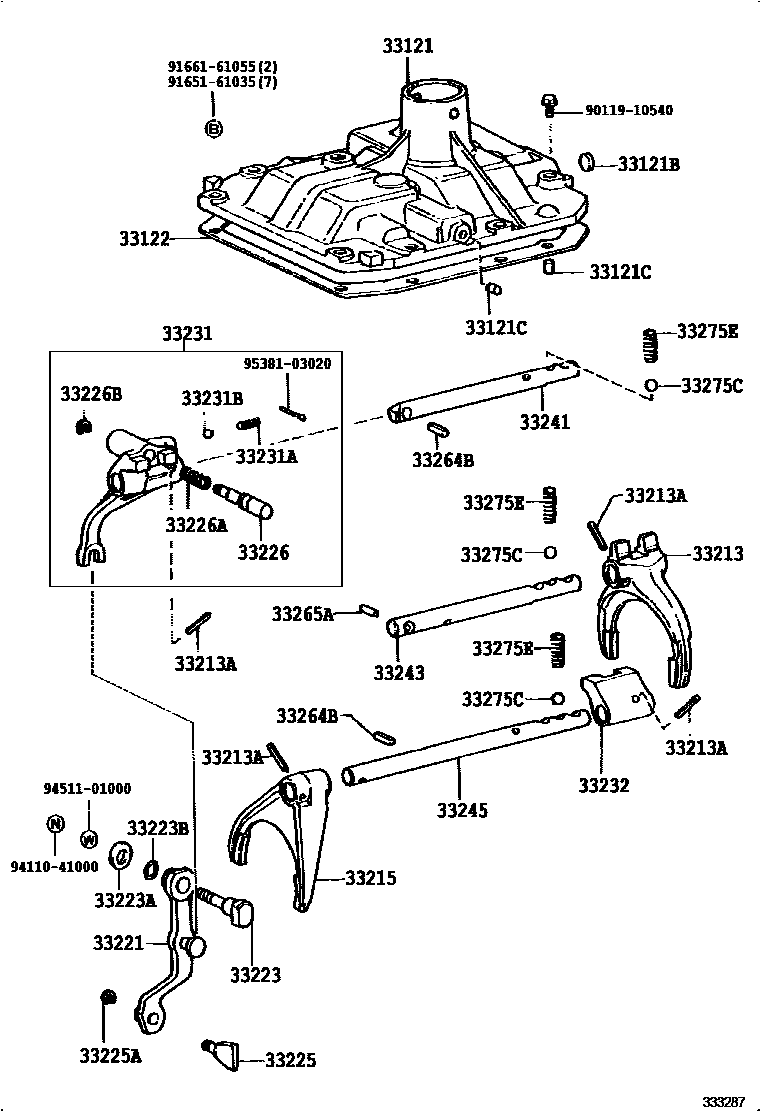

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1H41 0003 1R141 0004 1R150,R151 0005 1G40 0006 1G52 0007 1H55 0008 1H150,H151 0009 1H150,H151 0010 1R151

33121COVER, MANUAL TRANSMISSION CASE

main33102-60060iHJ75;FJ70,75,HZJ75..4F199001-199201

main33102-60080iHZJ70,75..GEN199001-200007

main33102-60110iFJ7#..5F..GCC199001-199201

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main96411-11600iHZJ70..ARL199001-200007

OD=16

main96411-41200iHZJ70..ARL199001-200007

OD=12

main96411-41800iFZJ78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78..CBU;FZJ71,HDJ79..ARL,GCC199001-200808

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iHZJ70..ARL199001-200007

L=14,OD=10

main90250-10215iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199001-200007

L=9,OD=9

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-60010iHZJ70,75..GEN199001-200007

33213FORK, 1ST & 2ND SHIFT

main33212-35023iLJ7#,RJ7#..HT199001-199604

main33212-35032iPZJ75..5F199001-199604

main33212-36020iFJ7#,HZJ7#..5F199001-200007

main33212-60030iHJ75;FJ70,75,HZJ75..4F199001-199201

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLJ72,79,RJ7#..5F199001-199604

main90254-05016iHZJ70..ARL199001-200701

33215FORK, 3RD & 4TH SHIFT

main33213-35032iLJ72,79,RJ7#199001-199209

sub33213-35033

sub33364-26020

main33213-35033iRJ70..SOT199209-199604

sub33213-35034

main33213-35040iPZJ75..5F199001-199604

main33213-60040iHJ75;FJ70,75,HZJ75..4F199001-199201

main33213-60051iHZJ70..ARL199001-200007

33221ARM, REVERSE SHIFT

main33201-36030iHZJ70..ARL199001-200007

main33221-28010iLJ72,79,RJ7#199001-199604

main33221-35030iKZJ7#199001-199604

main33221-35050iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200701

33223PIVOT, SHIFT ARM

main33223-36020iFJ7#,HJ75,HZJ7#..MTM199001-200007

33223AWASHER(FOR SHIFT ARM PIVOT)

main90201-10092iHZJ70,75..GEN199001-200007

33223BRING, O(FOR SHIFT ARM PIVOT)

main96711-19010iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199001-200007

33225SHOE, SHIFT ARM

main33225-35030iLJ72,79,RJ7#199001-199604

main33225-35040iKZJ7#199001-199604

main33225-36030iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199001-200007

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iFJ7#,HJ75,HZJ7#..MTM199001-200007

33226PLUNGER, REVERSE SHIFT RETURN

main33226-36011iHJ75;FJ70,75,HZJ75..4F199001-199201

33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)

main90501-16750iHJ75;FJ70,75,HZJ75..4F199001-199201

33226BWASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)

main90213-06001iHJ75;FJ70,75,HZJ75..4F199001-199201

33231HEAD, REVERSE SHIFT

main33202-60021iHJ75;FJ70,75,HZJ75..4F199001-199201

main33231-35050iRJ70..SOT199001-199604

main33231-35060iLJ70,77,PZJ7#199001-199208

main33231-35061iPZJ75..5F199208-199604

main33231-60020iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR199201-199801

main33231-60030iFZJ70,75..GEN..CBU..EFI199801-200808

33231ASPRING, REVERSE SHIFT RESTRICT

main90501-14035iHJ75;FJ70,75,HZJ75..4F199001-199201

33231BBALL, REVERSE SHIFT RESTRICT

main90360-06004iHJ75;FJ70,75,HZJ75..4F199001-199201

33232HEAD, 1ST & 2ND SHIFT

main33203-60010iHZJ70..ARL199001-200007

main33233-60020iHJ75;FJ70,75,HZJ75..4F199001-199201

33241SHAFT, REVERSE SHIFT FORK

main33241-60031iHJ75;FJ70,75,HZJ75..4F199001-199201

main33241-60050iHZJ70,75..GEN199001-200007

main33244-35021iLJ72,79,RJ7#..5F199001-199305

sub33244-35050

sub33214-35040

sub33231-35070

sub33245-35080

sub33395-26020

sub90105-06143

main33244-35031iLJ72,79,RJ7#..4F199001-199604

main33244-35040iPZJ70,73;PZJ75..4F199001-199512

sub33244-60040

main33244-35050iLJ79,RJ7#..LX199305-199604

main33244-35060iHZJ78..LX;HZJ79..ARL..CBU199908-200701

main33244-60040iKZJ7#199512-199604

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-35022iLJ72,79,RJ7#199001-199604

main33242-35030iLJ70,77,PZJ7#199001-199208

main33242-35031iLJ77,PZJ7#199208-199501

main33242-60020iHJ75;FJ70,75,HZJ75..4F199001-199201

main33242-60030iFJ7#,HZJ7#..5F199001-200007

main33242-60051iKZJ7#199305-199512

sub33242-60060

main33242-60060iKZJ7#199512-199604

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-35042iRJ70199001-199604

main33243-35070iLJ70,77,PZJ7#199001-199208

main33243-35071iLJ77,PZJ7#199208-199512

sub33243-60090

main33243-60052iHJ75;FJ70,75,HZJ75..4F199001-199201

main33243-60071iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199001-200007

main33243-60090iKZJ7#199512-199604

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05029iHZJ78..LX;HZJ79..ARL..CBU199908-200701

L=11.5,OD=4.8

main90250-10023iFZJ70,75..ARL;FZJ71,74,78,79;FZJ70,73,75..CBR199201-200808

L=15.45

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-10002iLJ72,79,RJ7#199001-199604

L=21.6,PIN

main90361-10003iRJ70..SOT199001-200808

L=13.6,OD=9.5

main90361-10037iHZJ70..ARL199001-200007

L=17.9

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020iLJ79,RJ7#..LX199001-199604

L=11.1,OD=4.8

main90250-05029iLJ70,77,PZJ7#199001-199604

L=11.5,OD=4.8

main90250-10024iFZJ75..SA199201-200808

L=56.95,OD=9.53

33265AROLLER, NO.2 (FOR INTERLOCK)

main90361-05001iFJ7#,HZJ7#..5F199001-200007

33275CBALL (FOR SHIFT DETENT)

main90360-10003iHZJ70..ARL199001-200007

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-10061iPZJ70,73;PZJ75..4F;RJ70..SOT199001-199604

L=22.1

main90501-13011iHZJ70,75..GEN199001-200007

main90501-14123iLJ79,RJ7#..LX199001-199604

L=20.2

main90501-16056iHJ75;FJ70,75,HZJ75..4F199001-199201

main90501-16088iRJ70199001-199604

L=31.3

main90501-16117iPZJ7#..4F199001-199604

L=33.6

9011910540

main90119-10540

9165161035

main91651-61035

9166161055

main91661-61055

9411041000

main94110-41000

9451101000

main94511-01000

9538103020

main95381-03020

35 parts on this diagram · 9 diagrams in section
