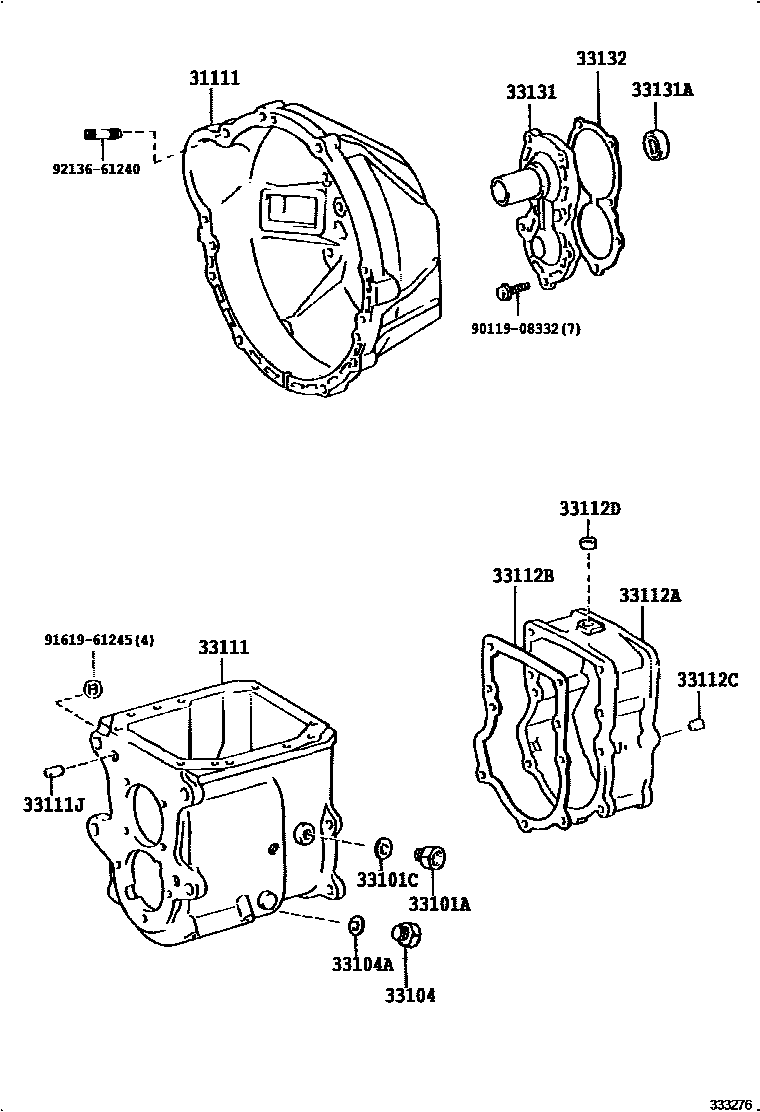

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1H41 0002 1H41,H55 0003 1R150 0004 1R151 0005 1G40,G52 0006 1R151 0007 1H41,H55 0008 1R150 0009 1H150 0010 1R151 0011 1H150,H151

31111HOUSING, CLUTCH

main31111-22113iLJ72,79199004-199006

sub31111-22114

main31111-22114iLJ7#199006-199604

main31111-25030iLJ70,77199001-199111

main31111-35010iRJ7#199001-199305

sub31111-35011

main31111-35011iRJ70..SOT199305-199604

main31111-60160iHJ75199001-199108

main31111-60230iHZJ7#..MTM199001-200007

main31111-60240iPZJ7#199001-199110

sub31111-60241

main31111-60241iPZJ75..5F199110-199501

main31111-60250iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR199201-199801

sub31111-60300

main31111-60260iLJ70,77199111-199305

main31111-60270iKZJ7#199305-199604

main31111-60290iHDJ7#200108-200701

main31111-60300iFZJ7#..CBR;FZJ75..ARL199801-199908

sub31111-60301

main31111-60301iFZJ70,73,75..EFI199908-200104

sub31111-60302

sub31126-60090

main31111-60302iFZJ70,73..GEN..CBR199801-200808

sub31111-60303

main31111-60321iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200701

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199001-200701

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iHZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU199001-200701

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iFZJ70,75..ARL;FZJ71,74,78,79;FZJ70,73,75..(GEN,SA)..CBR199001-200808

main90341-18057iRJ70..SOT199001-200007

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iFZJ75..CBU..EFI199001-200808

33111CASE, MANUAL TRANSMISSION

main33101-35050iLJ72,79,RJ7#199001-199604

sub33101-35051

main33101-60020iLJ70,77,PZJ7#199001-199501

main33101-60030iKZJ7#199305-199512

main33101-60040iHZJ78..LX;HZJ79..ARL..CBU199908-200701

sub33101-60041

main33101-60060iKZJ7#199512-199604

main33111-60080iHZJ70..ARL199001-200007

main33111-60160iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR199201-199908

sub33111-60161

main33111-60161iFZJ70,75..CBU..EFI199908-200301

sub33111-60320

main33111-60220iHDJ7#200108-200301

sub33111-60260

main33111-60240iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200301-200808

sub33111-60330

main33111-60260iHDJ7#200301-200701

sub33111-60340

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10214iHZJ70,75..GEN199001-200007

L=14,OD=10

main90250-12002iHZJ78..LX;HZJ79..ARL..CBU199001-200701

L=16,OD=12

main90250-12146iHZJ70..ARL199001-200007

L=17,OD=12

main90250-12216iHZJ70,75..GEN199001-200007

L=14,OD=12

33112AADAPTER, TRANSFER

main36117-60011iFJ7#..5F..GCC199001-199201

main36117-60021iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200007

main36117-60030iHJ75;FJ70,75,HZJ75..4F199001-199201

main36117-60050iPZJ70,73;PZJ75..4F199001-199604

main36117-60060iLJ72,79,RJ7#199001-199604

main36117-60070iFZJ7#199201-199208

sub36117-60071

main36117-60071iFZJ7#199208-199801

sub36117-60072

sub33195-60012

main36117-60072iFZJ71,74,78,79199801-200808

sub36117-60170

main36117-60170iFZJ78,79..ARL199908-200605

main36117-60170iHDJ7#;FZJ71,74,78,79..GCC199908-200808

W(2-4 SELECTOR)

33112BGASKET, TRANSFER ADAPTER

main33142-60020iFJ7#,HJ75,HZJ7#..MTM199001-200007

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-10025iFZJ70,75..ARL;FZJ71,74,78,79;FZJ70,73,75..CBR199201-200808

L=10,OD=10

main90250-12002iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199201-200808

L=16,OD=12

main90250-12216iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199001-200007

33112DSEAL, OIL(FOR TRANSFER ADAPTER)

main90312-17001iFJ7#,HJ75,HZJ7#..MTM199001-200007

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLJ72,79,RJ7#199001-199604

main33131-35030iLJ70,77199001-199008

sub33131-35031

main33131-35031iLJ70,77199008-199604

sub33131-35032

main33131-60040iHZJ70..ARL199001-200007

main33131-60070iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR199201-200808

main33131-60080iPZJ70,73;PZJ75..4F199001-200701

sub33131-60081

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLJ72,79,RJ7#199001-199007

sub90311-30014

main90311-30014iLJ7#,RJ7#..HT199007-199604

main90311-32012iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199001-200701

main90311-32013iFJ7#,HJ75,HZJ7#..MTM199001-200007

main90311-35023iFZJ70,75..GEN..CBU..EFI199201-200808

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLJ72,79,RJ7#199001-199604

main33132-60020iHZJ75..4F199001-200007

9011908332

main90119-08332

9161961245

main91619-61245

9213661240

main92136-61240

17 parts on this diagram · 11 diagrams in section
