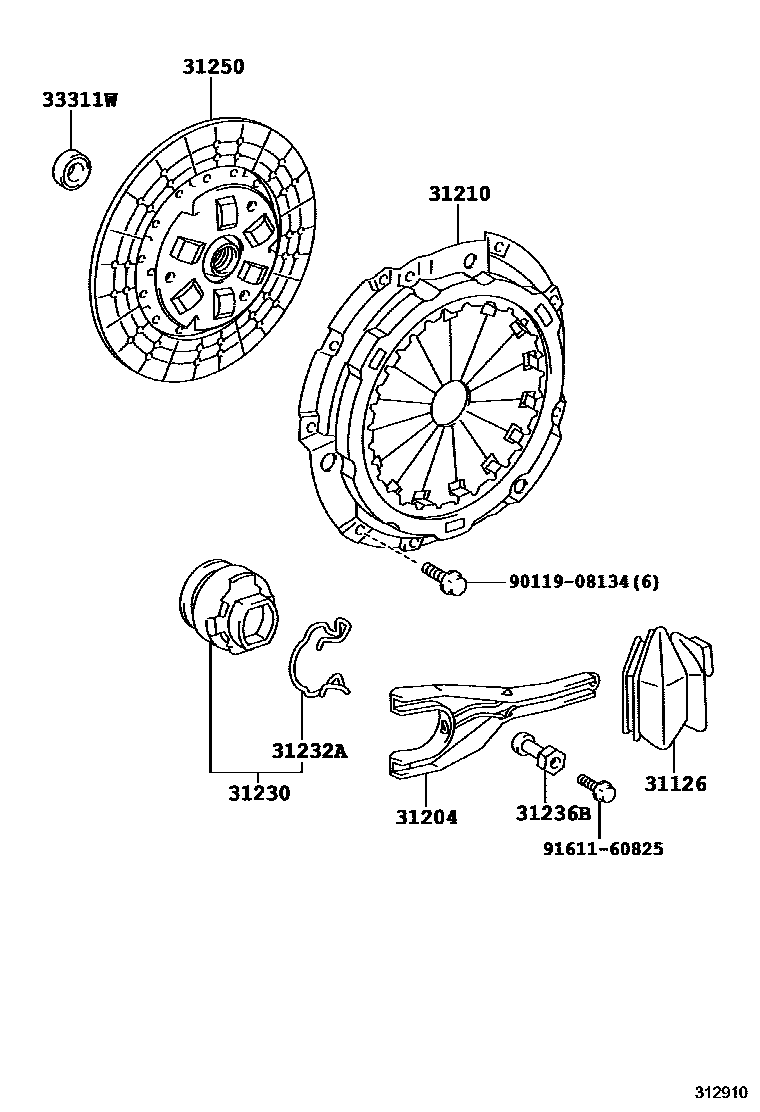

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRJ70..SOT199001-199604

main31126-20070iLJ72,79199004-199604

main31126-26020iLJ70,77199104-199305

main31126-36090iHDJ7#200108-200701

main31126-60021iHJ75199001-199108

main31126-60050iPZJ70,73;PZJ75..4F199001-200701

main31126-60060iFJ7#..MTM199001-199208

main31126-60070iHZJ75..SA199001-200007

main31126-60080iKZJ7#199305-199604

sub31126-60081

main31126-60090iFZJ73,75..PIC,SOT200104-200808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRJ7#..HT199001-199604

main31204-35031iLJ70,77199001-199305

main31204-35050iLJ72,79199004-199604

main31204-36110iHZJ75..SA199001-200808

main31204-36142iHDJ7#200108-200701

main31204-60070iHJ75199001-199108

main31204-60090iKZJ7#199305-199604

31210COVER ASSY, CLUTCH

main31210-35100iLJ72,79199004-199604

sub31210-35101

main31210-35110iRJ7#..HT199001-199604

sub31210-53040

main31210-35180iLJ77199208-199305

sub31210-35181

main31210-36160iHZJ75..RHD;HZJ71,78,79;HZJ75..LHD..CBU;HJ75,HZJ70,73..5F..(ARL,SA)199001-200111

sub31210-36161

main31210-36161iHZJ7#200111-200701

sub31210-36330

main31210-36240iHDJ7#200108-200111

sub31210-36320

main31210-36320iHDJ7#200603-200701

main31210-60100iFJ7#..MTM199001-199208

sub31210-60101

main31210-60130iPZJ75..5F199001-199501

sub31210-60190

main31210-60150iFZJ70,75..GEN..CBU..EFI199201-200406

sub31210-60151

main31210-60151iFZJ78,79..ARL200407-200612

sub31210-60260

main31210-60170iKZJ7#199305-199604

sub31210-60171

main31210-60210iHDJ7#200111-200602

sub31210-36320

31230BEARING ASSY, CLUTCH RELEASE

main31230-35050iLJ7#199004-199410

sub31230-35060

main31230-35060iLJ7#199410-199604

sub31230-35061

main31230-35070iLJ70,77,RJ7#199001-199604

sub31230-35071

main31230-36160iFJ7#..MTM199001-199208

sub31230-36161

main31230-60130iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN199001-200808

main31230-60140iPZJ7#199001-199501

main31230-60170iKZJ7#199305-199604

main31230-60200iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200701

sub31230-60201

main31230-60210iHDJ7#200108-200701

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLJ7#199001-199410

TYPE C:REFER TO ILLUSTRATION

main31232-35020iLJ7#199410-199604

TYPE C

main31232-35030iLJ7#199001-199604

TYPE D:REFER TO ILLUSTRATION

main31232-36010iPZJ7#199001-199501

main31232-36020iHZJ78..STD;FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71..CBU199001-200808

main31232-36030iKZJ7#199305-200701

TYPE A:REFER TO ILLUSTRATION

main31232-60020iHJ75199001-199108

main31232-60030iKZJ7#199305-199604

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iRJ70..SOT199001-199604

main31236-35030iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

main31236-36060iHDJ7#200108-200701

main31236-60030iHJ75199001-199108

main31236-60050iFJ7#..MTM199001-199208

main31236-60060iKZJ7#199305-199604

31250DISC ASSY, CLUTCH

main31250-22290iRJ7#199001-199203

sub31250-22320

main31250-22320iRJ70..SOT199203-199604

sub31250-35370

main31250-25130iLJ77199208-199305

sub31250-26180

main31250-35220iLJ7#199001-199505

sub31250-35221

main31250-35221iLJ7#199505-199604

sub31250-35222

main31250-35340iKZJ7#199305-199604

sub31250-35341

main31250-36340iFJ7#..MTM199001-199208

sub31250-36341

main31250-36490iFZJ7#199208-199412

sub31250-36492

main31250-36492iFZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV199412-199904

sub31250-36493

main31250-36493iFZJ75..SA199904-200004

sub31250-36494

main31250-36494iFZJ70,75..CBU200004-200510

sub31250-36495

main31250-36495iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN200511-200808

sub31250-60440

main31250-60170iHJ75199001-199108

sub31250-60171

main31250-60220iHZJ7#..MTM199001-199412

sub31250-60222

main31250-60222iHZJ75..SA199412-200004

sub31250-60223

main31250-60223iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV200004-200510

sub31250-60224

main31250-60224iHZJ7#200511-200701

sub31250-60430

main31250-60240iPZJ70,73;PZJ75..4F199001-199501

sub31250-35330

main31250-60290iFZJ7#199201-199208

sub31250-36490

main31250-60342iHDJ7#200108-200109

sub31250-60343

main31250-60343iHDJ7#200109-200508

sub31250-60390

main31250-60390iHDJ7#200509-200701

sub31250-60391

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLJ7#,RJ7#199001-199604

sub90363-12024

main90363-12010iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199001-200701

main90363-15004iFJ7#,HJ75..MTM199001-199208

main90363-15017iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

9011908134

main90119-08134

9161160825

main91611-60825

10 parts on this diagram · 7 diagrams in section
