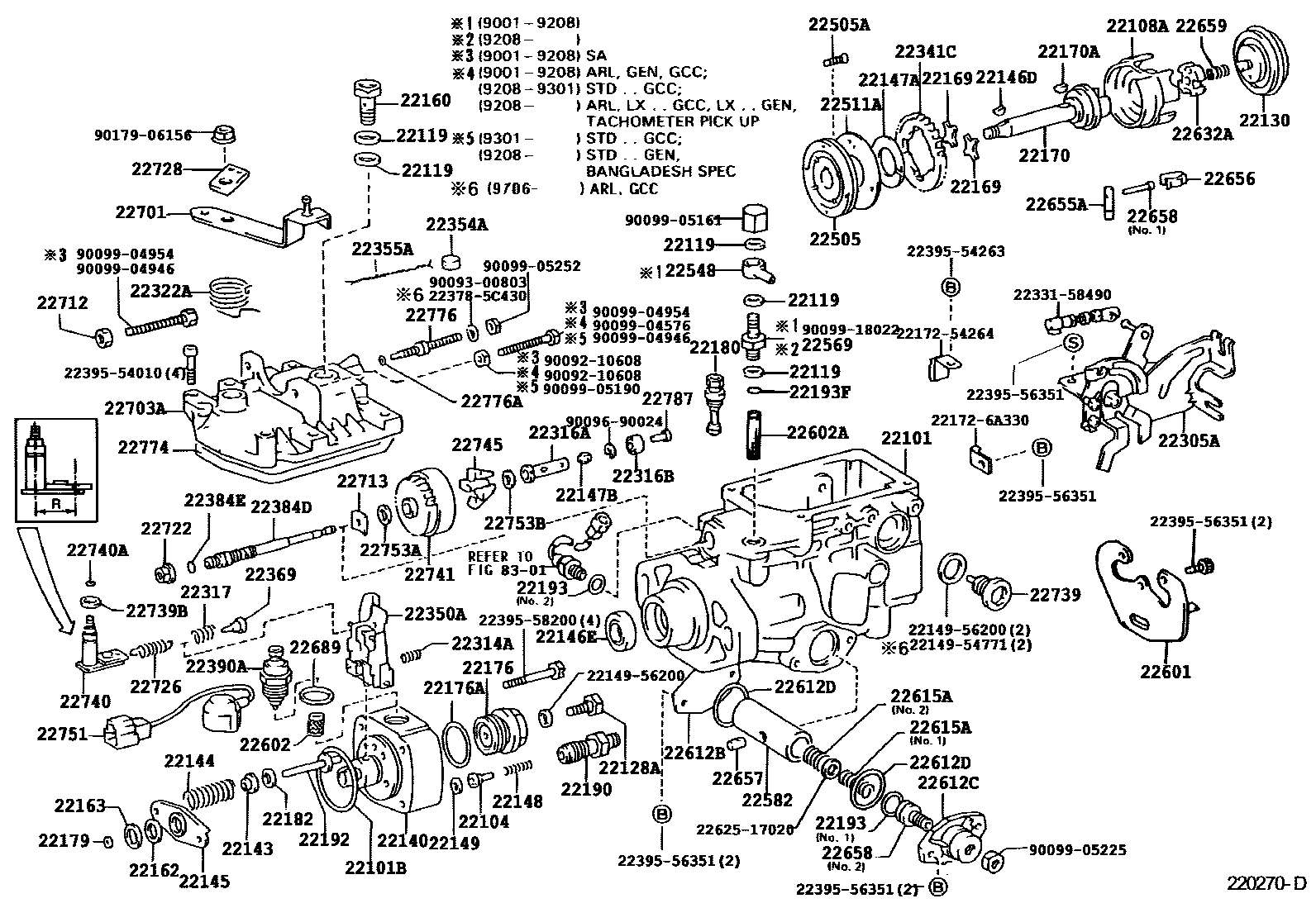

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
W(EGR)
W(HIGH ALTITUDE COMPENSATOR & TACHO METER)
W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATER)
W(EGR)
COLD AREA SPEC OR SWEDEN SPEC
COLD AREA SPEC OR W(POWER STEERING)
COLD AREA SPEC
sub22101-54770
main22101-64250i1HZ..HZJ75..ARL;1HZ..HZJ75..HT..GEN;1HZ..HZJ75..LX..GCC;1HZ..HZJ75..RHD..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199501-199908
W(TACHO METER PICK UP)
W(TACHOMETER PICK UP)
W(POWER STEERING OR TACHO METER PICK UP)
EAST MALAYSIA CKD SPEC
22101BRING, O(FOR INJECTION PUMP HOUSING)
W(HIGH ALTITUDE COMPENSATOR)
BANGLADESH SPEC
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
W(HIGH ALTITUDE COMPENSATER)
main22104-6A640i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200401
22108ARING SUB-ASSY, ROLLER
sub22108-17010
W(EGR)
EAST MALAYSIA CKD SPEC
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA SPEC OR SWEDEN SPEC
COLD AREA SPEC
sub22108-96300
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA SPEC OR SWEDEN SPEC
COLD AREA SPEC
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
main22169-54180i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
22170SHAFT SUB-ASSY, DRIVE
*EX-USSR SPEC & COLD AREA SPEC
W(POWER STEERING OR TACHO METER PICK UP)
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22179SHIM, PLUNGER ADJUSTING
T=1.92
T=1.94
T=1.96
T=1.98
T=2.02
T=2.04
T=2.06
T=2.08
T=2.12
T=2.14
T=2.16
T=2.18
T=2.22
T=2.24
T=2.26
T=2.28
T=2.32
T=2.34
T=2.36
T=2.38
T=2.42
T=2.44
T=2.46
T=2.48
T=2.52
T=2.54
T=2.56
T=2.58
T=2.62
T=2.64
T=2.66
T=2.68
T=2.72
T=2.74
T=2.76
T=2.78
T=2.82
T=2.84
T=2.86
T=2.88
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=1.91
T=1.93
T=1.97
T=1.99
T=2.01
T=2.03
T=2.07
T=2.09
T=2.11
T=2.13
T=2.17
T=2.19
T=2.21
T=2.23
T=2.27
T=2.29
T=2.31
T=2.33
T=2.37
T=2.39
T=2.41
T=2.43
T=2.47
T=2.49
T=2.51
T=2.53
T=2.57
T=2.59
T=2.61
T=2.63
T=2.67
T=2.69
T=2.71
T=2.73
T=2.77
T=2.79
T=2.81
T=2.83
T=2.87
T=2.89
T=2.91
T=2.92
T=2.93
T=2.96
T=2.97
T=2.98
T=3.01
T=3.02
T=3.03
T=3.06
T=3.07
T=3.08
T=3.11
T=3.12
T=3.13
T=3.16
T=3.17
T=3.18
T=1.95
T=2.05
T=2.15
T=2.25
T=2.35
T=2.45
T=2.55
T=2.65
T=2.75
T=2.85
T=2.94
T=2.99
T=3.04
T=3.09
T=3.14
T=3.19
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
main22179-54018i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.1
NO.1
NO.2
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22190VALVE SUB-ASSY, SNUBBER
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
W(HIGH ALTITUDE COMPENSATOR),PUMP HOUSING SIDE
PUMP HOUSING SIDE
NO.1
W(TACHOMETER PICK UP),NO.1
BANGLADESH SPEC
W(HIGH ALTITUDE COMPENSATOR OR TACHOMETER PICK UP),NO.1
main22193-17020i1HZ..HZJ79..ARL..IV;1HZ..HZJ75..RHD..GEN;1HZ..HZJ75..LHD..STD..CBU;1HZ..HZJ71,78,79..GCC,GEN199109-200007
W(TACHO METER PICK UP),NO.1
W(HIGH ALTITUDE COMPENSATOR),NO.1
W(HIGH ALTITUDE COMPENSATER),NO.2
W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICK UP),NO.3
NO.3
W(HIGH ALTITUDE COMPENSATOR),NO.3
W(HIGH ALTITUDE COMPENSATOR)
NO.2
W(HIGH ALTITUDE COMPENSATOR),BELLOWS COMPONENT
W(HIGH ALTITUDE COMPENSATOR & TACHO METER),NO.3
W(HIGH ALTITUDE COMPENSATOR),BELLOES COMPONENT
BELLOWS COMPONENT
W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICK UP),PUMP HOUSING SIDE
W(TACHOMETER PICK UP),NO.2
NO.2
W(HIGH ALTITUDE COMPENSATOR),PUMP HOUSING SIDE
W(HIGH ALTITUDE COMPENSATOR),PUMP HOUSIMG SIDE
PUMP HOUSING SIDE
W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICK UP),NO.2
W(HIGH ALTITUDE COMPENSATOR & TACHO METER),NO.2
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22305AIDLE-UP SUB-ASSY
COLD AREA SPEC & SWEDEN SPEC
COLD AREA SPEC
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.85
ID=1.10
ID=1.20
ID=1.00
ID=0.80
MARK 26
MARK 28
ID=0.70
ID=0.60
MARK 45
ID=1.35 & 2,L=11.6
main22316-5B060i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200701
ID=0.65
ID=0.85
MARK 23
MARK 23,W(HIGH ALTITUDE COMPENSATOR)
ID=0.8
ID=0.75
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
BANGLADESH SPEC
22317SPRING, GOVERNOR DOMPER
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA SPEC
COLD AREA SPEC & SWEDEN SPEC
22322ASPRING, RETURN
W(EGR)
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
W(HIGH ALTITUDE COMPENSATOR)
W(EGR)
COLD AREA SPEC
COLD AREA SPEC & SWEDEN SPEC
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22369SEAT, GOVERNOR SPRING
22384DSHAFT, GOVERNOR
USSR & COLD AREA SPEC & W(POWER STEERING)
W(HIGH ALTITUDE COMPENSATOR)
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
BANGLADESH SPEC
sub22390-6A511
main22390-6A511i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199703-200701
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
BANGLADESH SPEC
22511ACOVER, FEED PUMP
*EX-USSR SPEC & COLD AREA SPEC
22548NIPPLE, SWIVEL
22569SCREW, OVERFLOW
W(EGR),NO.1
NO.2
W(EGR),NO.2
22601BRACKET SUB-ASSY, IDLE UP
main22601-17140i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
W(EGR)
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
main22602-5B320i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199609-200701
22612CCOVER, TIMER
22615ASPRING, TIMER OUTER
K=0.18,L=33.8
K=0.19,L=33.7
K=0.20,L=33.6
K=0.16,L=32.3,NO.1
K=0.16,L=32.3
K=0.18,L=32.0,NO.1
K=0.20,L=31.8,NO.1
K=1.7,L=27.9,NO.2
K=1.7,L=27.9
K=1.96,NO.1
K=1.77,NO.1
K=0.16,L=34.2
K=0.17,L=31.4
K=0.15,L=32.5,NO.1
K=0.17,L=32.2,NO.1
K=0.17,L=32.2
K=0.19,L=31.9,NO.1
main22615-1C050i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200701
K=0.19,NO.1
K=0.18,L=33.3
K=0.18,L=33.3,NO.1
K=0.19,L=33.1,NO.1
K=0.19,L=33.1
K=0.20,L=32.9
K=0.20,L=32.9,NO.1
K=3.00,L=37.3
K=2.50,L=38.2,COLD AREA SPEC
K=2.50,L=38.2,COLD AREA SPEC OR SWEDEN SPEC
K=2.50,L=38.2
K=2.70,L=39.2,COLD AREA SPEC
K=2.70,L=39.2,COLD AREA SPEC OR SWEDEN SPEC
K=2.80,L=38.1
K=0.16,L=34.6,NO.1
K=0.16,L=34.6
K=0.17,L=34.4
main22615-5C123i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200007
K=0.17,L=34.4,NO.1
K=3.30,L=37.1
K=0.10,L=40.4,NO.1
K=0.11,L=39.5,NO.1
K=0.12,L=38.8,NO.1
K=0.13,L=38.2,NO.1
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.2
NO.1
NO.2
22689WASHER(FOR SWIVEL NIPPLE)
main22689-56350i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
22701LEVER SUB-ASSY, ADJUSTING
MARK 383
MARK 384
MARK 381
MARK 382
MARK 693
MARK 694
MARK 695
MARK 130, TYPE 1
MARK 131, TYPE 2
MARK 247
MARK 290
MARK 486
MARK 487
MARK 488
22703ACOVER SUB-ASSY, GOVERNOR
main22703-17080i1HZ..HZJ75..RHD..GEN;1HZ..HZJ71,78,79..GCC,GEN;1HZ..HZJ75..LHD..STD..CBU199001-200701
MALAYSIA SPEC
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA SPEC OR SWEDEN SPEC
COLD AREA SPEC
W(EGR)
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
NO.2
NO.1
22726SPRING, SPEED CONTROL
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA SPEC
COLD AREA SPEC OR SWEDEN SPEC
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22739BWASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
W(HIGH ALTITUDE COMPENSATOR)
EAST MALAYSIA SPEC
COLD AREA SPEC OR SWEDEN SPEC
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
W(EGR)
R=20.0
R=15.5
main22740-54310i1HZ..HZJ75..4F..IV;1HZ..HZJ75..LHD..PIC..STD;1HZ..HZJ73,75..HT..(4F,4FC);1HZ..HZJ75..RHD..(GEN,SA)..CBU199011-199805
R=13.3
main22740-54310i1HZ..HZJ75..4F..IV;1HZ..HZJ75..LHD..PIC..STD;1HZ..HZJ73,75..HT..(4F,4FC);1HZ..HZJ75..RHD..(GEN,SA)..CBU199011-199208
*HAC,R=13.3
*HAC
W(HIGH ALTITUDE COMPENSATOR)
*HAC,R=17.5
R=17.5
COLD AREA SPEC
COLD AREA SPEC OR SWEDEN SPEC
MALAYSIA SPEC
R=14.5
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
W(TACHO METER PIC UP)
W(HAC)
PNG SPEC
COLD SPEC & W(PTC HEATER)
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
W(TACHOMETER PICK UP)
W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)
W(HIGH ALTITUDE COMPENSATOR)
main22751-17470i1HZ..HZJ75..ARL;1HZ..HZJ7#..LHD..LX;1HZ..HZJ75..HT..GEN;1HZ..HZJ75..RHD..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199501-199908
W(HIGH ALTITUDE COMPENSATOR & TACHO METER)
BANGLADESH SPEC
BANGLADESH SPEC
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
EAST MALAYSIA SPEC OR W(HIGH ALTITUDE COMPENSATOR)
sub22753-54020
sub22753-54020
22776SCREW, SMOKE SET ADJUSTING
22787PLUG, GOVERNOR SLEEVE
L=3.3
L=3.4
L=3.5
L=3.6
main22787-54030i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701
L=3.7
L=3.8
L=3.9
L=4.0
L=4.1
L=3.0
L=3.1
L=3.2
L=4.2
8301
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956200GASKET, DELIVERY VALVE
main22149-56200
2217254264CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54264
221726A330CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6A330
2233158490LEVER, GOVERNOR STOP
main22331-58490
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2262517020WASHER, TIMER SENSOR ADJUSTING
main22625-17020
9009210608
main90092-10608
9009300803
main90093-00803
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009904954
main90099-04954
9009905161
main90099-05161
9009905190
main90099-05190
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906156
main90179-06156
110 parts on this diagram · 20 diagrams in section
