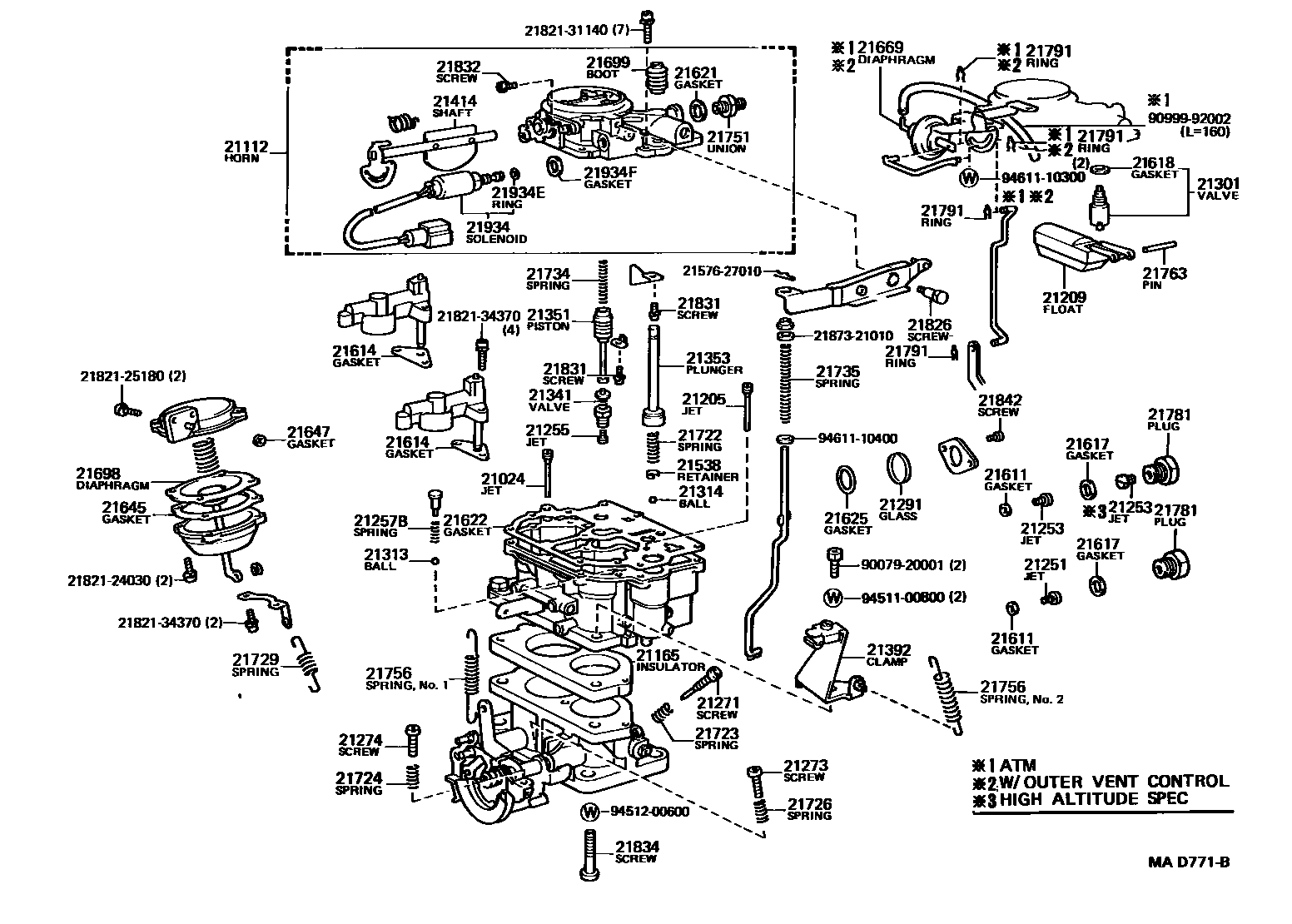

CARBURETOR
21024JET SUB-ASSY, 2ND
21112HORN, AIR
EAST MALAYSIA SPEC
COLUMBIA SPEC & EX. EMISSION CONTROL
W(OUTER VENT CONTROL)
VENEZUELA SPEC
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
COLUMBIA SPEC
VENEZUELA SPEC
21253JET, 2ND MAIN
sub21253-35410
sub90999-42220
EX.EMISSION CONTROL & COLUMBIA SPEC
EX.EMISSION CONTROL(HIGH ALTITUDE COUNTRY)
VENEZUELA SPEC
21255JET, POWER
21257BSPRING(FOR PUMP JET)
21273SCREW, THROTTLE ADJUSTING
21274SCREW, 1ST THROTTLE ADJUSTING
sub21272-61140
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341VALVE, POWER
21351PISTON, POWER
21353PLUNGER, PUMP
21392CLAMP, CHOKE WIRE
21538RETAINER, BALL CHECK
21614GASKET, VENTURI
COLUMBIA SPEC
VENEZUELA SPEC
21617GASKET, MAIN PASSAGE PLUG
NO.2
NO.1
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
21625GASKET, LEVEL GAGE
21645GASKET, DIAPHRAGM, CAP
sub21645-41010
21647GASKET, DIAPHRAGM HOUSING CAP
21699BOOT(FOR PUMP PLUNGER)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21729SPRING, 1ST THROTTLE BACK
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21756SPRING, BACK(FOR THROTTLE SHAFT)
NO.1
NO.2
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
COLUMBIA SPEC & EX. EMISSION CONTROL
EX.EMSSION CONTROL(HIGH ALTITUDE COUNTRY)
21826SCREW, PUMP ARM SET
21831SCREW, POWER PISTON STOP
21832SCREW(FOR CHOKE LEVER ADAPTER SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21934ERING, O(FOR SOLENOID VALVE)
2157627010CLIP, PUMP STRAINER
main21576-27010
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134370SCREW, 2ND THROTTLE VALVE SET
main21821-34370
2187321010WASHER, PLUNGER
main21873-21010
9007920001
main90079-20001
9099992002
main90999-92002
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
66 parts on this diagram · 4 diagrams in section
