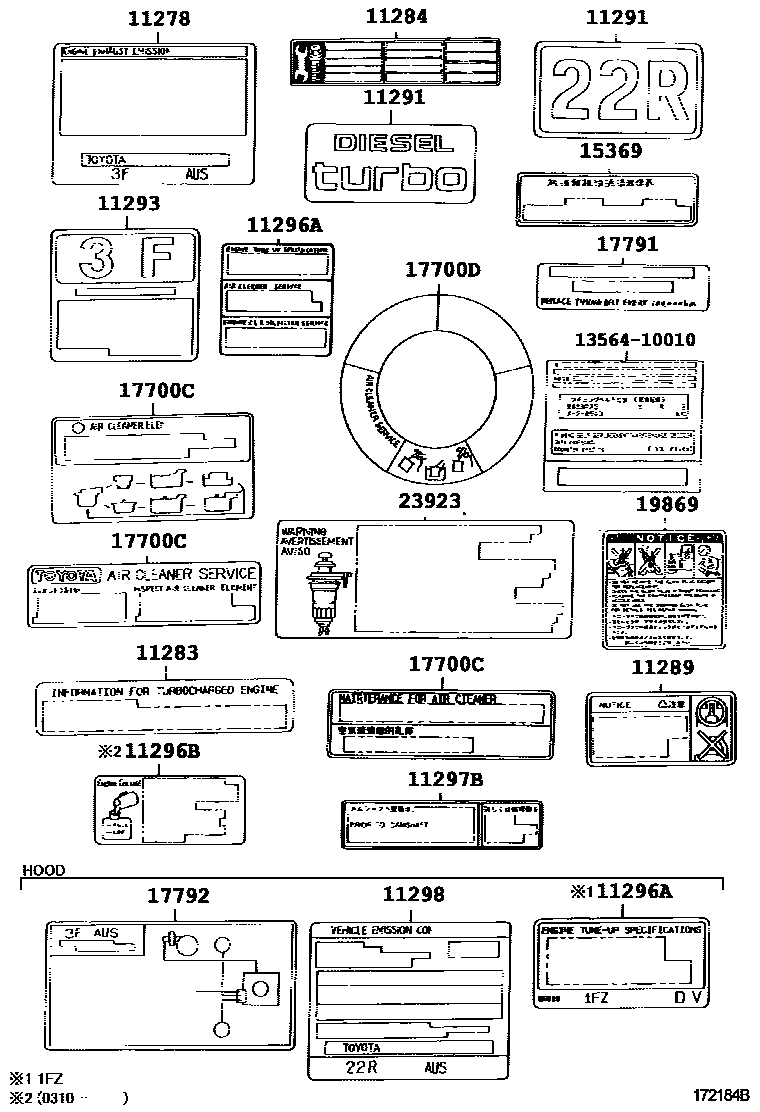

CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-54020i1HZ..HZJ75..ARL199001-200207

11283PLATE, TURBOCHARGER CAUTION

main11294-54050i2LT..LJ70,77199108-199305

main11294-64050i2LT..LJ70,77199001-199108

11284PLATE, ENGINE BOLT INFORMATION

main11284-17010i1PZ..PZJ70,73;1PZ..PZJ75..4F199001-199501

sub11297-17010

main11284-17030i1HZ..HZJ75..LHD..HT199001-199502

CHINA SPEC

sub11297-17020

main11284-54040i2LT,3L..LJ7#199004-199403

main11284-66010i1FZ#..FZJ7#199201-199501

main11297-17010i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199501-200007

main11297-17020i1HZ..HZJ78..LHD199502-200308

CHINA SPEC

11289PLATE, SPARK PLUG CAUTION

main11289-62020i1FZFE..FZJ78,79..ARL199908-200808

11291PLATE, ENGINE NAME

main11291-17060i1HDFTE..HDJ7#200108-200701

main11291-35030i22R..RJ7#199001-199409

main11291-54080i2LT..LJ70,77199001-199305

main11291-66010i1FZFE..FZJ75199208-199501

main11291-67010i1KZT..KZJ7#199305-199604

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-61040i3F..FJ7#199001-199208

main11293-61050i3F..FJ70,75..LHD..4F199001-199201

CHINA SPEC

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-17030i1PZ..PZJ70,73;1PZ..PZJ75..4F199001-199604

sub11296-17120

main11296-17040i1PZ..PZJ70,75..LHD..4F..CBU199001-199608

CHINA SPEC

main11296-17120i1HZ..HZJ7#199604-199805

main11296-17130i1HZ..HZJ75..LHD..HT199608-199708

CHINA SPEC

main11296-17160i1HZ..HZJ75..LHD..HT199708-200308

CHINA SPEC

main11296-17170i1HDFTE..HDJ7#200108-200701

main11296-17190i1HZ..HZJ71,78,79..GCC,GEN199805-200701

main11296-17200i1HZ..HZJ79..ARL..IV;1HZ..HZJ78..STD..ARL199805-200701

main11296-66010i1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU199201-199911

main11296-66020i1FZF..FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199201-199608

CHINA SPEC

main11296-66021i1FZF..FZJ70,75..LHD..STD..GEN..CBU199608-199908

CHINA SPEC

main11296-66070i1FZFE..FZJ71..LHD..STD..GEN199908-200308

11296BLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1FZFE..FZJ73,75200310-200703

11297BLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-17010i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199908-200701

11298PLATE, EMISSION CONTROL INFORMATION

main11298-3D160i22R..RJ70..ARL199001-199108

main11298-61100i3F..FJ7#..ARL199001-199208

main11298-66020i1FZFE..FZJ70,75199208-199501

main11298-66021i1FZFE..FZJ75..ARL199501-199908

main11298-66100i1FZFE..FZJ78,79..ARL199908-200207

15369PLATE, ENGINE OIL CAUTION

main15369-54030i1KZT..KZJ7#199305-199604

main15369-61010i3F..FJ70,75..LHD..4F199001-199201

CHINA SPEC

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020i22R..RJ7#..LHD..GEN199305-199604

W(HOT AIR INTAKE)

main17791-64020i22R..RJ7#..LHD..GEN199001-199305

main90917-07108i1FZF..FZJ70,75..LHD..STD..GEN..CBU199604-199908

CHINESE SPEC

main90917-07108i22R..RJ7#..RHD;22R..RJ77..GCC;1FZ#,3F,2H,2LT,3L..FJ7#,FZJ7#,HJ75,LJ7#199001-199305

W(CYCLON TYPE AIR CLEANER)

main90917-07108i22R,1FZ#,1KZT,3L..FZJ7#,KZJ7#,LJ7#,RJ7#199305-199604

17700DPLATE, ENGINE CAUTION

main90917-07109i1HZ..HZJ78..STD;1FZFE..FZJ78..GCC;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV;1FZFE..FZJ71,78..RHD..GEN;1FZFE,1HDFTE..FZJ71,HDJ79..ARL,GCC;1FZFE,1H#..FZJ74,79,HDJ78,HZJ199001-200808

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i1HZ,1PZ..HZJ7#,PZJ7#199001-199707

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-35790i22R..RJ77..GCC199004-199604

main17792-3D220i22R..RJ70..ARL199001-199108

main17792-61102i3F..FJ7#..5F..GCC199001-199201

main17792-61112i3F..FJ73..4FC199001-199201

main17792-61220i3F..FJ7#..ARL199001-199208

main17792-66010i1FZF..FZJ7#..GCC199201-199908

main17792-66020i1FZF..FZJ70..SOT;1FZF..FZJ75..RHD..IV199201-199911

main17792-66041i1FZFE..FZJ73,75..(PIC,SOT)..GEN199709-200405

main17792-66060i1FZFE..FZJ70,75199208-199501

main17792-66061i1FZFE..FZJ75..ARL199501-199908

main17792-66090i1FZF..FZJ70,75..LHD..STD..GEN..CBU199510-199908

CHINA SPEC

19869LABEL, GLOW PLUG CAUTION

main19869-67010i1KZT..KZJ7#199305-199511

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-17010i1HZ,1PZ..HZJ7#,PZJ7#199001-199109

main23923-54080i2LT,3L..LJ7#199108-199308

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

18 parts on this diagram · 1 diagram in section
