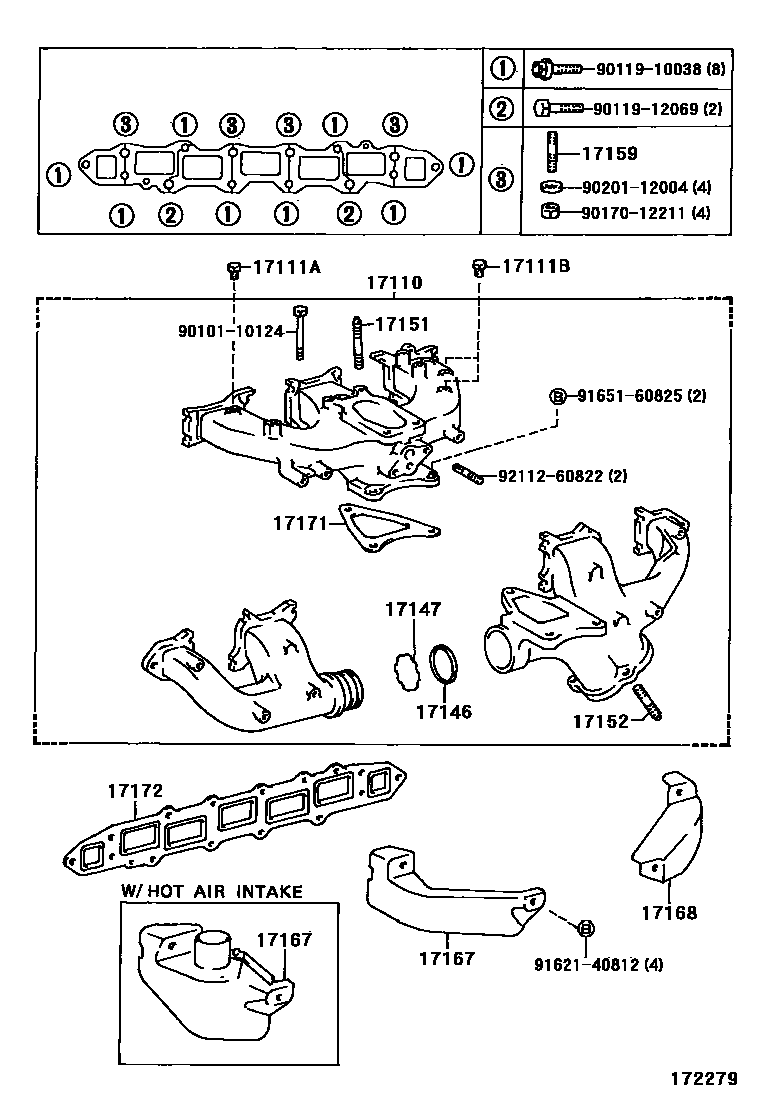

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(EGR) 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

17110MANIFOLD ASSY

main17100-61100i3F..FJ7#199001-199208

17111MANIFOLD, INTAKE

main17101-54101i2LT,3L..LJ7#199001-199604

main17101-66010i1FZF..FZJ70,73,75199201-199911

main17101-66020i1FZFE..FZJ70,75199208-200405

main17101-67020i1KZT..KZJ7#199305-199507

main17101-67021i1KZT..KZJ7#199507-199604

main17111-17010i1HZ..HZJ7#199001-199206

sub17111-17011

main17111-17011i1HZ..HZJ7#199206-199709

sub17111-17012

main17111-17012i1HZ..HZJ7#199709-199805

sub17111-17013

main17111-17013i1HZ..HZJ7#199805-199905

sub17111-17014

main17111-17014i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199905-200002

sub17111-17015

main17111-17015i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU200002-200701

main17111-17031i1HDFTE..HDJ7#200108-200701

main17111-18010i1PZ..PZJ7#199001-199501

main17111-35090i22R..RJ70..ARL199001-199108

main17111-35100i22R..RJ7#199001-199408

main17111-35101i22R..RJ77..RHD..LX199408-199604

EAST MALAYSIA SPEC

main17111-35110i22R..RJ7#..GEN199408-199604

main17111-66040i1FZFE..FZJ74,79..CBU;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN199908-200808

17111APLUG, NO.1

main90345-51006i22R..RJ70199001-199604

17111BPLUG, NO.2

main90345-51006i3F..FJ70;3F..FJ75..ARL;3F..FJ75..GEN..CBU199201-199208

VENEZUELA SPEC

main90345-51006i3F..FJ70,73..4FC199001-199201

W(CLUTCH BOOSTER)

main90345-51006i3F..FJ73,75..(PIC,SOT)..GEN199201-199208

W(ONE TOUCH 2-4 SELECTOR)

main90345-53007i22R..RJ77..RHD..LX199305-199604

EAST MALAYSIA SPEC

main90345-53007i22R..RJ70..GEN199001-199004

INTAKE MANIFOJD SIDE

main90345-53007i22R..RJ77..GCC199004-199305

INTAKE MANIFOLD

main90345-53007i22R..RJ7#..GEN199305-199408

17146RING, EXHAUST MANIFOLD

main17151-17010i1HZ..HZJ70..ARL199001-200701

main17151-61010i3F..FJ7#199001-199208

17147SPRING, EXHAUST MANIFOLD

main17152-61010i3F..FJ7#199001-199208

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08042i3F..FJ7#199001-199208

main90116-08051i22R..RJ70199001-199604

main90116-08371i1FZF..FZJ70,73,75199201-199911

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10087i22R..RJ7#199001-199604

main90116-10088i3L..LJ72,79199001-199604

main90126-10006i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV199110-200808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08172i22R..RJ7#199305-199604

INTATE MANIFOLD

main90116-08172i22R..RJ7#199001-199305

INTAKE MANIFOLD

main90116-08220i2LT,3L..LJ7#199001-199604

INTAKE MANIFOLD

main90116-10025i1PZ..PZJ7#199001-199002

main90116-10064i22R..RJ7#199001-199604

EXHAUST MANIFOLD LWR

main90116-10067i22R..RJ7#199001-199604

EXHAUST MANIFOLD UPR

main90116-10140i2LT..LJ70,77199001-199305

EXHAUST MANIFOLD

main90116-10141i3L..LJ7#199004-199604

EXHAUST MANIFOLD

main90116-10150i1KZT..KZJ7#199305-199501

EXHAUST MANIFOLD

main90116-10169i1FZ#..FZJ7#199201-200405

EXHAUST MANIFOLD

main90116-10171i1PZ..PZJ7#199002-200701

main90116-12011i3F..FJ7#199001-199208

main90126-08008i1FZ#..FZJ7#199201-200405

INTAKE MANIFOLD

main90126-10017i1KZT..KZJ7#199501-199604

EXHAUST MANIFOLD

main92122-80822i1KZT..KZJ7#199305-199604

INTAKE MANIFOLD

main92132-60820i2LT,3L..LJ7#199204-199301

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-17010i1HZ..HZJ75;1HZ..HZJ70..GEN199001-199802

sub17167-17011

main17167-17011i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199802-200701

main17167-17061i1HDFTE..HDJ7#200108-200205

sub17167-17062

main17167-17062i1HDFTE..HDJ7#200205-200701

main17167-17070i1HZ..HZJ78..LHD199908-200701

W(EGR)

main17167-18020i1PZ..PZJ7#199001-199501

main17167-54070i3L..LJ7#199004-199505

main17167-54100i2LT..LJ70,77199001-199305

main17167-54110i3L..LJ7#199505-199604

main17167-61040i3F..FJ7#199001-199208

main17167-61050i3F..FJ70;3F..FJ75..ARL;3F..FJ75..GEN..CBU199001-199208

W(HOT AIR INTAKE)

main17167-66020i1FZF..FZJ70,73,75..GEN,SA199201-199911

main17167-66040i1FZFE..FZJ70,73,75;1FZF..FZJ70,73,75..GCC199201-200808

main17167-67020i1KZT..KZJ7#199305-199508

sub17167-67030

main17167-67030i1KZT..KZJ7#199508-199604

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17167-35160i22R..RJ7#..LHD..GEN199001-199305

W(HOT AIR INTAKE)

main17167-35160i22R..RJ7#..LHD..GEN199305-199604

W(UPPER HOT AIR INTAKE)

main17167-35180i22R..RJ70199001-199604

main17168-54030i2LT..LJ70,77199001-199305

main17168-61020i3F..FJ7#199001-199208

main17168-66020i1FZ#..FZJ70,73,75199201-200808

17171GASKET, INTAKE TO EXHAUST MANIFOLD

main17171-17010i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200701

main17171-17040i1HDFTE..HDJ7#200108-200701

main17171-61020i3F..FJ7#199001-199208

main17171-66010i1FZFE..FZJ70,73,75199208-200405

main17171-66020i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199908-200808

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-61070i3F..FJ7#199001-199208

9010110124

main90101-10124

9011910038

main90119-10038

9011912069

main90119-12069

9017012211

main90170-12211

9020112004

main90201-12004

9162140812

main91621-40812

9165160825

main91651-60825

9211260822

main92112-60822

21 parts on this diagram · 16 diagrams in section
