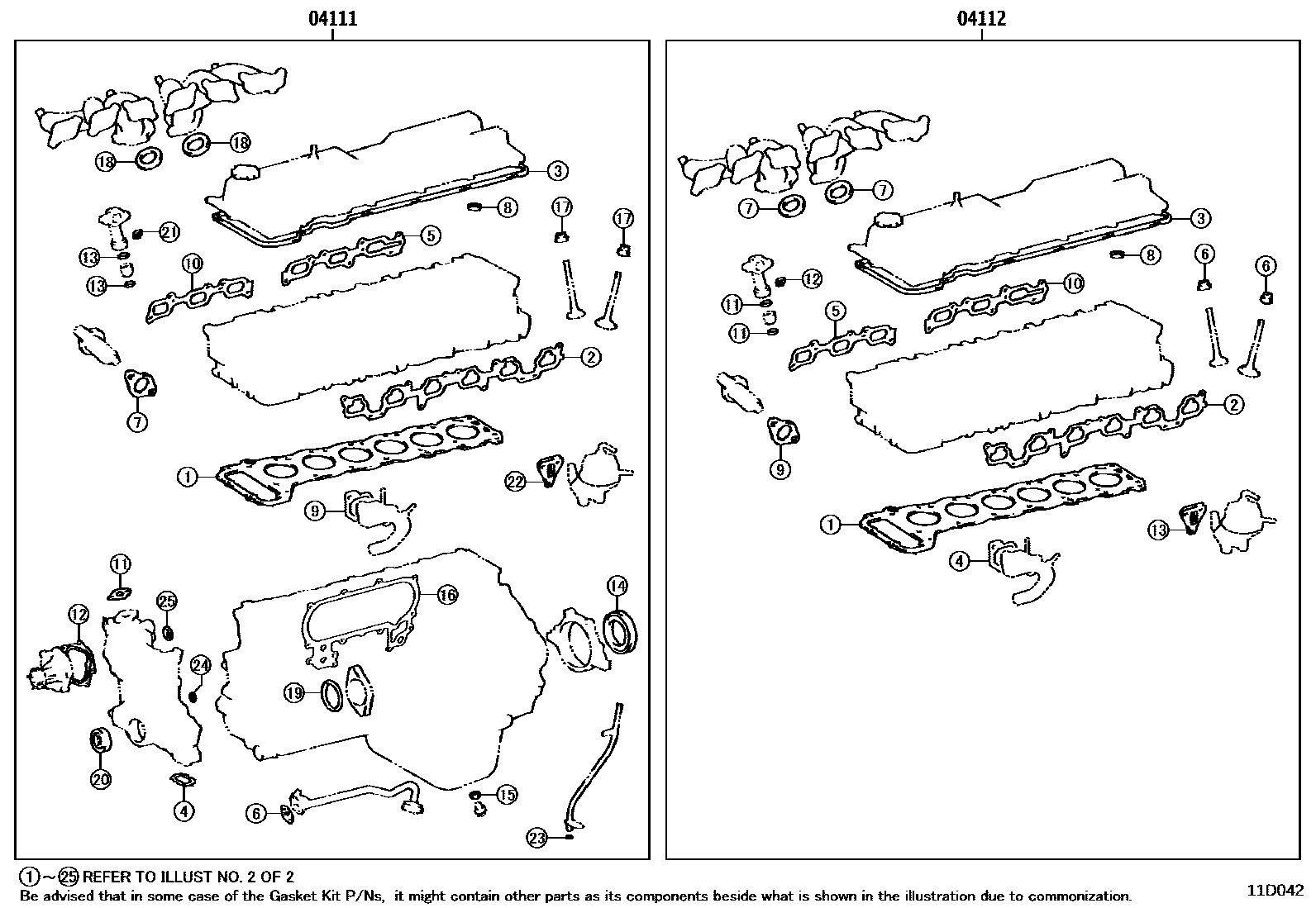

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0018 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1 0034 1 0035 1 0036 1 0037 1 0038 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-17010i1HZ..HZJ7#199001-199305

main04111-17011i1HZ..HZJ7#199705-199707

main04111-17012i1HZ..HZJ7#199707-199805

main04111-17030i1PZ..PZJ7#199001-199305

main04111-17080i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199805-200007

main04111-17100i1HZ..HZJ79..RHD..GEN199908-200404

MALAYSIA SPEC

main04111-17110i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199908-200108

main04111-17130i1HDFTE..HDJ7#200108-200404

main04111-17180i1HZ..HZJ79..ARL200404-200701

PNG SPEC

main04111-17200i1HDFTE..HDJ7#200404-200701

main04111-17220i1HZ..HZJ78,79..ARL200404-200701

sub04111-17350

main04111-35091i22R..RJ70..GEN199001-199004

main04111-35093i22R..RJ7#..GCC,GEN199008-199011

main04111-35095i22R..RJ7#..GCC,GEN199011-199305

main04111-35097i22R..RJ7#199401-199604

main04111-35151i22R..RJ70..ARL199001-199008

main04111-35152i22R..RJ70..ARL199008-199108

main04111-54102i2LT..LJ70,77199001-199108

main04111-54103i2LT..LJ70,77199108-199305

sub04111-54104

main04111-54120i3L..LJ72,79199004-199108

main04111-54121i3L..LJ7#199305-199604

main04111-61080i3F..FJ7#199001-199208

main04111-66030i1FZFE..FZJ70,75199208-199305

sub04111-66032

main04111-66031i1FZFE..FZJ73,75199803-199906

main04111-66033i1FZFE..FZJ73,75199906-199908

main04111-66034i1FZFE..FZJ73,75..PIC,SOT199908-200405

sub04111-66061

main04111-66040i1FZF..FZJ7#199305-199803

sub04111-66042

main04111-66041i1FZF..FZJ7#199803-199906

main04111-66043i1FZF..FZJ7#199906-199908

main04111-66044i1FZF..FZJ75199908-199911

sub04111-66046

main04111-66054i1FZFE..FZJ71,74,78,79199908-200404

sub04111-66101

main04111-66070i1FZFE..FZJ71,74,78,79200404-200808

sub04111-66101

main04111-67020i1KZT..KZJ7#199305-199604

sub04111-67021

04112GASKET KIT, ENGINE VALVE GRIND

main04112-17010i1HZ..HZJ7#199001-199305

main04112-17011i1HZ..HZJ7#199705-199707

main04112-17012i1HZ..HZJ7#199707-199805

main04112-17030i1PZ..PZJ7#199001-199305

main04112-17080i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-199908

main04112-17100i1HZ..HZJ79..RHD..GEN199908-200404

MALAYSIA SPEC

main04112-17110i1HZ..HZJ71,78,79199908-200404

main04112-17130i1HDFTE..HDJ7#200108-200404

main04112-17160i1HZ..HZJ79..ARL200404-200701

PNG SPEC

main04112-17170i1HDFTE..HDJ7#200404-200701

main04112-17190i1HZ..HZJ78,79..ARL200404-200701

sub04112-17270

main04112-35090i22R..RJ70..GEN199001-199004

main04112-35091i22R..RJ7#..GCC,GEN199008-199011

main04112-35092i22R..RJ7#..GCC,GEN199011-199305

main04112-35093i22R..RJ7#199401-199604

main04112-35141i22R..RJ70..ARL199001-199008

main04112-35142i22R..RJ70..ARL199008-199108

main04112-54100i2LT..LJ70,77199001-199108

main04112-54101i2LT..LJ70,77199108-199305

sub04112-54102

main04112-54110i3L..LJ72,79199004-199108

main04112-54111i3L..LJ72,79199108-199305

main04112-61070i3F..FJ7#199001-199208

main04112-66020i1FZF..FZJ7#199305-199803

sub04112-66022

main04112-66021i1FZF..FZJ7#199803-199906

main04112-66023i1FZF..FZJ7#199906-199908

main04112-66024i1FZF..FZJ75199908-199911

sub04112-66026

main04112-66030i1FZFE..FZJ7#199305-199803

sub04112-66032

main04112-66031i1FZFE..FZJ73,75199803-199906

main04112-66033i1FZFE..FZJ73,75199906-199908

main04112-66034i1FZFE..FZJ73,75..PIC,SOT199908-200405

sub04112-66051

main04112-66044i1FZFE..FZJ71,74,78,79199908-200404

sub04112-66091

main04112-66060i1FZFE..FZJ71,74,78,79200404-200808

sub04112-66091

main04112-67020i1KZT..KZJ7#199305-199604

2 parts on this diagram · 34 diagrams in section
