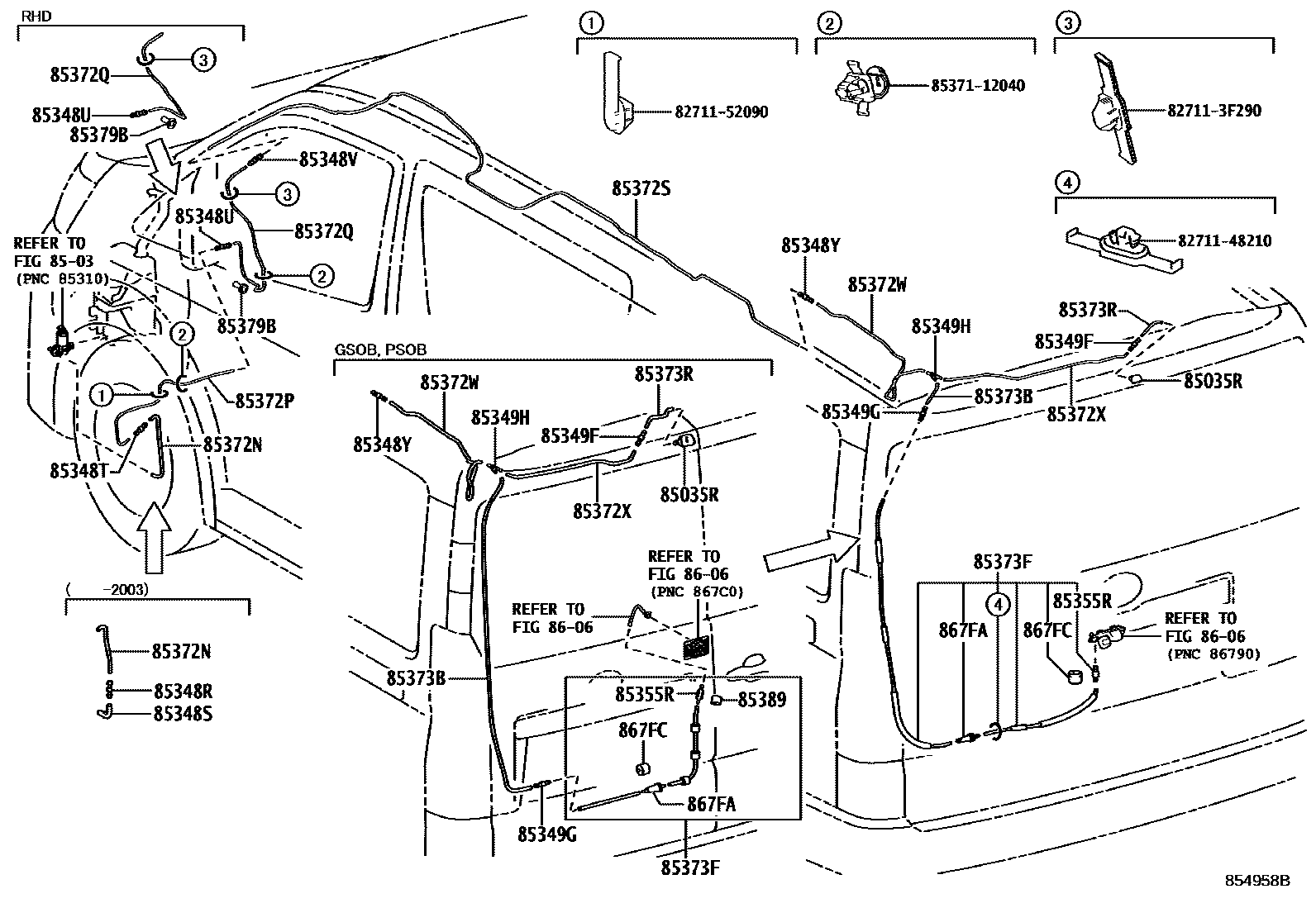

REAR WASHER
8503
85035RNOZZLE SUB-ASSY, REAR WASHER
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
REAR WINDOW WIPER-WITH
main85391-26060iGDH322..SG..N;GDH306,321..RHD..(G,J,N);GDH306,322..LHD..(J,Q)..GEN;GDH322..(D,Q)..(ARL,GCC,TH);GDH301,GRH301,322..SG..(N,Q);GDH303,304,328,GRH303,304,321..(D,G,H,J,201902
REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main85391-V3010iGDH301..GSOB..6FC..D;GDH301..LHD..GSOB..6F..D;GDH300,GRH300..(HPSOB,PSOB)..(GCC,GEN)202208
REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG
main85391-V3020iGDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH320,GRH320,322..(GSOB,PSOB)..(AGT,GCC,GEN)202209
REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG
85348RJOINT, REAR WASHER HOSE, NO.1
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85348SJOINT, REAR WASHER ELBOW, NO.1
main85355-14481iGDH322,328..PH,TH,VN;GDH301,303,304,306,321,322,GRH301,303,304,321,322..G,H,J,N,Q201902-202003
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85348TJOINT, REAR WASHER HOSE, NO.2
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main85349-89122iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902
REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85348UJOINT, REAR WASHER HOSE, NO.3
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
REAR WINDOW WIPER-WITH
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main85349-89122iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902
REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85348VJOINT, REAR WASHER HOSE, NO.4
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main85349-89122iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902
REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85348YJOINT, REAR WASHER HOSE, NO.5
main85349-89122iGRH300..SG;GRH320..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,321..(D,P)..ARL;GRH300,320..LHD..SP..GEN;GDH320..RHD..SP..6F..GEN;GDH322..6FC..P..(GEN,NZ);GDH320,201902-202505
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main85349-89122iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902
REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85349FJOINT, REAR WASHER HOSE, NO.1
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main85349-89122iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902
REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85355RVALVE, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
main90099-62133iGRH300..SG;GRH320..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,321..(D,P)..ARL;GRH300,320..LHD..SP..GEN;GDH320..RHD..SP..6F..GEN;GDH322..6FC..P..(GEN,NZ);GDH320,202003-202506
L=315,HEADLAMP CLEANER-WITH
L=315
L=315,REAR WINDOW WIPER-WITH
L=315,REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=315,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main90099-62218iGDH322,328..PH,TH,VN;GDH301,303,304,306,321,322,GRH301,303,304,321,322..G,H,J,N,Q201902-202003
L=270
main90099-62218iGDH322,328..PH,TH,VN;GDH301,303,304,306,321,322,GRH301,303,304,321,322..G,H,J,N,Q201902-202003
L=270,REAR WINDOW WIPER-WITH
main90099-62218iGDH322,328..PH,TH,VN;GDH301,303,304,306,321,322,GRH301,303,304,321,322..G,H,J,N,Q201902-202003
L=270,REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main90099-62218iGDH322,328..PH,TH,VN;GDH301,303,304,306,321,322,GRH301,303,304,321,322..G,H,J,N,Q201902-202003
L=270,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=760,REAR WINDOW WIPER-WITH
L=760,REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=760,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=760
L=760,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REARCOOLER,JET NOZZLE)
main90099-62213iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902
L=760,REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080iGRH320..RHD;GDH300..4D..6F..ARL;GDH320..RHD..SP..6F..GEN;GDH321,GRH301,322..RHD..6F..N;GDH320,321,GRH300..(SG,SP)..(ARL,NZ);GDH303,304,306,322,GRH303,304,321..RHD..201902
L=720,REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
L=720
L=720,REAR WINDOW WIPER-WITH
L=720,REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=720,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=900
L=900,REAR WINDOW WIPER-WITH
L=900,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=720,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REARCOOLER,JET NOZZLE)
main90099-33080iGDH322,GRH321..(D,Q)..(ARL,TH);GDH301,303,304,306,321,322,GRH301,303,304,322..RHD..(G,H,J,N)201902
L=900,REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3583,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=3583
L=3583,REAR WINDOW WIPER-WITH
L=3583,REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
L=3583,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REARCOOLER,JET NOZZLE)
main90099-62215iGRH303..GCC;GDH303..LHD..(G,J);GDH303,306,GRH303..RHD;GDH304,GRH303..LHD..(G,H)201907
L=3535,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=3535
L=3650
L=3650,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main90099-62217iGDH320..6F..ARL;GRH320..LHD..SP..GEN;GRH320,321..RHD..(D,P);GDH322..6FC..P..(GEN,NZ);GDH320..RHD..SP..6F..GEN;GDH320..LHD..(SG,SP)..6FC..GEN201903-202310
L=4450,REAR WINDOW WIPER-WITH
main90099-62217iGDH320..6F..ARL;GRH320..LHD..SP..GEN;GRH320,321..RHD..(D,P);GDH322..6FC..P..(GEN,NZ);GDH320..RHD..SP..6F..GEN;GDH320..LHD..(SG,SP)..6FC..GEN201903-202005
L=4450,REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main90099-62217iGDH320..6F..ARL;GRH320..LHD..SP..GEN;GRH320,321..RHD..(D,P);GDH322..6FC..P..(GEN,NZ);GDH320..RHD..SP..6F..GEN;GDH320..LHD..(SG,SP)..6FC..GEN201903-202310
L=4450,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main90099-62217iGRH322..N;GRH320..RHD;GDH321..N..IDN;GRH320..LHD..SP..GEN;GDH320..RHD..SP..6F..GEN;GDH320..LHD..(SG,SP)..6FC..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH320,321,328,GR201903-202310
L=4450
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1550
L=1550,REAR WINDOW WIPER-WITH
L=1690
L=1690,REAR WINDOW WIPER-WITH
L=1690,REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
L=1780
L=1780,REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG
L=1780,REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
L=1690,PREMIUM PACKAGE&REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
main90099-33080iGRH300..SG;GRH320..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,321..(D,P)..ARL;GRH300,320..LHD..SP..GEN;GDH320..RHD..SP..6F..GEN;GDH322..6FC..P..(GEN,NZ);GDH320,201902
L=1450(*H,L=100),REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JETNOZZLE)
L=1450(*H,L=100)
L=1450(*H,L=100),REAR WINDOW WIPER-WITH
L=1450(*H,L=100),REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=1450(*H,L=100),INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=1450(*H,L=120)
L=1450(*H,L=120),INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
L=1450(*H,L=120),REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG
L=1450(*H,L=120),REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
L=1450(*H,L=100),PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REARAIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER)
L=1450(*H,L=100),PREMIUM PACKAGE&REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER)
85379BGROMMET, WASHER, A
REAR WINDOW WIPER-WITH
REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main85379-12850iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902
REAR WINDOW WIPER-WITH&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
85389PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-26550
8606
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271148210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48210
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
30 parts on this diagram · 6 diagrams in section
