ANTI-THEFT DEVICE
89040SIREN ASSY, THEFT WARNING
89780COMPUTER ASSY, TRANSPONDER KEY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
sub897H0-V3010
main897H0-26010iGDH322..N;GRH322..N,Q;GDH322..LHD..Q;GDH322..ARL,NZ,TH;GDH301,321,GRH301,321..N,P,Q;GDH300,301,320,328,GRH300,320..ARL,NZ,PH,VN201902-202006
EGYPT SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub897H0-V3010
main897H0-26010iGDH322..N;GRH322..N,Q;GDH322..LHD..Q;GDH322..ARL,NZ,TH;GDH301,321,GRH301,321..N,P,Q;GDH300,301,320,328,GRH300,320..ARL,NZ,PH,VN201902-202006
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub897H0-V3010
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub897H0-V3010
GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub897H0-V3010
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main897H0-V3010iGDH322,GRH322..N,Q;GDH321..D..(GEN,NZ);GDH322..(D,P)..(ARL,TH);GDH301,321,GRH301,321..N,P,Q;GDH300,301,320,328,GRH300,320..ARL,NZ,PH,VN202006-202201
EUROPE N1&ANTI-THEFT SYSTEM-WITHOUT
main897H0-V3010iGDH322,GRH322..N,Q;GDH321..D..(GEN,NZ);GDH322..(D,P)..(ARL,TH);GDH301,321,GRH301,321..N,P,Q;GDH300,301,320,328,GRH300,320..ARL,NZ,PH,VN202006-202201
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main897H0-V3010iGDH322,GRH322..N,Q;GDH321..D..(GEN,NZ);GDH322..(D,P)..(ARL,TH);GDH301,321,GRH301,321..N,P,Q;GDH300,301,320,328,GRH300,320..ARL,NZ,PH,VN202006-202201
EGYPT SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main897H0-V3010iGDH322,GRH322..N,Q;GDH321..D..(GEN,NZ);GDH322..(D,P)..(ARL,TH);GDH301,321,GRH301,321..N,P,Q;GDH300,301,320,328,GRH300,320..ARL,NZ,PH,VN202006-202201
GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
GHANA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
main897H0-V3011iGDH300..HPSOB;GDH322..RHD..(N,Q);GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..(D,P)..(ARL,TH);GDH322..LHD..SG..6F..(N,Q);GDH301,GRH301,321,322..SG..(N,Q);GD202202
EUROPE N1&ANTI-THEFT SYSTEM-WITHOUT
main897H0-V3011iGDH300..HPSOB;GDH322..RHD..(N,Q);GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..(D,P)..(ARL,TH);GDH322..LHD..SG..6F..(N,Q);GDH301,GRH301,321,322..SG..(N,Q);GD202202
EGYPT SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main897H0-V3011iGDH300..HPSOB;GDH322..RHD..(N,Q);GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..(D,P)..(ARL,TH);GDH322..LHD..SG..6F..(N,Q);GDH301,GRH301,321,322..SG..(N,Q);GD202202
GHANA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITHOUT
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
sub897H0-V3021
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
89782COIL, TRANSPONDER KEY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
EUROPE N1&ANTI-THEFT SYSTEM-WITHOUT
EUROPE N1&ANTI-THEFT SYSTEM-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
PAPUA NEW GUINEA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESSDOOR LOCK-WITH
HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
main89782-33070iGDH322..LHD..6F..D..GEN;GDH320..LHD..SP..6F..GEN;GDH300,301,GRH301..LHD..(SG,SP)..6F..D..GEN201902-202506
EGYPT SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
OCEANIA(GENERAL)SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESSDOOR LOCK-WITH
main89782-33070iGDH322..N;GRH322..N,Q;GDH300..HPSOB;GDH321..N..IDN;GDH322..LHD..Q;GDH322..ARL,NZ,TH;GDH301,GRH301,321..N,P,Q;GDH300,301,320,321,328,GRH300,320..ARL,BZ,NZ,PH,VN201902
GHANA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
AFRICA(GENERAL)SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
SRI LANKA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
FIJI SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
89784COMPUTER, IMMOBILIZER CODE
9011906A06
main90119-06A06

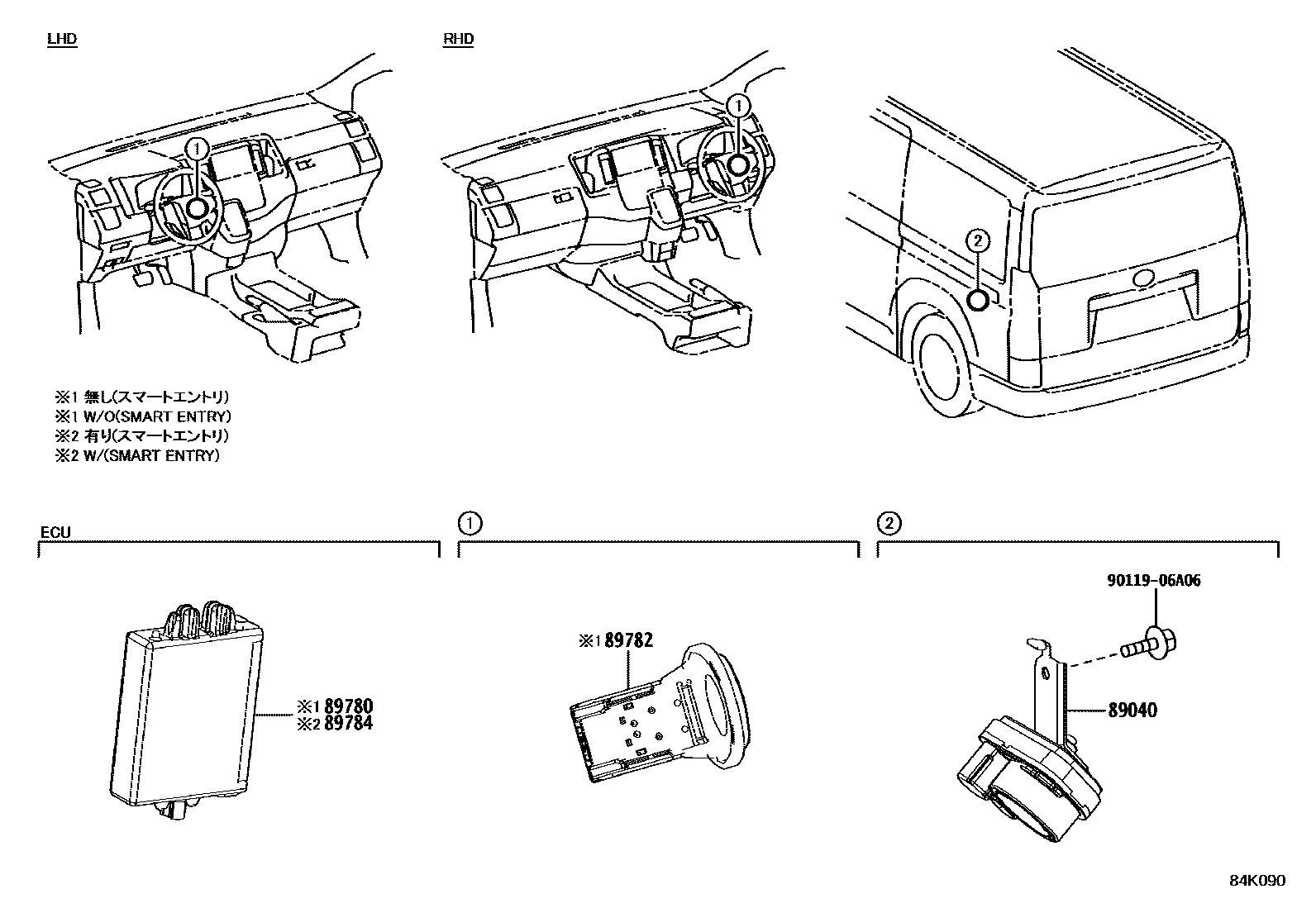

5 parts on this diagram · 2 diagrams in section
