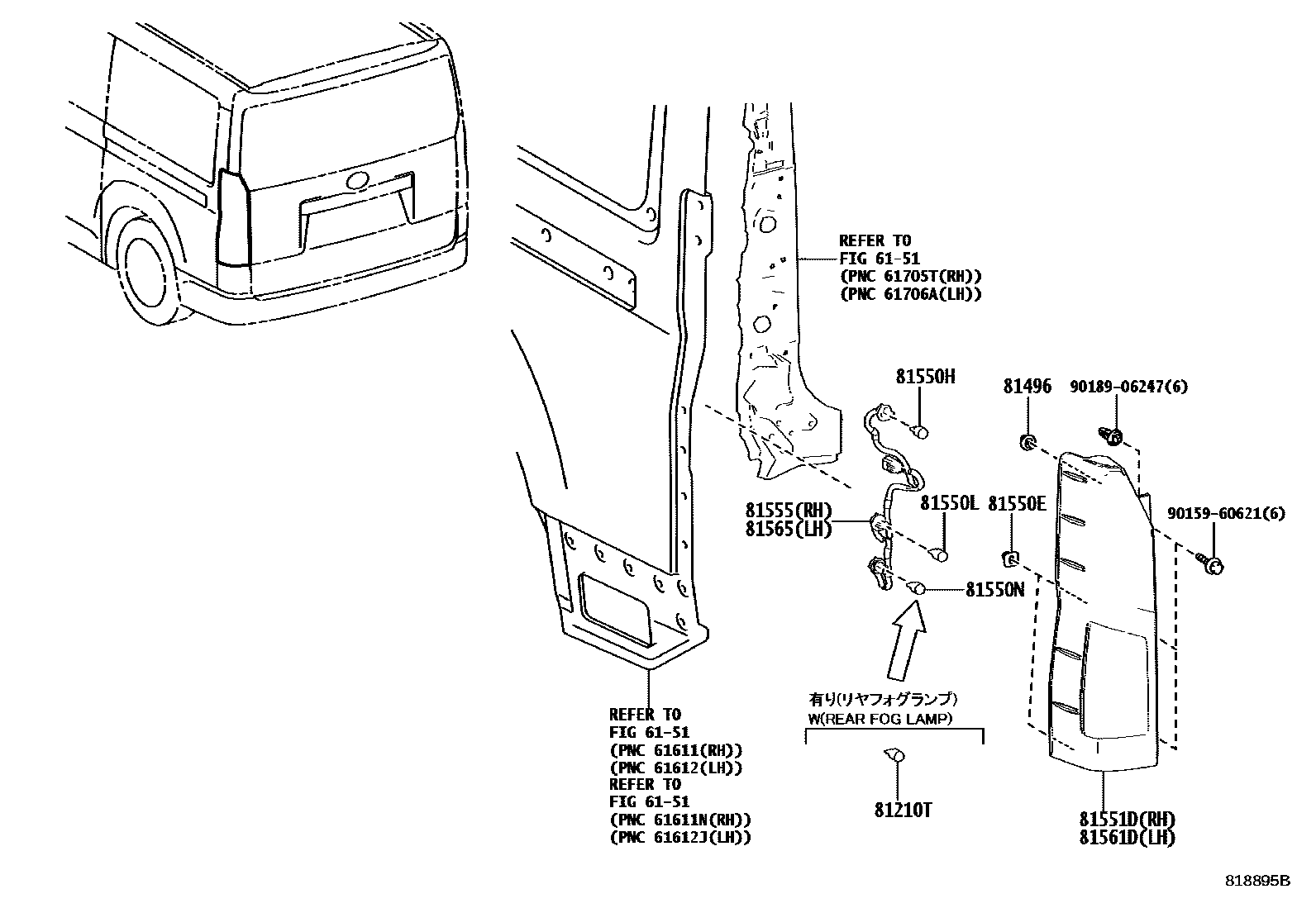

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6151

81210TBULB, REAR FOG LAMP

main90981-13043iGDH300,320..RHD..5D..(PSOB,SHP)..6F201902-202405

12V 21W

main90981-13043iGDH300..LHD..6FC..GEN201902

12V 21W,SOUTH AFRICA SPEC

main90981-13043iGDH322..RHD..6F..N;GRH320..RHD..6F..GEN201902

12V 21W,EGYPT SPEC

main90981-13043iGDH322..RHD..6F..N;GRH320..RHD..6F..GEN201902

12V 21W,TAIWAN SPEC

main90981-13043iGDH301..RHD..6F..N202405

12V 21W,PAKISTAN SPEC

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iGDH322..TH202210

main81496-52020iGDH322..TH201902-202505

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0L020iGDH328..VN201906-202111

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040iGDH321..GEN201902-202505

81550HBULB, TAIL & STOP LAMP

main90981-13044iGDH322..RHD..P..GEN201902-202505

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iGDH322..RHD..P..GEN201902-202505

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iGDH300..SHP..6FC;GDH301..GSOB..6FC;GDH301..SG..6FC..N;GDH322..GSOB..6F..D;GDH300..LHD..SP..GEN;GDH322..RHD..GSOB..N;GDH301..LHD..SG..6F..N;GDH322..LHD..GSOB..6FC;GD201902-202505

12V 16W

main90981-11059iGDH320..LHD..SP..6FC..GEN;GDH300..LHD..PSOB..6FC..GEN202107

12V 16W,ARGENTINA SPEC

main90981-11059iGDH320..LHD..SP..6FC..GEN;GDH300..LHD..PSOB..6FC..GEN201902-202405

12V 16W,SOUTH AFRICA SPEC

main90981-11059iGDH320..LHD..SP..6FC..GEN;GDH300..LHD..PSOB..6FC..GEN202107

12V 16W,GHANA SPEC

main90981-11059iGDH301..RHD..6F..N202405

12V 16W,PAKISTAN SPEC

main90981-11059iGRH301..LHD..6F..D;GDH322..LHD..GSOB..6F..D;GDH320..LHD..SP..6F..GEN;GDH300,301,322..LHD..(SG,SP)..6F..(D,N)..GEN201902

12V 16W,EGYPT SPEC

main90981-11059iGDH300..SHP..6F..GEN202310-202405

12V 16W,HONG KONG SPEC

main90981-11059iGDH321..6FC..GEN;GDH322..LHD..6F..(P,Q);GDH322..6FC..(AGT,GCC);GDH300,320,328,GRH300,320,322..AGT,BZ,GCC201902

12V 16W,TAIWAN SPEC

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0L020iGDH322..TH;GDH328..VN201906

main81551-26490iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

main81551-26500iGDH300..SHP..6F..GEN202310-202405

main81551-26500iGDH300,320..RHD..5D..(PSOB,SHP)..6F202405

SOUTH AFRICA SPEC

main81551-26500iGDH300,320..RHD..5D..(PSOB,SHP)..6F202405

PAKISTAN SPEC

main81551-26510iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0L020iGDH322..TH;GDH328..VN201906

main81555-26490iGDH300,321..(SG,SHP)..6F..GEN201902-202505

main81555-26500iGDH300..SHP..6F..GEN202310-202405

main81555-26500iGDH301..RHD..6F..N202405

PAKISTAN SPEC

main81555-26500iGDH301..RHD..6F..N202405

SOUTH AFRICA SPEC

main81555-26510iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0L020iGDH322..TH;GDH328..VN201906

main81561-26490iGDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN201902-202505

main81561-26500iGDH322..LHD..6F..(P,Q);GDH322..6FC..(AGT,GCC);GDH300,320,328,GRH300,320,322..AGT,BZ,GCC201902

EGYPT SPEC

main81561-26500iGRH301..LHD..6F..D;GDH322..LHD..GSOB..6F..D;GDH320..LHD..SP..6F..GEN;GDH300,301,322..LHD..(SG,SP)..6F..(D,N)..GEN201902

TAIWAN SPEC

main81561-26510iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0L020iGDH322..TH;GDH328..VN201906

main81555-26490iGDH321..GEN201902-202505

main81555-26500iGDH322..LHD..6F..(P,Q);GDH322..6FC..(AGT,GCC);GDH300,320,328,GRH300,320,322..AGT,BZ,GCC201902

EGYPT SPEC

main81555-26500iGRH301..LHD..6F..D;GDH322..LHD..GSOB..6F..D;GDH320..LHD..SP..6F..GEN;GDH300,301,322..LHD..(SG,SP)..6F..(D,N)..GEN201902

TAIWAN SPEC

main81555-26510iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

9015960621

main90159-60621

9018906247

main90189-06247

14 parts on this diagram · 3 diagrams in section
