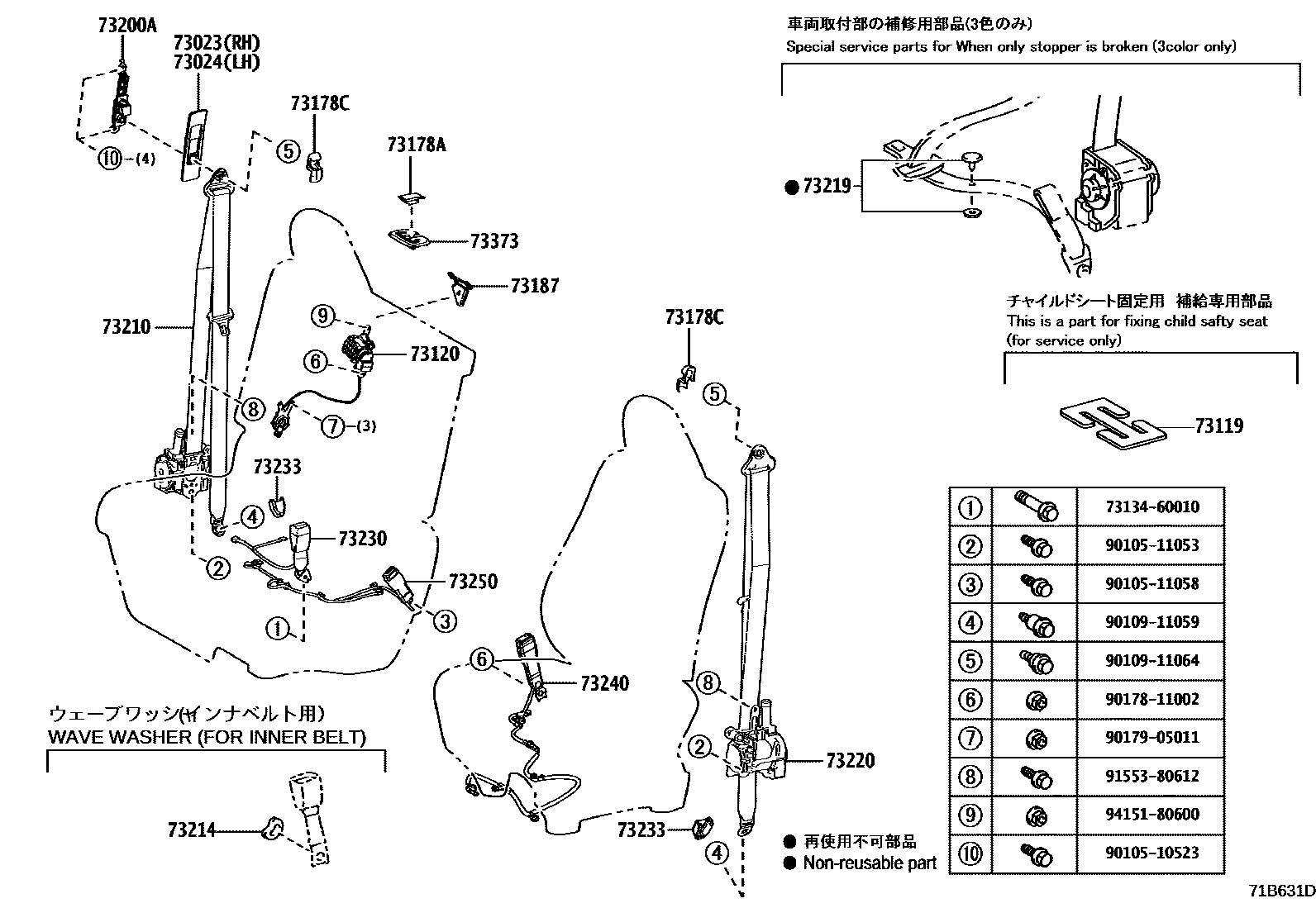

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-12020-A0iGDH322..SG..N..GEN;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,GRH301,321,322..SG..(N,Q)201902
FROMAGE,TRIM01
LT.GRAY,TRIM11
LT.GRAY,TRIM1#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73023-12020-A0iGDH322..SG..N..GEN;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,GRH301,321,322..SG..(N,Q)201902
FROMAGE,TRIM01
LT.GRAY,TRIM01
LT.GRAY,TRIM1#
73119PLATE, SEAT BELT WEBBING CLIP
73120BELT ASSY, FRONT SEAT 3 POINT TYPE, LH
BLACK,TRIM2#
73178ACAP, SEAT BELT ANCHOR COVER
BLACK,TRIM1#
GUATEMALA SPEC&PREMIUM PACKAGE&FRONT SEAT-BENCH TYPE&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21
NEUTRAL BEIGE,TRIM22
73178CCAP, SEAT BELT ANCHOR COVER
main73178-26010-A0×2iGDH322..SG..N..GEN;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,GRH301,321,322..SG..(N,Q)201902
FROMAGE,TRIM01
LT.GRAY,TRIM11
73187GUIDE, FRONT SEAT SHOULDER BELT
HONG KONG SPEC&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVERSEAT SIDE ONLY)
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
FROMAGE,TRIM01
LT.GRAY,TRIM0#
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#
BLACK/FROMAGE,TRIM11
JAMAICA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER &PASSENGER),BLACK/LT.GRAY,TRIM1#
BLACK/FROMAGE,TRIM0#
main73210-26781-B0iGRH320;GDH322..P;GDH321..RHD;GRH322..GSOB;GDH300..PSOB..6F..GCC;GDH300..(SHP,SP)..(GCC,TH);GDH300..5D..(HPSOB,PSOB)..6FC..(GCC,GEN);GDH301,320,328,GRH300,322..(D,P)202208
BLACK/LT.GRAY,TRIM1#
BLACK/FROMAGE,TRIM0#
main73210-26790-B0supersedes 73210-26781-B0iGDH300..SHP..6F..GEN;GDH300..RHD..4D..6FC..GEN201902-202310
HONG KONG SPEC&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER& PASSENGER),BLACK/LT.GRAY,TRIM1#
LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM1#
BLACK/FROMAGE,TRIM11
GUATEMALA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#
BLACK/FROMAGE,TRIM0#
HONG KONG SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER& PASSENGER),BLACK/LT.GRAY,TRIM1#
BLACK/FROMAGE,TRIM01
main73220-26590-B0supersedes 73220-26541-B0iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404
BLACK/LT.GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#
BLACK,TRIM1#
main73230-26280-C1supersedes 73230-26280-C1iGDH300..SHP..6FC..GEN;GDH300,320..RHD..(SG,SHP,SP)..6F..GEN201902
SOUTH AFRICA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#
main73230-26351-C0supersedes 73230-26351-C0iGDH320..LHD..6F..GEN;GDH320..LHD..5D..6FC..GEN;GDH300,GRH300,320..LHD..(PSOB,SP)..GEN201902-202506
BLACK,TRIM1#
LATIN AMERICA(GENERAL) SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#
LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#
73233COVER, LAP BELT OUTER ANCHOR
FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE,BLACK,TRIM2#
sub73233-35010
BLACK,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
SOUTH AFRICA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#
BLACK,TRIM1#
SOUTH AFRICA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#
FRONT SEAT-SEPARATE TYPE, W(*PAS:SHOULDER SWITCH),BLACK,TRIM2#
main73230-26440-C0iGDH320..RHD..PSOB..GEN;GDH300..RHD..4D..6F..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH320,GRH300..SP..6FC..GEN202208-202506
NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#
PREMIUM PACKAGE,BLACK,TRIM2#
73250BELT ASSY, FRONT SEAT, CENTER
BLACK,TRIM2#
BLACK,TRIM1#
73373COVER, REAR SEAT SHOULDER BELT
BLACK,TRIM1#
GUATEMALA SPEC&PREMIUM PACKAGE&FRONT SEAT-BENCH TYPE&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21
NEUTRAL BEIGE,TRIM22
7313460010
main73134-60010
9010510523
main90105-10523
9010511053
main90105-11053
9010511058
main90105-11058
9010911059
main90109-11059
9010911064
main90109-11064
9017811002
main90178-11002
9017905011
main90179-05011
9155380612
main91553-80612
9415180600
main94151-80600
27 parts on this diagram · 29 diagrams in section
