FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-26170iGDH322..P..GCC;GRH322..LHD..(D,P);GDH300,301,320,322,GRH300,301,320..LHD..D..(AGT,GCC,GEN)201902-202310
WIRELESS DOOR LOCK-WITH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
WIRELESS DOOR LOCK-WITH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#
FROMAGE,TRIM0#
FROMAGE,TRIM01
BLACK,TRIM0#,2#
BLACK,TRIM01,2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S201902-202505
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#
FROMAGE,TRIM01
FROMAGE,TRIM0#
BLACK,TRIM01,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,EUROPE N1
GL PACKAGE,WHITE,058
WHITE,058
main69211-33120-A2iGDH300..5D;GDH321..RHD..D;GDH322..P..(ARL,GCC,NZ);GDH300,322..LHD..(GSOB,SP)..D..GEN;GDH300,322..4D..(PSOB,SG)..D..(ARL,GEN);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN201902-202005
GL PACKAGE&WIRELESS DOOR LOCK-WITH,WHITE,058
WHITE PEARL CS.,2QD
GL PACKAGE,SILVER M.M.,1E7
SILVER M.M.,1E7
GL PACKAGE&WIRELESS DOOR LOCK-WITH,SILVER M.M.,1E7
BLACK MC.,209
GL PACKAGE,BLACK MC.,209
GL PACKAGE&WIRELESS DOOR LOCK-WITH,BLACK MC.,209
EUROPE N1&GL PACKAGE&WIRELESS DOOR LOCK-WITHOUT,BEIGE ME.,4R4
BEIGE ME.,4R4
LT.BLUE ME.,8Q6
WHITE PEARL CS.,2QD
main69211-47021-A3iGDH322..P..GCC;GRH322..LHD..(D,P);GDH300,320,322,GRH300,320..LHD..D..(AGT,GCC,GEN)201902-202310
GL PACKAGE&WIRELESS DOOR LOCK-WITH,WHITE,058
WHITE,058
GL PACKAGE&WIRELESS DOOR LOCK-WITH,SILVER M.M.,1E7
main69211-47021-B4iGDH322..LHD..6F..P..GEN;GDH301,322,328,GRH301,321,322..LHD..(N,Q)..(GCC,GEN,PH)201902-202310
SILVER M.M.,1E7
BLACK MC.,209
EUROPE N1&GL PACKAGE,BEIGE ME.,4R4
BEIGE ME.,4R4
LT.BLUE ME.,8Q6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-47020iGDH322..P..GCC;GRH322..LHD..(D,P);GDH300,320,322,GRH300,320..LHD..D..(AGT,GCC,GEN)201902-202310
GL PACKAGE&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
GL PACKAGE&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
PLATED
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
GL PACKAGE,WHITE,058
WHITE,058
GL PACKAGE&WIRELESS DOOR LOCK-WITH,WHITE,058
WHITE PEARL CS.,2QD
main69211-33120-B2iGDH322..P..GCC;GRH322..LHD..(D,P);GDH300,320,322,GRH300,320..LHD..D..(GCC,GEN)201902-202310
GL PACKAGE&WIRELESS DOOR LOCK-WITH,SILVER M.M.,1E7
main69211-33120-B2iGDH322..P..GCC;GRH322..LHD..(D,P);GDH300,320,322,GRH300,320..LHD..D..(GCC,GEN)201902-202310
SILVER M.M.,1E7
GL PACKAGE,SILVER M.M.,1E7
GL PACKAGE,BLACK MC.,209
BLACK MC.,209
EUROPE N1&GL PACKAGE,BEIGE ME.,4R4
BEIGE ME.,4R4
LT.BLUE ME.,8Q6
WHITE PEARL CS.,2QD
WHITE,058
GL PACKAGE&WIRELESS DOOR LOCK-WITH,WHITE,058
SILVER M.M.,1E7
GL PACKAGE&WIRELESS DOOR LOCK-WITH,SILVER M.M.,1E7
GL PACKAGE&WIRELESS DOOR LOCK-WITH,BLACK MC.,209
BLACK MC.,209
BEIGE ME.,4R4
LT.BLUE ME.,8Q6
69239CBUSH, FRONT DOOR HANDLE
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
main69242-47030iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH300,301..4D201902-202505
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-26010-A1iGDH322..N;GDH322..6FC..Q..GEN;GDH301,328,GRH301,321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201902-202310
FROMAGE,TRIM0#
BLACK,TRIM1#
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-26010-A1iGDH322..N;GDH322..6FC..Q..GEN;GDH301,328,GRH301,321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201902-202310
FROMAGE,TRIM0#
BLACK,TRIM1#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
LH
RH
main90148-50006iGDH321..RHD;GDH301..GSOB..6FC;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300,306..5D..(D,J);GDH300..4D..SP..(ARL,TH);GDH300,301..4D..(PSOB,SG);GDH322..SG..(AGT,A202205-202505
RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015950083
main90159-50083
9018905003
main90189-05003

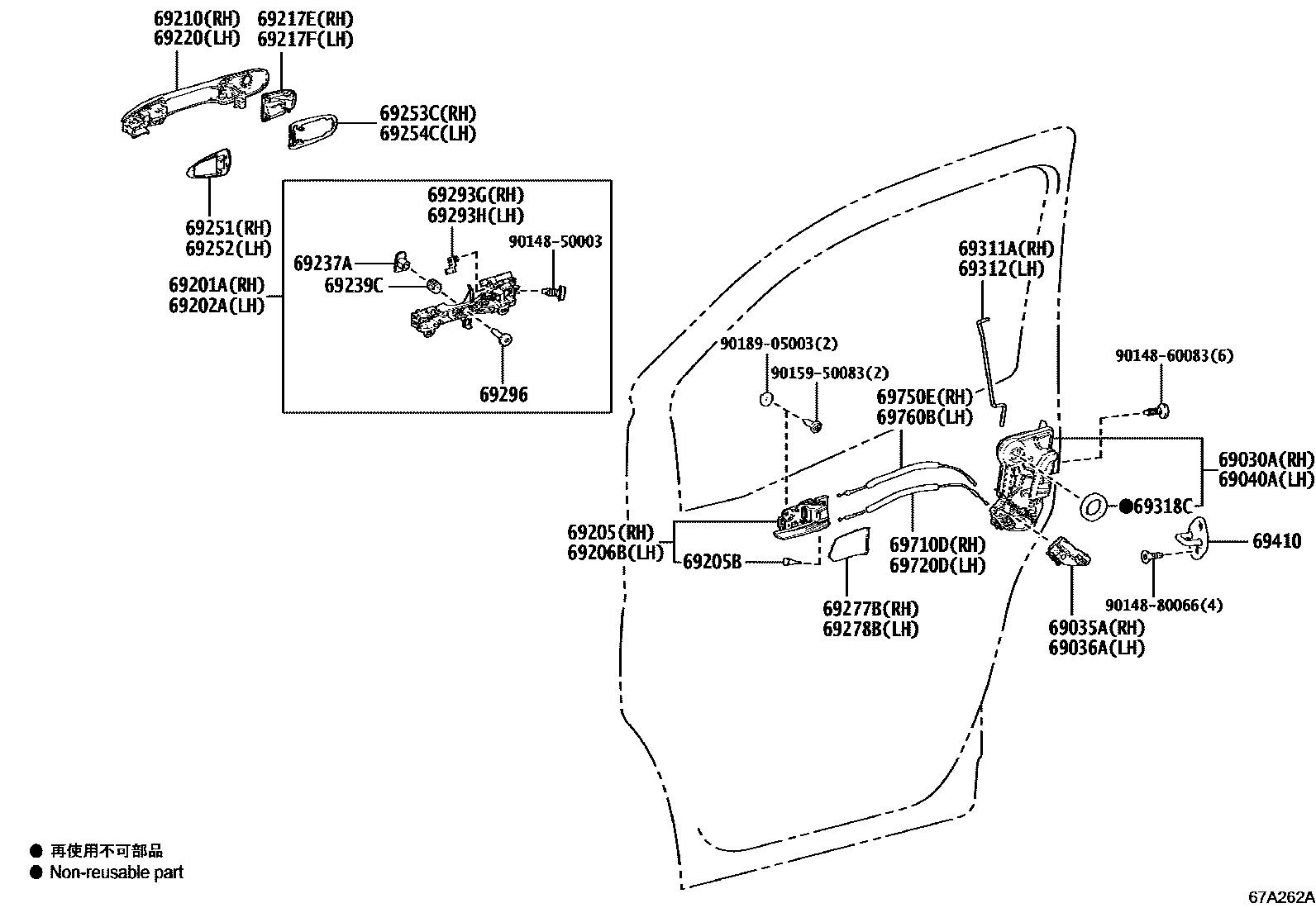

37 parts on this diagram · 1 diagram in section
