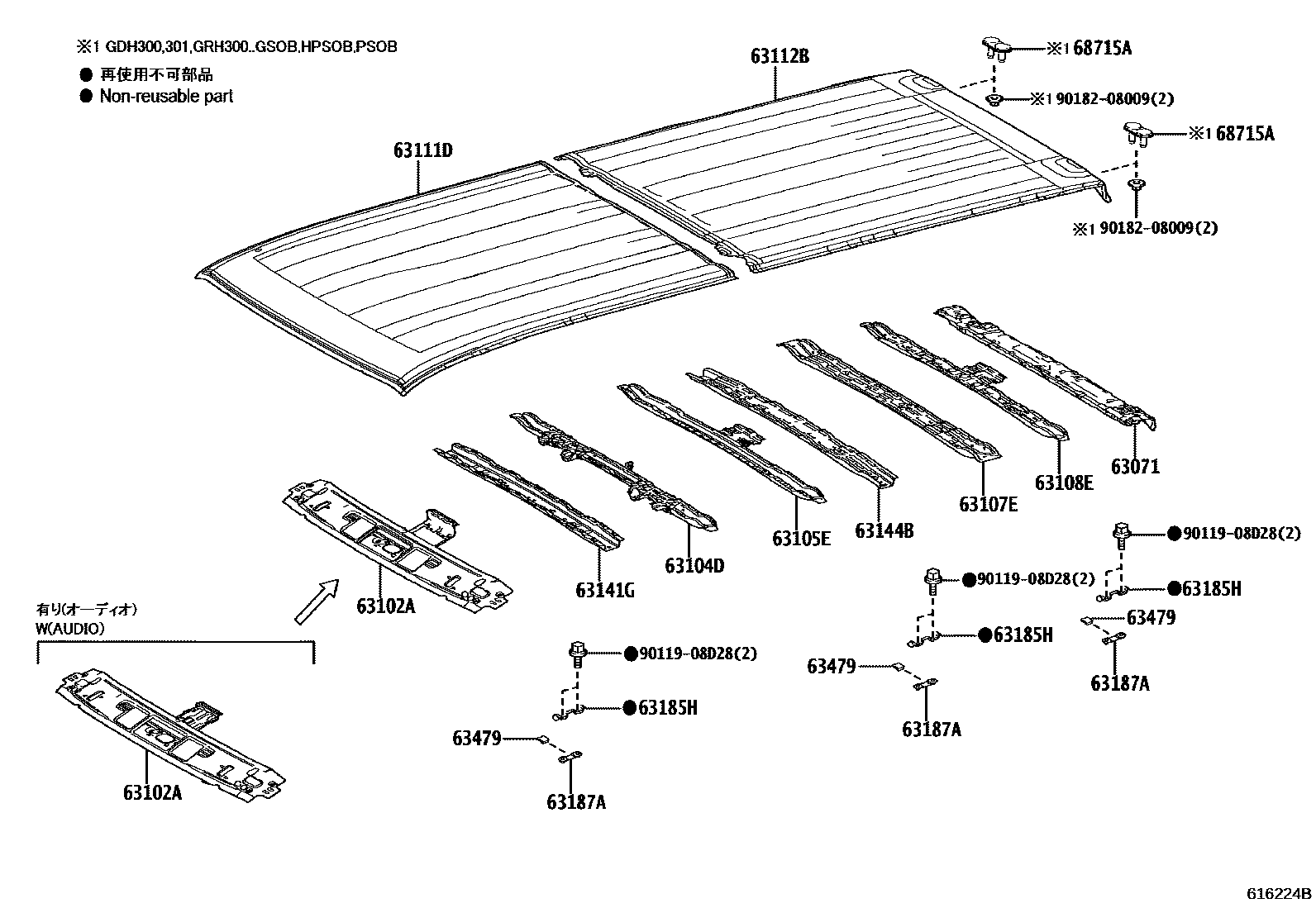

ROOF PANEL & BACK PANEL
63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
main63071-26390iGDH306..RHD;GDH300..5D..(SG,SHP,SP);GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH301,303,304,GRH30#..SG,SHP,SP;GDH300,306..LHD..(SG,SP)..(D,J)..GEN201902-202505
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-26350iGDH322..N;GDH322..6FC..Q..GEN;GDH328,GRH321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201903
COMMUTER
EUROPE N1
main63132-26120iGDH321..RHD..D;GDH322..RHD..GSOB..6F;GDH320,328,GRH32#..D,P;GDH322..SG..D..(GEN,TH);GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH322..LHD..GSOB..(D,P)201903
EUROPE N1
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
SOUTH AFRICA SPEC&BUS STRUCTURE REQUIREMENT(SOUTH AFRICA)&ESCAPE HATCH-SIDE GLASS(RH)&QUARTER GLASS(LH)&ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE
main63104-26320iGDH322..N;GDH321..6FC;GDH328,GRH321;GRH322..N,P,Q;GDH321..N..IDN;GDH322..GSOB..P;GDH322..ARL,GCC,NZ,TH;GDH322..6FC..(P,Q)..GEN201903
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
main63104-26320iGDH322..N;GDH321..6FC;GDH328,GRH321;GRH322..N,P,Q;GDH321..N..IDN;GDH322..GSOB..P;GDH322..ARL,GCC,NZ,TH;GDH322..6FC..(P,Q)..GEN201903
ESCAPE HATCH-SIDE GLASS(RH)&QUARTER GLASS(LH)&ROOF
main63104-26330iGRH301..D;GDH301..6FC..D..GEN;GDH301..SG..6F..D..GEN;GDH300,GRH300..HPSOB,SHP;GDH301..LHD..GSOB..6F..D201902
REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main63104-26340iGDH300..5D;GDH303,306..RHD;GDH300..4D..PSOB;GDH303..LHD..(G,J);GDH301..6FC..D..GEN;GDH301..SG..6F..D..GEN;GDH300..4D..SP..(ARL,TH);GDH301..LHD..GSOB..6F..D;GDH300..201902-202505
MOROCCO SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
EUROPE N1&REAR AIR CONDITIONER-WITHOUT
RUSSIA SPEC
RUSSIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
KAZAKHSTAN SPEC
KAZAKHSTAN SPEC&ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
KAZAKHSTAN SPEC&ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
KAZAKHSTAN SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
MOROCCO SPEC
63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
main63107-26160iGDH300..5D;GDH300..4D..PSOB;GDH300..LHD..SP..GEN;GDH301..GSOB..6FC..D;GDH300..4D..SP..(ARL,TH);GDH301..LHD..GSOB..6F..D;GDH300..RHD..4D..SP..6F..GEN;GDH301,GRH300,3201902-202505
63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63111DPANEL, ROOF, FRONT
ROOF RACK-WITH
KAZAKHSTAN SPEC&ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
GEORGIA SPEC&&ESCAPE HATCH-WITHOUT
KAZAKHSTAN SPEC&ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
KAZAKHSTAN SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
MOROCCO SPEC
MOROCCO SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
ESCAPE HATCH-SIDE GLASS(RH)&QUARTER GLASS(LH)&ROOF
RUSSIA SPEC
RUSSIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
KAZAKHSTAN SPEC
NEW ZEALAND SPEC
63112BPANEL, ROOF, REAR
main63112-26050iGDH300..LHD..SP..GEN;GDH300..5D..(SG,SHP,SP);GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH301,GRH300,301..(SG,SHP,SP)..D201902-202505
63141GREINFORCEMENT, ROOF PANEL, NO.1
main63103-26340iGRH301..D;GDH301..6FC..D..GEN;GDH301..SG..6F..D..GEN;GDH300,GRH300..HPSOB,SHP;GDH301..LHD..GSOB..6F..D201902
REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
SOUTH AFRICA SPEC&BUS STRUCTURE REQUIREMENT(SOUTH AFRICA)&ESCAPE HATCH-SIDE GLASS(RH)&QUARTER GLASS(LH)&ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE
main63103-26360iGRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
main63103-26360iGRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903-202005
REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
main63103-26360iGRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
ESCAPE HATCH-SIDE GLASS(RH)&QUARTER GLASS(LH)&ROOF
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
EUROPE N1&REAR AIR CONDITIONER-WITHOUT
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
RUSSIA SPEC
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
RUSSIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
KAZAKHSTAN SPEC
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
KAZAKHSTAN SPEC&ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
KAZAKHSTAN SPEC&ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
KAZAKHSTAN SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
MOROCCO SPEC
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
MOROCCO SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
main63141-26250iGDH320,GRH320;GRH322..6F..D;GDH321..D..IDN;GRH322..RHD..6FC;GDH322..SG..D..GEN;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F201903
ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
63144BREINFORCEMENT, ROOF PANEL, NO.4
63185HBRACKET, ROOF RACK
EGYPT SPEC
63187ABRACKET, ROOF RACK, REAR
EGYPT SPEC
63479RETAINER, ROOF INNER RACK
EGYPT SPEC
68715APLATE, DOOR HINGE, UPPER
main68869-V3010iGDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH301..LHD..GSOB..6F;GDH300,320,GRH300,320,322..GSOB,HPSOB,PSOB202208-202404
9011908D28
main90119-08D28
9018208009
main90182-08009
16 parts on this diagram · 5 diagrams in section
