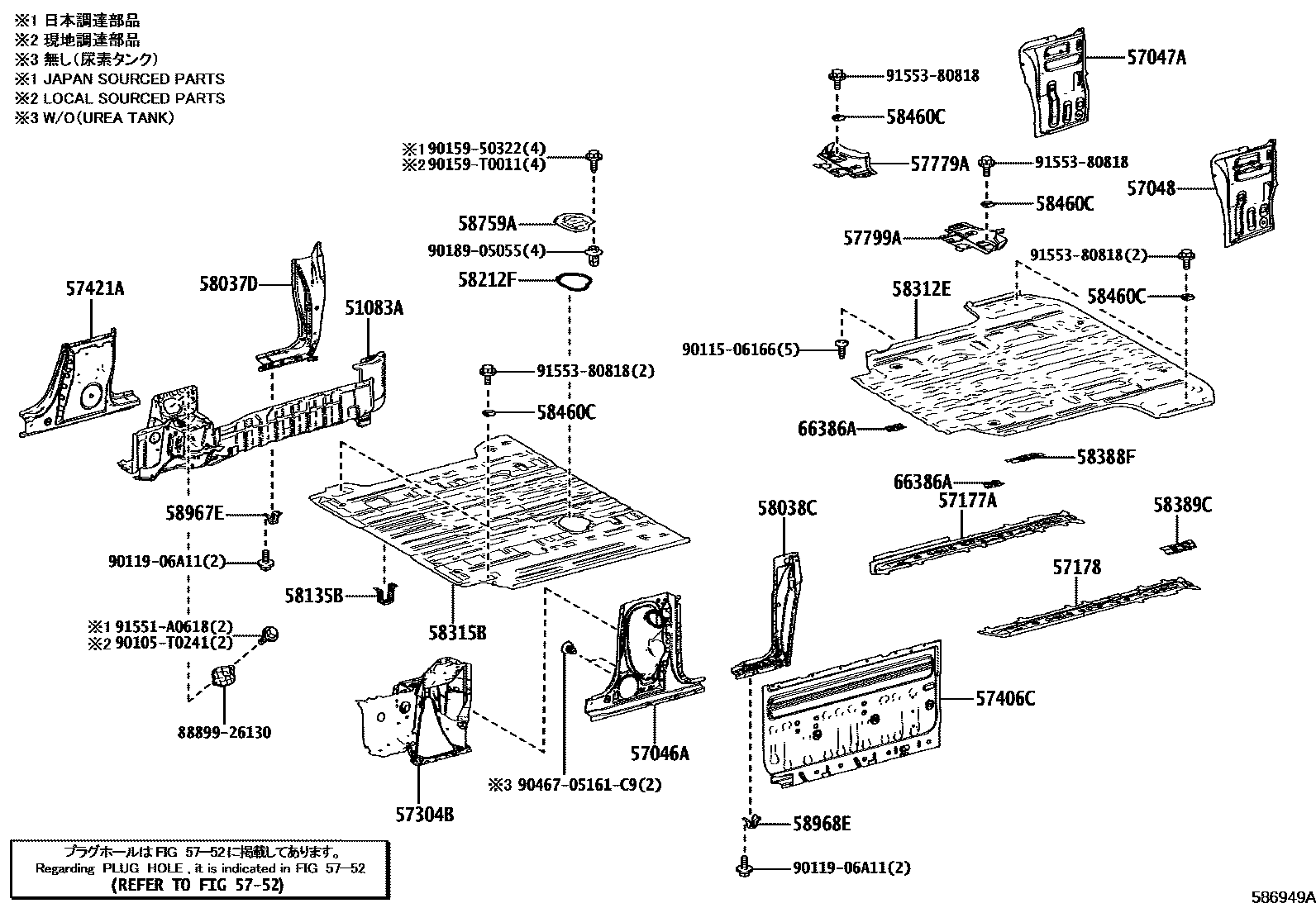

REAR FLOOR PANEL & REAR FLOOR MEMBER
51083ASTEP SUB-ASSY, RH
main51083-26430iGDH301,GRH301..LHD..SG;GDH301..LHD..GSOB..6FC;GDH301..LHD..GSOB..6F..D;GDH300,GRH300..(HPSOB,SHP)..(GCC,GEN)201902
NEW ZEALAND SPEC
AMBULANCE&REAR SEAT-WITHOUT
NEW CALEDONIA SPEC&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)&SRS AIR BAG-W(DRIVER & PASSENGER)
REAR HEATER-WITH(FLOOR SET)
REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)&SRS AIR BAG-W(DRIVER & PASSENGER)
ELSALVADOR SPEC&AMBULANCE&REAR SEAT-WITHOUT
NEW ZEALAND SPEC
57046APLATE SUB-ASSY, FLOOR SIDE RAIL, LH
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
main57046-26390iGDH321..6FC;GDH322..NZ,TH;GDH301,GRH321..ARL,NZ,TH;GDH301,321,322,GRH301,322..RHD..N201902
REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main57046-26430iGDH322..P..GCC;GDH322..GSOB..P;GDH328,GRH321..6F;GDH322..LHD..(N,Q);GDH301..GSOB..6F..N;GDH322..6FC..P..GEN;GDH301,GRH301,322..LHD..SG..(N,P,Q)201902
REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
*ECS(*SD) & *POSD
EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&CATALYTIC CONVERTER-WITH(DIESEL, EURO3/4)&*ECS(*SD) & *POSD
REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
57047ARAIL SUB-ASSY, FLOOR SIDE, REAR RH
main57047-26320iGDH322..SG..D..GEN;GDH301..6FC..D..GEN;GDH322..LHD..GSOB..D;GDH301..SG..6F..D..GEN;GDH301..LHD..GSOB..6F..D;GDH328,GRH301,322..D..(GEN,VN)201902-202405
SRI LANKA SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
EGYPT SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
FIJI SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
FIJI SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
GHANA SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
OCEANIA(GENERAL)SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
PAKISTAN SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
PAKISTAN SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
main57047-26340iGDH322..LHD..SG..6F..P..GEN;GDH322..6FC..P..(ARL,GEN,NZ);GDH321,GRH321..RHD..(D,P)..(ARL,GEN,IDN)201903
GUATEMALA SPEC&PREMIUM PACKAGE&WITHOUT(TROPIC SPEC)&REAR SEAT-3-ROW(FOR 7 PERSONS,NO.3 SEAT:*45)
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
57048RAIL SUB-ASSY, FLOOR SIDE, REAR LH
main57048-26320iGDH322..SG..D..GEN;GDH301..6FC..D..GEN;GDH322..LHD..GSOB..D;GDH301..SG..6F..D..GEN;GDH301..LHD..GSOB..6F..D;GDH328,GRH301,322..D..(GEN,VN)201902-202405
FIJI SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
PAKISTAN SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
EGYPT SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
SRI LANKA SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
OCEANIA(GENERAL)SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
PAKISTAN SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
GHANA SPEC&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
FIJI SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
REAR SEAT-WITHOUT
main57048-26420iGDH300..GSOB;GDH321..RHD..D;GRH300,321..D,P;GDH300..LHD..SP..GEN;GDH300..4D..PSOB..GEN;GDH300..5D..(GCC,GEN);GDH320,GRH320..AGT,BZ,GCC,GEN;GDH300..RHD..4D..SP..6F..201902
NEW ZEALAND SPEC
AMBULANCE&REAR SEAT-WITHOUT
COMMUTER&REAR SEAT-WITHOUT
FIJI SPEC&AMBULANCE&REAR SEAT-WITHOUT
OCEANIA(GENERAL)SPEC&AMBULANCE&REAR SEAT-WITHOUT
OCEANIA(GENERAL)SPEC&COMMUTER&REAR SEAT-WITHOUT
57177APLATE, FRONT SIDE MEMBER, NO.7 RH
57178PLATE, FRONT SIDE MEMBER, NO.7 LH
57304BOUTRIGGER SUB-ASSY, NO.2 LH
main57304-26260iGDH301..LHD..SG;GDH322..LHD..6FC;GDH301..LHD..GSOB..6FC;GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P);GDH300,320,328,GRH300,301,32#..LHD..4D201902-202505
57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH
REAR SEAT-WITHOUT
EUROPE N1
main57406-26850iGRH322..LHD..(N,Q);GDH322..LHD..6FC..(N,Q);GDH322,328,GRH321..LHD..SG..6F..(N,Q)201903-202505
57421APLATE, FLOOR SIDE RAIL, RH
main57421-26250iGDH322..6F..GCC;GDH322..GSOB..P;GDH328,GRH321..LHD;GDH301..GSOB..6FC..N;GDH322..LHD..SG..6F..N;GDH322..LHD..6FC..(N,P,Q);GDH301,GRH301,322..LHD..SG..(N,P,Q)201902
REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
main57421-26260iGRH303..LHD..G;GDH306,GRH303..RHD;GRH322..LHD..6F..D;GDH320..GSOB,PSOB,SP;GDH300,GRH300,320..5D;GDH320,GRH300,320..LHD..4D..(SG,SP);GDH300,301,306,322,GRH301..LHD..201902-202506
REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)
*ECS(*SD) & *POSD
5752
57779AGUSSET, REAR FLOOR CROSSMEMBER, B
57799AGUSSET, REAR FLOOR CROSSMEMBER, A
main57799-26080iGDH300..5D;GDH300..4D..PSOB;GDH320,GRH300,320;GDH300..LHD..SP..GEN;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN201902-202505
58037DREINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH
58038CREINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH
main58038-26030iGDH301..LHD..GSOB..6FC;GDH301..LHD..GSOB..6F..D;GDH300,301,GRH300,301..LHD..4D..(PSOB,SG,SP)201902-202505
58135BBRACKET, FLOOR INSULATOR SUPPORT
58212FSEAL, CENTER FLOOR
main58212-26010iGDH321..RHD;GDH301..GSOB..6FC;GDH300..LHD..SP..GEN;GDH322..RHD..GSOB..N;GDH300,306..5D..(D,J);GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH301..LHD..GSOB..6F..202201-202505
(J)
(L)
58312EPANEL, REAR FLOOR, REAR
main58312-26580iGRH301..D;GDH301..6FC..D..GEN;GDH301..SG..6F..D..GEN;GDH301..LHD..GSOB..6F..D201902-202404
main58312-26590iGDH300..5D;GDH300..4D..PSOB;GDH320,GRH300,320;GDH300..LHD..SP..GEN;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN201902-202505
REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
main58312-26600iGDH322..RHD..N;GDH322..LHD..6FC..N;GDH301..GSOB..6FC..N;GDH322..LHD..SG..6F..N;GDH301,328..BZ,PH,TH,VN;GDH301,GRH301,322..SG..N201902
EXTINGUISHER-INSTALLATION, REAR&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
EXTINGUISHER-WITHOUT&LAOS SPEC&PREMIUM PACKAGE&FRONT SEAT-BENCH TYPE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)
EXTINGUISHER-WITHOUT&GUATEMALA SPEC&PREMIUM PACKAGE&WITHOUT(TROPIC SPEC)&FRONT SEAT-BENCH TYPE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
EXTINGUISHER-WITHOUT&MYANMAR SPEC&PREMIUM PACKAGE&FRONT SEAT-BENCH TYPE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
LAOS SPEC&PREMIUM PACKAGE&FRONT SEAT-BENCH TYPE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
MYANMAR SPEC&PREMIUM PACKAGE&FRONT SEAT-BENCH TYPE&REAR SEAT-3-ROW(FOR 7 PERSONS,NO.3 SEAT:*45)
REAR SEAT-2-ROW(REAR NO.1 & NO.2 POWER SEAT)&SRS AIR BAG-W(*DRP & *SKA & *SSADP &*SCSFR)
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)
EXTINGUISHER-INSTALLATION, REAR&SRI LANKA SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP& *SCSFR)
SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
REAR SEAT-2-ROW(REAR NO.1 & NO.2 POWER SEAT)
58315BPANEL, REAR FLOOR, FRONT
main58315-26F40iGRH300..RHD..4D;GDH300..RHD..4D..PSOB;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN201902-202505
EUROPE N1&REAR SEAT-WITHOUT
REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
main58315-26P90iGDH322,328..GCC,PH;GRH322..6FC..(N,P,Q);GDH322..LHD..SG..6F..N;GRH322..LHD..6F..(N,P);GDH322..LHD..6FC..N..GEN201903
REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
REAR HEATER-WITH(FLOOR SET)
58388FPLATE, FLOOR, REAR RH
58389CPLATE, FLOOR, REAR LH
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58759ACOVER, FUEL TANK INSPECTION HOLE
58967EBRACKET, JACK SUPPORT, NO.1
main58967-26110iGDH320..LHD..SG;GDH322..LHD..6FC;GDH328,GRH32#..LHD..4D;GDH320,GRH320..GSOB,PSOB,SP;GDH322..LHD..GSOB..6F..(D,P);GDH322..LHD..SG..6F..(GCC,GEN)201903-202505
58968EBRACKET, JACK SUPPORT, NO.2
66386APLATE, ROPE HOOK BAR
8889926130COVER, EVAPORATOR
main88899-26130
90105T0241
main90105-T0241
9011506166
main90115-06166
9011906A11
main90119-06A11
9015950322
main90159-50322
90159T0011
main90159-T0011
9018905055
main90189-05055
9046705161C9
main90467-05161C9
91551A0618
main91551-A0618
9155380818
main91553-80818
35 parts on this diagram · 81 diagrams in section
