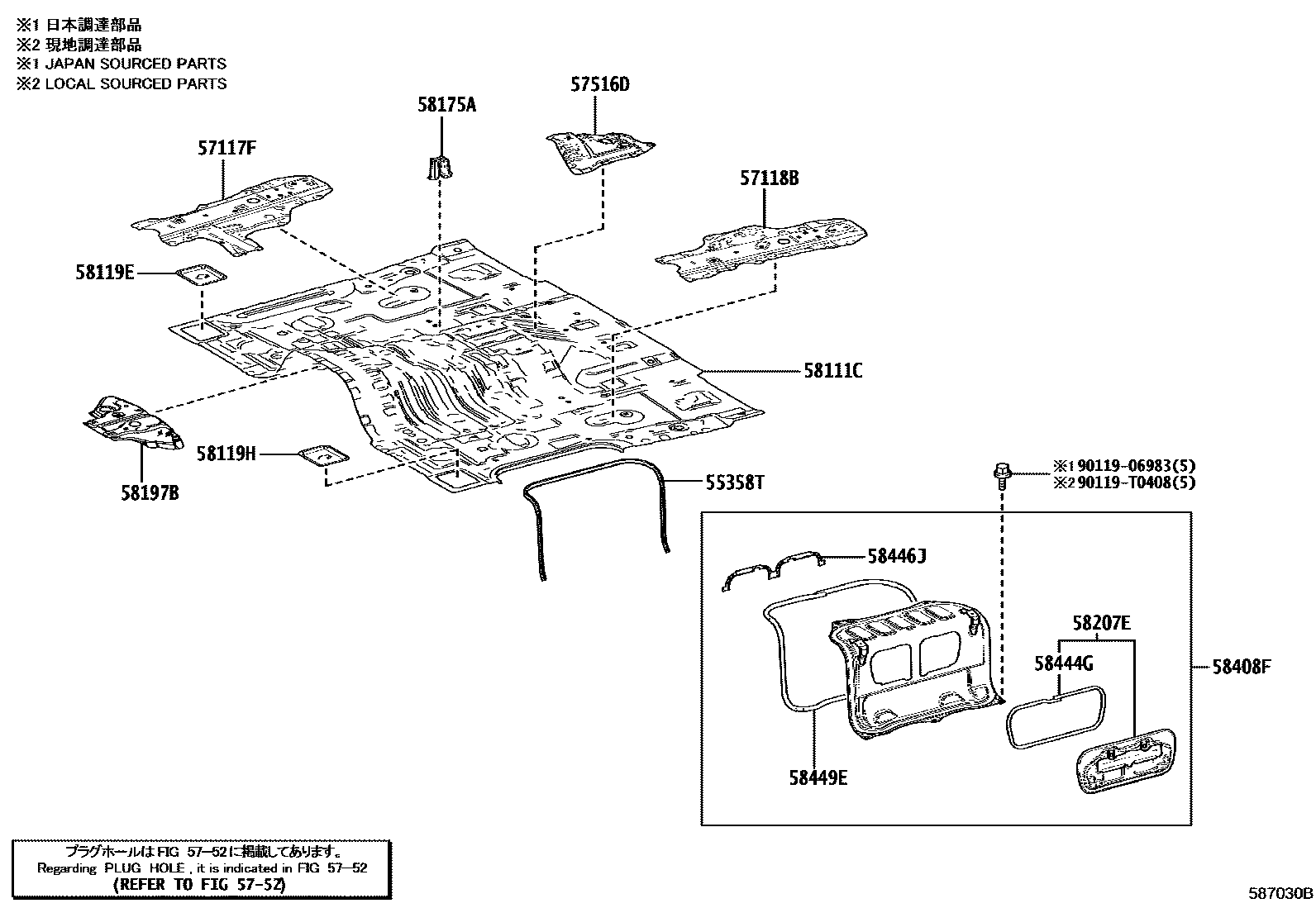

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55358TPROTECTOR, EDGE
57117FPLATE, FRONT SIDE MEMBER, NO.2 RH
57118BPLATE, FRONT SIDE MEMBER, NO.2 LH
57516DBRACKET, PARKING BRAKE, LH
5752
58111CPAN, FRONT FLOOR
FIJI SPEC&FRONT SEAT-SEPARATE TYPE&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
REAR CONSOLE BOX-WITH(TRAY TYPE)
PAPUA NEW GUINEA SPEC&FRONT SEAT-SEPARATE TYPE&REAR SEAT-WITHOUT
main58111-26D00iGDH301..TH;GDH322..NZ;GDH322..RHD..N;GDH321..RHD..(GEN,IDN);GDH301,306,GRH301,303,321,322..RHD..(G,J,N,P,Q)201902-202506
PAKISTAN SPEC&FRONT SEAT-SEPARATE TYPE&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
OCEANIA(GENERAL)SPEC&FRONT SEAT-SEPARATE TYPE&REAR SEAT-4-ROW(FOR 12 PERSONS), W(*RRS)
HONG KONG SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER& PASSENGER)
SOUTH AFRICA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)
main58111-26D50iGDH322..P..GCC;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH301,322,GRH301..LHD..(N,Q);GDH328,GRH303,321..LHD..(D,G,N,Q)..(GEN,PH,VN)201902-202506
UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE
58119ECOVER, FRONT FLOOR SIDE, FRONT
58119HCOVER, FRONT FLOOR SIDE, FRONT
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58207ECOVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58408FCOVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58444GPACKING, BATTERY SERVICE OPENING LID
58446JPROTECTOR, BATTERY SERVICE OPENING LID
58449EPACKING, BATTERY SERVICE HOLE COVER
9011906983
main90119-06983
90119T0408
main90119-T0408
17 parts on this diagram · 30 diagrams in section
