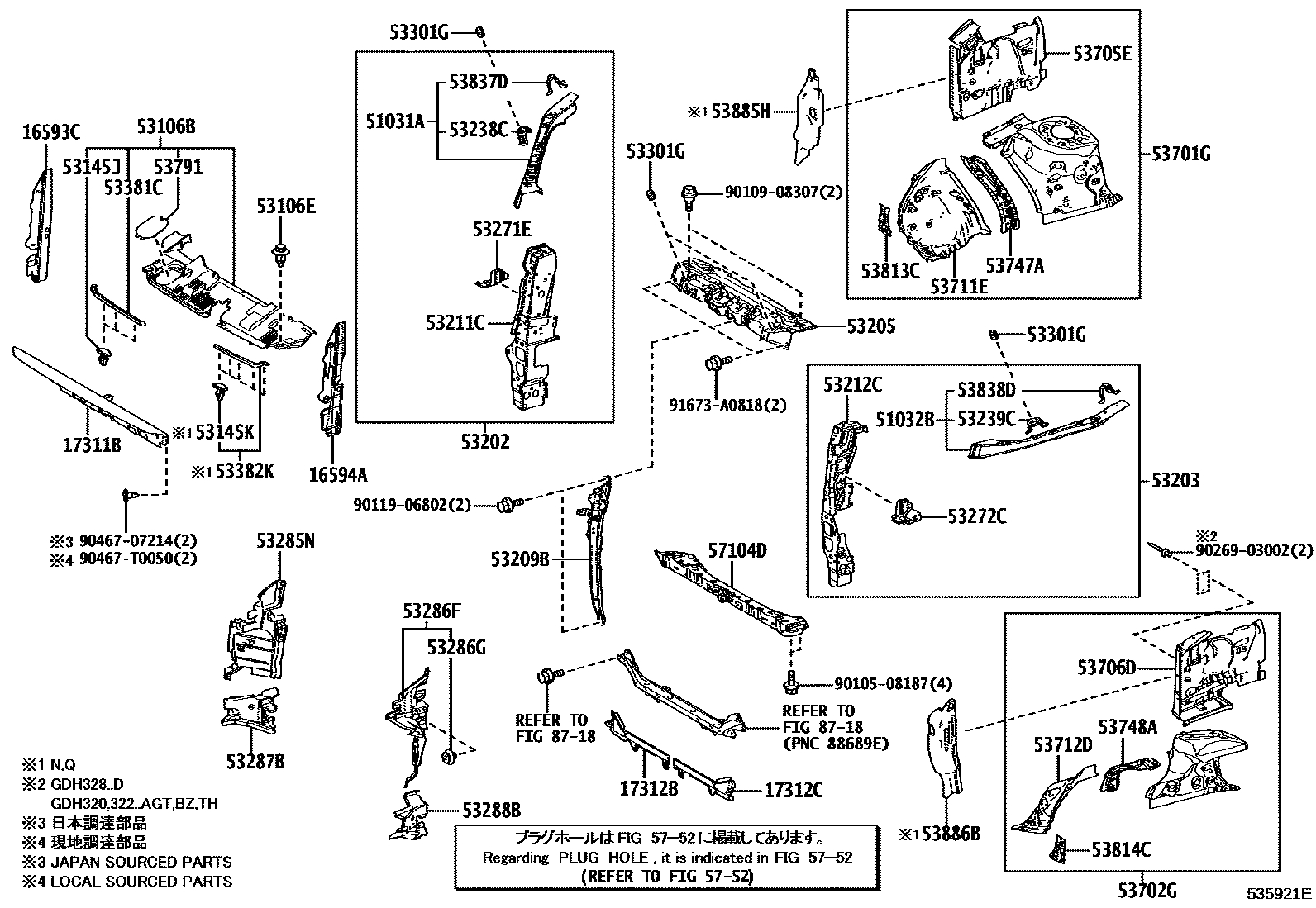

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & FENDER APR0002 1RADIATOR SUPPORT & FENDER APR0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL 0006 1DASH PANEL

16593CGUIDE, RADIATOR AIR, NO.1

main16593-11010i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥1,900201902-202505

main16593-31030i7GRFKS..GRH30#,32#201902

16594AGUIDE, RADIATOR AIR, NO.2

main16594-11010i1GDFTV..GDH322..RHD..(P,Q)..GEN¥1,880201902-202505

main16594-31030i7GRFKS..GRH30#,32#201902

17311BDUCT, AIR INLET, NO.1

main17311-11010i1GDFTV..GDH322..RHD..(P,Q)..GEN¥7,300201902-202506

main17311-11010i1GDFTV..GDH321..GEN¥7,300201902-202310

HONG KONG SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP

main17311-11020i1GDFTV..GDH306..LHD..G¥5,300201907-202505

17312BDUCT, AIR INLET, NO.2

main17312-11020i1GDFTV..GDH322..RHD..(P,Q)..GEN¥1,440201902-202506

main17312-11020i1GDFTV..GDH321..GEN¥1,440201902-202310

HONG KONG SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP

17312CDUCT, AIR INLET, NO.2

main17312-11030i1GDFTV..GDH322..RHD..(P,Q)..GEN¥1,440201902-202506

main17312-11030i1GDFTV..GDH321..GEN¥1,440201902-202310

HONG KONG SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP

51031AGUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-26020iGDH322..RHD..(P,Q)..GEN¥3,260201902-202007

sub53202-26060¥11,200

51032BGUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-26020iGDH322..RHD..(P,Q)..GEN¥3,260201902-202007

sub53203-26020¥11,200

53106BCOVER SUB-ASSY, RADIATOR

main53106-26010iGDH306..LHD..G;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN¥5,500201902-202505

53106ECLIP, RADIATOR COVER

main90467-07217iGDH321..D..GEN¥80202201-202505

(J)

main90467-07217iGDH306..LHD..G;GDH301,322..GSOB..6F..N¥80201902-202505

main90467-07217iGDH300..5D;GDH321..RHD;GDH301..GSOB..6FC..D;GDH300..4D..SP..(ARL,TH);GDH301..LHD..GSOB..6F..D;GDH320,328,GRH300,301,320,322..D,P;GDH300,322..LHD..(GSOB,SP)..(D,P)..¥80202201

EUROPE N1,(J)

main90467-T0048iGDH300..RHD..4D..SP..6FC..GEN202201-202505

(L)

main90467-T0048iGDH300..5D;GDH321..RHD;GDH301..GSOB..6FC..D;GDH300..4D..SP..(ARL,TH);GDH301..LHD..GSOB..6F..D;GDH320,328,GRH300,301,320,322..D,P;GDH300,322..LHD..(GSOB,SP)..(D,P)..202201

EUROPE N1,(L)

53145JCLIP, RADIATOR GRILLE

main53145-60030iGDH322..RHD..(P,Q)..GEN¥80201902-202505

53145KCLIP, RADIATOR GRILLE

main53145-60030iGDH322..6F..Q..GEN¥80201902-202505

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-26060iGDH322..RHD..(P,Q)..GEN¥11,200201902-202505

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-26020iGDH322..RHD..P..GEN¥11,200201902-202505

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-26030iGDH322..RHD..P..GEN¥8,100201902-202505

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-26120iGDH322..RHD..(P,Q)..GEN¥3,360201902-202505

53211CSUPPORT, RADIATOR, RH

main53202-26050iGDH322..RHD..(P,Q)..GEN¥12,900201902-202007

sub53202-26060¥11,200

53212CSUPPORT, RADIATOR, LH

main53203-26010iGDH322..RHD..(P,Q)..GEN¥12,900201902-202007

sub53203-26020¥11,200

53238CBRACKET, HOOD BUMPER MOUNTING, RH

main53238-26010iGDH30#,32#,GRH30#,32#¥440201902-202505

53239CBRACKET, HOOD BUMPER MOUNTING, LH

main53239-26010iGDH30#,32#,GRH30#,32#¥440201902-202505

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-26030iGDH322..RHD..(P,Q)..GEN¥890201902-202505

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-26020iGDH322..RHD..P..GEN¥870201902-202505

53285NSEAL, RADIATOR SIDE AIR, RH

main53285-26020iGDH322..RHD..P..GEN¥2,200201902-202505

main53285-26030iGDH306..LHD..G¥1,820201907-202505

53286FSEAL, RADIATOR SIDE AIR, LH

main53286-26010iGDH322..RHD..P..GEN¥2,240201902-202505

main53286-26020iGDH306..LHD..G¥1,820201907-202505

53286GCLIP, RADIATOR SIDE AIR SEAL

main75867-12040iGDH306..LHD..G;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN¥90201902-202505

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-26010iGDH322..RHD..P..GEN¥1,090201902-202505

main53287-26020iGDH306..LHD..G¥1,090201907-202505

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-26010iGDH322..RHD..P..GEN¥1,090201902-202505

main53288-26020iGDH306..LHD..G¥1,090201907-202505

53301GCUSHION, HOOD BUMPER

main90541-15019iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥200201902-202505

(J)

main90541-T0006iGDH322..RHD..P..GEN201902-202505

(L)

53381CSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-26140iGDH321..GEN¥380201902-202505

53382KSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-26010iGDH322..6F..Q..GEN¥380201902-202505

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-26140iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥28,200201902-202505

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-26140iGDH322..RHD..(P,Q)..GEN¥28,200201902-202505

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-26010iGDH322..RHD..(P,Q)..GEN¥5,800201902-202505

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-26010iGDH322..RHD..(P,Q)..GEN¥5,800201902-202505

53711EAPRON, FRONT FENDER, RH

main53711-26060iGDH322..RHD..P..GEN¥4,750201902-202505

53712DAPRON, FRONT FENDER, LH

main53712-26050iGDH322..RHD..(P,Q)..GEN¥4,750201902-202505

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-26010iGDH322..RHD..(P,Q)..GEN¥1,870201902-202505

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-26010iGDH322..RHD..(P,Q)..GEN¥1,870201902-202505

53791COVER, COOL AIR INTAKE HOLE

main53791-26020iGDH322..RHD..(P,Q)..GEN¥590201902-202505

53813CEXTENSION, FRONT FENDER, RH

main53813-26050iGDH322..RHD..(P,Q)..GEN¥620201902-202505

53814CEXTENSION, FRONT FENDER, LH

main53814-26030iGDH322..RHD..(P,Q)..GEN¥620201902-202505

53837DBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-26020iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥390201902-202505

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-26010iGDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH30#,320,321,328,GRH30#,32#¥390201902-202505

53885HSEAL, FENDER APRON MUDGUARD, RH

main53885-26080iGDH322..6F..Q..GEN¥4,250201902-202505

53886BSEAL, FENDER APRON MUDGUARD, LH

main53886-26080iGDH322..6F..Q..GEN¥4,250201902-202505

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-26210iGDH322..RHD..P..GEN¥11,400201902-202505

5752

8718

9010508187

main90105-08187¥90

9010908307

main90109-08307¥80

9011906802

main90119-06802¥60

9026903002

main90269-03002¥200

9046707214

main90467-07214¥70

90467T0050

main90467-T0050

91673A0818

main91673-A0818¥80

54 parts on this diagram · 6 diagrams in section
