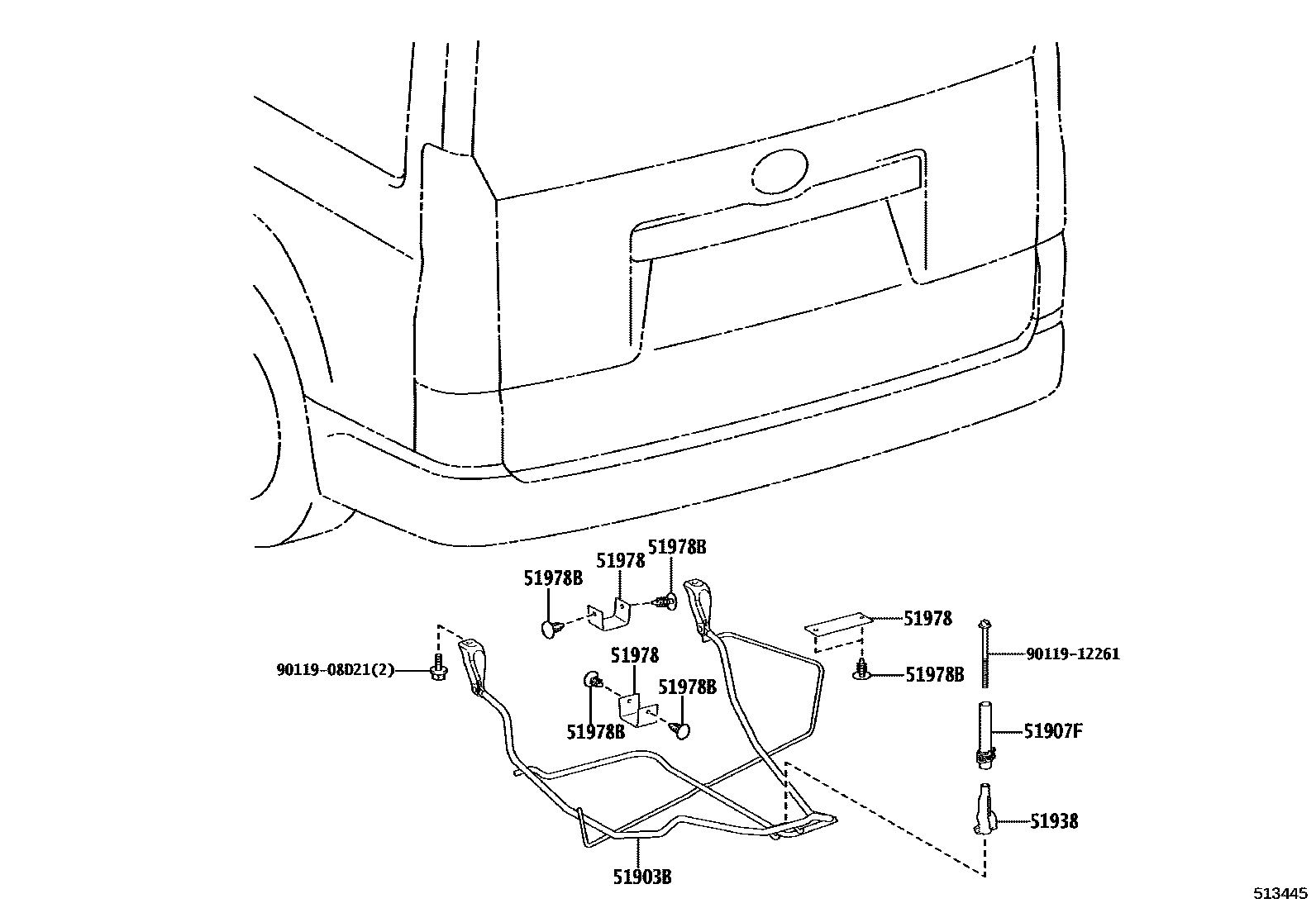

SPARE WHEEL CARRIER

0001 1 0004 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-26690iGDH301..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN201902-202505

main51903-26690iGDH320..6F..ARL;GDH300..SHP..ARL;GDH320..5D..6FC..ARL201902

NEW ZEALAND SPEC

main51903-26700iGDH322..RHD..(P,Q)..GEN201903-202505

main51903-26710iGRH321..Q..ARL;GDH320..6F..ARL;GDH320..5D..6FC..ARL;GDH300,GRH320..(PSOB,SHP,SP)..ARL201902-202208

main51903-26720iGDH306..LHD..J;GDH303,304,GRH303,304;GDH306,322..RHD..6FC..(G,J,Q)¥6,800201903-202505

main51903-VR010iGDH320..AGT,BZ202401

main51903-VR020iGDH322,328..AGT,BZ202401

51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER

main51907-26030iGDH322..RHD..(P,Q)..GEN¥730201902-202505

51938LOCK, SPARE WHEEL CARRIER

main51938-44010iGDH322..RHD..(P,Q)..GEN¥570201902-202505

51978PROTECTOR, SPARE WHEEL CARRIER

main51978-26010iGDH300..5D;GDH300..4D..PSOB;GDH300..LHD..SP..GEN;GDH320,GRH300,320,321;GDH321..RHD..(GEN,IDN);GDH322..LHD..(P,Q)..GEN;GDH300..RHD..4D..SP..6F..GEN;GDH300,322,GRH322¥710201902-202505

51978BCLIP, SPARE WHEEL CARRIER PROTECTOR

main90467-06020-C0iGDH322..RHD..(P,Q)..GEN201902-202505

BLACK

sub90467-06020¥190

main90467-06020-C0iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202201-202505

BLACK,(J)

sub90467-06020¥190

main90467-T0046iGRH301..6F..N;GRH322..RHD..N;GRH322..6FC..N;GRH301..LHD..6FC;GDH322,GRH303..RHD..(G,J,P)..GEN202201-202207

(L)

main90467-T0046-C0iGRH322..D;GDH321..NZ;GRH301..RHD..D;GDH301..GSOB..6FC;GRH301..LHD..6F..D;GRH322..LHD..6F..N;GRH301..RHD..6FC..N;GDH322..GSOB..6F..D;GDH322..RHD..GSOB..N;GDH306,GRH3202201-202505

BLACK,(L)

9011908D21

main90119-08D21¥80

9011912261

main90119-12261¥430

7 parts on this diagram · 8 diagrams in section
