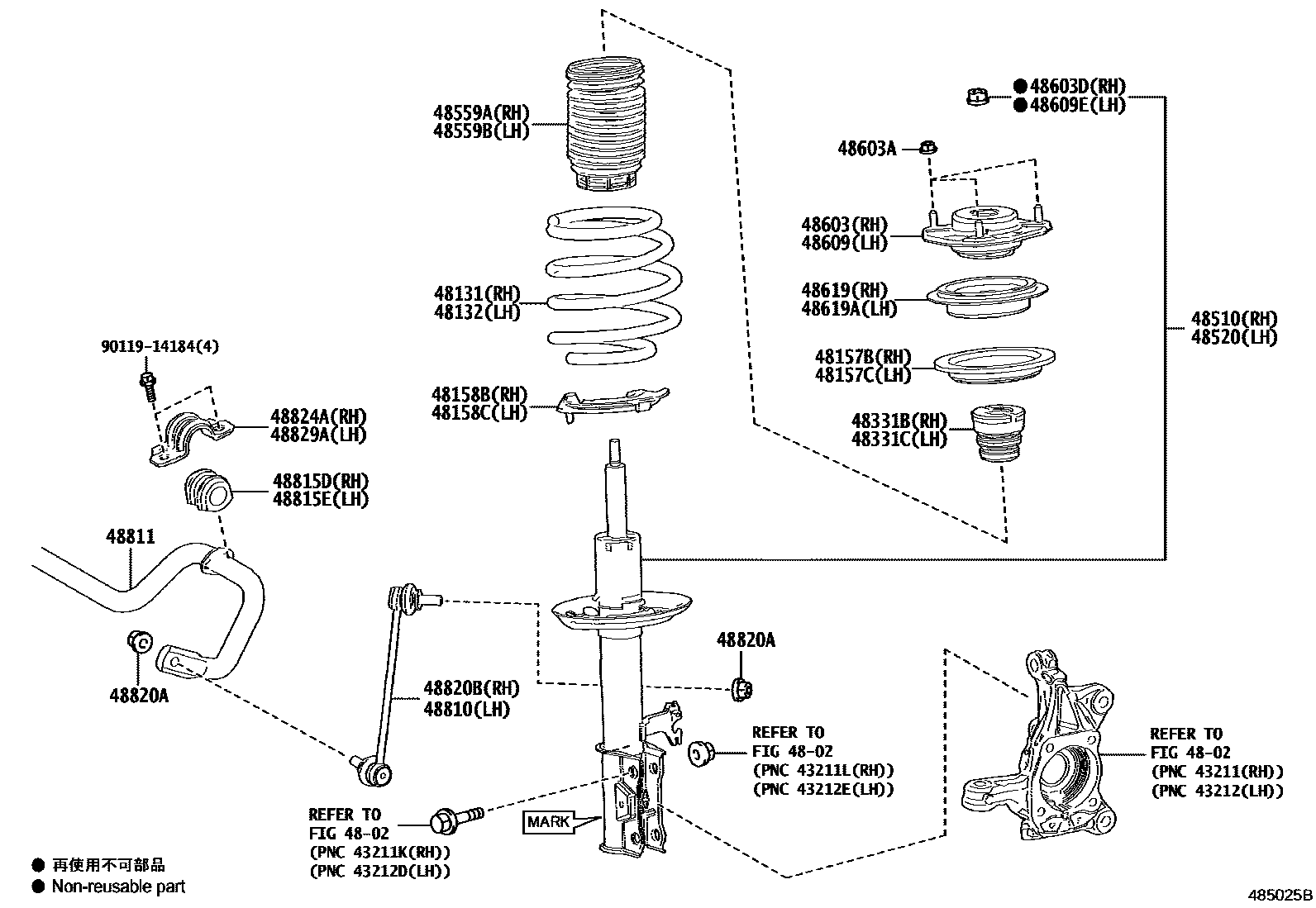

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-26090iGDH322..(D,P)..(ARL,TH)201903

main48131-26110iGDH320..SP..GEN;GDH322..SG..D..GEN;GDH322..P..(GCC,NZ);GDH322..LHD..SG..P..GEN;GDH320,328..(SG,SP)..6F..(GCC,VN)201903

##

main48131-26120iGDH328..PH201903

EUROPE N1&FRONT SEAT-BENCH TYPE&REAR SEAT-WITHOUT

main48131-26140iGDH321..N..GEN201903-202310

main48131-26150iGRH320..GCC201903

main48131-26160iGRH322..D,P;GRH320..ARL,GEN201903

main48131-26170iGDH301..TH;GDH300..(HPSOB,SHP)..(GCC,GEN)201902

main48131-26180iGDH301..RHD..GSOB..6F201902-202404

main48131-26200iGRH322..N,Q201903

main48131-26210iGRH321;GDH300,301..6FC..(GCC,NZ);GDH300..(PSOB,SP)..6F..(GCC,GEN)201902

main48131-26220iGDH300..RHD..4D..SP..6FC..GEN201902-202506

main48131-26230iGRH301201902

main48131-26240iGRH300..ARL,GEN201902

main48131-26260iGDH304;GDH306..LHD..J;GDH303,306..RHD;GDH303..LHD..(G,J)201907-202505

main48131-26270iGRH304;GDH303..LHD..H201907

main48131-26280iGRH303201907

main48131-26290iGDH321..D..IDN201903-202106

main48131-26300iGDH322..6F..Q..GEN201903-202106

main48131-VR010iGDH320,328..AGT,BZ202401

main48131-VR020iGDH322..AGT202401

48132SPRING, FRONT COIL, LH

main48131-26090iGDH322..(D,P)..(ARL,TH)201903

main48131-26110iGDH320..SP..GEN;GDH322..SG..D..GEN;GDH322..P..(GCC,NZ);GDH322..LHD..SG..P..GEN;GDH320,328..(SG,SP)..6F..(GCC,VN)201903

##

main48131-26120iGDH328..PH201903

EUROPE N1&FRONT SEAT-BENCH TYPE&REAR SEAT-WITHOUT

main48131-26140iGDH321..N..GEN201903-202310

main48131-26150iGRH320..GCC201903

main48131-26160iGRH322..D,P;GRH320..ARL,GEN201903

main48131-26170iGDH301..TH;GDH300..(HPSOB,SHP)..(GCC,GEN)201902

main48131-26180iGDH301..SG..GEN;GDH300..SHP..ARL;GDH301..GSOB..6FC;GDH301..LHD..GSOB..6F201902-202404

main48131-26200iGRH322..N,Q201903

main48131-26210iGRH321;GDH300,301..6FC..(GCC,NZ);GDH300..(PSOB,SP)..6F..(GCC,GEN)201902

main48131-26220iGDH300..GSOB,SG201902-202506

main48131-26230iGRH301201902

main48131-26240iGRH300..ARL,GEN201902

main48131-26260iGDH304;GDH306..LHD..J;GDH303,306..RHD;GDH303..LHD..(G,J)201907-202505

main48131-26270iGRH304;GDH303..LHD..H201907

main48131-26280iGRH303201907

main48131-26290iGDH322..RHD..P..GEN201903-202106

main48131-26300iGDH322..Q..GEN201903-202106

main48131-VR010iGDH320,328..AGT,BZ202401

main48131-VR020iGDH322..AGT202401

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-26020iGDH322..RHD..(P,Q)..GEN201902-202505

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-26020iGDH322..RHD..P..GEN201902-202505

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-26010iGDH322..RHD..(P,Q)..GEN201902-202505

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-26010iGDH322..RHD..(P,Q)..GEN201902-202505

48331BBUMPER, FRONT SPRING, RH

main48331-26130iGDH322..RHD..(P,Q)..GEN201902-202505

48331CBUMPER, FRONT SPRING, LH

main48331-26130iGDH322..RHD..(P,Q)..GEN201902-202505

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A84iGRH300;GDH300..5D;GDH300..4D..PSOB;GDH300..LHD..SP..GEN;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN201902-202505

MARK 48510-26010

main48510-80A85iGDH320,GRH320;GDH301,GRH301..N201902

MARK 48510-26020

main48510-80A86iGDH322..N;GDH322..6FC..Q..GEN;GDH328,GRH321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201903-202310

MARK 48510-26030

main48510-80A87iGDH322..RHD..P..GEN201902-202404

MARK 48510-26040

main48510-80A88iGDH306..LHD..G201907-202505

MARK 48510-26060

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80644iGRH300;GDH300..5D;GDH300..4D..PSOB;GDH300..LHD..SP..GEN;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN201902-202505

MARK 48520-26010

main48520-80645iGDH320,GRH320;GDH301,GRH301..N201902

MARK 48520-26020

main48520-80646iGDH322..N;GDH322..6FC..Q..GEN;GDH328,GRH321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201903-202310

MARK 48520-26030

main48520-80647iGDH322..RHD..P..GEN201902-202404

MARK 48520-26040

main48520-80648iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

MARK 48520-26060

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-26010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-26010iGDH322..RHD..P..GEN201902-202505

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48603-26010iGDH322..RHD..(P,Q)..GEN201902-202505

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030iGDH322..RHD..(P,Q)..GEN201902-202505

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iGDH322..RHD..(P,Q)..GEN201902-202505

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-26010iGDH322..RHD..(P,Q)..GEN201902-202505

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iGDH322..RHD..(P,Q)..GEN201902-202505

48619BEARING, STRUT MOUNTING, RH

main48619-26010iGDH322..RHD..(P,Q)..GEN201902-202505

48619ABEARING, STRUT MOUNTING, LH

main48619-26010iGDH322..RHD..(P,Q)..GEN201902-202505

48810LINK ASSY, FRONT STABILIZER, LH

main48810-26050iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

48811BAR, STABILIZER, FRONT

main48811-26480iGDH322..RHD..P..GEN201902-202505

main48811-26490iGDH306..LHD..G201907-202505

main48811-VR010iGDH320,322,328..AGT,BZ202401

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-26390iGDH322..RHD..P..GEN201902-202505

main48815-26430iGDH306..LHD..G201907-202505

main48815-VR010iGDH320,322,328..AGT,BZ202401

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-26390iGDH322..RHD..(P,Q)..GEN201902-202505

main48815-26430iGDH306..LHD..G201907-202505

main48815-VR010iGDH320,322,328..AGT,BZ202401

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21441iGDH322..RHD..(P,Q)..GEN201902-202505

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-26060iGDH322..RHD..(P,Q)..GEN201902-202505

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26270iGDH322..RHD..(P,Q)..GEN201902-202505

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-26270iGDH322..RHD..(P,Q)..GEN201902-202505

9011914184

main90119-14184

29 parts on this diagram · 1 diagram in section
