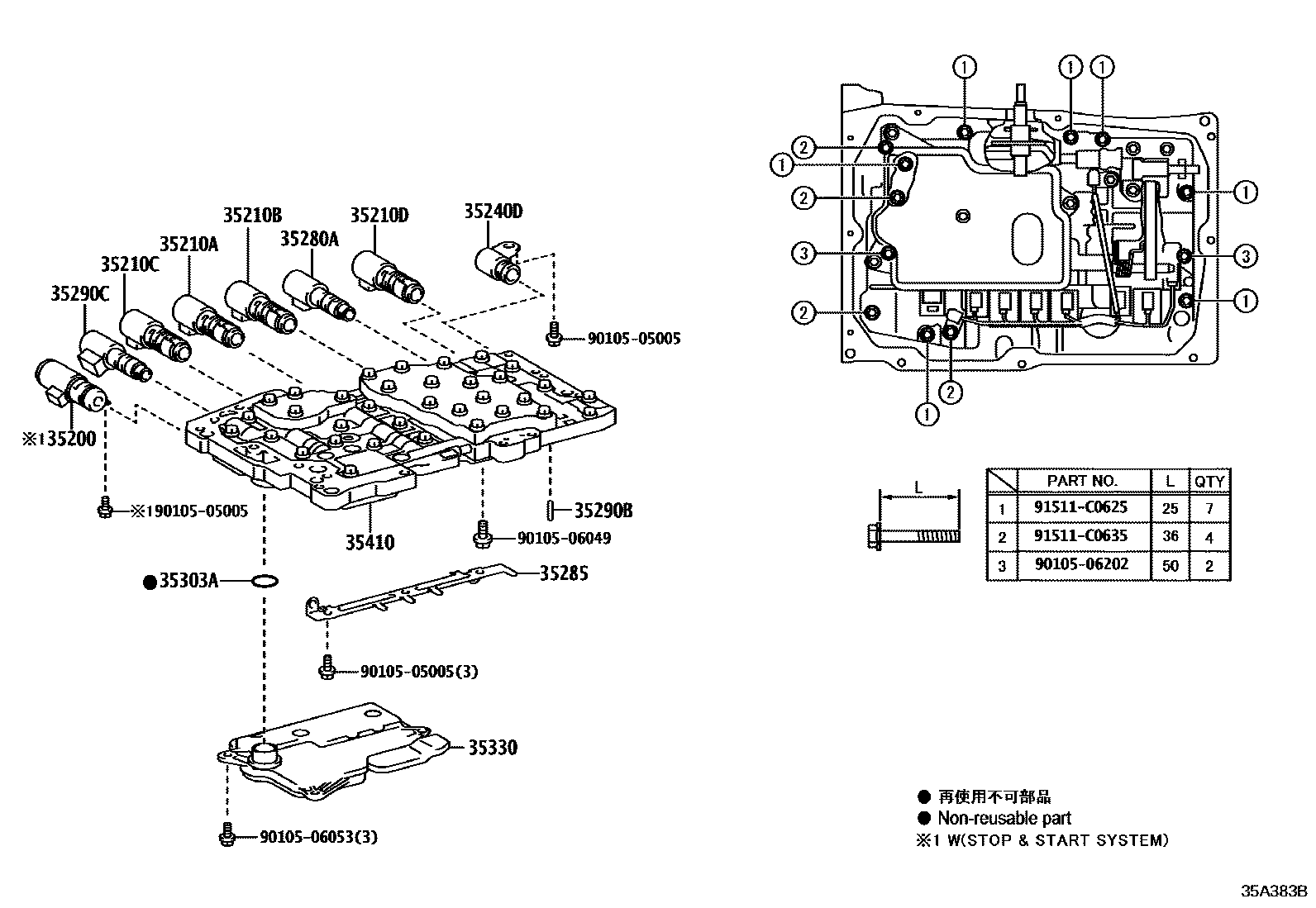

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60E 0002 1AC60E

35200PUMP ASSY, OIL, W/SOLENOID

main35200-71010iGDH300,301,303,320,321,322..6FC..(ARL,NZ)201902

35210AVALVE, SOLENOID(SL1)

main35210-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35210BVALVE, SOLENOID(SL3)

main35210-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35210CVALVE, SOLENOID(SL2)

main35210-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35210DVALVE, SOLENOID(SL4)

main35210-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35240DVALVE, SOLENOID(SL)

main35240-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35280AVALVE, SOLENOID(SLU)

main35280-71010iGDH30#,320,321,322,GRH30#,32#..6FC201902-202206

sub35280-71020

main35280-71020iGDH322..RHD..GSOB..6FC..D202207-202506

35285PLATE, SOLENOID LOCK

main35285-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045iGDH322..RHD..GSOB..6FC..D201902-202506

35290CVALVE, SOLENOID(SLT)

main35290-71020iGDH30#,320,321,322,GRH30#,32#..6FC201902-202206

main35290-71030iGDH306;GDH300..RHD..4D..SP..6FC..GEN202207-202506

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506

35330STRAINER ASSY, VALVE BODY OIL

main35330-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35410BODY ASSY, TRANSMISSION VALVE

main35410-71102iGRH303..LHD..J;GRH320..6FC..GCC;GRH322..6FC..(D,P,Q);GDH320,GRH301..RHD..6FC..GEN;GDH320,322..(SG,SP)..6FC..GCC;GDH306,320..LHD..5D..(PSOB,SG)..6FC..(D,G);GDH300,30201902-202311

sub35410-71103

main35410-71103iGDH306;GDH300..RHD..4D..SP..6FC..GEN202311-202506

main35410-71112iGDH300,301,303,320,321,322..6FC..(ARL,NZ)201902-202310

sub35410-71113

main35410-71113iGDH300,301,303,320,321,322..6FC..(ARL,NZ)202311

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

9010506202

main90105-06202

91511C0625

main91511-C0625

91511C0635

main91511-C0635

19 parts on this diagram · 2 diagrams in section
