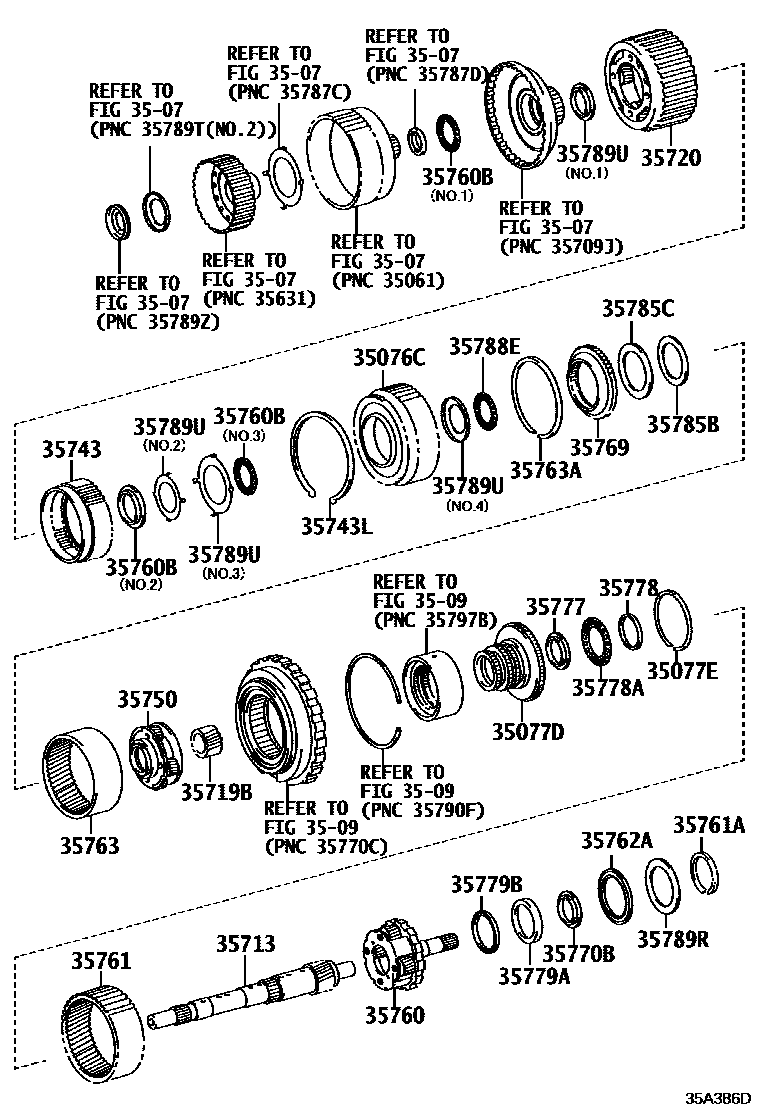

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
3507
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
3509
35713SHAFT, INTERMEDIATE
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35743GEAR, FRONT PLANETARY RING
35743LRING, SNAP (FOR PLANETARY RING GEAR)
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
35760BBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GEAR)
NO.2
NO.1
NO.3
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35769FLANGE, PLANETARY RING GEAR, CTR
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788EBEARING, THRUST NEEDLE ROLLER
35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
T=3.80
T=3.90
main35789-35080iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506
T=4.00
T=4.10
T=4.20
main35789-50070iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506
T=3.85
T=3.95
T=4.05
T=4.15
T=4.25
T=4.30
T=4.35
35789URACE, THRUST BEARING
NO.1
NO.2
NO.3
NO.4
30 parts on this diagram · 1 diagram in section
