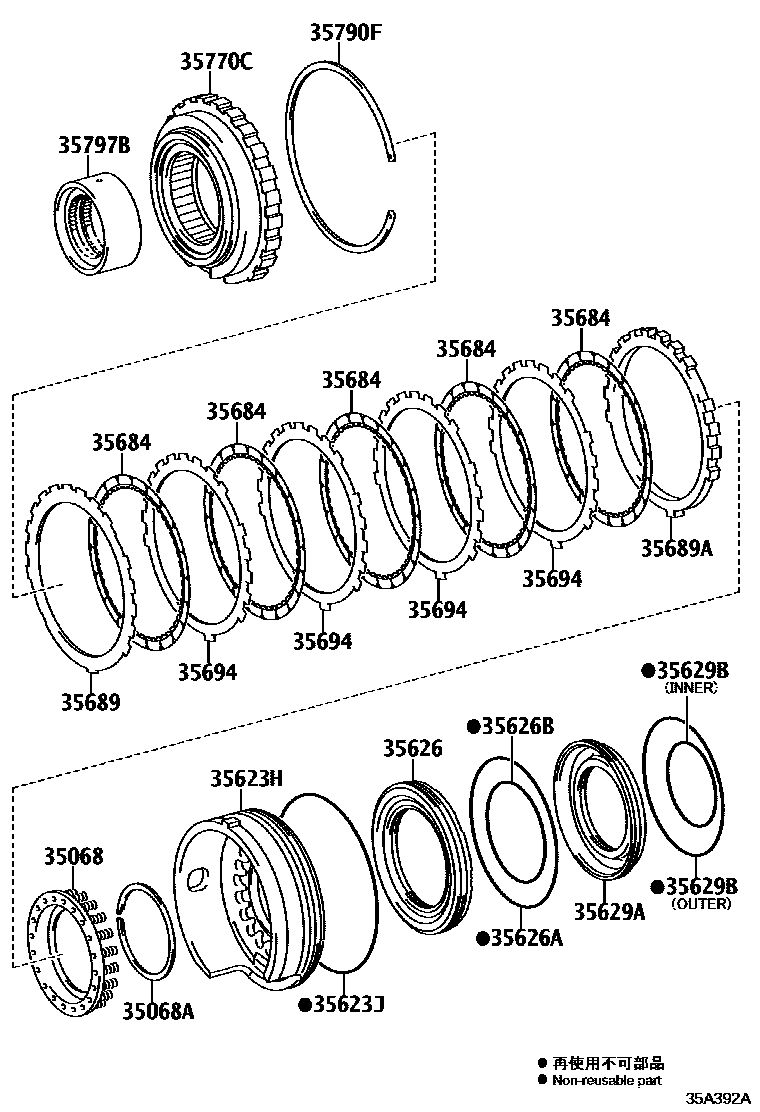

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGDH322..RHD..GSOB..6FC..D201902-202506

35623HPISTON, 1ST & REVERSE BRAKE

main35623-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGDH322..RHD..GSOB..6FC..D201902-202506

35626SLEEVE, BRAKE REACTION

main35626-50010iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGDH322..RHD..GSOB..6FC..D201902-202506

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGDH322..RHD..GSOB..6FC..D201902-202506

35629APISTON, BRAKE, NO.4

main35629-50020iGDH322..RHD..GSOB..6FC..D201902-202506

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGDH322..RHD..GSOB..6FC..D201902-202506

INNER

main90301-99084iGDH322..RHD..GSOB..6FC..D201902-202506

OUTER

35684DISC, BRAKE, NO.4

main35684-60030iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

35689FLANGE, BRAKE, NO.4

main35689-60270iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506

T=1.8,MARK 0

main35689-60280iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506

T=1.97,MARK 1

main35689-60290iGDH322..RHD..GSOB..6FC..D201902-202506

T=2.11,MARK 3

main35689-60300iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506

T=2.25,MARK 4

main35689-60310iGDH322..RHD..GSOB..6FC..D201902-202506

T=2.39,MARK 5

main35689-60320iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506

T=2.53,MARK 7

main35689-60330iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

T=2.67,MARK 8

main35689-60340iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506

T=2.81,MARK10

main35689-60350iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)201902-202506

T=2.95,MARK 11

main35689-60360iGDH322..RHD..GSOB..6FC..D201902-202506

T=3.09,MARK 12

main35689-60370iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35694PLATE, BRAKE, NO.4

main35694-60011iGDH322..RHD..GSOB..6FC..D201902-202506

35770CCLUTCH ASSY, 1WAY NO.3

main35770-60030iGDH322..RHD..GSOB..6FC..D201902-202506

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iGDH322..RHD..GSOB..6FC..D201902-202506

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020iGDH322..RHD..GSOB..6FC..D201902-202506

16 parts on this diagram · 1 diagram in section
