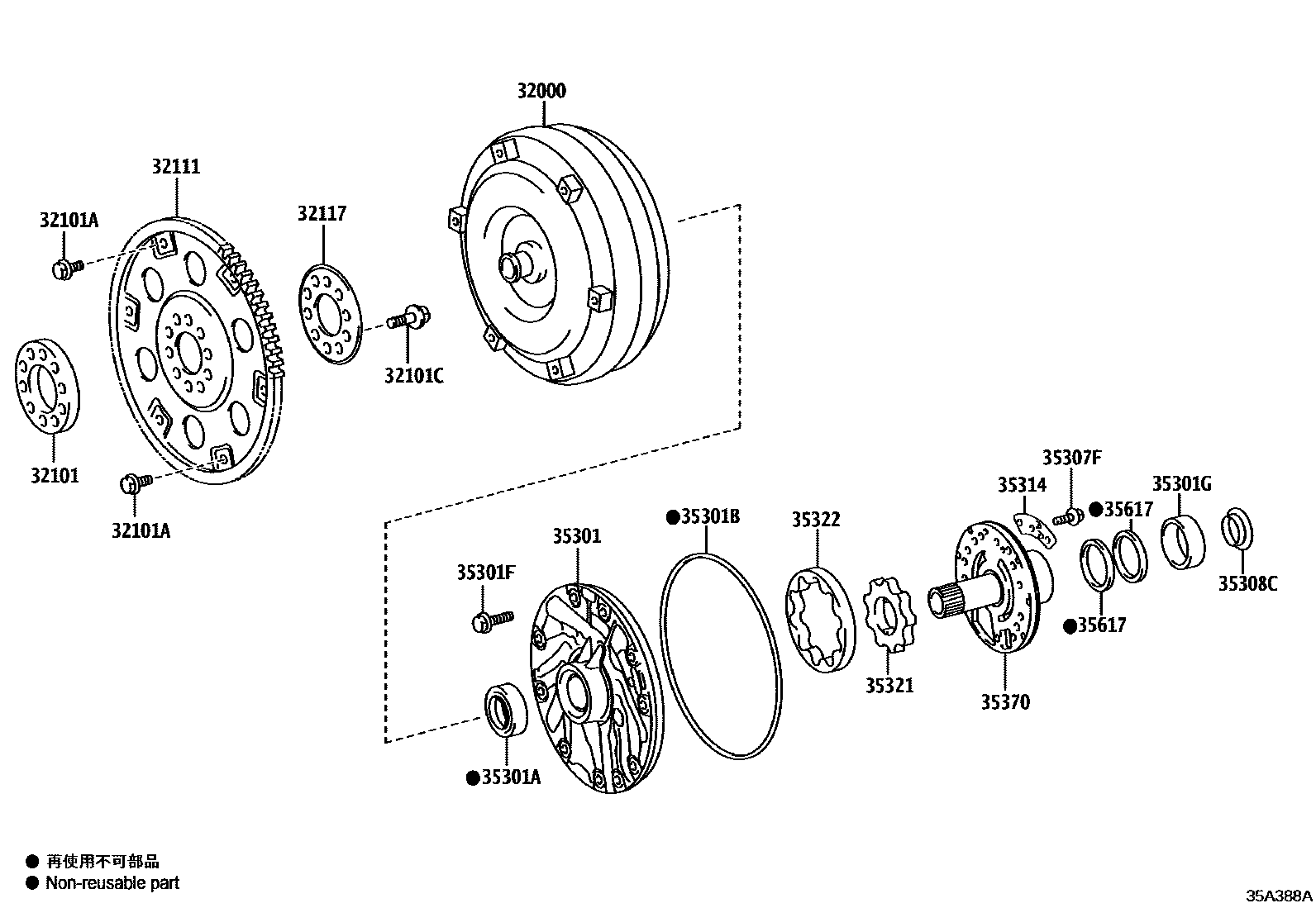

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-60370iGRH30#,32#..6FC201902

main32000-71070iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH301,303,304,320,321,328..6FC;GDH3201902-202506

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-35030iGRH303..LHD..J;GRH301..RHD..6FC;GRH320..6FC..GCC;GRH300,304,322..6FC..(D,H,P,Q)..(GCC,GEN)201902-202207

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGDH322..AGT;GDH322..RHD..GSOB..N;GDH306,321..RHD..GEN;GDH322..LHD..GSOB..6FC;GDH322..6FC..(P,Q)..(GEN,NZ);GDH300,301,320..(GSOB,HPSOB,PSOB)..6FC;GDH300,301,320,328.201902-202505

*10-1.5PX11-8,(J),SILVER WHITE

main90105-10546iGDH300..LHD..SP..6FC..GEN;GDH300,321..4D..(SG,SP)..(ARL,NZ);GDH301,320..(SG,SP)..6FC..(ARL,GEN,NZ);GDH303,304,322..SG..6FC..(ARL,GCC,GEN,TH);GDH300,306..5D..(SG,SHP201902-202505

*10-1.5PX11-8,BLACK

main90105-T0237iGDH300..LHD..SP..6FC..GEN;GDH300,321..4D..(SG,SP)..(ARL,NZ);GDH301,320..(SG,SP)..6FC..(ARL,GEN,NZ);GDH303,304,322..SG..6FC..(ARL,GCC,GEN,TH);GDH300,306..5D..(SG,SHP201902-202505

*10-1.5PX11-8,(L),SILVER WHITE

main90119-09026iGRH30#,32#..6FC201902

*9-1.25PX12.8-9

main90119-09027iGRH30#,32#..6FC201902

*9-1.25PX12.8-8.8

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iGRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)201902-202106

*10-1.25PX18-13

main90105-13015iGDH322..6FC..GCC;GDH322..RHD..6FC..(ARL,GEN,TH);GDH300,301,303,304,320,321..6FC;GDH306,322..LHD..6FC..(D,G,J,N)201902-202106

*13-1.5PX43.5-23.5,(J)

main90105-T0203iGDH306..RHD;GDH322..6FC..(P,Q)..(GEN,NZ)201902-202106

*13-1.5PX43.5-23.5,(L)

32111PLATE, PUMP IMPELLER DRIVE

main32111-0K030iGDH306..RHD;GDH322..6FC..(P,Q)..GEN;GDH320,322,328..6FC..(AGT,BZ,NZ,TH)201902-202104

(L)

main32111-71010iGDH322..RHD..GSOB..6FC..D201902-202505

(J)

32117SPACER, DRIVE PLATE, REAR

main32117-30030iGRH30#,32#..6FC201902

main32117-60050iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)201902-202505

main32117-60050iGDH320,322,328..6FC..(AGT,BZ,TH)202408

JAPAN SOURCED PARTS

main32117-YU010iGDH320,322,328..6FC..(AGT,BZ,TH)202408

THA SOURCED PARTS

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGDH322..RHD..GSOB..6FC..D201902-202506

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGDH322..RHD..GSOB..6FC..D201902-202506

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGDH322..RHD..GSOB..6FC..D201902-202506

*8-1.25PX35-35

35301GBEARING,NEEDLE ROLLER

main90374-71002iGDH322..RHD..GSOB..6FC..D201902-202506

35307FBOLT (FOR STATOR SHAFT)

main90148-60079iGDH322..RHD..GSOB..6FC..D201902-202506

35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

main35789-71070iGDH322..RHD..GSOB..6FC..D201902-202506

35314PLATE, FRONT OIL PUMP

main35314-71010iGDH30#,320,322,GRH30#,32#..6FC201902-201909

sub35314-71020

main35314-71020iGDH322..RHD..GSOB..6FC..D201910-202506

35321GEAR, FRONT OIL PUMP DRIVE

main35321-71010iGDH322..RHD..GSOB..6FC..D201902-202506

T=9.977-9.983

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-71010iGDH322..RHD..GSOB..6FC..D201902-202506

T=9.977-9.983

35370SHAFT ASSY, STATOR

main35370-71010iGDH322..RHD..GSOB..6FC..D201902-202506

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iGDH322..RHD..GSOB..6FC..D201902-202506

18 parts on this diagram · 1 diagram in section
