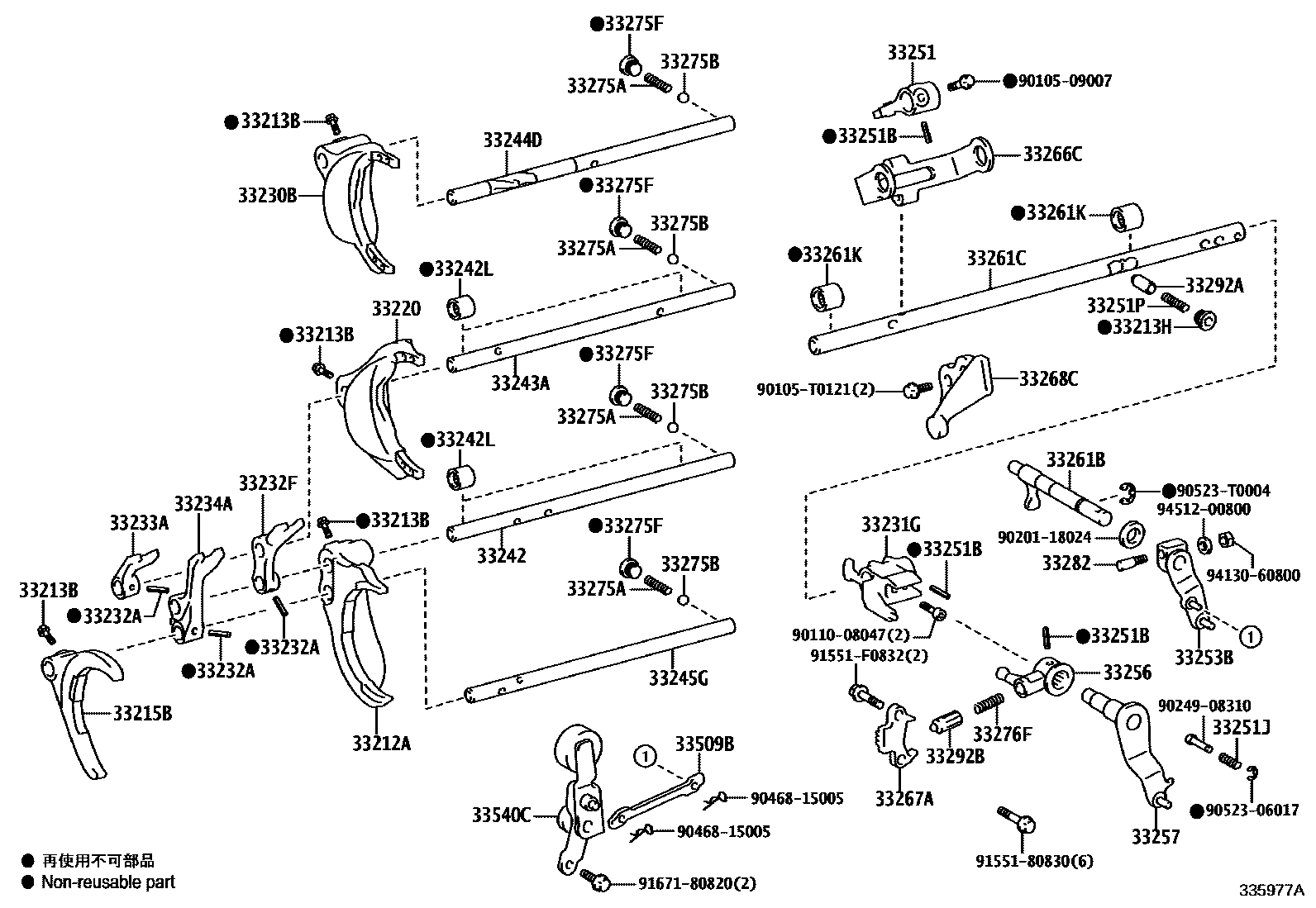

GEAR SHIFT FORK & LEVER SHAFT (MTM)

33212AFORK, GEAR SHIFT, NO.1

main33212-26040iGDH322..RHD..(P,Q)..GEN201902-202505

33213BBOLT(FOR SHIFT FORK SET)

main90105-T0157iGDH322..RHD..(P,Q)..GEN201902-202505

33213HPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90341-T0016iGDH322..RHD..(P,Q)..GEN201902-202505

33215BFORK, GEAR SHIFT, NO.4

main33215-0K010iGDH322..RHD..(P,Q)..GEN201902-202505

33220FORK ASSY, GEAR SHIFT, NO.2

main33220-26020iGDH322..RHD..(P,Q)..GEN201902-202505

33230BFORK ASSY, GEAR SHIFT, NO.3

main33230-26020iGDH322..RHD..(P,Q)..GEN201902-202505

33231GHEAD, SHIFT & SELECT LEVER SHAFT

main33231-26050iGDH322..RHD..(P,Q)..GEN201902-202505

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-T0006iGDH322..RHD..(P,Q)..GEN201902-202505

33232FHEAD, GEAR SHIFT, NO.1

main33232-26030iGDH322..RHD..(P,Q)..GEN201902-202505

33233AHEAD, GEAR SHIFT, NO.2

main33233-26030iGDH322..RHD..(P,Q)..GEN201902-202505

33234AHEAD, GEAR SHIFT, NO.3

main33235-26010iGDH322..RHD..(P,Q)..GEN201902-202505

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-26090iGDH322..RHD..(P,Q)..GEN201902-202505

33242LBEARING (FOR SHIFT FORK SHAFT)

main90369-T0010iGDH322..RHD..(P,Q)..GEN201902-202505

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-26090iGDH322..RHD..(P,Q)..GEN201902-202505

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-26100iGDH322..RHD..(P,Q)..GEN201902-202505

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-26050iGDH322..RHD..(P,Q)..GEN201902-202505

33251LEVER, SHIFT & SELECT

main33251-26070iGDH322..RHD..(P,Q)..GEN201902-202505

33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

main90254-05011iGDH322..RHD..(P,Q)..GEN201902-202505

L=28.0

33251JSPRING, COMPRESSION (FOR SHIFT INNER LEVER)

main90501-08243iGDH322..RHD..(P,Q)..GEN201902-202505

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-14225iGDH322..RHD..(P,Q)..GEN201902-202505

33253BLEVER, SHIFT, OUTER

main33253-26110iGDH322..RHD..(P,Q)..GEN201902-202505

33256LEVER, SELECT INNER

main33256-26020iGDH322..RHD..(P,Q)..GEN201902-202505

33257LEVER, SELECT OUTER

main33257-26150iGDH322..RHD..(P,Q)..GEN201902-202505

33261BSHAFT, SHIFT LEVER

main33261-26060iGDH322..RHD..(P,Q)..GEN201902-202505

33261CSHAFT, SHIFT & SELECT LEVER

main33261-26050iGDH322..RHD..(P,Q)..GEN201902-202505

33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)

main90369-20001iGDH322..RHD..(P,Q)..GEN201902-202505

33266CPLATE, SHIFT INTERLOCK

main33266-26010iGDH322..RHD..(P,Q)..GEN201902-202505

33267APLATE, SHIFT GATE

main33267-26010iGDH322..RHD..(P,Q)..GEN201902-202505

33268CSTOPPER, SHIFT INTERLOCK PLATE

main33268-26010iGDH322..RHD..(P,Q)..GEN201902-202505

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-T0039iGDH322..RHD..(P,Q)..GEN201902-202505

L=15.35

33275BBALL, SHAFT DETENT

main90360-T0008iGDH322..RHD..(P,Q)..GEN201902-202505

33275FPLUG (FOR SHIFT DETENT BALL)

main90341-T0014iGDH322..RHD..(P,Q)..GEN201902-202505

33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

main90501-17047iGDH322..RHD..(P,Q)..GEN201902-202505

33282PIN, LEVER LOCK, NO.2

main33282-57010iGDH322..RHD..(P,Q)..GEN201902-202505

33292APIN, LOCK BALL

main33292-0K011iGDH322..RHD..(P,Q)..GEN201902-202505

33292BPIN, LOCK BALL NO.2

main33292-26010iGDH322..RHD..(P,Q)..GEN201902-202505

33509BLINK SUB-ASSY, SHIFT LEVER DAMPER

main33509-26010iGDH322..RHD..(P,Q)..GEN201902-202404

33540CDAMPER ASSY, SHIFT LEVER

main33540-26010iGDH322..RHD..(P,Q)..GEN201902-202404

9010509007

main90105-09007

90105T0121

main90105-T0121

9011008047

main90110-08047

9020118024

main90201-18024

9024908310

main90249-08310

9046815005

main90468-15005

9052306017

main90523-06017

90523T0004

main90523-T0004

9155180830

main91551-80830

91551F0832

main91551-F0832

9167180820

main91671-80820

9413060800

main94130-60800

9451200800

main94512-00800

51 parts on this diagram · 1 diagram in section
