CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K080iGDH322..RHD..P..GEN201902-202404

MADE IN THAILAND

main04313-35070iGRH300,301,32#..6F201902

MADE IN JAPAN

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K100iGDH321..GEN201902-202404

MADE IN THAILAND

main31470-26140iGDH301..RHD..GSOB..6F201902-202505

MADE IN JAPAN

main31470-35210iGRH300,301,32#..6F201902

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iGDH301,322..GSOB..6F..N201902-202505

*8-1.25PX25-20.1,(J)

main91611-B0825iGRH300,301,32#..6F201902

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-0K030iGDH322..RHD..P..GEN201902-202404

main31473-35060iGRH300,301,32#..6F201902

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iGDH322..RHD..(P,Q)..GEN201902-202404

main31476-36010iGRH300,301,32#..6F201902

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGDH322..Q..GEN201902-202404

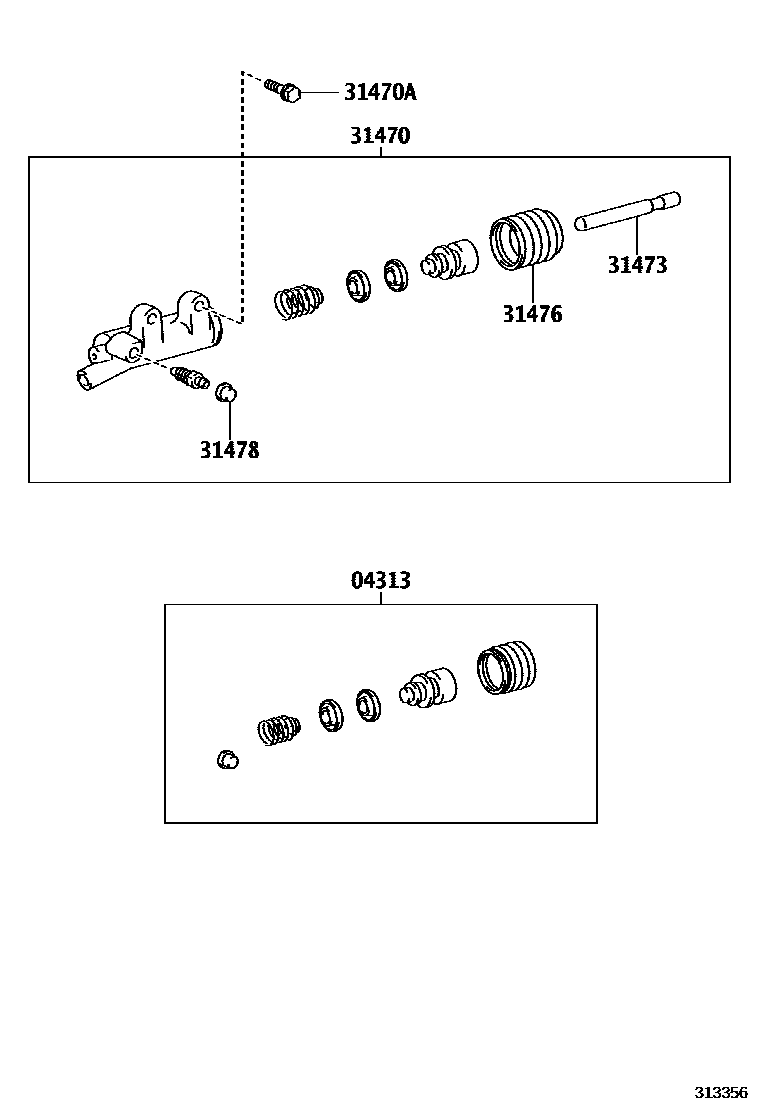

6 parts on this diagram · 2 diagrams in section
