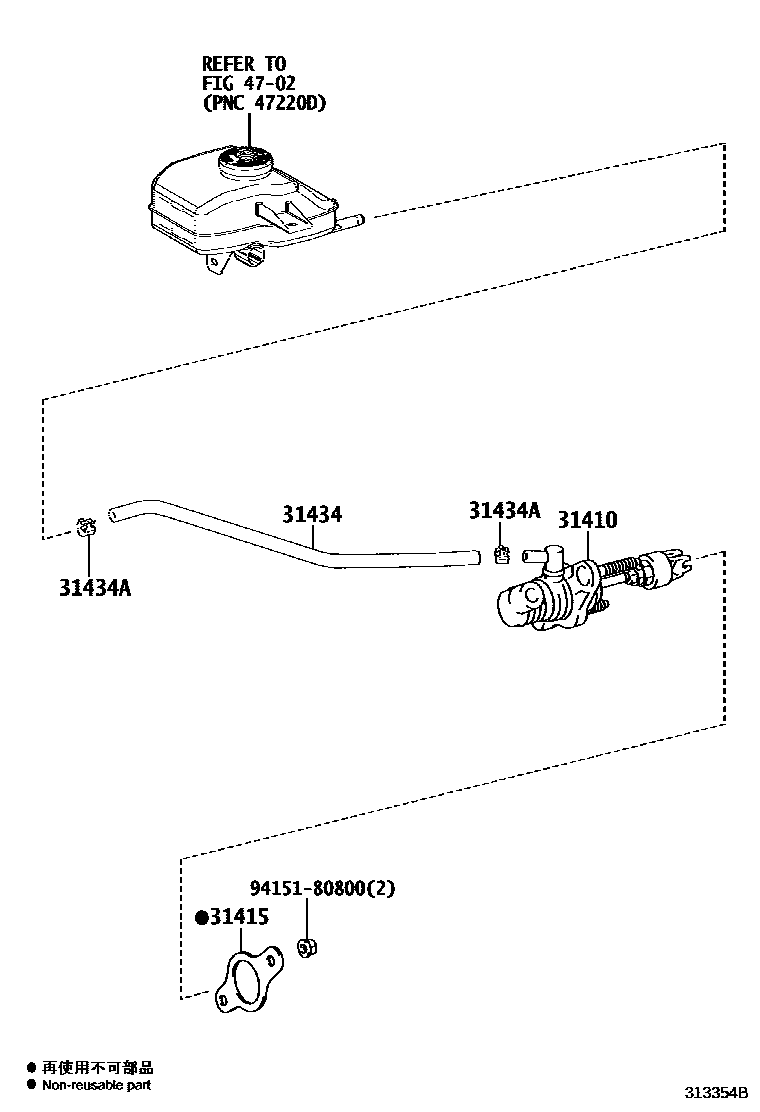

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26210iGDH300,301,32#,GRH300,301,32#..6F201902-202003

sub31420-26211

main31420-26211iGDH322..RHD..(P,Q)..GEN202004-202404

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iGDH322..RHD..P..GEN201902-202404

31434TUBE, CLUTCH RESERVOIR

main31434-26330iGDH321..GEN201902-202310

main31434-26340iGDH322..RHD..P..GEN201902-202404

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96137-41501iGDH322..RHD..(P,Q)..GEN201902-202404

4702

9415180800

main94151-80800

6 parts on this diagram · 2 diagrams in section
