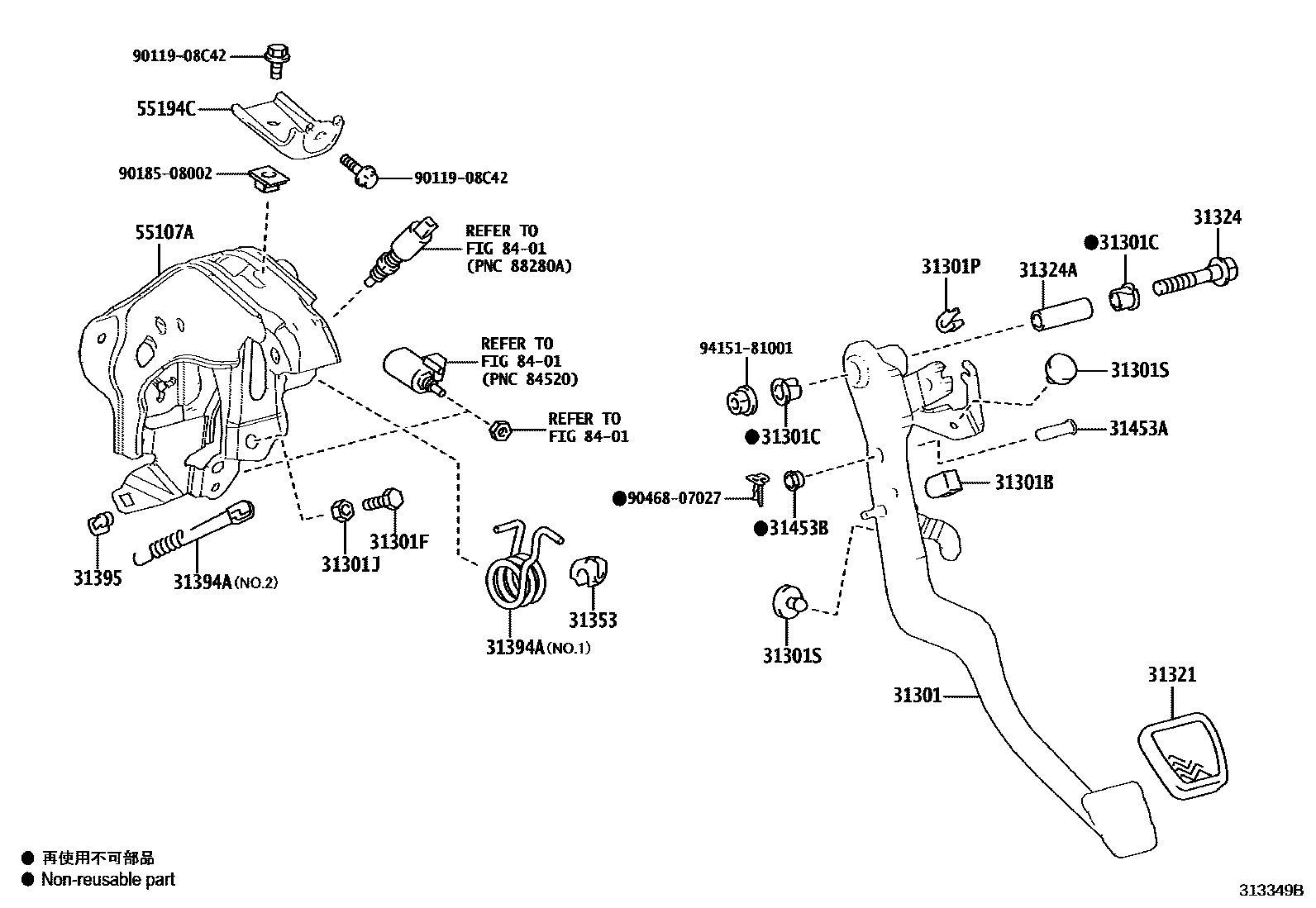

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-26190iGDH322..RHD..(P,Q)..GEN201902-202404

main31301-26200iGDH321..GEN201902-202310

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main47131-26020iGDH322..LHD..6F..(GCC,GEN);GDH300,301,320,328,GRH300,301,32#..LHD..6F201902-202310

main90541-06063iGDH322..RHD..P..GEN201902-202404

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGDH322..RHD..P..GEN201902-202404

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGDH322..RHD..(P,Q)..GEN201902-202404

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iGDH322..RHD..(P,Q)..GEN201902-202404

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGDH322..RHD..(P,Q)..GEN201902-202404

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iGDH321..IDN;GDH301..SG..6F;GDH301..LHD..GSOB..6F;GDH322..LHD..6F..(P,Q);GDH322..6F..(D,N)..(GEN,TH);GDH300,320,328,GRH300,301,32#..6F201902-202404

31321PAD, CLUTCH PEDAL

main31321-42010iGDH322..RHD..P..GEN201902-202404

31324SHAFT, CLUTCH PEDAL

main90105-10524iGDH322..RHD..(P,Q)..GEN201902-202404

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGDH322..RHD..(P,Q)..GEN201902-202404

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGDH322..RHD..P..GEN201902-202404

31394ASPRING, PEDAL W/HOOK

main31394-26010iGDH301..RHD..GSOB..6F201902-202404

NO.1:REFER ILLUST.

main31394-42050iGDH322..RHD..P..GEN201902-202404

NO.2:REFER ILLUST.

31395HOOK, PEDAL SPRING

main31395-33020iGDH301..RHD..GSOB..6F201902-202404

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08078iGDH321..GEN202110-202404

main90240-08082iGDH322..RHD..P..GEN201902-202109

L=26.3

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGDH321..IDN;GDH301..SG..6F;GDH301..LHD..GSOB..6F;GDH322..LHD..6F..(P,Q);GDH322..6F..(D,N)..(GEN,TH);GDH300,320,328,GRH300,301,32#..6F201902-202404

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-26060iGDH322..RHD..P..GEN201902-202404

main55107-26070iGDH322..Q..GEN201902-202310

55194CPLATE, PEDAL SUPPORT TO COWL

main55194-26030iGDH322..Q..GEN201902-202404

8401

9011908C42

main90119-08C42

9018508002

main90185-08002

9046807027

main90468-07027

9415181001

main94151-81001

22 parts on this diagram · 7 diagrams in section
