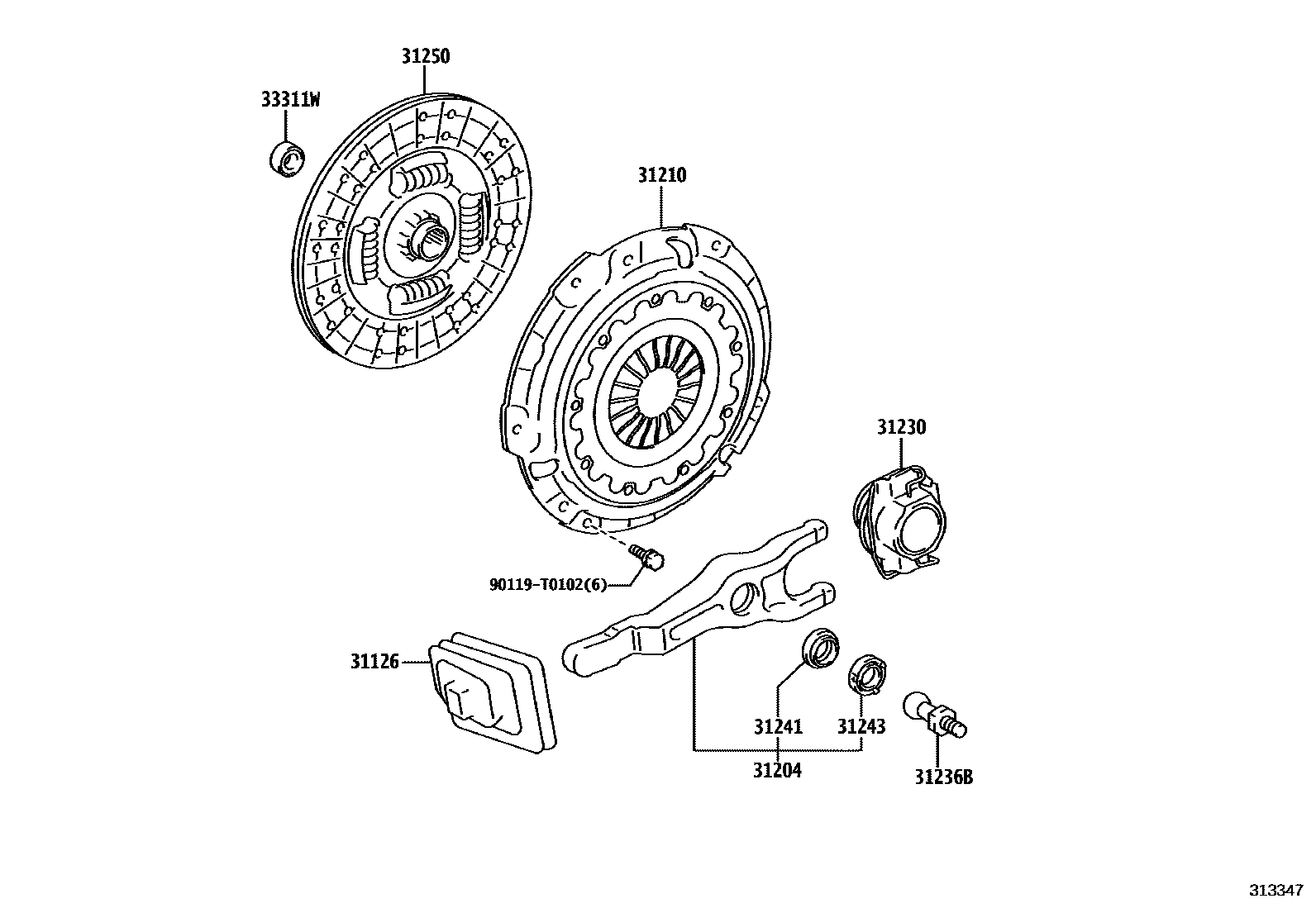

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K080iGDH322..RHD..P..GEN201906-202504

MADE IN THAILAND

main31126-0K080iGDH321..D..IDN;GDH322..LHD..6F..P;GDH301..LHD..GSOB..6F..D;GDH320,322..6F..D..(GCC,GEN);GDH300,301..(PSOB,SG,SHP,SP)..6F..D..(GCC,GEN,TH)201906-202504

EUROPE N1,MADE IN THAILAND

main31126-26030iGDH321..GEN201902-202505

MADE IN JAPAN

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K110iGDH321..D..IDN;GDH322..LHD..6F..P;GDH301..LHD..GSOB..6F..D;GDH320,322..6F..D..(GCC,GEN);GDH300,301..(PSOB,SG,SHP,SP)..6F..D..(GCC,GEN,TH)201906-202504

EUROPE N1,MADE IN THAILAND

main31204-0K110iGDH322..RHD..P..GEN201906-202504

MADE IN THAILAND

main31204-26020iGDH301..RHD..GSOB..6F201902-202505

MADE IN JAPAN

main31204-35100iGRH300,301,32#..6F201902

31210COVER ASSY, CLUTCH

main31210-0K281iGDH322..RHD..(P,Q)..GEN201902-202411

main31210-0L020iGDH321..IDN;GDH301..SG..6F;GDH301..LHD..GSOB..6F;GDH300,320,322,328..6F..(ARL,GCC,GEN,PH,TH)202412

main31210-35310iGRH300,301,32#..6F201902

31230BEARING ASSY, CLUTCH RELEASE

main31230-0K050iGDH322..6F..TH202310-202504

MADE IN THAILAND

main31230-0K050iGDH321..IDN;GDH301..SG..6F..D;GDH301..LHD..GSOB..6F..D;GDH300,320..6F..(GCC,GEN,TH);GDH322..6F..(D,P)..(GCC,GEN)202310-202504

EUROPE N1,MADE IN THAILAND

main31230-35151iGRH300,301,32#..6F201902

main31230-71052iGDH322..RHD..P..GEN201902-202505

31236BSUPPORT, RELEASE FORK

main31236-0K010iGDH321..D..IDN;GDH322..LHD..6F..P;GDH301..LHD..GSOB..6F..D;GDH320,322..6F..D..(GCC,GEN);GDH300,301..(PSOB,SG,SHP,SP)..6F..D..(GCC,GEN,TH)201906-202504

MADE IN THAILAND

main31236-0K010iGDH321..D..IDN;GDH322..LHD..6F..P;GDH301..LHD..GSOB..6F..D;GDH320,322..6F..D..(GCC,GEN);GDH300,301..(PSOB,SG,SHP,SP)..6F..D..(GCC,GEN,TH)201906-202504

EUROPE N1,MADE IN THAILAND

main31236-26020iGDH322..RHD..(P,Q)..GEN201902-202505

MADE IN JAPAN

main31236-26030iGRH300,301,32#..6F201902

31241SEAL, CLUTCH RELEASE FORK DUST

main31241-71010iGDH322..RHD..(P,Q)..GEN201902-202505

31243COLLAR, CLUTCH RELEASE FORK

main31243-0K010iGDH322..SG..6F..D..GEN;GDH322..LHD..SG..6F..P;GDH300,301,320..(SG,SHP,SP)..6F..D..(GCC,GEN,TH)201906-202504

EUROPE N1,MADE IN THAILAND

main31243-0K010iGDH322..6F..TH;GDH328,GRH300,301,32#..6F..(ARL,GCC,GEN,VN)201902-202504

MADE IN THAILAND

main31243-26010iGDH322..Q..GEN201902-202505

MADE IN JAPAN

31250DISC ASSY, CLUTCH

main31250-0L010iGDH322..RHD..P..GEN201902-202404

main31250-26270iGRH300,301,32#..6F201902

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iGDH321..GEN201902-202404

(J),SILVER

sub90363-12024

main90363-12024iGDH321..GEN201902-202404

(J),BLACK

main90363-T0006iGDH321..IDN;GDH301..SG..6F;GDH300,320,328..6F;GDH301..LHD..GSOB..6F;GDH322..LHD..6F..(P,Q);GDH322..6F..(D,N)..(GEN,TH)201902-202404

(L)

90119T0102

main90119-T0102

10 parts on this diagram · 2 diagrams in section
