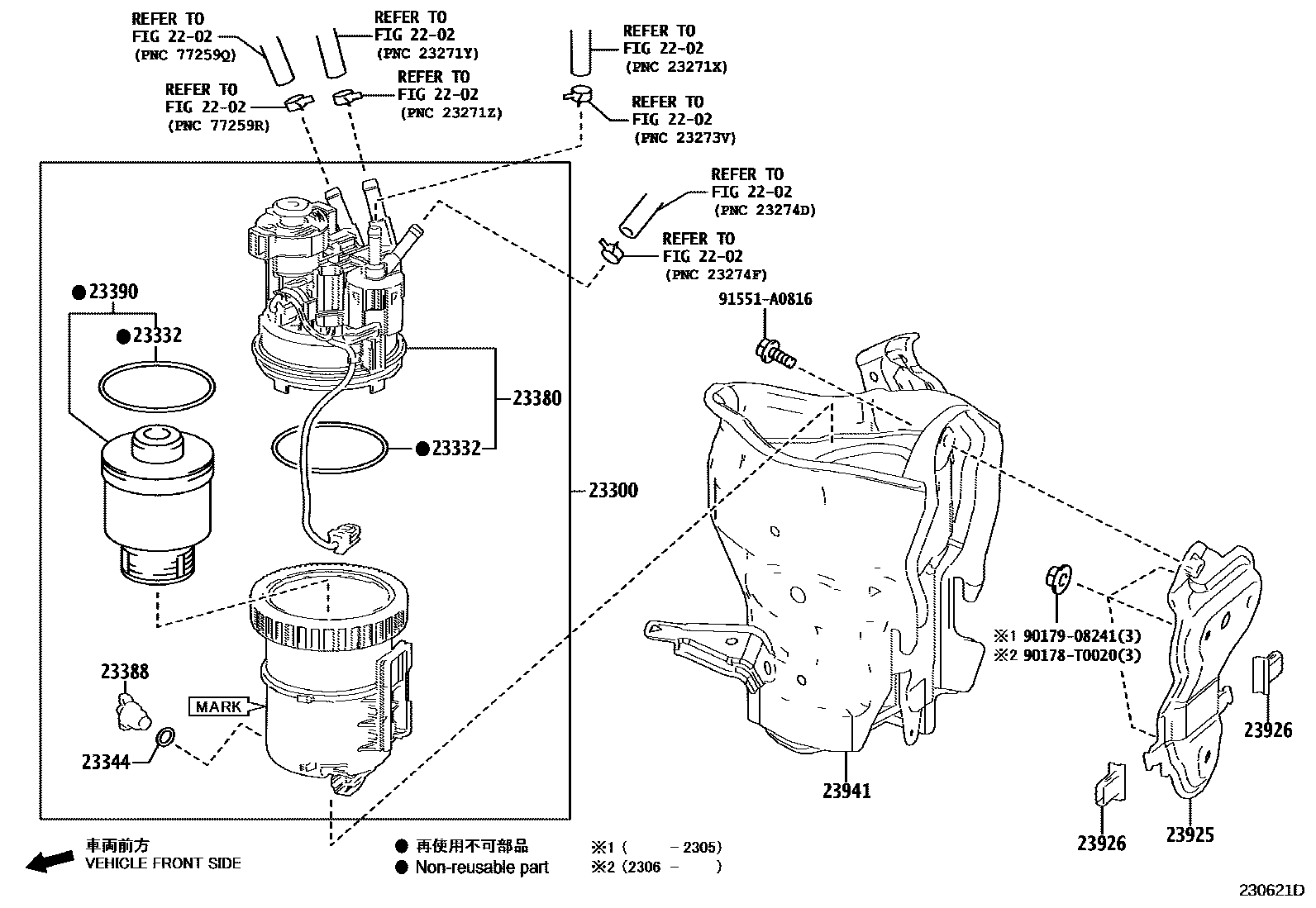

FUEL FILTER
2202
23300FILTER ASSY, FUEL
MARK=23300-11240
SOUTH AFRICA SPEC,MARK=23300-11250
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,MARK=23300-11250
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,MARK=23300-11250
MARK=23300-11250
PERU SPEC,MARK=23300-11250
ARGENTINA SPEC,MARK=23300-11250
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,MARK=23300-11250
main23300-11250i1GDFTV..GDH303,304..LHD..H;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH322..6FC..(P,Q)..(ARL,GEN,NZ);1GDFTV..GDH300,303,32#..(D,G,J,N)..(AG201902
PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,MARK=23300-11250
BHUTAN SPEC,MARK=23300-11250
BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,MARK=23300-11250
MARK=23300-11260
MARK=23300-11240
23332GASKET, ELEMENT(FOR FUEL FILTER)
23344GASKET, CLAMPING NUT(FOR FUEL FILTER)
23380CAP ASSY, FUEL FILTER
ARGENTINA SPEC
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700
main23380-11250i1GDFTV..GDH300..HPSOB;1GDFTV..GDH303..LHD..H;1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH322..6FC..(P,Q)..(201902
PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700
main23380-11250i1GDFTV..GDH300..HPSOB;1GDFTV..GDH303..LHD..H;1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH322..6FC..(P,Q)..(201902
SOUTH AFRICA SPEC
MONGOLIA SPEC
BHUTAN SPEC
HONG KONG SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
PERU SPEC
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
23388PLUG, FUEL FILTER DRAIN
23390ELEMENT ASSY, FUEL FILTER
23925STAY, FUEL FILTER SUPPORT
23926STAY, FUEL FILTER SUPPORT, NO.2
23941PROTECTOR, FUEL FILTER, NO.1
90178T0020
main90178-T0020
9017908241
main90179-08241
91551A0816
main91551-A0816
13 parts on this diagram · 3 diagrams in section
