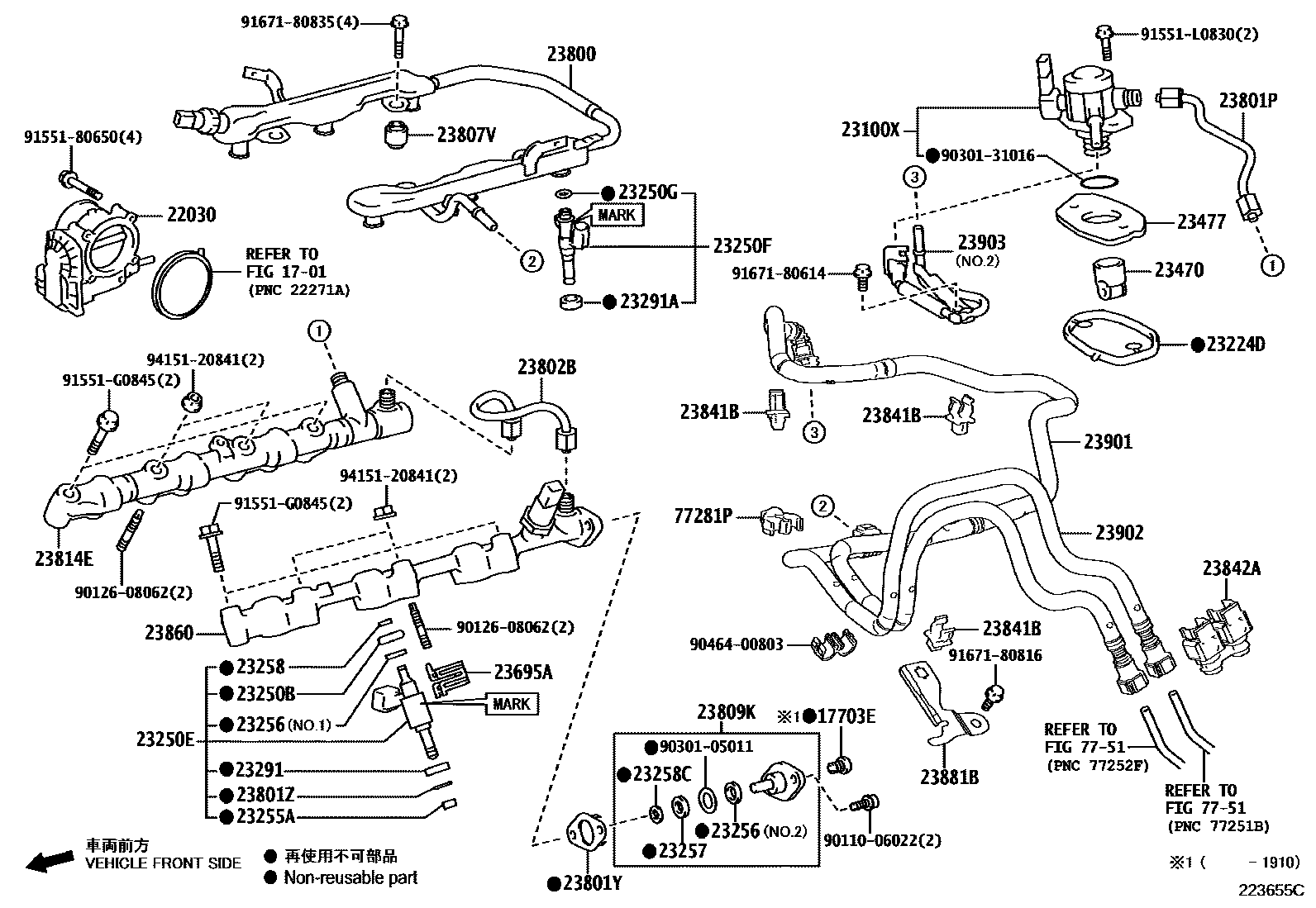

FUEL INJECTION SYSTEM

1701

17703ECAP SUB-ASSY, DUST

main17703-47010i7GRFKS..GRH30#,32#201902-201910

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31090i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-31090i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23224DGASKET, FUEL PUMP SPACER

main23224-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202111

sub23224-31021

main23224-31021i7GRFKS..GRH322..N;7GRFKS..GRH300..SG;7GRFKS..GRH301..6F..N;7GRFKS..GRH303,320..RHD;7GRFKS..GRH301..LHD..6FC;7GRFKS..GRH300,320..LHD..SP..GEN202112-202207

23250BRING, O(FOR FUEL INJECTOR)

main90301-05013i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-31170-06i7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7201902-202207

MARK 6

main23209-31170-07i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

MARK 7

main23209-31170-08i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

MARK 8

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-39325i7GRFKS..GRH30#,32#201902-202002

MARK=23250-31140

main23209-39435i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN202002-202207

MARK=23250-31230

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90301-07037i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

(J)

main90301-A0036i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN202002-202207

(L)

23255ASEAL, FUEL INJECTOR

main23255-31030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010i7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7201902-202207

NO.1

main23256-31010i7GRFKS..GRH322..N;7GRFKS..GRH300..SG;7GRFKS..GRH301..6F..N;7GRFKS..GRH301..LHD..6FC;7GRFKS..GRH300..4D..6F..GEN;7GRFKS..GRH303,320..RHD..GEN;7GRFKS..GRH320..LHD..SP201902-202207

NO.2

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-47010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23258CRING, FUEL INJECTOR BACK-UP, NO.3(FOR FUEL PIPE PLUG)

main23258-31010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23291INSULATOR, INJECTOR VIBRATION

main23291-31030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23291AINSULATOR, INJECTOR VIBRATION

main23291-28020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23470LIFTER ASSY, FUEL PUMP

main23470-25010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23477GUIDE, FUEL PUMP LIFTER

main23477-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23695ACLAMP, NOZZLE HOLDER

main23695-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23800PIPE ASSY, FUEL DELIVERY W/SENSOR

main23800-31051i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31210i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23801YGASKET

main23893-47010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23801ZRING, SNAP(FOR FUEL PIPE)

main90520-14004i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31160i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08023i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23809KPLUG SUB-ASSY, FUEL PIPE

main23809-47010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23814EPIPE, FUEL DELIVERY, RH

main23807-31110i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-70030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-38010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH

main23860-31030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23881BBRACKET, FUEL HOSE

main23881-31070i7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202209

23901TUBE SUB-ASSY, FUEL

main23901-31430i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23902TUBE SUB-ASSY, FUEL

main23902-31170i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

23903TUBE SUB-ASSY, FUEL, NO.3

main23901-31380i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207

77281PCLAMP, FUEL HOSE

main77281-26050iGRH300,303,320,321..ARL;GRH300,303..LHD..5D..(D,G)..GEN201902-202207

7751

9011006022

main90110-06022

9012608062

main90126-08062

9030105011

main90301-05011

9030131016

main90301-31016

9046400803

main90464-00803

9155180650

main91551-80650

91551G0845

main91551-G0845

91551L0830

main91551-L0830

9167180614

main91671-80614

9167180816

main91671-80816

9167180835

main91671-80835

9415120841

main94151-20841

48 parts on this diagram · 1 diagram in section
