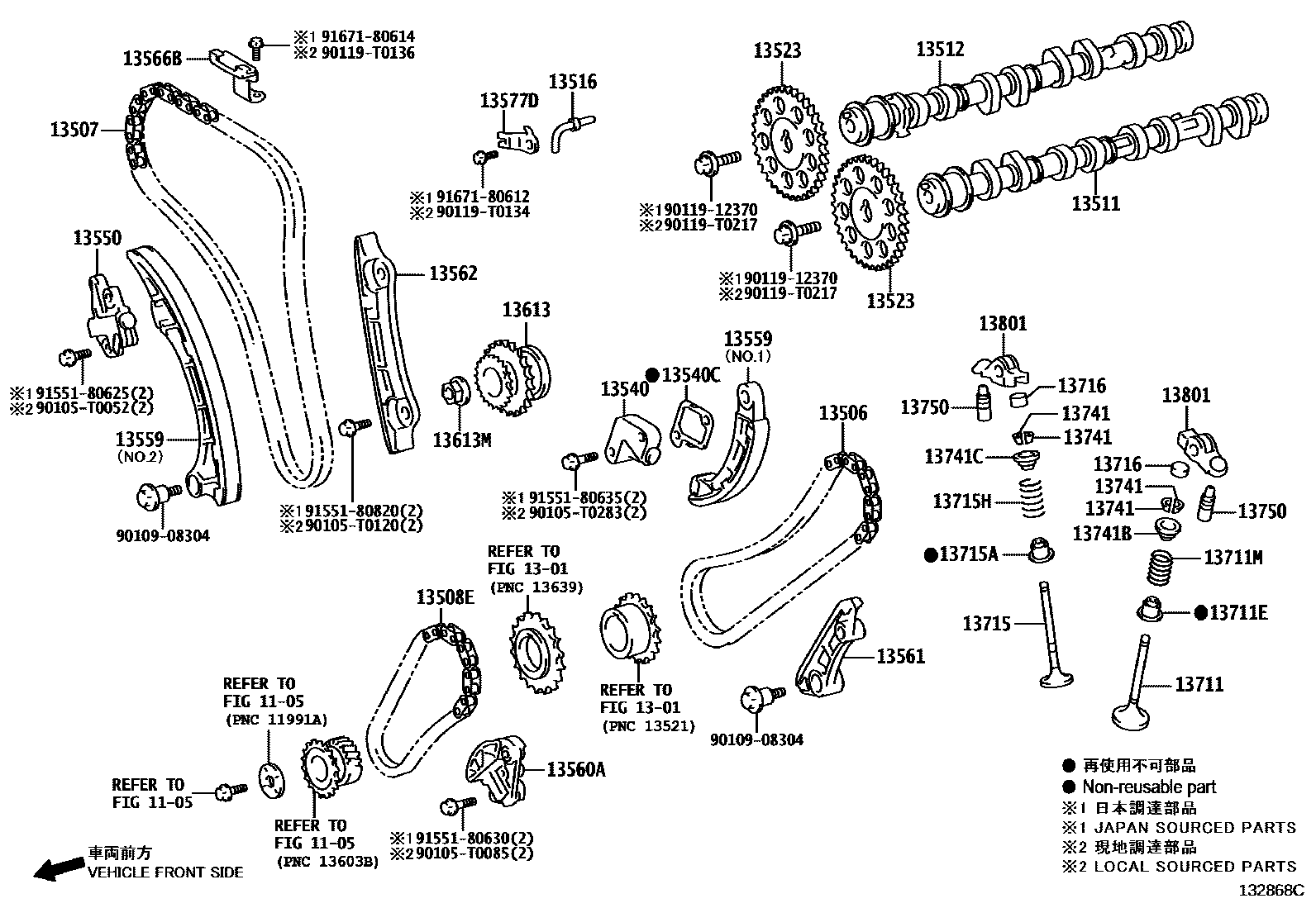

CAMSHAFT & VALVE

0001 1 0002 1

1105

1301

13506CHAIN SUB-ASSY

main13506-0E011i1GDFTV..GDH320,322,328..AGT,BZ202401

main13506-0E011i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13506-11011i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..201902-202505

(J)

main13506-31060i7GRFKS..GRH30#,32#201902

13507CHAIN SUB-ASSY, NO.2

main13507-0E010i1GDFTV..GDH322,328..TH,VN201906-202111

(L)

sub13507-0E011

main13507-0E011i1GDFTV..GDH322..TH202112

(L)

main13507-0E011i1GDFTV..GDH320,322,328..AGT,BZ202401

main13507-11010i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202109

(J)

sub13507-11011

main13507-11011i1GDFTV..GDH321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH300..LHD..SP..GEN;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300,306..5D..(D,J);1GDFTV..GDH322..LHD..GSOB..6FC202110-202505

(J)

main13507-31020i7GRFKS..GRH30#,32#201902

13508ECHAIN SUB-ASSY, NO.3

main13508-0E010i1GDFTV..GDH322,328..TH,VN202005-202111

(L)

sub13508-0E011

main13508-0E011i1GDFTV..GDH320,322,328..AGT,BZ,TH202112

(L)

main13508-11010i1GDFTV..GDH322,328..TH,VN201902-202109

sub13508-11011

main13508-11010i1GDFTV..GDH322,328..TH,VN201906-202111

(J)

sub13508-11011

main13508-11011i1GDFTV..GDH306..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN202110-202505

main13508-11011i1GDFTV..GDH320,322,328..AGT,BZ,TH202112

(J)

13511CAMSHAFT

main13501-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13501-11070i1GDFTV..GDH321..GEN201902-202505

(J)

main13501-11070i1GDFTV..GDH320,322,328..AGT,BZ202401

main13501-31140i7GRFKS..GRH30#,32#201902

13512CAMSHAFT, NO.2

main13502-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13502-11070i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

(J)

main13502-11070i1GDFTV..GDH320,322,328..AGT,BZ202401

main13502-31110i7GRFKS..GRH30#,32#201902

13516JET, OIL

main13516-11010i1GDFTV..GDH322..RHD..P..GEN201902-202505

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13523-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13523-11030i1GDFTV..GDH322..RHD..P..GEN201902-202505

(J)

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13540-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13540-11010i1GDFTV..GDH321..GEN201902-202505

(J)

main13540-31050i7GRFKS..GRH30#,32#201902

13540CGASKET(FOR CHAIN TENSIONER)

main13552-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13552-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13552-11010i1GDFTV..GDH322,328..TH,VN201902-202505

(J)

13550TENSIONER ASSY, CHAIN, NO.2

main13550-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13550-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13550-11010i1GDFTV..GDH322,328..TH,VN201902-202505

(J)

main13550-31040i7GRFKS..GRH30#,32#201902

13559SLIPPER, CHAIN TENSIONER

main13559-0E010i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

NO.2,(L)

main13559-0E020i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

NO.1,(L)

main13559-11010i1GDFTV..GDH322..RHD..P..GEN201902-202501

NO.2,(J)

main13559-11020i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202505

NO.1,(J)

main13559-31040i7GRFKS..GRH30#,32#201902

13560ATENSIONER ASSY, CHAIN, NO.3

main13560-0E010i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH202005

(L)

main13560-11010i1GDFTV..GDH30#,32#201902-201910

sub13560-11011

main13560-11010i1GDFTV..GDH322,328..TH,VN201906-201911

(J)

sub13560-11011

main13560-11011i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201911-202505

main13560-11011i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH202005

(J)

main13560-31040i7GRFKS..GRH30#,32#201902

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0E011i1GDFTV..GDH320,322,328..AGT,BZ202401

main13561-0E011i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13561-11010i1GDFTV..GDH30#,32#201902-201904

(J)

sub13561-11011

main13561-11011i1GDFTV..GDH321..GEN201905-202501

(J)

main13561-31040i7GRFKS..GRH30#,32#201902

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13562-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13562-11010i1GDFTV..GDH322..RHD..P..GEN201902-202502

(J)

main13562-31040i7GRFKS..GRH30#,32#201902

13566BGUIDE, TIMING CHAIN

main13566-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13566-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13566-11030i1GDFTV..GDH322..RHD..P..GEN201902-202505

(J)

13577DPLATE, LOCK

main13577-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

THA SOURCED PARTS

main13577-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13577-0E020i1GDFTV..GDH320,322,328..AGT,BZ202401

IND SOURCED PARTS

main13577-11010i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..201902-202505

(J)

main13577-11010i1GDFTV..GDH320,322,328..AGT,BZ202401

JAPAN SOURCED PARTS

13613GEAR, INJECTION PUMP DRIVE

main13616-0E010i1GDFTV..GDH30#,32#201902-201908

MADE IN THAILAND

sub13616-0E011

main13616-0E011i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..201909-202505

MADE IN THAILAND

main13616-0E011i1GDFTV..GDH320,322,328..AGT,BZ202401

main13616-11020i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

MADE IN JAPAN

13613MNUT(FOR INJECTION PUMP DRIVE GEAR)

main90179-18021i1GDFTV..GDH322..RHD..P..GEN201902-202505

MADE IN JAPAN

main90179-T0009i1GDFTV..GDH320,322,328..AGT,BZ202401

main90179-T0009i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

MADE IN THAILAND

13711VALVE, INTAKE

main13711-08010i1GDFTV..GDH320,322,328..AGT,BZ202401

ARG SOURCED PARTS

main13711-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

THA SOURCED PARTS

main13711-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13711-11030i1GDFTV..GDH322..RHD..P..GEN201902-202505

(J)

main13711-31101i7GRFKS..GRH30#,32#201902

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101i7GRFKS..GRH30#,32#201902

main90913-02130i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202505

(J)

main90913-T2006i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-29063i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202505

(J)

main90501-T0043i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

13715VALVE, EXHAUST

main13715-08010i1GDFTV..GDH320,322,328..AGT,BZ202401

ARG SOURCED PARTS

main13715-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13715-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

THA SOURCED PARTS

main13715-11050i1GDFTV..GDH321..GEN201902-202505

(J)

main13715-31150i7GRFKS..GRH30#,32#201902

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112i7GRFKS..GRH30#,32#201902

main90913-02130i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202505

(J)

main90913-T2006i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main90913-T2006i1GDFTV..GDH320,322,328..AGT,BZ202401

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-29063i1GDFTV..GDH322,328..TH,VN201902-202505

(J)

main90501-T0043i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main90501-T0043i1GDFTV..GDH320,322,328..AGT,BZ202401

13716CAP, VALVE STEM

main13716-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13716-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13716-33010i1GDFTV..GDH322,328..TH,VN201902-202505

(J)

main13716-75020i7GRFKS..GRH30#,32#201902

13741RETAINER, VALVE SPRING

main13741-36010i7GRFKS..GRH30#,32#201902

main90913-03021i1GDFTV..GDH322..RHD..P..GEN201902-202505

13741BRETAINER, INTAKE VALVE SPRING

main13741-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13741-33020i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

main13741-33020i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(J)

13741CRETAINER, EXHAUST VALVE SPRING

main13741-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13741-33020i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202505

main13741-33020i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(J)

13750ADJUSTER ASSY, VALVE LASH

main13750-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13750-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main13750-26010i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

(J)

main13750-31030i7GRFKS..GRH30#,32#201902-201911

main13750-36020i7GRFKS..GRH30#,32#201912

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0E012i1GDFTV..GDH320,322,328..AGT,BZ202401

main13801-0E012i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main13801-11011i1GDFTV..GDH30#,32#201902-201904

(J)

sub13801-11012

main13801-11012i1GDFTV..GDH322..RHD..P..GEN201905-202505

(J)

main13801-36020i7GRFKS..GRH30#,32#201902

90105T0052

main90105-T0052

90105T0085

main90105-T0085

90105T0120

main90105-T0120

90105T0283

main90105-T0283

9010908304

main90109-08304

9011912370

main90119-12370

90119T0134

main90119-T0134

90119T0136

main90119-T0136

90119T0217

main90119-T0217

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180820

main91551-80820

9167180612

main91671-80612

9167180614

main91671-80614
