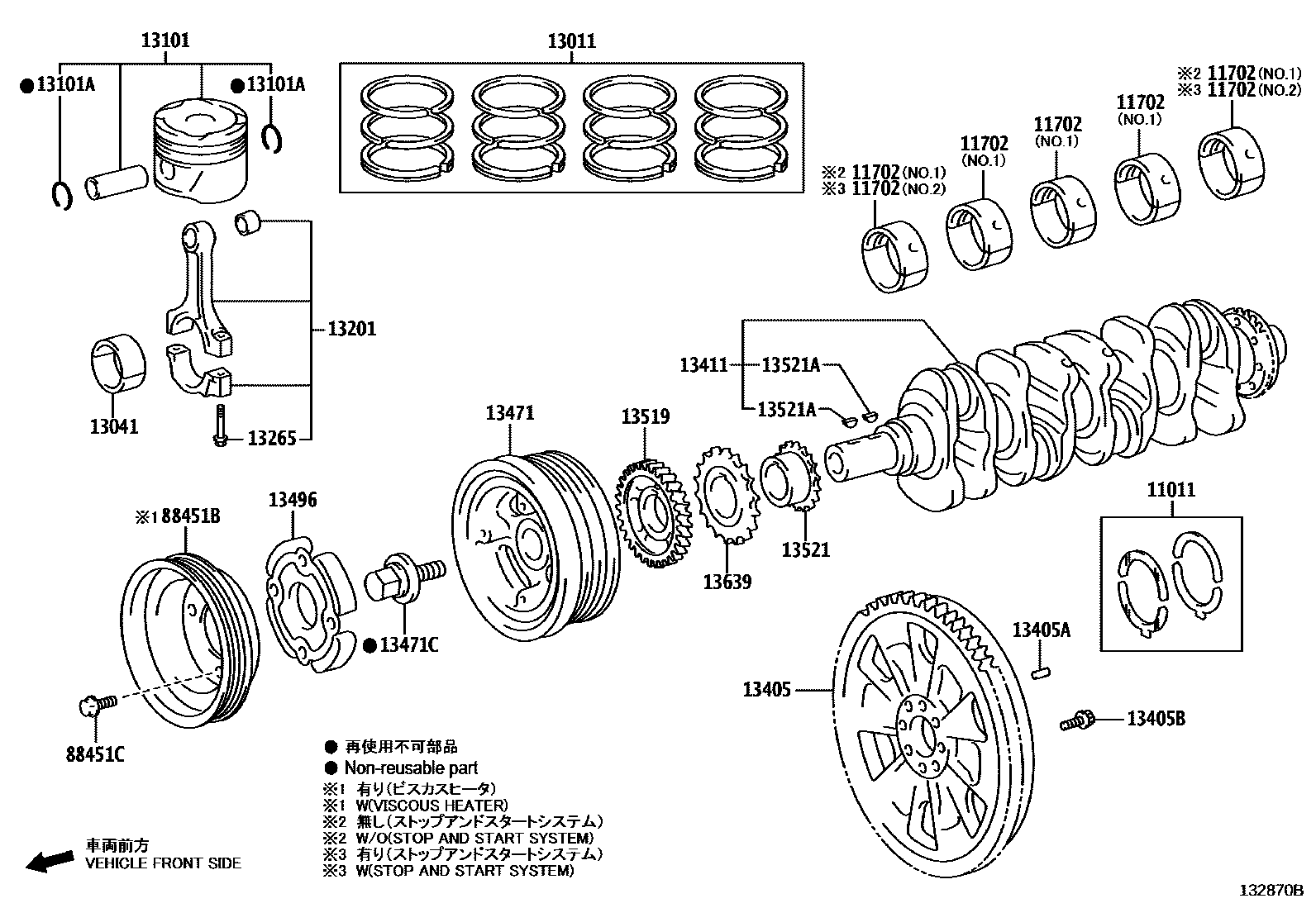

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
STD
STD,CHILE SPEC
STD,(J)
STD
STD
11702BEARING SET, CRANKSHAFT
MARK 2,NO.1,(L),REFER R/M
MARK 3,NO.1,(L),REFER R/M
MARK 4,NO.1,(L),REFER R/M
MARK 5,NO.1,(L),REFER R/M
MARK 6,NO.1,(L),REFER R/M
main11701-11030-02i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202107
CHILE SPEC,MARK 2,NO.1,REFER R/M
main11701-11030-02i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202505
MARK 2,NO.1,(J),REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,(J),REFER R/M
MARK 3,NO.1,REFER R/M
main11701-11030-03i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202107
CHILE SPEC,MARK 3,NO.1,REFER R/M
main11701-11030-04i1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..GDH322..L201902-202107
MARK 4,NO.1,REFER R/M
MARK 4,NO.1,(J),REFER R/M
CHILE SPEC,MARK 4,NO.1,REFER R/M
main11701-11030-05i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202505
MARK 5,NO.1,(J),REFER R/M
main11701-11030-05i1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..GDH322..L201902-202107
MARK 5,NO.1,REFER R/M
main11701-11030-05i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202107
CHILE SPEC,MARK 5,NO.1,REFER R/M
MARK 6,NO.1,(J),REFER R/M
MARK 6,NO.1,REFER R/M
CHILE SPEC,MARK 6,NO.1,REFER R/M
MARK 2,NO.2,REFER R/M
sub11701-35040
main11701-11040-03i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202107
CHILE SPEC,MARK 3,NO.2,REFER R/M
sub11701-35040
MARK 4,NO.2,REFER R/M
sub11701-35040
main11701-11040-04i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202107
CHILE SPEC,MARK 4,NO.2,REFER R/M
sub11701-35040
main11701-11040-05i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202303
MARK 5,NO.2,REFER R/M
sub11701-35040
STD,MARK 2,NO.2,REFER R/M
STD,MARK 3,NO.2,REFER R/M
STD,MARK 4,NO.2,REFER R/M
STD,MARK 5,NO.2,REFER R/M
STD,MARK 6,NO.2,REFER R/M
13011RING SET, PISTON
STD
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,PERU SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,MOROCCO SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,TAIWAN SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,HONG KONG SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,PHILIPPINES SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,BHUTAN SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,NEW CALEDONIA SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,UNITED ARAB EMIRATES SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH306..RHD;1GDFTV..GDH303,321..LHD..(H,N);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH300,301,303,304,320,322,328..ARL,NZ,PH,TH,VN201902-202004
STD,SRI LANKA SPEC,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202004
STD,(J)
sub13011-11201
main13011-11200i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202004
STD,CHILE SPEC,(J)
sub13011-11201
STD,UNITED ARAB EMIRATES SPEC,(J)
STD,NEPAL SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),(J)
STD,SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,(J)
STD,EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
STD,SRI LANKA SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)
STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
STD,PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,(J)
STD,PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681,(J)
STD,PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
STD,PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
STD,(J)
STD,PERU SPEC,(J)
STD,PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,(J)
STD,PERU SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)
STD,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,(J)
STD,MEXICO SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS),(J)
STD,PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS),(J)
STD,ECUADOR SPEC,(J)
STD,COSTA RICA SPEC,(J)
STD,MOROCCO SPEC,(J)
STD,NEW CALEDONIA SPEC,(J)
STD,CHILE SPEC,(J)
main13011-11201i1GDFTV..GDH322..ARL;1GDFTV..GDH303,322..LHD..(H,P)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,301,303,320,328..ARL,NZ,PH,TH;1GDFTV..GDH300,304,306,32202005
STD,TAIWAN SPEC,(J)
main13011-11201i1GDFTV..GDH322..ARL;1GDFTV..GDH303,322..LHD..(H,P)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,301,303,320,328..ARL,NZ,PH,TH;1GDFTV..GDH300,304,306,32202005
STD,PHILIPPINES SPEC,(J)
main13011-11201i1GDFTV..GDH322..ARL;1GDFTV..GDH303,322..LHD..(H,P)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,301,303,320,328..ARL,NZ,PH,TH;1GDFTV..GDH300,304,306,32202005
STD,SRI LANKA SPEC,(J)
STD,(L)
STD,BHUTAN SPEC,(J)
STD,CAMBODIA SPEC,(J)
main13011-11210i1GDFTV..GDH322..GCC;1GDFTV..GDH322..6FC..P..GEN;1GDFTV..GDH303,322..RHD..GEN;1GDFTV..GDH303,306..LHD..(G,J);1GDFTV..GDH300,301,320..GCC,GEN;1GDFTV..GDH322..LHD..(D,201902-202001
STD
sub13011-11211
STD,GEORGIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS)
sub13011-11212
STD
STD,MYANMAR SPEC
STD,LAOS SPEC
STD,GUATEMALA SPEC
STD,EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS)
STD
13041BEARING, CONNECTING ROD
MARK 2,(L),REFER R/M
MARK 2
MARK 3
MARK 3,(L),REFER R/M
MARK 4
MARK 4,(L),REFER R/M
MARK 5
MARK 5,(L),REFER R/M
MARK 6
MARK 6,(L),REFER R/M
main13041-11060-02i1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH30#,320,321,328..ARL,GCC,GEN,IDN,NZ,PH,TH201902-202109
MARK 2,(J),REFER R/M
sub13041-11061
main13041-11060-04i1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH30#,320,321,328..ARL,GCC,GEN,IDN,NZ,PH,TH201902-202109
MARK 4,(J),REFER R/M
sub13041-11061
main13041-11061-02i1GDFTV..GDH306..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN202110-202505
MARK 2,(J),REFER R/M
MARK 3,(J),REFER R/M
main13041-11061-04i1GDFTV..GDH306..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN202110-202505
MARK 4,(J),REFER R/M
main13041-11061-05i1GDFTV..GDH306..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN202110-202505
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 1,(L),REFER R/M
STD,MARK 2,(L),REFER R/M
STD,MARK 2
main13101-11190-01i1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH30#,32#..D,G,H,J,N;1GDFTV..GDH322..LHD..(P,Q)..GEN201902-202106
STD,MARK 1,(J),REFER R/M
sub13101-11191
STD,MARK 2,(J),REFER R/M
sub13101-11191
main13101-11191-01i1GDFTV..GDH306..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN202106-202505
STD,MARK 1,(J),REFER R/M
STD,MARK 2,(J),REFER R/M
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-32013i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH303,304,320,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH3201902-202505
13201ROD SUB-ASSY, CONNECTING
MARK A,(L),REFER R/M
main13201-0E020-B0i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH303,304,320,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH3201902-202505
MARK B,(L),REFER R/M
MARK C,(L),REFER R/M
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(L)
THA SOURCED PARTS
ARG SOURCED PARTS
main13405-11090i1GDFTV..GDH306..RHD;1GDFTV..GDH300..5D..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH300..4D..SP..6FC..ARL;1GDFTV..GDH300,306..LHD..(S201902-202505
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5,(J)
L=20,OD=10
L=15,OD=5
L=15,OD=5,(L)
13405BBOLT, FLYWHEEL SETTING
(J)
(L)
13411CRANKSHAFT
(L)
(L)
(L)
main13401-11090i1GDFTV..GDH306..RHD;1GDFTV..GDH300..5D..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH300..4D..SP..6FC..ARL;1GDFTV..GDH301,303,304,320,201902-202505
(J)
(J)
*714
13471PULLEY, CRANKSHAFT
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-18003i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..201902-202505
(J)
(L)
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
(J)
13639SPROCKET, BALANCESHAFT TIMING
(L)
(J)
88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
88451CBOLT, FLANGE W/WASHER
(L)
(J)
21 parts on this diagram · 4 diagrams in section
