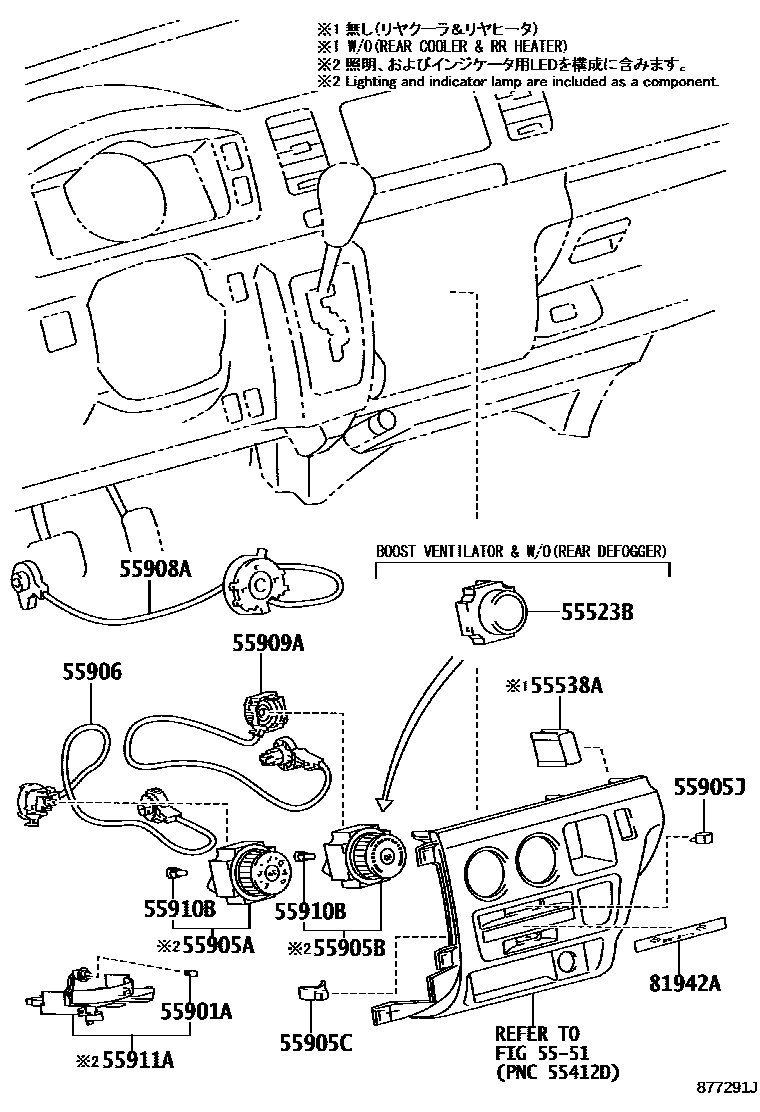

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5551
55523BCOVER, HEATER CONTROL OPENING
DK.GRAY,TRIM1#
55538ACOVER, COOLER SWITCH HOLE
AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#
REAR HEATER-WITH(FLOOR SET)&CLEARANCE & BACK SONER-WITH(6SENSOR),DK.GRAY,TRIM1#
REAR HEATER-WITH(FLOOR SET)&AIR CONDITIONER-DUAL AIR CONDITIONER&CLEARANCE & BACKSONER-WITH(6SENSOR),DK.GRAY,TRIM1#
REAR HEATER-WITH(FLOOR SET)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#
REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
AIR CONDITIONER-DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR),DK.GRAY,TRIM1#
AIR CONDITIONER-WITHOUT,DK.GRAY,TRIM1#
55901ABULB, HEATER CONTROL SUB-ASSY, NO.1
main90981-11014iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
55905AKNOB, HEATER CONTROL
main55901-26170iKDH202..HRF..MA;TRH223..4FC..GL;TRH213..10S..GEN;KDH222,TRH223..GL..SA;KDH200,201,TRH200,201..SP..06S;KDH202,212,TRH213..(10S,11S,12S,16S)..(SA,TH,VN);KDH203,222,22200501-201401
main55901-26190iKDH201..LHD;KDH220,TRH221..RHD;KDH200,201,TRH201..ARL,SA,TH;TRH203,213,223..4FC..STD..GCC;KDH203,212,221,TRH213..(03S,12S,15S)..STD;KDH200,201,222,TRH201,223..SG..(200501-201402
main55901-26200iKDH220..SP..GEN;TRH213..09S,11S,16S;KDH200,TRH201..06S..GCC;KDH20#,212,222,LH20#,212,222,TRH20#,22#..(03S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,TH)200501-200709
55905BKNOB, HEATER CONTROL, NO.2
main55903-26010iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH,RR DEFOGGER SWITCH
RR DEFOGGER SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT),RR DEFOGGER SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIRCONDITIONER,RR DEFOGGER SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER,RR DEFOGGER SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),RR DEFOGGER SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-SINGLE AIR CONDITIONER,RR DEFOGGER SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-DUAL AIR CONDITIONER,RR DEFOGGER SWITCH
FOR L/RR DEF SWITCH
RR DEFOGGER SWITCH
main55903-26030iKDH222..LHD;TRH223..16S;KDH212,LH212,222,TRH213,221..SG..STD..(GCC,GEN)200501-200709
AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),RR DEFOGGER SWITCH
main55903-26030iKDH222..LHD;TRH223..16S;KDH212,LH212,222,TRH213,221..SG..STD..(GCC,GEN)200501-200709
AIR CONDITIONER-DUAL AIR CONDITIONER,RR DEFOGGER SWITCH
main55903-26030iKDH222..LHD;TRH223..16S;KDH212,LH212,222,TRH213,221..SG..STD..(GCC,GEN)200501-200709
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),RR DEFOGGER SWITCH
main55903-26030iKDH222..LHD;TRH223..16S;KDH212,LH212,222,TRH213,221..SG..STD..(GCC,GEN)200501-200709
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-DUAL AIR CONDITIONER,RR DEFOGGER SWITCH
main55903-26030iKDH222..LHD;TRH223..16S;KDH212,LH212,222,TRH213,221..SG..STD..(GCC,GEN)200501-200709
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-SINGLE AIR CONDITIONER,RR DEFOGGER SWITCH
RR DEFOGGER SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT),RR DEFOGGER SWITCH
main55903-26040iKDH200,202..STD..MA;KDH202,212,TRH203,213..(HRF,SMRF)..(09S,11S,12S)..5F200505-200709
FOR L/RR DEF SWITCH
main55903-26041iKDH212..5F..GL..GEN;TRH223..4FC..GL..GCC;KDH202..RHD..12S..STD;KDH200,212,TRH203,213..STD..(MA,VN)200709-201401
FOR L/RR DEF SWITCH
REAR WINDOW WIPER-WITH(INTERMITTENT),RR DEFOGGER SWITCH
RR DEFOGGER SWITCH
FOR L/RR DEF SWITCH
55905CKNOB, HEATER CONTROL, NO.3
main55905-26040iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
55905JKNOB SUB-ASSY, CONTROL
55906CABLE SUB-ASSY, HEATER CONTROL
sub55906-26060
main55906-26060iKDH202,203,TRH203..SRF..(GCC,GEN);KDH200,201,212,22#,LH20#,212,222,TRH200,201,213,22#..ARL,CIS,GCC,GEN,RUS,SA,TH,VN200501-201402
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-26120iKDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)200501-201402
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-26080iTRH223..GL..SA;KDH200,201,TRH201..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH200,221..RHD..(03S,06S,10S,14S,15S);KDH200,201,223,TRH201,213..(200501-201402
55910BBULB, HEATER CONTROL
main84999-10530iKDH202..15S;KDH212..RHD..GEN;KDH200,212,TRH201..SG..GCC;TRH201,203..SRF..(03S,12S,15S)..(GCC,GEN);KDH201,202,203,220,222,TRH221..LHD..(03S,12S,16S)..STD;KDH200,LH20200501-201312
AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
AIR CONDITIONER-DUAL AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIRCONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-SINGLE AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-DUAL AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
main84999-10530iKDH201,220,TRH221..LHD;KDH200,TRH201..06S..GCC;KDH200,LH200,TRH201..SP..03S..(GCC,GEN)200501-201312
AIR CONDITIONER-SINGLE AIR CONDITIONER
main84999-10530iTRH223..4FC..GL;KDH200..ARL,MA,SA;KDH202..STD..(MA,TH);KDH201..RHD..(ARL,GEN);KDH202,TRH223..RHD..GL;KDH202,TRH223..HRF..(12S,14S,15S)..(ARL,CIS,GEN,TH);KDH203,220,200501-201402
REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH(PTC HEATER)
FRONT HEATER-WITH(PTC HEATER)
55911ABASE, HEATER CONTROL
main55911-26040iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
81942ASHEET, HEATER CONTROL NAME, NO.1
14 parts on this diagram · 14 diagrams in section
