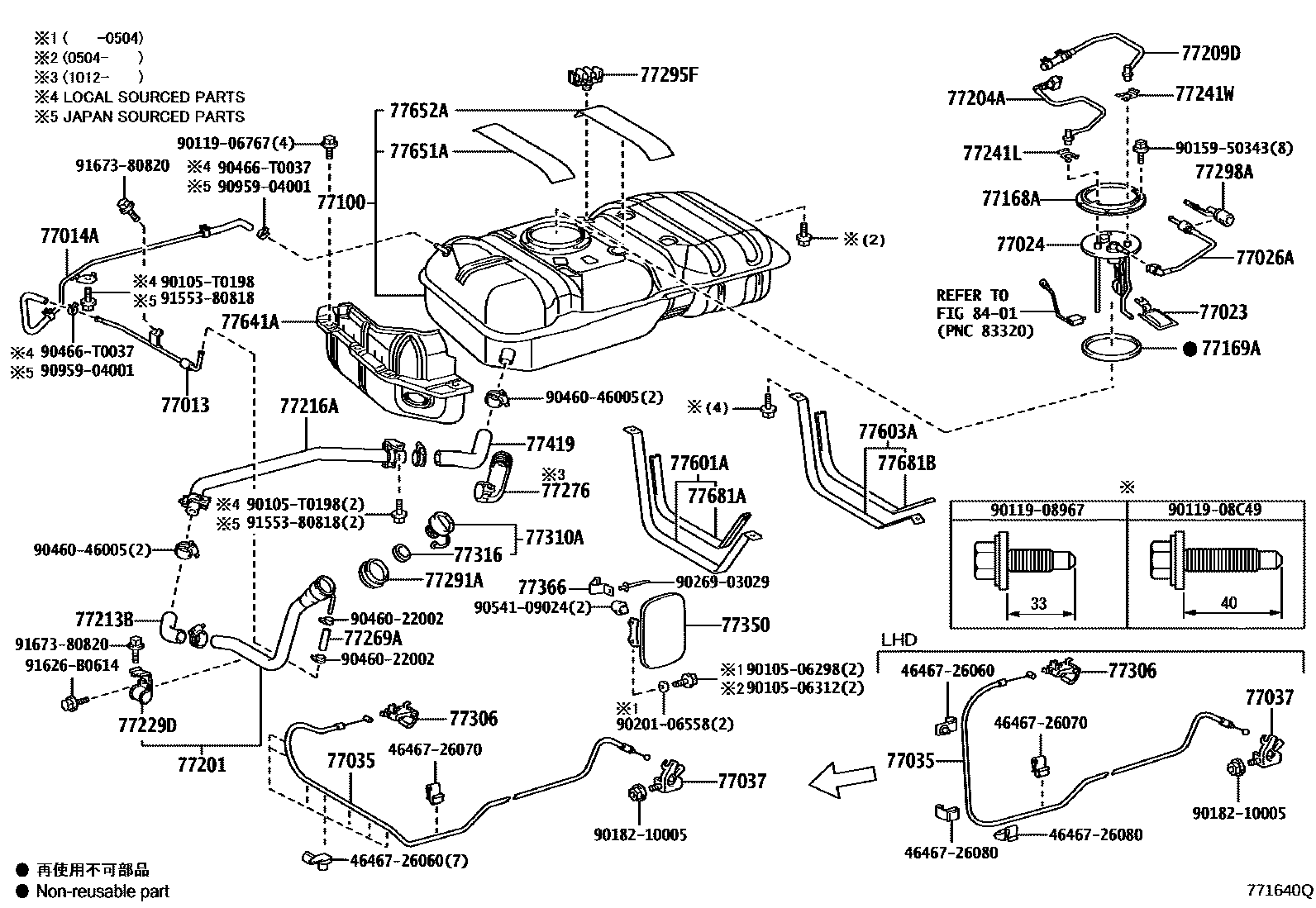

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-26120iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-26040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201008

main77014-26041iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#201008-201402

sub77014-26050

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-60040iKDH20#,212,22#,LH20#,212,222200501

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-26010iTRH20#,213,22#200501-201212

main77024-26011iTRH20#,213,22#201212-201402

main77024-26020iKDH20#,212,22#,LH20#,212,222200501-201402

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-26070iTRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH200501-201402

main77026-26080iTRH221..SP..GEN;TRH223..5F..GEN;KDH20#,212,22#,LH20#,212,222;TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200501-201402

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0L010iKDH200..MA;KDH202..MA,TH;KDH202..HRF..GEN;KDH203,TRH203..RHD..12S200602-201401

main77035-26130iKDH202..RHD..SRF..GEN;KDH200,201,203,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)200501-201312

main77035-26140iKDH20#,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD200501-201109

main77035-26141iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD201110-201312

main77035-26150iKDH222..TH200501-201205

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95D01iKDH222..TH200501-201205

77100TANK ASSY, FUEL

main77001-26690iTRH213,223..10S,13S200501-200605

main77001-26691iTRH213..GL..GEN200808-200906

VENEZUERA SPEC

main77001-26692iTRH213..RHD;TRH213..GL..VN;TRH213..LHD..STD;TRH20#,22#..03S,06S,12S,14S,15S,16S200906-201402

sub77001-26693

main77001-26700iKDH20#,212,22#,LH20#,212,222200501-200807

main77001-26701iKDH20#,212,22#,LH20#,212,222200808-201402

sub77001-26702

main77001-26710iTRH223..5F..GL..GEN200605-200609

CHINA(PRC) SPEC

main77001-26711iTRH213,223..(10S,13S)..GEN200808-201312

sub77001-26713

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iTRH213..TH;TRH201..5D..5F;TRH201..SG..4FC;TRH213..10S,16S;TRH201,22#..HRF;TRH203..15S..GEN;TRH20#..4D..(ARL,GCC,MA,SA)200501-201008

main77169-53010iTRH20#,213,22#201008-201402

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26240iTRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH200501-201402

sub77201-26350

sub77300-12020

main77201-26250iTRH221..SP..GEN;TRH223..5F..GEN;TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN;KDH20#,212,22#,LH20#,212,222..GCC,GEN,MA,RUS,SA,TH,VN200501-201402

sub77201-26360

sub77300-12030

main77201-26260iKDH200,201,22#..ARL200501-201312

sub77201-26370

sub77300-12030

77204ATUBE, FUEL TANK RETURN

main77204-26040iTRH20#,213,22#200501-201402

main77204-26050iKDH20#,212,22#200501-201402

main77204-26070iLH20#,212,222200501-201312

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-26140iTRH20#,213,22#200501-201402

main77209-26150iKDH20#,212,22#,LH20#,212,222200501-201402

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-26120iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-26020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77241LTUBE, FUEL TANK SUCTION

main77241-35450iKDH20#,212,22#,LH20#,212,222200501

77241WCLIP, TUBE JOINT

main77241-33011iTRH20#,213,22#201008-201402

main77241-60320iTRH20#,213,22#200501-201007

77269AHOSE, FUEL TANK BREATHER

main77269-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77276PROTECTOR, FUEL HOSE

main77276-26090iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#201101-201402

sub77276-V3010

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-26020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200512

main77291-26021iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200512-201402

77295FGROMMET, FUEL HOSE

main77295-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77298ACLAMP, FUEL TUBE, NO.4

main77298-52030iTRH221..SP..GEN;TRH223..5F..GEN;KDH20#,212,22#,LH20#,212,222;TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200501

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28050-B1iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

MD.GRAY,TRIM1#

77310ACAP ASSY, FUEL TANK

main77300-20020iKDH20#,212,22#,LH20#,212,222201008-201402

main77300-28010iTRH20#,213,22#200501-201008

main77300-52030iTRH20#,213,22#201008-201402

main77300-60010iKDH20#,212,22#,LH20#,212,222200501-201008

77316GASKET, FUEL TANK CAP

main77316-16010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201008

main77316-52040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#201008-201402

77350LID ASSY, FUEL FILLER OPENING

main77350-26030iKDH222..TH201212-201402

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201104

main77366-26011iKDH222..TH201105-201205

77419HOSE, FUEL, NO.3

main77419-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

sub77419-V3020

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26100iKDH222..TH201212-201402

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-26020iKDH20#,212,LH20#,212,TRH20#,213200501-201401

main77602-26030iKDH222..TH200501-201205

77641APROTECTOR, FUEL TANK, NO.1

main77641-26040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77651ACUSHION, FUEL TANK, NO.1

main77651-26080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77652ACUSHION, FUEL TANK, NO.2

main77652-26070iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

77681ASEAT, FUEL TANK BAND

main77681-32060iKDH222..TH200501-201205

77681BSEAT, FUEL TANK BAND

main77616-36010iKDH222..TH200501-201205

main77681-34030iKDH20#,212,LH20#,212,TRH20#,213200501-201401

8401

4646726060CLAMP, CABLE

main46467-26060

4646726070CLAMP, CABLE

main46467-26070

4646726080CLAMP, CABLE

main46467-26080

9010506298

main90105-06298

9010506312

main90105-06312

90105T0198

main90105-T0198

9011906767

main90119-06767

9011908967

main90119-08967

9011908C49

main90119-08C49

9015950343

main90159-50343

9018210005

main90182-10005

9020106558

main90201-06558

9026903029

main90269-03029

9046022002

main90460-22002

9046046005

main90460-46005

90466T0037

main90466-T0037

9054109024

main90541-09024

9095904001

main90959-04001

9155380818

main91553-80818

91626B0614

main91626-B0614

9167380820

main91673-80820

58 parts on this diagram · 7 diagrams in section
