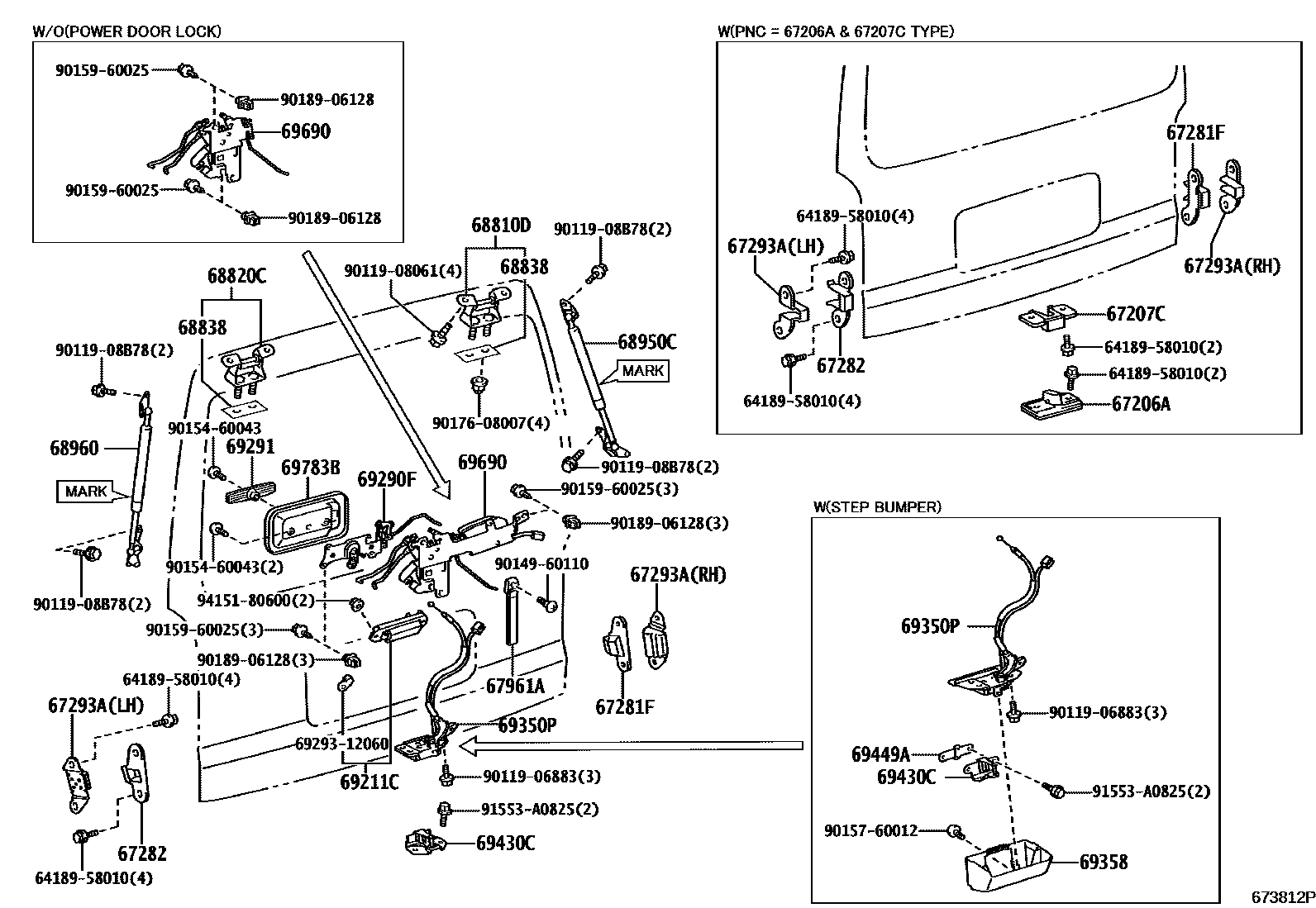

BACK DOOR LOCK & HINGE
67206ABRACKET SUB-ASSY, BACK DOOR STOPPER
SOUTH AFRICA SPEC
main67206-26010iKDH202..15S..GEN;TRH203..SRF..GEN;TRH203,223..4FC..STD..GCC;KDH212,TRH213..RHD..STD..GEN;LH202,212,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH200,220,LH200501-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
67207CSTOPPER SUB-ASSY, BACK DOOR
SOUTH AFRICA SPEC
main67207-95J01iKDH202..15S..GEN;TRH203..SRF..GEN;TRH203,223..4FC..STD..GCC;KDH212,TRH213..RHD..STD..GEN;LH202,212,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH200,220,LH200501-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
67281FSTOPPER, BACK DOOR, LOWER
VENEZUERA SPEC
NEW ZEALAND SPEC
SINGAPORE SPEC
main67281-28010iTRH221..LHD..SP;KDH212,TRH213..GCC;KDH212,TRH213..RHD..(GEN,TH);KDH221,223,TRH223..SG..(03S,15S,16S);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);K200501-201401
THAILAND SPEC
MEXICO SPEC
SOUTH AFRICA SPEC
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
67282STOPPER, BACK DOOR, NO.1
THAILAND SPEC
VENEZUERA SPEC
MEXICO SPEC
NEW ZEALAND SPEC
SINGAPORE SPEC
SOUTH AFRICA SPEC
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
67293ACUSHION, BACK DOOR STOPPER
VENEZUERA SPEC,RH
THAILAND SPEC,RH
RH
MEXICO SPEC,RH
NEW ZEALAND SPEC,RH
SINGAPORE SPEC,RH
SINGAPORE SPEC,LH
MEXICO SPEC,LH
NEW ZEALAND SPEC,LH
THAILAND SPEC,LH
LH
VENEZUERA SPEC,LH
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION,RH
SOUTH AFRICA SPEC,RH
RH
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION,LH
main69402-26010iTRH213..10S,15S;KDH200,212,220,222,223,TRH201,213,221..(03S,12S,14S,16S)..(MA,RUS,SA,VN);KDH202,212,TRH203,22#..(HRF,SMRF)..SG..(03S,10S,11S,12S,13S,14S,15S)..(CIS,200501-201402
LH
SOUTH AFRICA SPEC,LH
67961ASTRAP, BACK DOOR PULL
GRAY,TRIM1#
main67961-26050-B1iKDH201,TRH201..SG..GEN;KDH201,203,221,223,TRH201,22#..RHD..(03S,14S)..(ARL,GEN)201008-201312
DK.GRAY,TRIM1#
68810DHINGE ASSY, BACK DOOR, RH
sub68810-26011
68820CHINGE ASSY, BACK DOOR, LH
sub68820-26011
68838PAD, BACK DOOR HINGE, NO.1
T=1.1
68950CSTAY ASSY, BACK DOOR, RH
CKD PACKAGE(THAILAND)
CKD PACKAGE(MALAYSIA)
VIETNAM SPEC,MARK = A
sub68950-26012
MARK = A
sub68950-26013
MARK = A
sub68950-26014
MEXICO SPEC,MARK = A
sub68950-26014
MEXICO SPEC,MARK = P
sub68950-26016
MARK = P
MEXICO SPEC,MARK = P
COLD AREA SPEC,MARK = T
MARK = T
ECUADOR SPEC,MARK = F
sub68950-26033
MARK = C
sub68950-26035
main68950-26035iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201103-201209
MARK = C
sub68950-26036
main68950-26036iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201210-201401
MARK = C
sub68950-26037
COLD AREA SPEC,MARK = G
sub68950-26041
MEXICO SPEC,MARK = X
sub68950-26063
main68950-26070iKDH202,LH20#,TRH203;KDH200,TRH201..06S..GCC;KDH200,TRH201..SP..(GCC,GEN)200501-200508
MARK = E
sub68950-26071
main68950-26080iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200501-200508
COLD AREA SPEC,MARK = C
sub68950-26081
main68950-26191iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA)200611-200701
MARK = E
sub68950-26192
main68950-26192iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200702-200910
MARK = E
sub68950-26193
main68950-26193iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200911-201007
MARK = E
sub68950-26194
main68950-26194iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201008-201009
MARK = J
sub68950-26195
main68950-26195iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201010-201012
MARK = J
sub68950-26196
main68950-26196iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201101-201209
MARK = J
sub68950-26197
main68950-26197iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH200,203..SRF..(GCC,GEN,MA,TH)201210-201401
MARK = J
sub68950-26198
main68950-26200iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200508-200610
COLD AREA SPEC,MARK = C
sub68950-26201
main68950-26201iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200611-200701
COLD AREA SPEC,MARK = C
sub68950-26202
main68950-26202iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200702-200910
COLD AREA SPEC,MARK = C
sub68950-26203
COLD AREA SPEC,MARK = C
sub68950-26204
main68950-26204iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201008-201012
COLD AREA SPEC,MARK = Y
sub68950-26205
main68950-26205iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201101-201209
COLD AREA SPEC,MARK = Y
sub68950-26206
main68950-26206iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201210-201312
COLD AREA SPEC,MARK = Y
sub68950-26207
MARK = Z
sub68950-26232
MARK = Z
sub68950-26233
MARK = Z
sub68950-26234
MARK = Z
sub68950-26235
MARK = Z
sub68950-26236
MARK = Z
sub68950-26237
MARK = N
68960STAY ASSY, BACK DOOR, LH
CKD PACKAGE(THAILAND)
CKD PACKAGE(MALAYSIA)
VIETNAM SPEC,MARK = A
sub68960-26012
MARK = A
sub68960-26013
MARK = A
sub68960-26014
VENEZUERA SPEC,MARK = A
sub68960-26014
MEXICO SPEC,MARK = P
sub68960-26016
MARK = P
MEXICO SPEC,MARK = P
COLD AREA SPEC,MARK = T
MARK = T
MARK = F
sub68960-26032
MARK = F
sub68960-26033
ECUADOR SPEC,MARK = F
sub68960-26034
MARK = F
sub68960-26034
MARK = C
sub68960-26035
main68960-26035iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201103-201209
MARK = C
sub68960-26036
main68960-26036iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201210-201401
MARK = C
sub68960-26037
COLD AREA SPEC,MARK = G
sub68960-26041
MEXICO SPEC,MARK = X
sub68960-26063
MEXICO SPEC,MARK = H
sub68960-26065
MEXICO SPEC,MARK = H
sub68960-26066
main68960-26070iKDH202,LH20#,TRH203;KDH200,TRH201..06S..GCC;KDH200,TRH201..SP..(GCC,GEN)200501-200508
MARK = E
sub68960-26071
main68960-26080iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200501-200508
COLD AREA SPEC,MARK = C
sub68960-26081
main68960-26190iTRH201..SP..(GCC,GEN);KDH200,TRH201..06S..GCC;KDH20#,LH20#,TRH203..SRF..(03S,12S,15S)..(GCC,GEN,MA)200508-200611
MARK = E
sub68960-26191
main68960-26191iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA)200611-200701
MARK = E
sub68960-26192
main68960-26192iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200702-200910
MARK = E
sub68960-26193
main68960-26193iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200911-201007
MARK = E
sub68960-26194
main68960-26194iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201008-201009
MARK = J
sub68960-26195
main68960-26195iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201010-201012
MARK = J
sub68960-26196
main68960-26196iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201101-201209
MARK = J
sub68960-26197
main68960-26197iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH200,203..SRF..(GCC,GEN,MA,TH)201210-201401
MARK = J
sub68960-26198
main68960-26200iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200508-200610
COLD AREA SPEC,MARK = C
sub68960-26201
main68960-26201iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200611-200701
COLD AREA SPEC,MARK = C
sub68960-26202
main68960-26202iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200702-200910
COLD AREA SPEC,MARK = C
sub68960-26203
COLD AREA SPEC,MARK = C
sub68960-26204
main68960-26204iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201008-201012
COLD AREA SPEC,MARK = Y
sub68960-26205
main68960-26205iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201101-201209
COLD AREA SPEC,MARK = Y
sub68960-26206
main68960-26206iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201210-201312
COLD AREA SPEC,MARK = Y
sub68960-26207
MARK = Z
sub68960-26231
MARK = Z
sub68960-26232
MARK = Z
sub68960-26233
MARK = Z
sub68960-26234
MARK = Z
sub68960-26235
MARK = Z
sub68960-26236
MARK = Z
sub68960-26237
MARK = N
69211CHANDLE, BACK DOOR OUTSIDE
69290FHANDLE ASSY, BACK DOOR INSIDE
GRAY,TRIM1#
SINGAPORE SPEC,GRAY,TRIM1#
main69290-26040-B0iKDH201..SP..GEN;KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH200,TRH201..SP..06S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH202,203,212,223,LH202,212,TRH200501-201008
REAR SEAT-WITHOUT,GRAY,TRIM1#
VIETNAM SPEC,DK.GRAY,TRIM1#
VIETNAM SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
INDONESIA HI PACKAGE,DK.GRAY,TRIM1#
REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
main69290-26040-B1iKDH222..TH;KDH222,TRH223..GL;KDH201,TRH201..RHD..SP..GEN;TRH201,22#..SG..(03S,14S,15S)..(ARL,GEN,TH);KDH202,203,212,223,LH202,212,TRH200,203,213201008-201401
DK.GRAY,TRIM1#
69291HANDLE ASSY, BACK DOOR INSIDE
main69291-95J00-B5iKDH201..SP..GEN;KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH200,TRH201..SP..06S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH202,203,212,223,LH202,212,TRH200501-201008
GRAY,TRIM1#
sub69291-95J00
SINGAPORE SPEC,GRAY,TRIM1#
sub69291-95J00
main69291-95J00-B5iKDH201..SP..GEN;KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH200,TRH201..SP..06S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH202,203,212,223,LH202,212,TRH200501-201008
REAR SEAT-WITHOUT,GRAY,TRIM1#
sub69291-95J00
VIETNAM SPEC,DK.GRAY,TRIM1#
sub69291-95J00
VIETNAM SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
sub69291-95J00
INDONESIA HI PACKAGE,DK.GRAY,TRIM1#
sub69291-95J00
REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
sub69291-95J00
main69291-95J00-B6iKDH222..TH;KDH222,TRH223..GL;KDH201,TRH201..RHD..SP..GEN;TRH201,22#..SG..(03S,14S,15S)..(ARL,GEN,TH);KDH202,203,212,223,LH202,212,TRH200,203,213201008-201401
DK.GRAY,TRIM1#
sub69291-95J00
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-26120iTRH203..15S..GEN;KDH220..SP..(GEN,SA);TRH201,203..ARL,GCC,MA,SA;TRH213..(10S,16S)..(GCC,GEN,SA);KDH212..(10S,11S,16S)..(GCC,GEN,SA);KDH202,TRH201..LHD..(03S,12S)..5200501-201310
sub69350-26121
main69350-26121iKDH221..ARL;TRH201..06S..GCC;KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..03S,10S,11S,12S,13S,14S,15S,16S201310-201402
sub69350-26122
sub69350-26131
69358PROTECTOR, BACK DOOR LOCK
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-95J00iKDH220,221..SP;KDH200,TRH201..06S..GCC;KDH20#,212,222,223,LH20#,212,222,TRH201,203,213,22#..03S,09S,10S,11S,12S,13S,14S,15S,16S200501-201402
69449ASHIM, BACK DOOR LOCK STRIKER
T=2.0
T=1.0
T=0.5
T=1.6
69690CONTROL ASSY, BACK DOOR REMOTE
POWER DOOR LOCK-WITHOUT
VIETNAM SPEC
POWER DOOR LOCK-WITHOUT
REAR SEAT-WITHOUT
VIETNAM SPEC&REAR SEAT-WITHOUT
INDONESIA HI PACKAGE
main69690-26170iKDH202,203,212,LH202,212,TRH201,203,213,221..SG..(03S,10S,12S,15S,16S)..STD200501-201401
main69690-26180iKDH201..TH;KDH201..LHD;KDH200,222,TRH201..LHD..(06S,16S)..STD;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH200,LH200,222,TRH223..(03S,16S)..STD..(GCC,GEN,MA,SA,TH)200501-201401
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
INDONESIA HI PACKAGE&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
VIETNAM SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
VIETNAM SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&REAR SEAT-WITHOUT
main69690-26190iKDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH222,223..ARL,RUS,TH;KDH202,212,222,TRH213,223..GL;KDH203,TRH200,223..RHD..(06S,12S,14S)..(ARL,GEN,TH)200501-201401
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
SINGAPORE SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&REAR SEAT-WITHOUT
WITHOUT(CKD PACKAGE)&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
69783BBEZEL, BACK DOOR INSIDE HANDLE
main69783-26010-B0iLH212;KDH201..SP..GEN;KDH200,TRH201..SP..06S;KDH222,TRH223..(14S,16S)..(ARL,TH);KDH202,203,212,223,LH202,TRH20#,213,221..SG..(03S,12S,14S,15S,16S)200501-201008
GRAY,TRIM1#
sub69783-26010
main69783-26010-B0iLH212;KDH201..SP..GEN;KDH200,TRH201..SP..06S;KDH222,TRH223..(14S,16S)..(ARL,TH);KDH202,203,212,223,LH202,TRH20#,213,221..SG..(03S,12S,14S,15S,16S)200501-201008
REAR SEAT-WITHOUT,GRAY,TRIM1#
sub69783-26010
SINGAPORE SPEC,GRAY,TRIM1#
sub69783-26010
main69783-26010-B1iTRH201,221..SG..03S;KDH222,TRH223..ARL,TH;KDH201,TRH201..RHD..SP..GEN;KDH202,203,212,223,LH202,212,TRH200,203,213..(06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,TH,VN)201008-201401
DK.GRAY,TRIM1#
sub69783-26010
VIETNAM SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
sub69783-26010
VIETNAM SPEC,DK.GRAY,TRIM1#
sub69783-26010
REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
sub69783-26010
6418958010CLAMP, BACK PANEL SILENCER
main64189-58010
6929312060HANDLE, BACK DOOR
main69293-12060
9011906883
main90119-06883
9011908061
main90119-08061
9011908B78
main90119-08B78
9014960110
main90149-60110
9015460043
main90154-60043
9015760012
main90157-60012
9015960025
main90159-60025
9017608007
main90176-08007
9018906128
main90189-06128
91553A0825
main91553-A0825
9415180600
main94151-80600
33 parts on this diagram · 1 diagram in section
