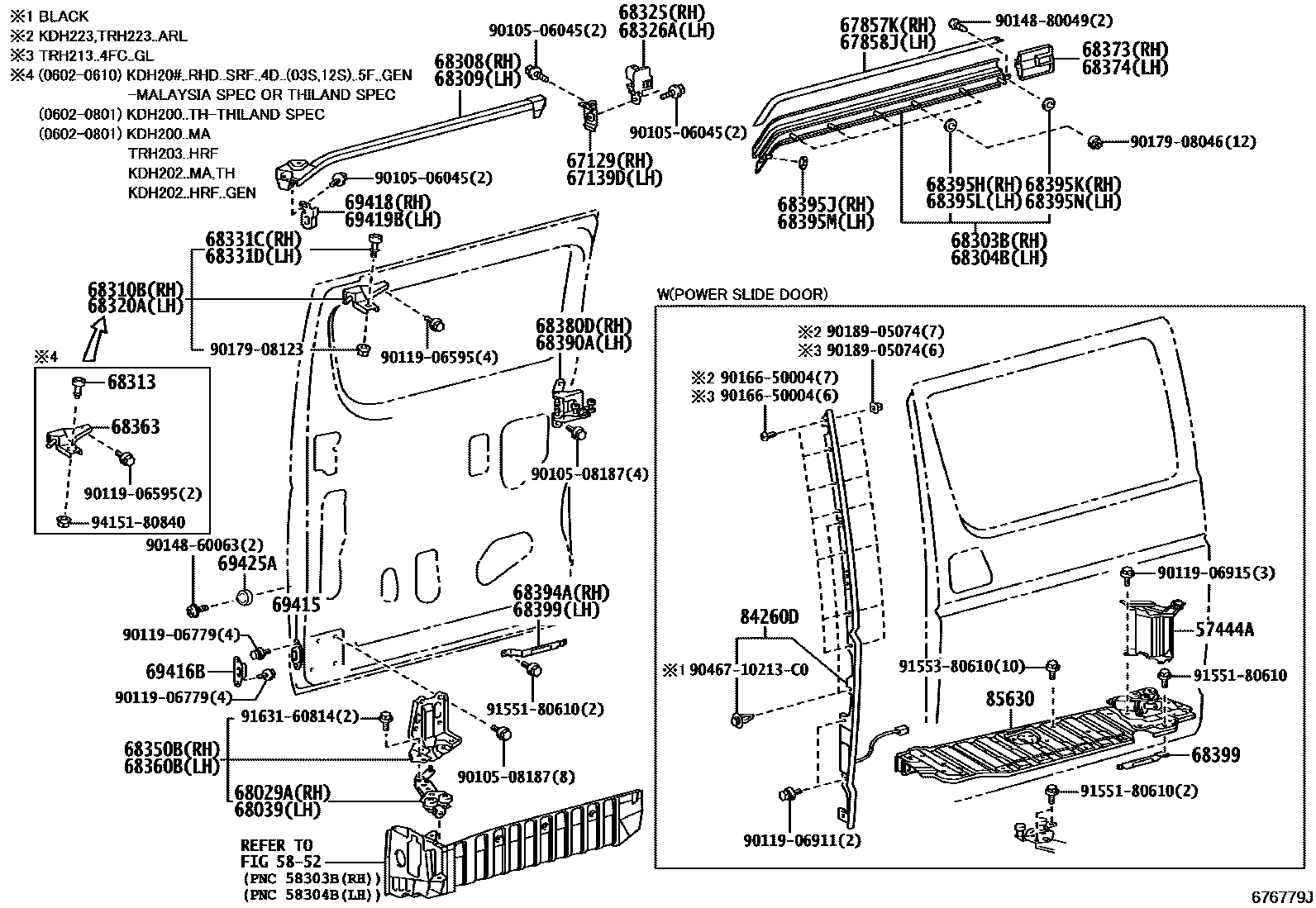

SLIDE ROLLER & RAIL

57444ASUPPORT, SIDE STEP, REAR LH

main57444-26020iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

main57444-26020iKDH223,TRH223..ARL201008-201312

*POSD(LH) & *ECS(LH)

main57444-26020iKDH223,TRH223..ARL201008-201312

*ECS(RH & LH) & *POSD(LH)

main57444-26020iKDH223..4FC200904-201008

SINGAPORE SPEC&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

5852

67129RETAINER, SLIDE DOOR OPEN STOP, RH

main67129-26060iTRH213..VN200501-201312

67139DRETAINER, SLIDE DOOR OPEN STOP, LH

main67139-26010iTRH201..ARL,SA;TRH201..SG..4FC;KDH200..LHD..5D..03S;KDH212,221,TRH221..5D;KDH202,TRH213..GL..TH;KDH202,TRH203..HRF..MA;KDH201,203,223..03S,06S,14S,16S;KDH220,TRH201200501-201402

67857KPROTECTOR, SLIDE DOOR PANEL

main67857-26050iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,203,212,222,LH20#,212,222,TRH203,223..LHD200501-201111

sub67857-26051

main67857-26051iTRH213..VN201112-201205

sub67857-26052

67858JPROTECTOR, SLIDE DOOR RAIL, LH

main67858-26010iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,203,220,221,223..03S,06S,14S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201111

sub67858-26011

main67858-26011iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201112-201402

sub67858-26012

68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main68029-26070iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-26050iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

main68039-26060iKDH223..4FC200904-201008

SINGAPORE SPEC&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main68039-26060iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

main68039-26060iKDH223,TRH223..ARL201008-201312

*POSD(LH) & *ECS(LH)

main68039-26060iKDH223,TRH223..ARL201008-201312

*ECS(RH & LH) & *POSD(LH)

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-26080iTRH213..VN200501-201205

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-26110iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-26030iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201310

sub68308-26031

main68308-26031iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03201311-201312

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-26030iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201310

sub68309-26031

main68309-26031iTRH201..SRF;KDH200..RHD..4D;KDH200,212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201311-201402

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-26040iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201209

sub68310-26050

main68310-26050iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03201210-201310

sub68310-26051

main68310-26051iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03201311-201312

68313ROLLER, SIDE DOOR, UPPER

main68331-26070iKDH200..MA;TRH203..HRF;KDH202..MA,TH;KDH202..HRF..GEN200602-200801

CKD PACKAGE(THAILAND)

sub68320-26030

main68331-26070iKDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

sub68320-26030

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-26020iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH202..RHD..SRF..GEN;KDH201,203,220,221,223..03S,06S,14S,16S;KDH200,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,0200501-201209

sub68320-26030

main68320-26020iKDH202..TH200709-201205

WITHOUT(CKD PACKAGE)

sub68320-26030

main68320-26030iKDH200,TRH203..MA;KDH202,203,TRH200..RHD..(06S,12S)200801-201310

sub68320-26031

main68320-26030iKDH200..TH200801-201205

CKD PACKAGE(THAILAND)

sub68320-26031

main68320-26031iTRH201..SRF;KDH200..RHD..4D;KDH200,212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201311-201402

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-26010iKDH220,TRH221..SP;KDH222,LH222,TRH223..LHD200501-201301

sub68325-26011

main68325-26011iKDH200..LHD..4D;KDH200,201,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH);KDH202,203,212,LH20#,212,TRH203,213..LHD..(03S,11S,12S,15S,16S)201302-201312

main68325-26030iTRH221;KDH220,221..5D;KDH222,223,LH222,TRH223..LHD200502-201212

sub68325-26031

main68325-26031iKDH222,LH222,TRH223..LHD;KDH220,221,223,TRH221..03S,12S201301-201312

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-26010iKDH200,212..LHD..5D;KDH201,203,TRH201..SRF..(03S,06S,14S);KDH200,202,212,LH20#,212,TRH203,213..RHD200501-201301

sub68326-26011

main68326-26011iKDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD201302-201401

main68326-26030iTRH221..SP;KDH220,221,223..STD;KDH222,LH222,TRH223..RHD200502-201212

sub68326-26031

main68326-26031iTRH221..SP;KDH220,221,223..STD;KDH222,LH222,TRH223..RHD201301-201402

68331CROLLER, SLIDE DOOR, RH

main68331-26010iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201209

sub68331-26071

main68331-26071iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03201210-201312

68331DROLLER, SLIDE DOOR, LH

main68331-26010iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH202..RHD..SRF..GEN;KDH201,203,220,221,223..03S,06S,14S,16S;KDH200,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,0200501-201210

sub68331-26071

main68331-26010iKDH202..TH200709-201205

WITHOUT(CKD PACKAGE)

sub68331-26071

main68331-26071iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,203,220,221,223..03S,06S,14S,16S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,10S,11S,14S,15S,16S200801-201402

main68331-26071iKDH200..TH200801-201205

CKD PACKAGE(THAILAND)

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-26080iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

sub68350-26081

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-26130iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

sub68360-26131

main68360-26140iKDH223..4FC200904-201008

SINGAPORE SPEC&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

sub68360-26141

main68360-26140iKDH223,TRH223..ARL201008-201312

*POSD(LH) & *ECS(LH)

sub68360-26141

main68360-26140iKDH223,TRH223..ARL201008-201312

*ECS(RH & LH) & *POSD(LH)

sub68360-26141

main68360-26140iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

sub68360-26141

68363BRACKET, SLIDE DOOR UPPER ROLLER

main68342-26010iKDH200..RHD..4D..5F..GEN200602-200610

CKD PACKAGE(MALAYSIA)

sub68342-26011

main68342-26010iKDH200..RHD..4D..5F..GEN200602-200801

CKD PACKAGE(THAILAND)

sub68342-26011

68373MOULDING, SLIDE RAIL END, RH

main68073-26010-A0iKDH212,TRH213..4FC200508-200709

WHITE PM.,2JM

main68073-26010-A0iKDH212,TRH213..4FC200508-200709

WHITE PM.,042 ,2JM

main68073-26010-A1iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D;KDH200,202,203,212,222,223,LH20#,212,222,TRH201,203,213,223..LHD..4D200508-201312

WHITE,058

main68073-26010-A2iKDH212,TRH213..4FC..GL200709-201312

WHITE PEARL CS.,070 ,2JZ

main68073-26010-A2iKDH212,TRH213..4FC..GL200709-201312

WHITE PEARL CS.,2JZ

main68073-26010-B0iKDH212,TRH213,223..(10S,11S,13S,16S)..GL..GEN200508-200709

DARK GRAY M.M.,1E2

main68073-26010-B1iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D..STD;KDH200,202,203,212,222,223,LH20#,212,222,TRH201,203,213,223..LHD..4D200508-201312

SILVER M.M.,1E7

main68073-26010-B1iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D..STD;KDH200,202,203,212,222,223,LH20#,212,222,TRH201,203,213,223..LHD..4D200508-201312

SILVER M.M.,1E7 ,2JN

main68073-26010-C0iKDH222,TRH223..LHD..GL200508-200710

NOBLE PEARL TONING,2JM ,2JZ

main68073-26010-C1iKDH201,TRH201..SP..06S;KDH212,TRH200,213..06S,11S200709-201312

BLACK MC.,209

main68073-26010-C2iKDH222,223,TRH223..LHD..GL200710-201312

NOBLE PEARL TONING2,2JZ

main68073-26010-F0iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D..STD;KDH200,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..4D..STD200508-201312

LT.YELLOW,599

main68073-26010-F1iTRH213..TH200810-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GOLD ME.,593

main68073-26010-F1iKDH222,223,TRH223..LHD..GL201008-201312

GOLD ME.,593

main68073-26010-F1iKDH222,223,TRH223..LHD..GL201008-201312

*ECS(RH & LH) & *POSD(LH),GOLD ME.,593

main68073-26010-G0iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D..STD;KDH200,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..4D..STD200508-201312

DK.GREEN M.M.,6S3

main68073-26010-J0iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D;KDH200,202,203,212,222,223,LH20#,212,222,TRH201,203,213,223..LHD..4D..(03S,09S,10S,12S,13S,15S,16S)200508-201312

DK.BLUE M.M.,8P4

main68373-26070-A0iKDH212,TRH213..5F200501-200507

WHITE PM.,2JM

sub68073-26010

main68373-26070-A0iTRH213..4FC200502-200507

WHITE PM.,042 ,2JM

sub68073-26010

main68373-26070-A1iTRH221;KDH200,220,LH200,TRH201..5D;KDH20#,212,222,LH20#,212,222,TRH20#,213,223..LHD..4D200501-200507

WHITE,058

sub68073-26010

main68373-26070-A1iKDH200,TRH201..SG..06S..GEN200507

RED(NEW ZEALAND),WHITE,3L5

sub68073-26010

main68373-26070-B0iKDH212,TRH213,223..(10S,11S,13S,16S)..GL..GEN200501-200507

DARK GRAY M.M.,1E2

sub68073-26010

main68373-26070-B1iTRH213,221;KDH200,220,LH200,TRH201..5D..STD;KDH20#,212,222,LH20#,212,222,TRH20#,223..LHD..4D200501-200507

SILVER M.M.,1E7 ,2JN

sub68073-26010

main68373-26070-B1iTRH213,221;KDH200,220,LH200,TRH201..5D..STD;KDH20#,212,222,LH20#,212,222,TRH20#,223..LHD..4D200501-200507

SILVER M.M.,1E7

sub68073-26010

main68373-26070-B1iKDH202,222,LH202..LHD..(15S,16S)..GEN200505

RED(GUATEMALA),SILVER M.M.,3L5

sub68073-26010

main68373-26070-C0iKDH222,TRH223..GL200501-200507

NOBLE PEARL TONING,2JM

sub68073-26010

main68373-26070-F0iTRH221;KDH200,220,LH200,TRH201..5D..STD;KDH20#,222,LH20#,212,222,TRH20#,223..LHD..4D..STD200501-200507

LT.YELLOW,599

sub68073-26010

main68373-26070-G0iTRH221;KDH200,220,LH200,TRH201..5D..STD;KDH20#,222,LH20#,212,222,TRH20#,223..LHD..4D..STD200501-200507

DK.GREEN M.M.,6S3

sub68073-26010

main68373-26070-J0iTRH221;KDH200,220,LH200,TRH201..5D;KDH20#,222,LH20#,212,222,TRH20#,213,223..LHD..4D..(03S,09S,10S,12S,15S,16S)200501-200507

DK.BLUE M.M.,8P4

sub68073-26010

68374MOULDING, SLIDE RAIL END, LH

main68074-26010-A0iKDH212,TRH213..GL..SA200610-200709

WHITE PM.,2JM

main68074-26010-A0iKDH212,TRH213..4FC200508-200709

WHITE PM.,042 ,2JM

main68074-26010-A1iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10S,12S,14S,15S,1200508-201402

WHITE,058

main68074-26010-A2iKDH212,TRH213..GL..SA200709-201312

WHITE PEARL CS.,2JZ

main68074-26010-A2iKDH212,TRH213..GL..SA200709-201312

WHITE PEARL CS.,070 ,2JZ

main68074-26010-B0iKDH212,TRH213..4FC200508-200709

DARK GRAY M.M.,1E2

main68074-26010-B1iKDH200,201..GL200508-201312

SILVER M.M.,1E7 ,2JN

main68074-26010-B1iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH200..RHD..STD;KDH201,220,221,223,TRH200..STD;KDH202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,10S,12S,14S,15S,16200508-201402

SILVER M.M.,1E7

main68074-26010-C0iKDH222,TRH223..SA200610-200710

NOBLE PEARL TONING,2JM ,2JZ

main68074-26010-C1iKDH222,TRH223..GL..SA200709-201312

NOBLE PEARL TONING2,2JZ

main68074-26010-C2iKDH212,TRH200,213..5D;KDH201,TRH201..SP..06S200709-201312

BLACK MC.,209

main68074-26010-F0iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD..(ARL,GEN,SA);KDH201,203,220,221,223,TRH200..(03S,06S,14S)..STD;KDH200,202,212,LH20#,212,222,TRH203,2200508-201402

LT.YELLOW,599

main68074-26010-F1iTRH213..TH201008-201312

*ECS(RH & LH) & *POSD(LH),GOLD ME.,593

main68074-26010-F1iTRH213..TH200810-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GOLD ME.,593

main68074-26010-F1iKDH222,TRH223..TH;KDH222,TRH223..GL..SA201008-201401

GOLD ME.,593

main68074-26010-G0iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD..(ARL,GEN,SA);KDH201,203,220,221,223,TRH200..(03S,06S,14S)..STD;KDH200,202,212,LH20#,212,222,TRH203,2200508-201402

DK.GREEN M.M.,6S3

main68074-26010-J0iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH202..RHD..STD;KDH201,203,220,221,223,TRH200..03S,06S,14S,16S;KDH200,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10200508-201402

DK.BLUE M.M.,8P4

main68374-26070-A1iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH20#,22#,LH20#,222,TRH203,223..RHD200501-200507

WHITE,058

sub68074-26010

main68374-26070-A1iKDH200,220,TRH201..RHD..SG200507

RED(NEW ZEALAND),WHITE,3L5

sub68074-26010

main68374-26070-B0iKDH202,TRH213..RHD..GL200501-200507

DARK GRAY M.M.,1E2

sub68074-26010

main68374-26070-B1iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH200..RHD..STD;KDH202,22#,LH20#,222,TRH203,213,223..RHD200501-200507

SILVER M.M.,1E7

sub68074-26010

main68374-26070-B1iKDH200..GL200501-200507

SILVER M.M.,1E7 ,2JN

sub68074-26010

main68374-26070-C0iTRH213..4FC200501-200502

NOBLE PEARL TONING,2JM

sub68074-26010

main68374-26070-F0iKDH222..RHD..GEN200501-200507

LT.YELLOW,599

sub68074-26010

main68374-26070-G0iKDH222..RHD..GEN200501-200507

DK.GREEN M.M.,6S3

sub68074-26010

main68374-26070-J0iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH202..RHD..STD;KDH200,22#,LH20#,222,TRH203,223..RHD200501-200507

DK.BLUE M.M.,8P4

sub68074-26010

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-26030iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-26040iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-26010iTRH213..VN200501-201205

68395HPACKING, SLIDE DOOR CENTER RAIL, RH NO.1

main68395-26030iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

T=1.5

68395JPACKING, SLIDE DOOR CENTER RAIL, RH NO.2

main68395-26040iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

T=1.0

68395KPACKING, SLIDE DOOR CENTER RAIL, RH NO.3

main68395-28070iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

T=0.5

68395LPACKING, SLIDE DOOR CENTER RAIL, LH NO.1

main68395-26030iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

T=1.5

68395MPACKING, SLIDE DOOR CENTER RAIL, LH NO.2

main68395-26040iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

T=1.0

68395NPACKING, SLIDE DOOR CENTER RAIL, LH NO.3

main68395-28070iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

T=0.5

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-26010iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

main68399-26020iKDH223..4FC200904-201008

SINGAPORE SPEC&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main68399-26020iKDH223,TRH223..ARL201008-201312

*POSD(LH) & *ECS(LH)

main68399-26020iKDH223,TRH223..ARL201008-201312

*ECS(RH & LH) & *POSD(LH)

main68399-26020iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-26020iKDH200,201,212,220,221,LH200,TRH200,201,213,221..5D200501-201402

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69416-26020iKDH200,201,212,220,221,LH200,TRH200,201,213,221..5D200501-201402

69418STOP, SLIDE DOOR OPEN

main69418-26010iTRH201,221..HRF;TRH213..GL..(GEN,TH);KDH200,TRH213..LHD..4D..STD..(GCC,GEN);KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223.200501-201205

sub69418-26011

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-26010iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

sub69419-26011

69425ACUSHION, SLIDE DOOR STOP

main69425-26010iKDH200,212,220,LH200,TRH201,213,221..5D200501-200604

sub69425-26011

main69425-26011iKDH200,201,212,220,221,LH200,TRH200,201,213,221..5D200605-201402

main69425-26011iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

main69425-26011iTRH213..TH201008-201312

*ECS(RH & LH) & *POSD(LH)

84260DSENSOR ASSY, POWER SLIDE DOOR

main84260-26030iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

main84260-26030iTRH213..TH201008-201312

*ECS(RH & LH) & *POSD(LH)

main84260-26040iKDH223..4FC200904-201008

SINGAPORE SPEC&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main84260-26040iKDH223,TRH223..ARL201008-201312

*POSD(LH) & *ECS(LH)

85630MOTOR ASSY, SLIDE DOOR

main85006-26030iKDH223,TRH223..ARL201008-201307

*POSD(LH) & *ECS(LH)

sub85006-26031

main85006-26030iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

sub85006-26031

main85006-26030iKDH223..4FC200904-201008

SINGAPORE SPEC&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

sub85006-26031

main85006-26030iKDH223,TRH223..ARL201008-201307

*ECS(RH & LH) & *POSD(LH)

sub85006-26031

main85006-26031iTRH213..TH201308-201312

*ECS(RH & LH) & *POSD(LH)

main85006-26031iTRH213..TH201308-201312

*POSD(LH) & *ECS(LH)

9010506045

main90105-06045

9010508187

main90105-08187

9011906595

main90119-06595

9011906779

main90119-06779

9011906911

main90119-06911

9011906915

main90119-06915

9014860063

main90148-60063

9014880049

main90148-80049

9016650004

main90166-50004

9017908046

main90179-08046

9017908123

main90179-08123

9018905074

main90189-05074

9046710213C0

main90467-10213C0

9155180610

main91551-80610

9155380610

main91553-80610

9163160814

main91631-60814

9415180840

main94151-80840

58 parts on this diagram · 1 diagram in section
